Crestron Retrofit Mounting Bracket for TSW-1070 Series - TSW-1070-RMB-3
Crestron Retrofit Mounting Bracket for TSW-1070 Series - TSW-1070-RMB-3 is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Crestron Retrofit Mounting Bracket for TSW-1070 Series - TSW-1070-R...
Product Overview

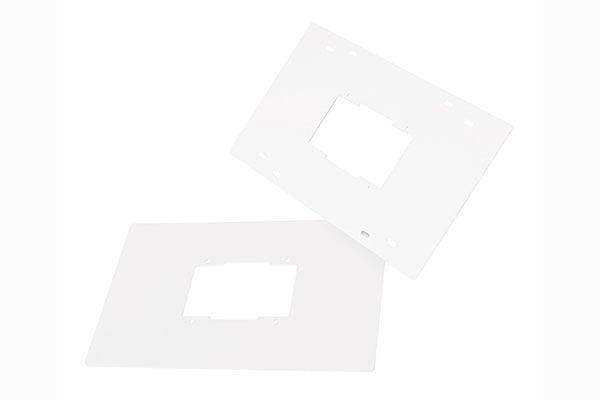

The Crestron TSW-1070-RMB-3 is a retrofit mounting bracket that allows an older TPS-6L touch screen to be upgraded to a current-generation TSW-1070 or TSS-1070 series touch screen. It installs into the existing back box or wall cutout using the provided mounting hardware, without requiring any patching or tearing of the surface. Constructed from metal mounting brackets and a cover plate, it preserves the existing wall opening for a fast, clean upgrade.
Product Description
Replacing an aging touch screen typically means dealing with a wall opening sized for the old device, which can require drywall patching and repainting. The TSW-1070-RMB-3 eliminates that work by adapting an existing TPS-6L installation to accept a modern Crestron TSW-1070 or TSS-1070 series touch screen. The bracket mounts over the existing back box or wall cutout using the included hardware, so the upgrade can be completed without patching or tearing the surface. This keeps installation time and disruption to a minimum, which is especially valuable in occupied conference rooms and corridors. The bracket is built from metal mounting brackets and a cover plate for durable, secure support of the new touch screen. Crestron offers companion retrofit solutions for other legacy devices, including the TSW-770/1070-RMB-1 (converts APAD, CT-1000, LC-1000, or TPS-2000L) and the TSW-770/1070-RMB-2 (converts TPS-4L). With a TSW-1070 installed, the assembly measures 5.87 in. (149 mm) high by 9.46 in. (240 mm) wide by 0.72 in. (18 mm) deep.
Key Features
- TPS-6L retrofit — Upgrades an older TPS-6L touch screen to a current TSW-1070 or TSS-1070 series device.
- No patching required — Installs over the existing back box or wall cutout without tearing or patching the surface.
- Included hardware — Ships with the mounting hardware needed for installation.
- Durable construction — Metal mounting brackets and cover plate provide secure support.
- Fast upgrade — Minimizes downtime and disruption in occupied spaces.
Technical Specifications
| Model | TSW-1070-RMB-3 |
| Function | Retrofit mounting bracket; converts a TPS-6L installation to a TSW-1070 or TSS-1070 series touch screen |
| Compatible Touch Screens | Crestron TSW-1070 and TSS-1070 series |
| Material | Metal mounting brackets and cover plate |
| Mounting | Mounts over an existing back box or wall cutout using provided hardware |
| Dimensions (with TSW-1070) | Height 5.87 in. (149 mm); Width 9.46 in. (240 mm); Depth 0.72 in. (18 mm) |
