Crestron PW-5430DUS High-Efficiency Power Pack
Product Overview

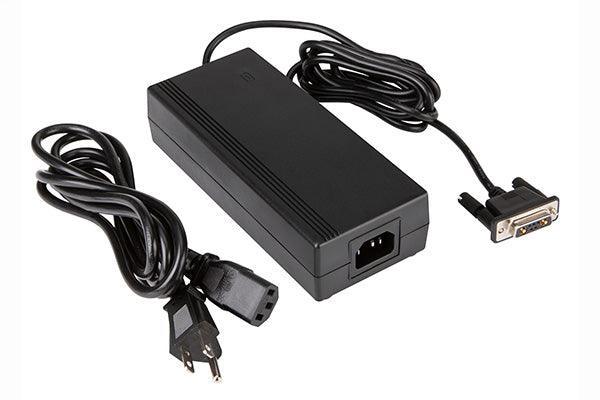

The Crestron PW-5430DUS is a high-efficiency power pack that supplies regulated 54VDC power to compatible DigitalMedia blades and presentation systems. It is used with Crestron DMB-4K-I-C and DMB-4K-O-C blades and with DMPS3-4K-350-C and DMPS3-4K-250-C presentation systems to provide PoDM and PoDM+ power to DM 8G+ ports. The desktop unit connects through an attached 6 ft cable with a combo D-Sub 7W2 connector. A green LED indicates power and operation.
Product Description
The PW-5430DUS delivers 2.96 A at 54VDC regulated to drive Power over DigitalMedia on supported equipment. When paired with a DMB-4K blade, it can provide PoDM power (15.4 watts) to all eight DM 8G+ ports, or PoDM+ power (30 watts) to a maximum of four DM 8G+ ports; for blade applications mixing PoDM and PoDM+, total delivered power should not exceed 120 watts. For applications requiring PoDM+ to all eight blade ports, Crestron specifies the DM-PSU-3X8-RPS power supply instead. When used with a DMPS3-4K-350-C or DMPS3-4K-250-C presentation system, the PW-5430DUS provides PoDM and PoDM+ power to each DM 8G+ input and output port, and PoE power (15.4 watts) to the CONTROL SUBNET port. The unit accepts 100-240VAC at 50/60 Hz through an IEC 60320 C14 inlet and ships with a removable power cord. It is housed in a black plastic desktop enclosure and is UL listed for US and Canada, CE, IC, and FCC Part 15 Class B compliant.
Key Features
- Regulated 54VDC output — Delivers 2.96 A at 54 Volts DC over an attached 6 ft cable.
- PoDM and PoDM+ sourcing — Supplies 15.4 W PoDM or 30 W PoDM+ to DM 8G+ ports on supported equipment.
- Blade and DMPS support — Works with DMB-4K-I-C and DMB-4K-O-C blades and DMPS3-4K-350-C and DMPS3-4K-250-C systems.
- CONTROL SUBNET PoE — Provides 15.4 W PoE to the control subnet port on supported presentation systems.
- Universal AC input — Accepts 100-240VAC, 50/60 Hz via an IEC 60320 C14 inlet with included cord.
- Combo D-Sub connector — Attached cable terminates in a combo D-Sub 7W2 female connector.
- Power status LED — A green indicator confirms the pack is powered and functioning.
- Compact desktop enclosure — Black plastic housing for tabletop or shelf placement.
Typical Applications
- DigitalMedia matrix systems — Powering PoDM on DMB-4K input and output blades.
- Presentation system rooms — Supplying DM 8G+ port power for DMPS3-4K-350-C and 250-C systems.
- Conference room AV — Driving remote DM endpoints over a single cable.
- Equipment rack deployments — Dedicated PoDM sourcing for DigitalMedia distribution.
Technical Specifications
| Model | PW-5430DUS |
| DC Output | 2.96 A @ 54VDC regulated, attached 6 ft (1.8 m) cable, combo D-Sub 7W2 female connector |
| PoDM / PoDM+ | 15.4 W (PoDM) / 30 W (PoDM+) per DM 8G+ port; total not to exceed 120 W on blades |
| AC Input | 2.5 A @ 100-240VAC, 50/60 Hz, IEC 60320 C14 inlet |
| Indicator | (1) green power LED |
| Enclosure | Black plastic, desktop |
| Dimensions | 1.58 in. H x 2.88 in. W x 6.70 in. D |
| Operating Temperature | 32° to 104°F (0° to 40°C) |
| Weight | 1.4 lb (0.7 kg) |
| Compliance | UL listed for US & Canada, CE, IC, FCC Part 15 Class B |
Frequently Asked Questions
Which devices does the PW-5430DUS support? It is designed for Crestron DMB-4K-I-C and DMB-4K-O-C blades and for DMPS3-4K-350-C and DMPS3-4K-250-C presentation systems.
Can it provide PoDM+ to all eight blade ports? No. On a blade it provides PoDM+ (30 W) to a maximum of four DM 8G+ ports. For PoDM+ on all eight ports, Crestron specifies the DM-PSU-3X8-RPS power supply.
Is a power cord included? Yes. A removable power cord is included for the IEC 60320 C14 inlet, accepting 100-240VAC at 50/60 Hz.
What connector does the output cable use? The attached 6 ft cable terminates in a combo D-Sub 7W2 female connector providing regulated 54VDC.
What warranty and support apply? This product is covered by the Crestron limited warranty (3-year limited). For compatibility verification, Contact Creation Networks.
