Crestron Preconstruction Mounting Kit (Portrait) - TSW-UMB-70-PMK
Product Overview

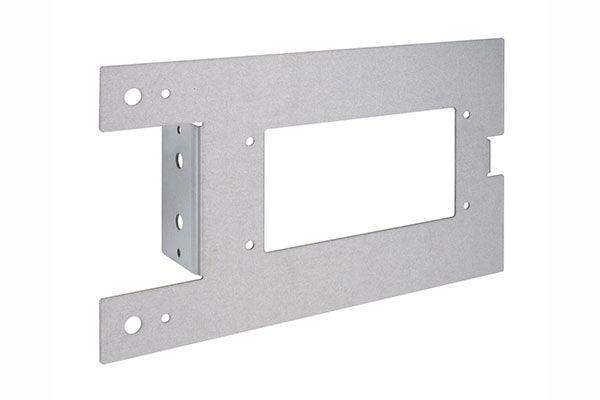

The Crestron TSW-UMB-70-PMK is a portrait-oriented preconstruction mounting kit that provides a complete preconstruction mounting solution for TSW-570, TSW-770, TSW-1070, TSS-770, and TSS-1070 series touch screens. The metal bracket fastens to the left or right-hand stud of a framed wall prior to installing drywall, allowing the touch screen location to be established during the rough-in phase. It is designed to be used together with the TSW-UMB-70 universal mounting bracket, which is sold separately. This approach delivers a clean, flush installation in new construction.
Product Description
The TSW-UMB-70-PMK simplifies new-construction and renovation projects by letting installers fix the touch screen mounting position before drywall is hung. The kit consists of a metal bracket that attaches to a wall stud using standard drywall nails or screws, which are not included. Once drywall is installed, the TSW-UMB-70 universal mounting bracket and the touch screen mount into the prepared opening for a finished, professional result. The bracket is intended for portrait orientation and supports the TSW-570, TSW-770, and TSW-1070 series, as well as the TSS-770 and TSS-1070 room scheduling touch screens. Note that TSW-570 series touch screens ship with one TSW-UMB-70-PMK included. When planning the installation, allow adequate air gap in the wall cavity above and below the touch screen for heat dissipation. For project quantities or compatibility questions, contact Creation Networks.
Key Features
- Preconstruction mounting solution — Establishes the touch screen location before drywall is installed.
- Portrait orientation — Configured for portrait-mounted TSW-70 series touch screens.
- Broad model support — Compatible with TSW-570, TSW-770, TSW-1070, TSS-770, and TSS-1070 series.
- Stud-mount design — Fastens to the left or right-hand stud of a framed wall.
- Durable metal bracket — Metal construction for a secure, long-lasting mount.
- Works with TSW-UMB-70 — Pairs with the TSW-UMB-70 universal mounting bracket, sold separately.
Technical Specifications
| Material | Metal bracket |
| Mounting | Fastens to left or right-hand stud of a framed wall prior to installing drywall; universal mounting bracket sold separately |
| Orientation | Portrait |
| Compatible Touch Screens | TSW-570, TSW-770, TSW-1070, TSS-770, TSS-1070 series |
| Height | 4.50 in (114 mm) |
| Width | 7.50 in (191 mm) |
| Depth | 1.50 in (38 mm) |
