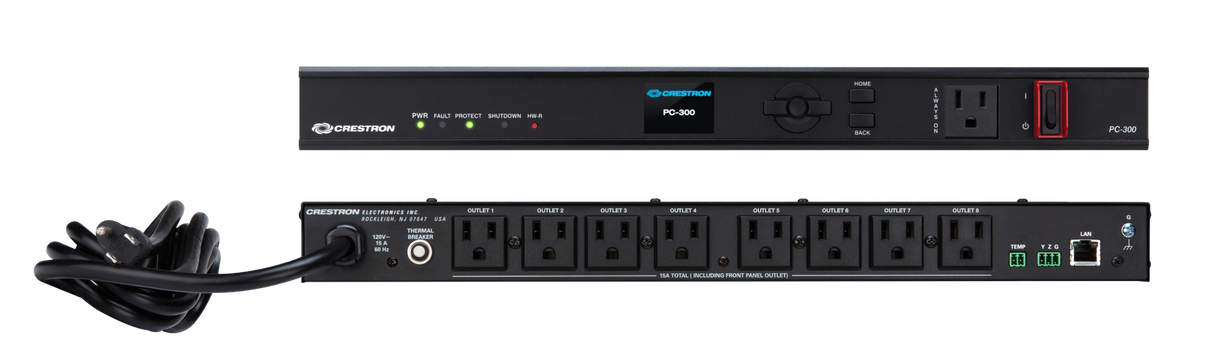

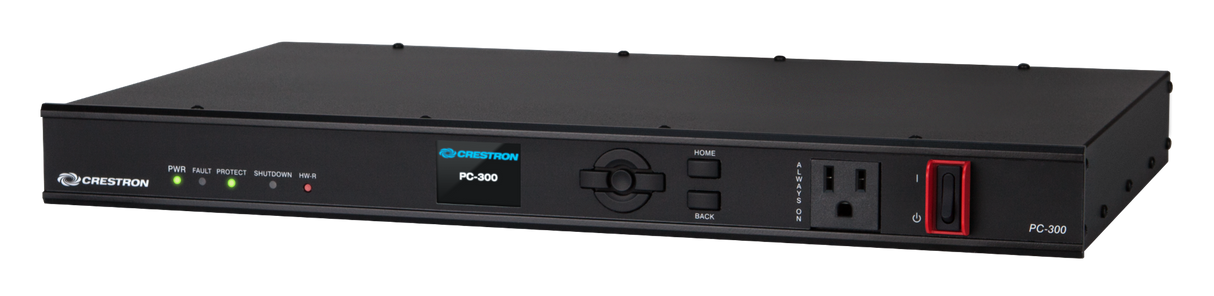

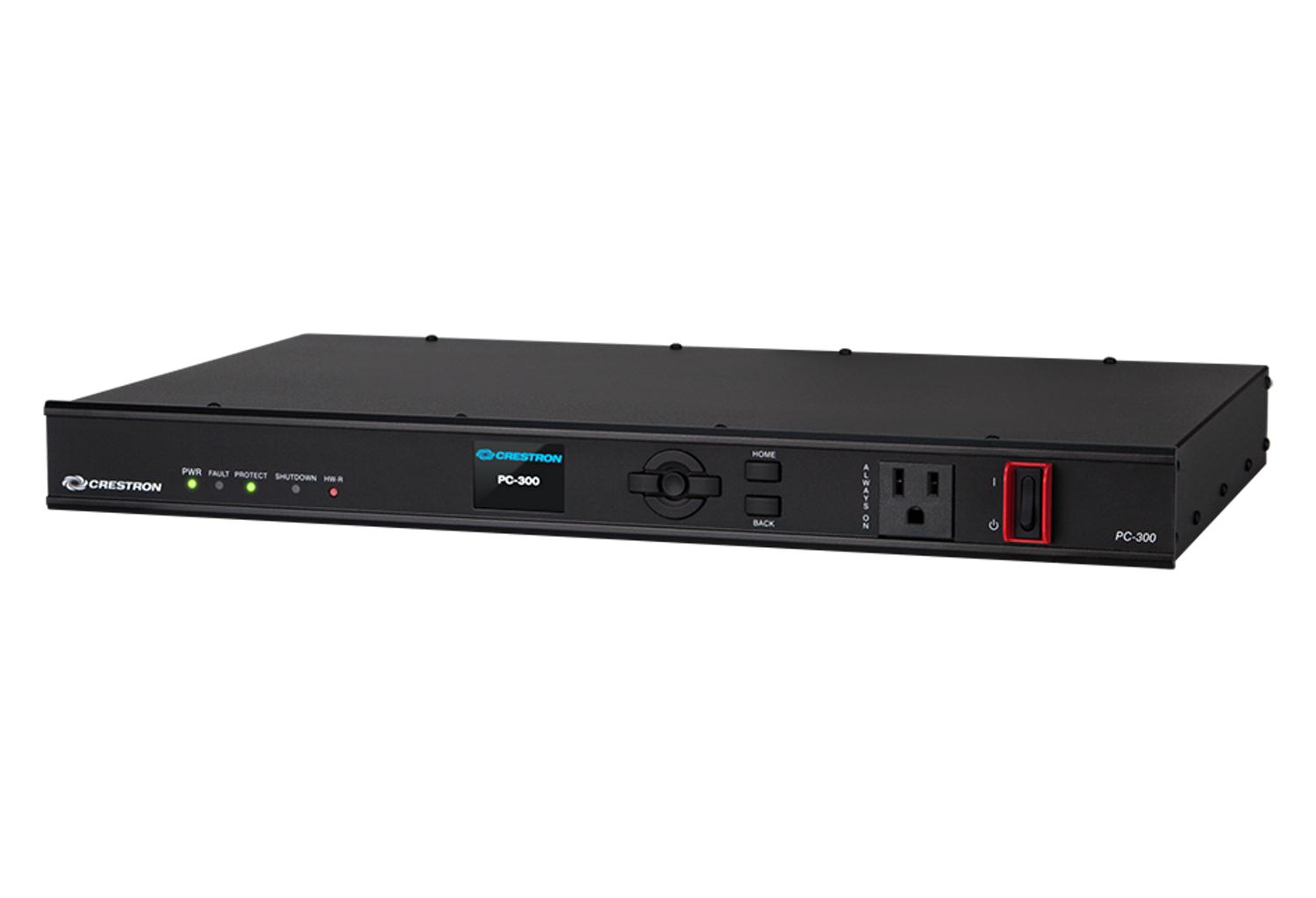

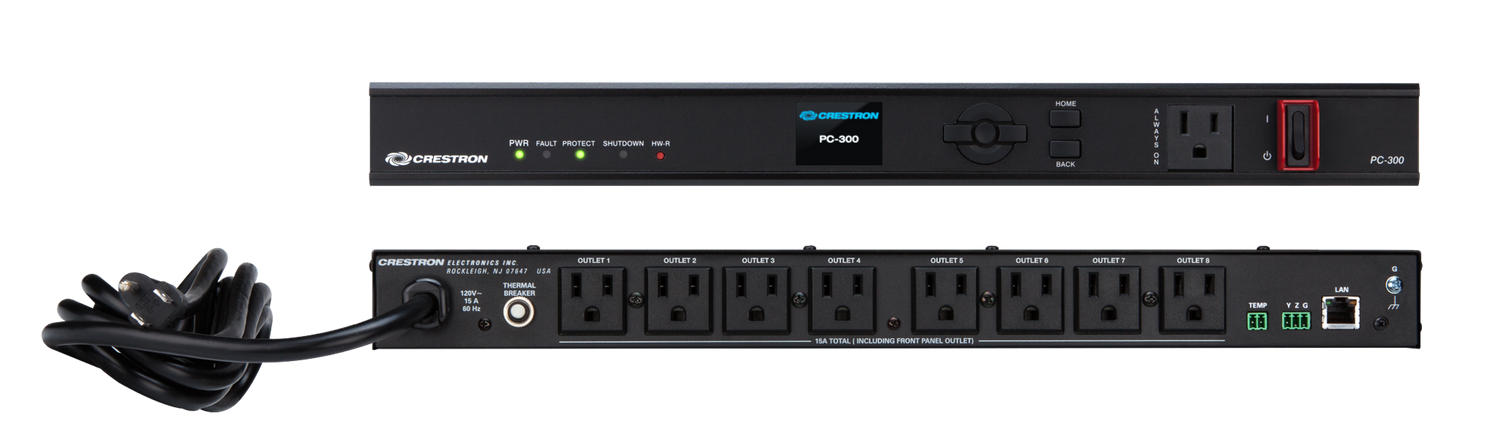

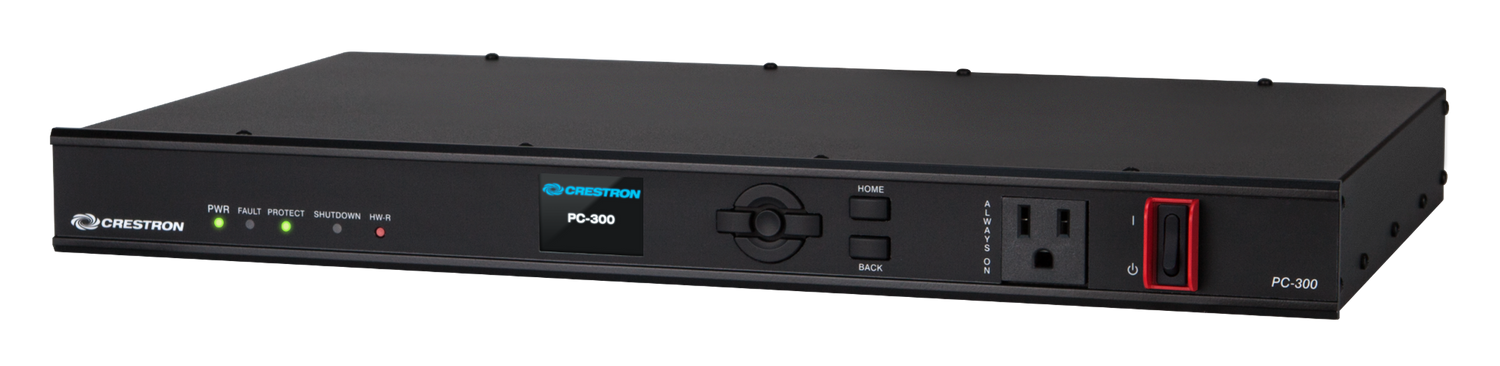

Crestron PC-300 – Energy Monitoring Power Conditioner and Controller 300

Product Overview

The Crestron PC-300 is a 1U rack-mount networked power conditioner and controller providing 8 individually controlled AC outlets with surge protection, power filtering, energy monitoring, and remote management. It is designed for commercial AV equipment racks where IT and AV managers need outlet-level power control and real-time energy data integrated into a Crestron control system. Facilities managers and AV integrators use it to automate device power sequencing and monitor consumption across room or building deployments.

Product Description

The PC-300 connects to the network via 100 Mbps Ethernet and integrates with Crestron control processors, XiO Cloud, and web browser interfaces for remote management and automation. It provides 2,000 joules of surge energy dissipation per mode and a 370 V clamping voltage to protect connected AV equipment. Voltage and current sensing at 1% accuracy enables real-time energy monitoring per the entire unit. The 15A total capacity at 120 VAC supplies sufficient power for standard AV rack components, and each outlet is independently switched via Crestron control or the web interface.

Key Features

• 8 individually controlled AC outlets, rear-mounted
• 1U rack-mount form factor, 19 in. rack compatible
• 2,000 joule surge energy dissipation per mode, 370 V clamping voltage
• Real-time voltage sensing: 90–145V RMS ±1% accuracy
• Real-time current sensing: 0.1–15A RMS ±1% accuracy
• 100 Mbps Ethernet: TCP/IP, UDP/IP, CIP, DHCP, SSL, TLS, SNMP, IPv4/IPv6
• XiO Cloud compatible for centralized remote management
• Web browser configuration and control interface
• Total maximum output current: 15A @ 120 VAC
• UL 1449 Type 3 Listed surge protection

Typical Applications

• AV equipment rack power management in corporate conference rooms and boardrooms
• Remote outlet switching and power sequencing in Crestron-controlled rooms
• Energy monitoring for sustainability reporting and building management integration
• Protection of AV infrastructure from power surges and line noise
• IT-managed AV rack power control across multi-room or campus deployments via XiO Cloud

Technical Specifications

• Model: PC-300
• Form Factor: 1U rack mount
• Outlets: 8 rear AC outlets, individually controlled
• Input Voltage: 120 VAC
• Max Output Current: 15A total; 15A per outlet
• Surge Energy Dissipation: 2,000 joules per mode
• Clamping Voltage: 370 V
• Voltage Sensing: 90–145V RMS ±1%
• Current Sensing: 0.1–15A RMS ±1%
• Ethernet: 100 Mbps (TCP/IP, UDP/IP, CIP, DHCP, SSL, TLS, SNMP, HTTPS)
• Dimensions: H 1.73 in. x W 17.32 in. x D 10.56 in. (44 x 440 x 269 mm); 19.00 in. (483 mm) width with rack ears
• Weight: 8.2 lb (3.8 kg)
• Certifications: UL 1449 Type 3 Listed

Frequently Asked Questions

Q: Can the PC-300 outlets be controlled individually via Crestron programming?
A: Yes. Each of the 8 outlets is independently switchable and can be assigned to Crestron control system signals for automated power sequencing, scheduled on/off, or manual control through a touch screen or remote interface.

Q: What is the difference between the PC-200 and PC-300?
A: The PC-300 provides more outlets, higher surge protection energy dissipation, and broader network management capabilities than the PC-200. The PC-300 is suited for larger AV racks requiring more outlet capacity and tighter energy monitoring requirements.

Q: Does the PC-300 provide power conditioning for audio noise reduction?
A: The PC-300 includes AC line noise filtering and surge protection. For detailed EMI/RFI filtration specifications, refer to Crestron’s PC-300 product documentation, as attenuation characteristics vary by frequency.
