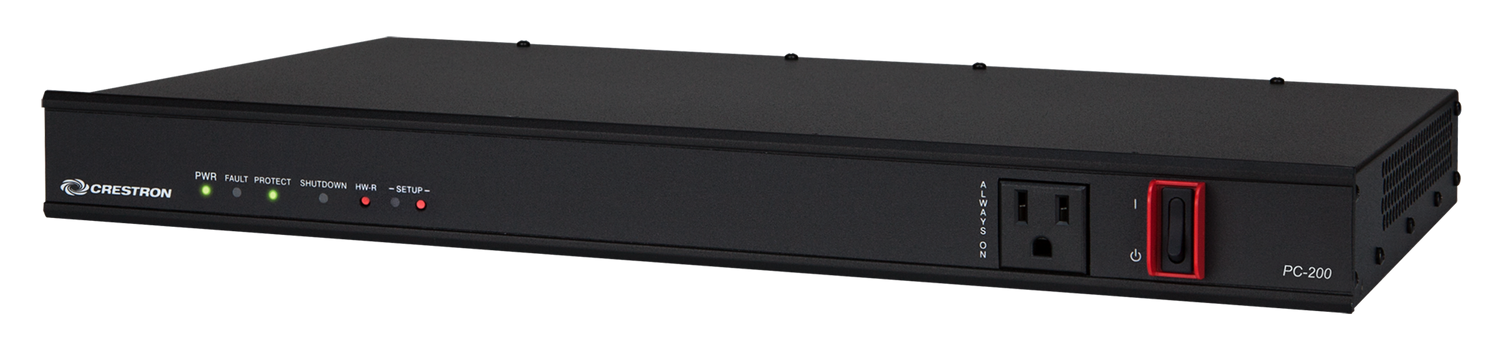

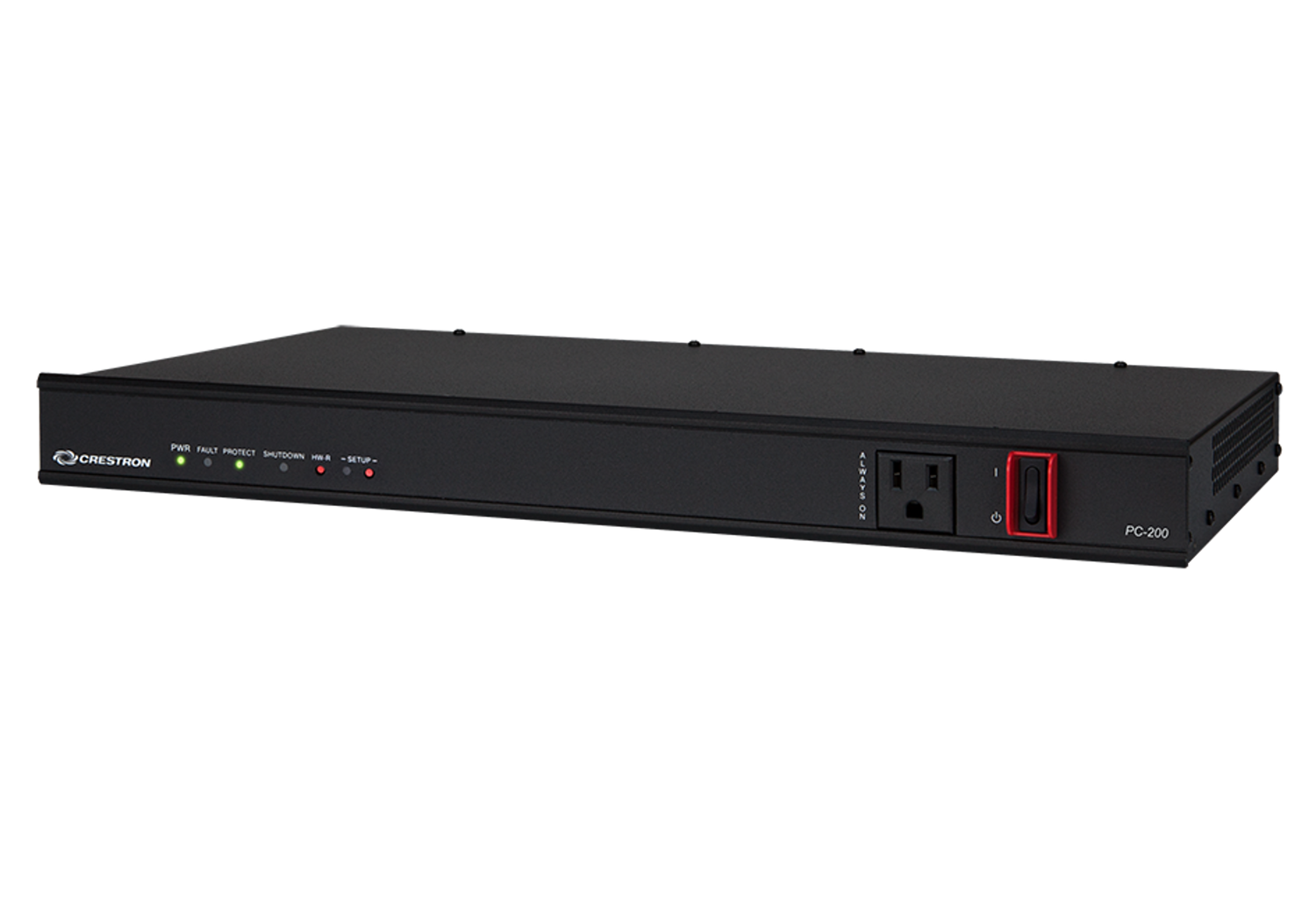

Crestron PC-200 – Energy Monitoring Power Conditioner and Controller

Product Overview

The Crestron PC-200 is a 1U rack-mount networked power conditioner and controller providing 8 switched rear outlets and 1 unswitched front outlet, with energy monitoring, surge protection, and EMI/RFI filtering. Designed for commercial AV equipment racks, it enables remote per-bank power switching via Cresnet or Ethernet, real-time voltage and current monitoring, and automatic over/under-voltage protection. It connects to any Crestron control system for managed power control alongside AV equipment.

Product Description

The PC-200 accepts 15A @ 120 VAC and distributes power across 8 rear NEMA 5-15R outlets organized in 4 banks of 2, plus 1 unswitched front outlet. Surge protection operates at 2000 Joules per mode (L-G, L-N, N-G) with a 370V clamping voltage and 1 ns response. EMI/RFI filtering provides 40 dB attenuation at 100 kHz and 50 dB at 300 kHz. Voltage sensing covers 90-160V rms (±1%) with adjustable under-voltage (90-110V) and over-voltage (130-147V) cutoffs. Current monitoring covers 0.4-15A rms (±1%). Network control is via 10/100 Mbps Ethernet with TCP/IP, CIP, DHCP, SSL, TLS, and a web browser setup interface.

Key Features

• 8 switched rear NEMA 5-15R outlets in 4 banks of 2; 1 unswitched front outlet
• 15A @ 120 VAC input; 1U 19 in. rack-mount form factor
• Surge protection: 2000 Joules/mode (L-G, L-N, N-G); 370V clamping; 1 ns response
• EMI/RFI filtering: 40 dB @ 100 kHz, 50 dB @ 300 kHz (50Ω load)
• Voltage sensing 90-160V rms ±1%; adjustable under/over-voltage cutoffs
• Current sensing 0.4-15A rms ±1% for real-time power monitoring
• 10/100 Mbps Ethernet; TCP/IP, CIP, DHCP, SSL, TLS; web browser setup
• Certifications: UL 1449 Type 3 Listed

Typical Applications

• Conference room AV equipment rack power distribution with bank switching
• Corporate AV system power management with Crestron processor integration
• Education and government AV rack power sequencing and protection
• Broadcast or studio rack power conditioning with surge protection
• Network operations center or command center equipment power monitoring

Technical Specifications

• Model: PC-200
• Weight: 8.2 lb (3.8 kg)
• Dimensions (H x W x D): 1.73 in. x 17.32 in. x 10.56 in. (44 mm x 440 mm x 269 mm); 19.00 in. with rack ears
• Power Input: 15A @ 120 VAC, 60 Hz
• Max Output Current: 15A total; 15A per outlet/bank combined

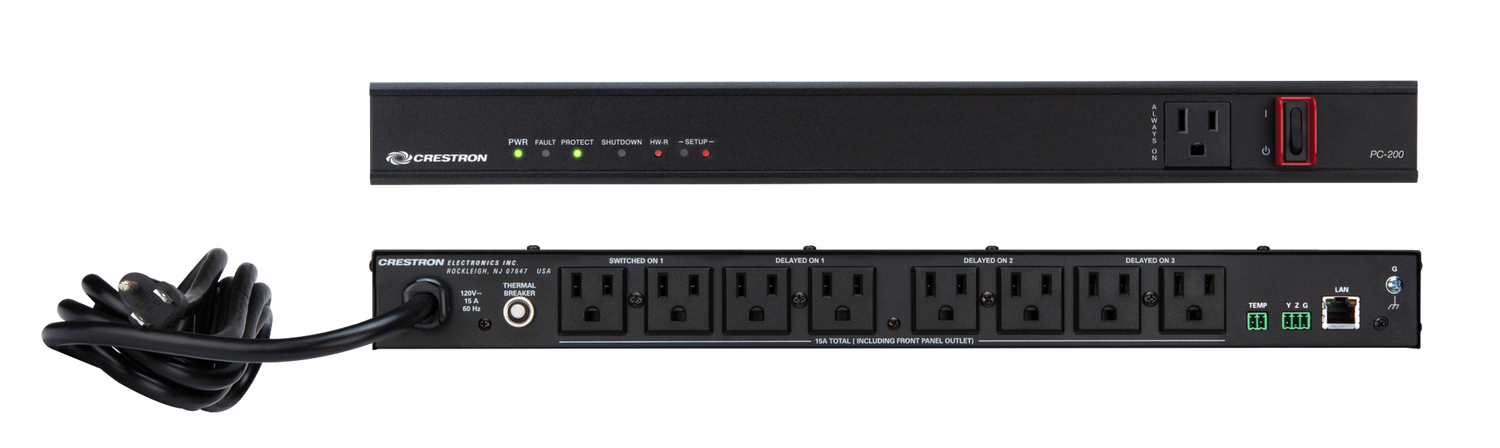

• Outlets: 8 switched rear (4 banks of 2) + 1 unswitched front; all NEMA 5-15R
• Surge Protection: 2000 Joules per mode (L-G, L-N, N-G); 370V clamping; 1 ns response
• EMI/RFI Filtering: 40 dB @ 100 kHz, 50 dB @ 300 kHz (50Ω load)
• Voltage Sensing: 90-160V rms ±1%; under-voltage cutoff 90-110V; over-voltage cutoff 130-147V
• Current Sensing: 0.4-15A rms ±1%
• Network: 10/100 Mbps Ethernet; TCP/IP, UDP/IP, CIP, DHCP, SSL, TLS; web browser setup
• Cresnet: Secondary mode; 0W Cresnet power usage
• Mounting: 1U 19 in. rack mount
• Operating Temperature: 32 to 113°F (0 to 45°C)
• Certifications: UL 1449 Type 3 Listed

Frequently Asked Questions

Q: How many outlets can the PC-200 switch independently?
A: The PC-200 switches 8 rear outlets in 4 banks of 2, meaning each bank of 2 outlets switches together. The 1 front outlet is unswitched and always on.

Q: Can the PC-200 be controlled by a Crestron processor?
A: Yes. The PC-200 connects via Cresnet (secondary mode) and Ethernet (CIP over TCP/IP), allowing a Crestron processor to control outlet switching and read power monitoring data.

Q: Does the PC-200 continue to provide power if its surge protection is compromised?
A: Crestron recommends replacing the unit if the surge protection threshold is exceeded. Some models will notify via network when protection is degraded. Consult the product documentation for specific behavior.
