Crestron MC4-R-TSR-W PACKAGE KIT – 4-Series Control System with TSR-310 Remote, White

Product Overview

The Crestron MC4-R-TSR-W PACKAGE KIT bundles the MC4-R 4-Series Control System with the TSR-310-W handheld touch screen remote in a single purchase. This combination is designed for Crestron Home OS residential deployments where both a centralized control processor and a portable handheld remote are required. It is an efficient procurement option for integrators equipping single-room or whole-home Crestron installations.

Product Description

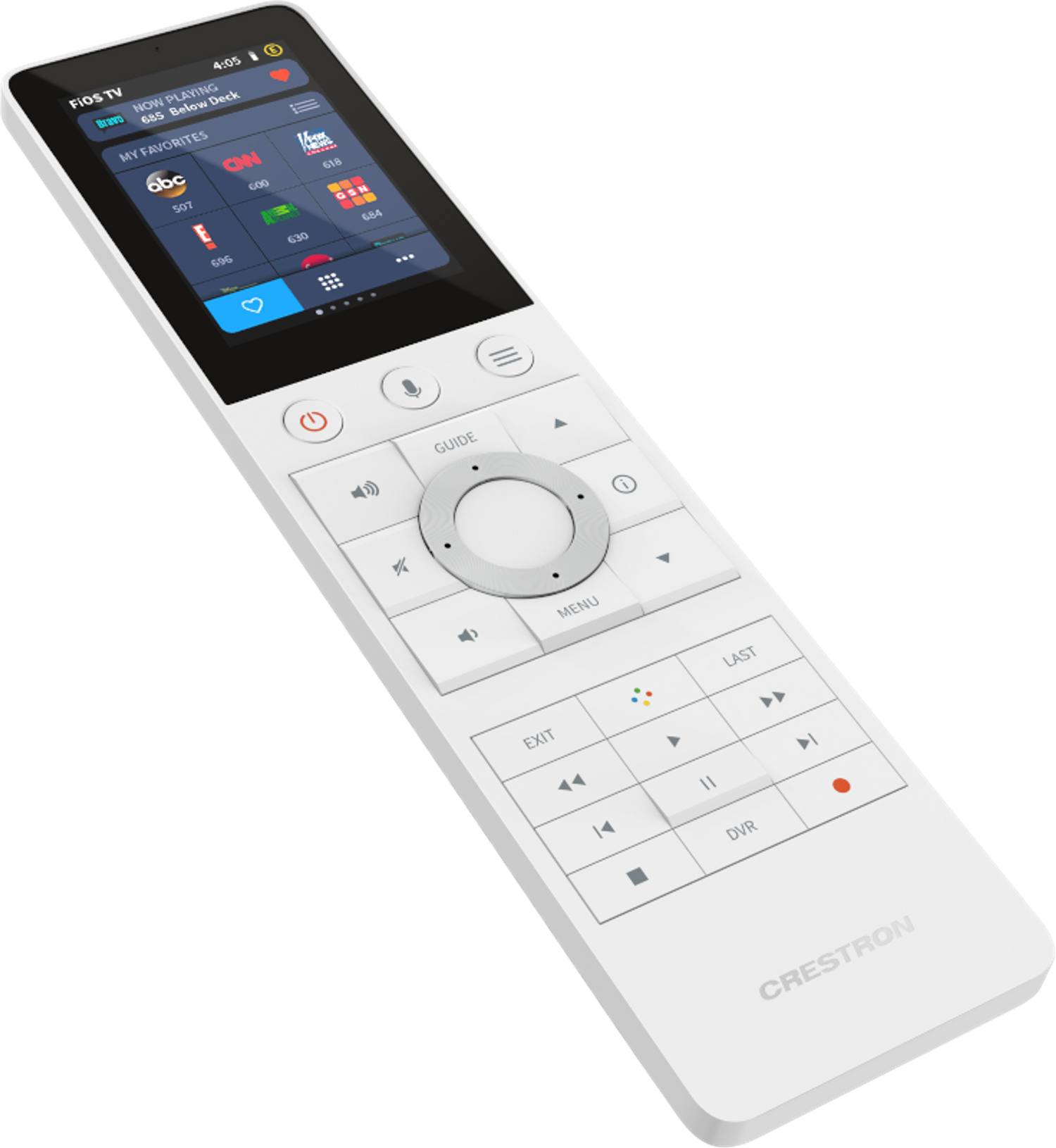

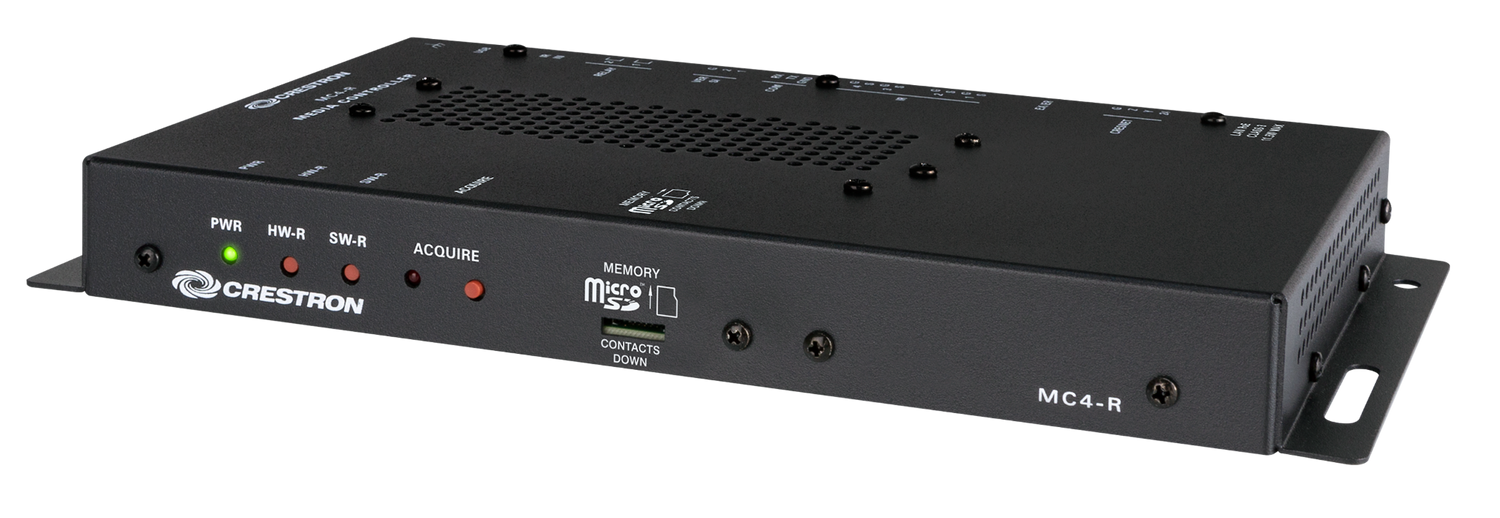

The MC4-R is a PoE-powered 4-Series control processor running Crestron Home OS, supporting infiNET EX wireless for device communication, Cresnet for wired peripherals, RS-232, IR outputs, relays, and Versiport I/O. The TSR-310-W is a 3.7 in. handheld touch screen remote with rechargeable battery, providing portable control throughout the home. Together, the package provides both the automation brain and a user-friendly remote interface for Crestron Home systems.

Key Features

• Includes MC4-R 4-Series Control Processor and TSR-310-W handheld remote
• MC4-R runs Crestron Home OS for residential automation
• PoE-powered MC4-R (IEEE 802.3at Type 1/802.3af Class 0, 12.95 W max)
• infiNET EX 2-way 2.4 GHz wireless for peripherals up to 50 ft range
• Cresnet server mode for wired device distribution
• 1x RS-232, 4x IR outputs, 2x relays, 2x Versiport I/O on MC4-R
• 2 GB SDRAM, 8 GB Flash, microSD expansion up to 32 GB
• BACnet/IP support for building automation integration (up to 500 objects)

Typical Applications

• Whole-home Crestron Home OS system with handheld remote for AV, lighting, and climate
• Home theater control system with portable remote operation
• High-end residential AV installations requiring a packaged control + remote solution
• Multi-zone audio and lighting control with infiNET EX wireless keypads
• Residential retrofit projects where PoE simplifies installation

Technical Specifications

• Model: MC4-R-TSR-W PACKAGE KIT
• Includes: MC4-R control processor + TSR-310-W handheld remote
• MC4-R Weight: 1.0 lb (454 g)
• MC4-R Dimensions (H x W x D): 1.07 in. x 10.15 in. x 5.11 in. (27 mm x 258 mm x 130 mm)
• MC4-R Power: PoE IEEE 802.3at Type 1 / 802.3af Class 0 (12.95 W max); 7 W typical
• MC4-R Memory: 2 GB SDRAM; 8 GB Flash; microSD up to 32 GB
• MC4-R Ethernet: 100/1000 Mbps; TCP/IP, UDP/IP, CIP, DHCP, SSL, TLS, SSH, SFTP, IPv4/IPv6
• MC4-R Wireless: infiNET EX 2-way 2.4 GHz 802.15.4, 50 ft range
• MC4-R Serial/IR/I/O: 1x RS-232; 4x IR outputs (1.2 MHz max); 2x relays (1A, 30 VAC/VDC); 2x Versiports
• MC4-R Operating Temperature: 41 to 113°F (5 to 45°C)
• MC4-R Certifications: Intertek Listed (US & Canada), IC, FCC Part 15 Class B

Frequently Asked Questions

Q: What is included in the MC4-R-TSR-W PACKAGE KIT?
A: The kit includes the MC4-R 4-Series Control Processor and the TSR-310-W 3.7 in. handheld touch screen remote. It provides both the central automation processor and a portable user interface in one package.

Q: Does the MC4-R in this package support Crestron commercial programming, or only Crestron Home?
A: The MC4-R in this kit runs Crestron Home OS. For full SIMPL/4-Series commercial programming, the CP4 or MC4-I processors are more appropriate.

Q: How does the TSR-310-W communicate with the MC4-R?
A: The TSR-310-W communicates wirelessly over Wi-Fi to the MC4-R processor on the same local network. Both devices must be connected to the same Crestron Home system.
