Crestron MC4-R-HR-CV-MINI – 4-Series Control System with HR-CV-MINI Remote Kit

Product Overview

The Crestron MC4-R-HR-CV-MINI Package Kit pairs the MC4-R 4-Series control processor with the HR-CV-MINI compact handheld remote for Crestron Home OS. Designed for residential installations, this kit provides a complete control foundation for single-room systems, small to medium-sized homes, and MDU deployments.

Product Description

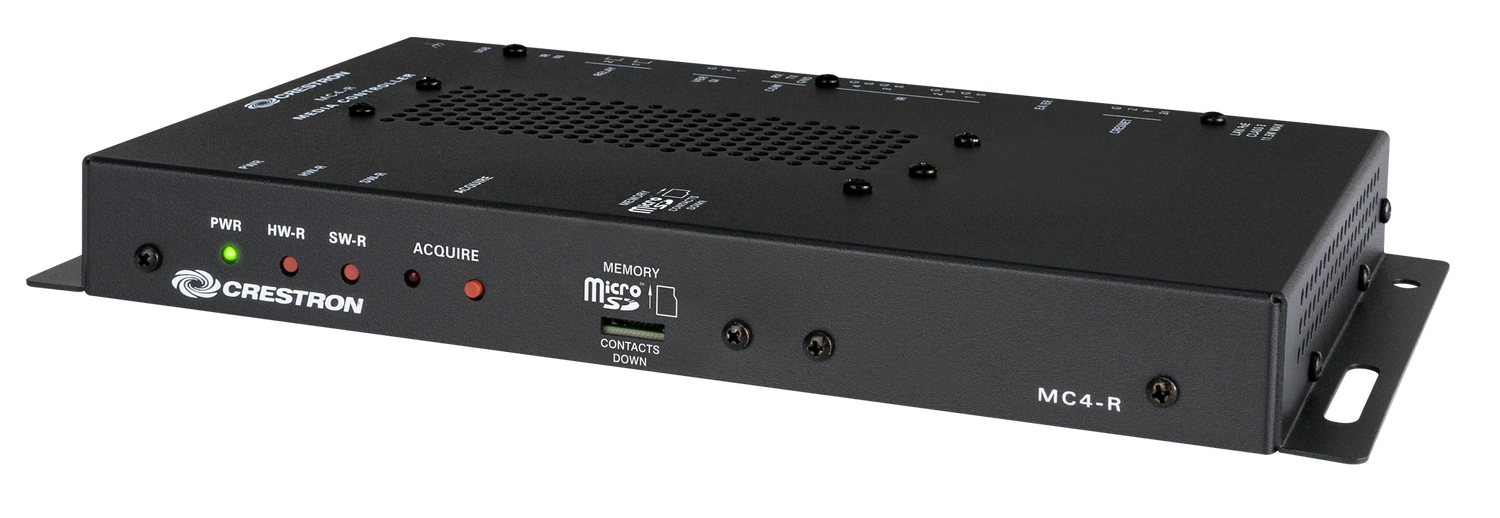

The MC4-R runs the embedded Crestron Home OS with a 4-Series multicore CPU, 2 GB SDRAM, and 8 GB Flash. It powers over PoE via a standard Ethernet connection, eliminating dedicated power wiring. The built-in infiNET EX wireless gateway enables direct pairing of compatible wireless devices. The HR-CV-MINI remote complements the system by giving occupants a compact, low-profile physical control option for everyday AV and lighting tasks.

Key Features

• 4-Series multicore CPU with 2 GB SDRAM and 8 GB Flash
• Built-in infiNET EX 2.4 GHz wireless network gateway
• PoE powered — single Ethernet cable provides data and power
• Compact HR-CV-MINI handheld remote included
• Native BACnet network/IP support (up to 500 objects)
• Onboard IR, COM, I/O, relay, and Cresnet ports
• Rack or surface mountable form factor
• Configured via Crestron Home Setup App

Typical Applications

• Single-room smart home systems with handheld remote control
• Small to medium-sized residential Crestron Home OS projects
• MDU deployments requiring a compact controller and remote
• Retrofitting older Crestron Pyng OS systems to Crestron Home

Technical Specifications

• Model: MC4-R-HR-CV-MINI PACKAGE KIT
• SKU: MC4-R-HR-CV-MINI PACKAGE KIT
• Processor: 4-Series multicore CPU
• Memory: 2 GB SDRAM, 8 GB Flash
• Network: 100/1000 Mbps Ethernet, PoE powered (IEEE 802.3at Type 1)
• Wireless: infiNET EX 2.4 GHz ISM, IEEE 802.15.4
• Control Ports: IR (4), COM (1), I/O (2), Relay (2), Cresnet
• Power Consumption: 7 W typical (MC4-R unit)
• Dimensions (MC4-R): 1.07 in. H x 10.15 in. W x 5.11 in. D
• Weight (MC4-R unit): 1.0 lb (454 g)
• Operating Temperature: 41–113°F (5–45°C)
• Compliance: FCC Part 15 Class B, IC, Intertek Listed

Frequently Asked Questions

Q: What is the difference between this kit and the MC4-R-HR-150 kit?
A: Both include the MC4-R control processor. This kit includes the HR-CV-MINI compact remote; the MC4-R-HR-150 includes the full-size HR-150 remote. Selection depends on the desired remote form factor for the installation.

Q: Is Crestron Home OS included with the MC4-R?
A: Yes. Crestron Home OS is embedded in the MC4-R processor and does not require a separate software purchase or programming environment.

Q: Can expansion I/O modules be added to this system?
A: Yes. CEN-IO series wired Ethernet and Wi-Fi network I/O extenders can be added to provide additional COM, IR, relay, and digital I/O ports for third-party device integration.
