Crestron MC4-R-HR-B PACKAGE KIT – 4-Series Control System with HR-310 Remote, Black

Product Overview

The Crestron MC4-R-HR-B PACKAGE KIT combines the MC4-R 4-Series Control System for Crestron Home OS with the HR-310-B handheld remote in a single package. It is designed for residential integrators deploying Crestron Home OS systems where a dedicated handheld remote with a traditional button layout is preferred over a touch screen. The bundle simplifies procurement for standard single-room or whole-home Crestron Home installations.

Product Description

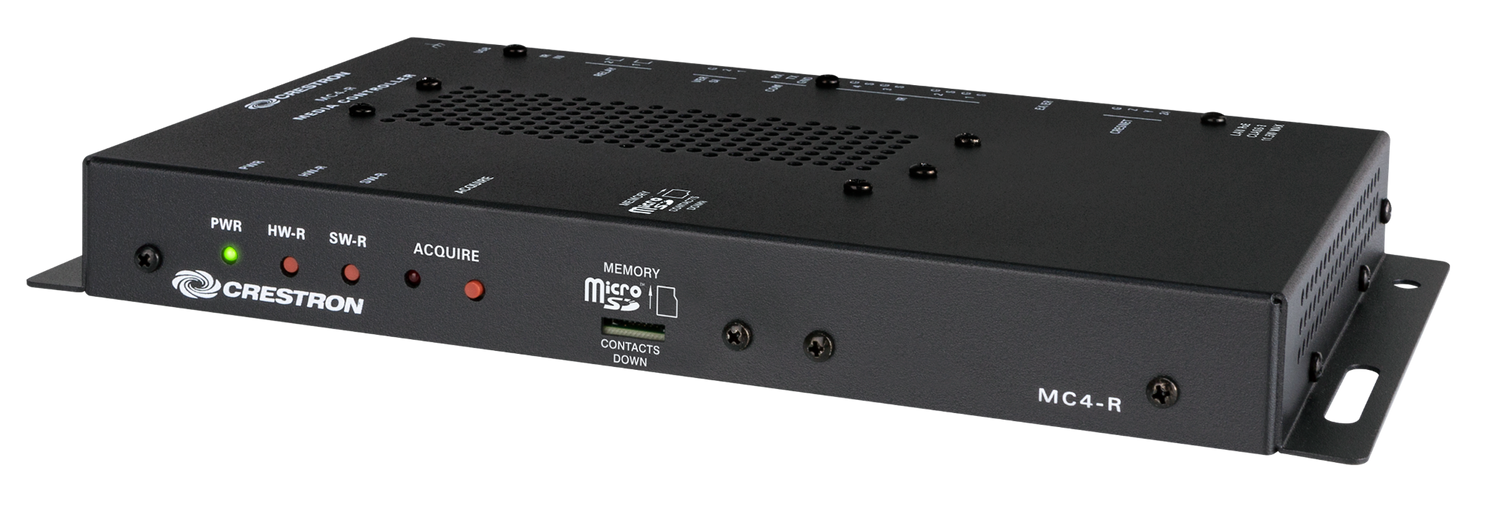

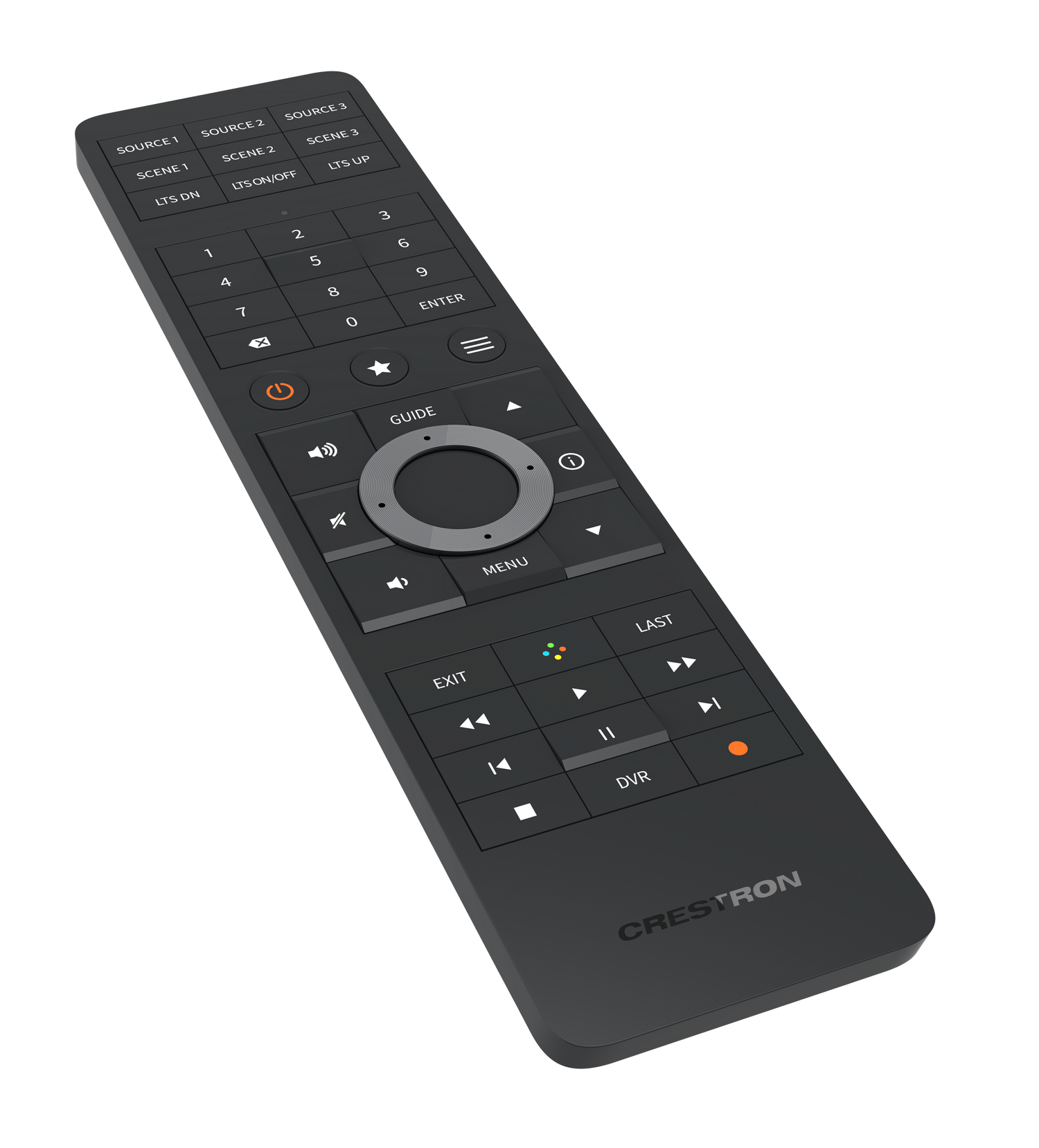

The MC4-R control processor is PoE-powered, running Crestron Home OS with support for infiNET EX wireless devices, Cresnet wired peripherals, RS-232, IR, relay, and Versiport I/O. The HR-310-B is a backlit handheld remote with dedicated hard buttons for AV, lighting, climate, and scene recall, paired to the MC4-R over Wi-Fi. The black finish of the HR-310 provides a clean aesthetic for home theater and living room environments. BACnet/IP integration extends control to compatible building systems.

Key Features

• Includes MC4-R 4-Series Crestron Home OS processor and HR-310-B handheld remote, black
• MC4-R PoE-powered (IEEE 802.3at Type 1 / 802.3af, 12.95 W max); 7 W typical
• infiNET EX 2-way 2.4 GHz wireless for infiNET peripheral control up to 50 ft
• Cresnet server mode; 1x RS-232; 4x IR outputs; 2x relays; 2x Versiports
• 2 GB SDRAM, 8 GB Flash; microSD expansion up to 32 GB
• BACnet/IP support for building automation integration (up to 500 objects)
• HR-310-B: backlit hard-button handheld remote for AV, lighting, and scene control
• MC4-R Certifications: Intertek Listed (US & Canada), IC, FCC Part 15 Class B

Typical Applications

• Home theater system with a handheld button remote for AV source and volume control
• Living room Crestron Home OS control with traditional remote aesthetics
• Whole-home automation system where residents prefer physical buttons over touch screens
• Bedroom scene control via dedicated lighting and climate buttons
• Custom residential installations requiring a packaged processor and remote solution

Technical Specifications

• Model: MC4-R-HR-B PACKAGE KIT
• Includes: MC4-R control processor + HR-310-B handheld remote, black
• MC4-R Weight: 1.0 lb (454 g)
• MC4-R Dimensions (H x W x D): 1.07 in. x 10.15 in. x 5.11 in. (27 mm x 258 mm x 130 mm)
• MC4-R Power: PoE IEEE 802.3at Type 1 / 802.3af Class 0 (12.95 W max); 7 W typical; 24 BTU/hr
• MC4-R Memory: 2 GB SDRAM; 8 GB Flash; microSD up to 32 GB (4 GB included)
• MC4-R Ethernet: 100/1000 Mbps; TCP/IP, UDP/IP, CIP, DHCP, SSL, TLS, SSH, SFTP, FIPS 140-2, IPv4/IPv6
• MC4-R Wireless: infiNET EX 2-way 2.4 GHz 802.15.4, 50 ft range
• MC4-R I/O: 1x RS-232; 4x IR outputs (1.2 MHz); 2x relays (1A, 30 VAC/VDC); 2x Versiports
• MC4-R Operating Temperature: 41 to 113°F (5 to 45°C)
• MC4-R Certifications: Intertek Listed (US & Canada), IC, FCC Part 15 Class B

Frequently Asked Questions

Q: What is included in the MC4-R-HR-B PACKAGE KIT?
A: The kit includes the MC4-R 4-Series Control Processor and the HR-310-B handheld remote in black. The MC4-R must be connected to a PoE switch or injector for power.

Q: Is the HR-310-B in this kit specifically paired to the included MC4-R?
A: The HR-310-B communicates via Wi-Fi and must be configured to connect to the Crestron Home system hosted on the MC4-R during system setup by the integrator.

Q: Can I add more HR-310 remotes to a single MC4-R system?
A: Yes. Additional HR-310 remotes can be added to a Crestron Home OS system as needed, subject to the MC4-R system capacity limits.
