Crestron MC4-R-HR-150 – 4-Series Control System with HR-150 Remote
Product Overview
The Crestron MC4-R-HR-150 is a residential control system kit combining the MC4-R 4-Series control processor with the HR-150 handheld remote. Designed for Crestron Home OS, it delivers whole-home automation in a compact, cost-effective package suited to single-room systems, small to medium-sized homes, and MDUs.
Product Description

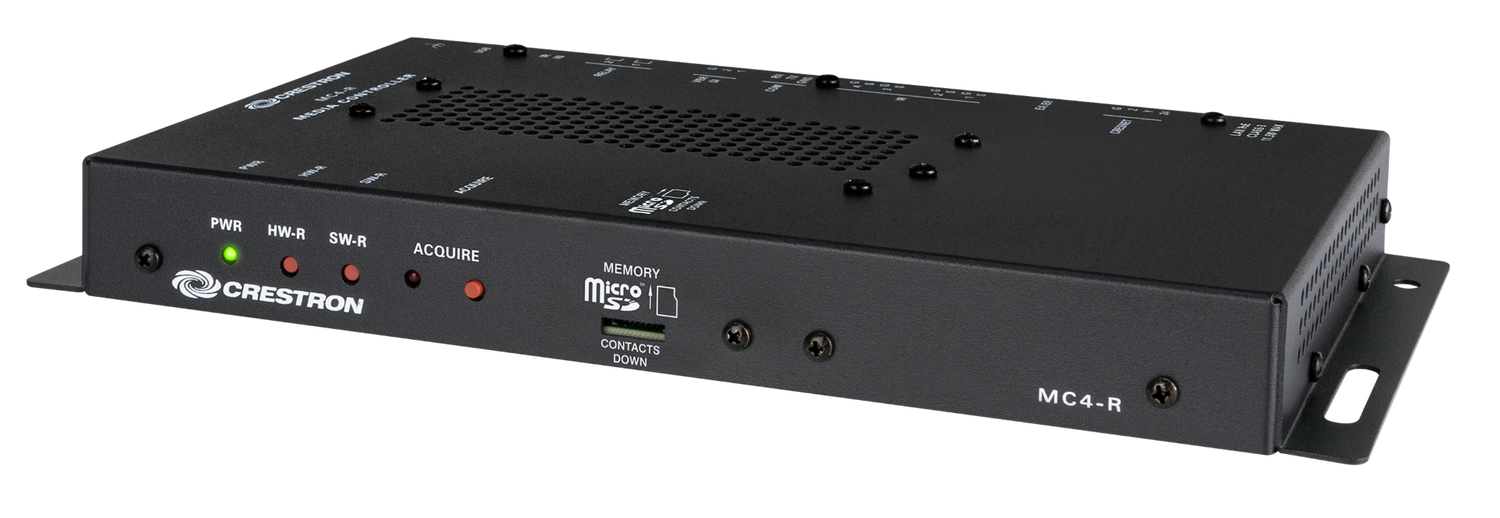

The MC4-R processor at the heart of this kit runs the embedded Crestron Home OS and includes a 4-Series multicore CPU, 2 GB SDRAM, and 8 GB Flash. It connects over PoE-powered Gigabit Ethernet, eliminating the need for a separate power supply. The built-in infiNET EX wireless gateway allows wireless Crestron Home-compatible devices to pair directly to the system. The included HR-150 handheld remote provides immediate tactile control without requiring a touch screen.
Key Features
- 4-Series multicore CPU with 2 GB SDRAM and 8 GB Flash
- Built-in infiNET EX wireless network gateway for wireless device pairing
- PoE (Power over Ethernet) powered — no local power supply required
- Native BACnet network/IP support (up to 500 objects)
- Onboard IR, COM, I/O, relay, and Cresnet control ports
- Rack or surface mountable (rack ears included)

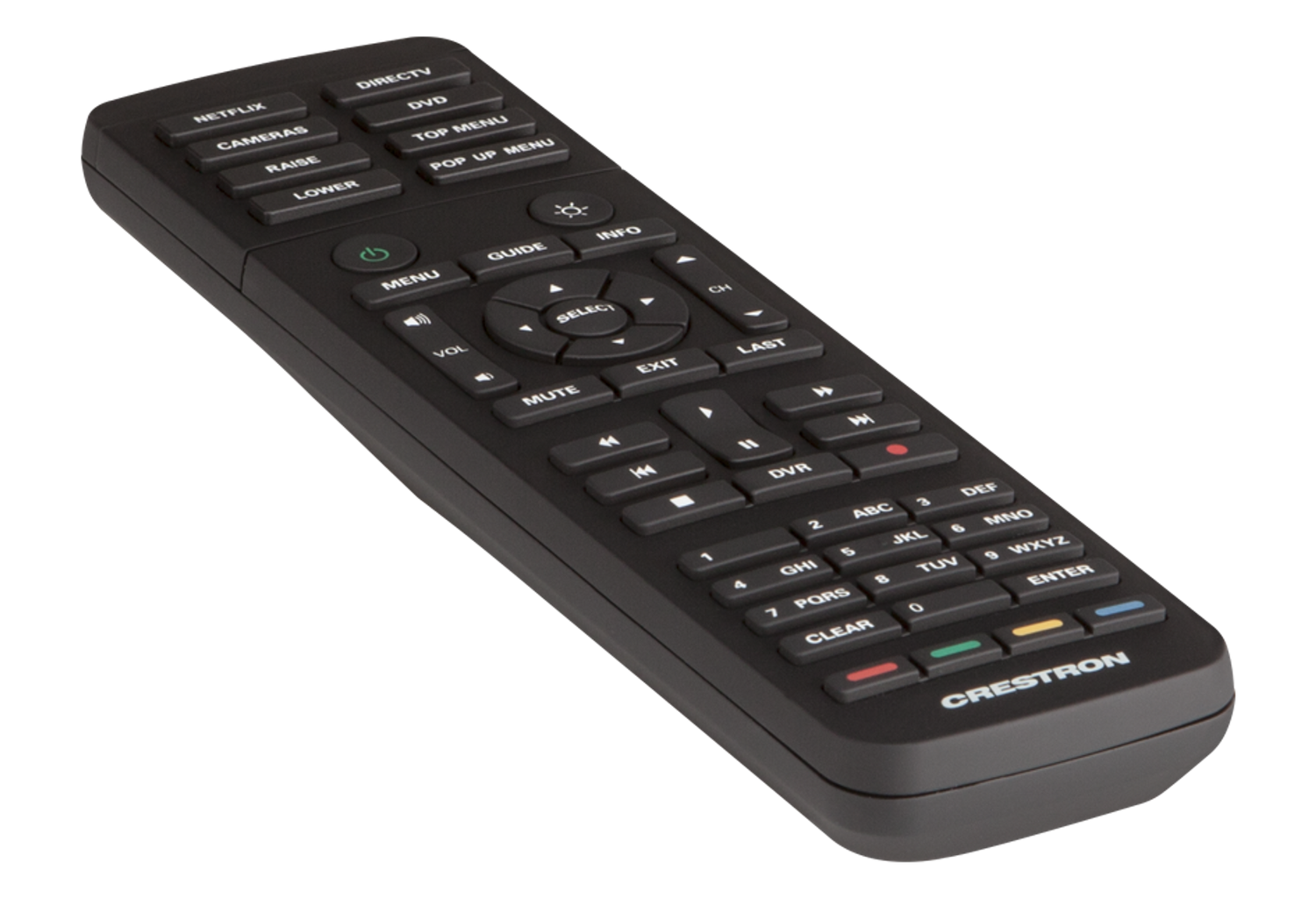

- HR-150 handheld remote included for immediate system control
- Managed via Crestron Home Setup App and Crestron Home App
Typical Applications
- Single-room smart home installations
- Small to medium-sized residential automation projects
- MDU (multidwelling unit) deployments
- Crestron Home OS upgrades replacing older Pyng-based systems
- Projects requiring handheld remote control alongside app-based control
Technical Specifications
- Model: MC4-R-HR-150
- SKU: MC4-R-HR-150
- Processor: 4-Series multicore CPU
- Memory: 2 GB SDRAM, 8 GB Flash
- Network: 100/1000 Mbps Ethernet (PoE powered, IEEE 802.3at Type 1)
- Wireless: infiNET EX 2.4 GHz ISM, IEEE 802.15.4
- Control Ports: IR (4), COM (1), I/O (2), Relay (2), Cresnet
- Power Consumption: 7 W typical
- Dimensions (MC4-R): 1.07 in. H x 10.15 in. W x 5.11 in. D (27 x 258 x 130 mm)
- Weight (MC4-R unit): 1.0 lb (454 g)
- Operating Temperature: 41–113°F (5–45°C)
- Compliance: FCC Part 15 Class B, IC, Intertek Listed
Frequently Asked Questions
Q: Does the MC4-R-HR-150 require a separate power supply?
A: No. The MC4-R is PoE powered (IEEE 802.3at Type 1). A PoE switch or injector on the LAN provides all necessary operating power.
Q: Can the MC4-R be used with Crestron commercial control applications?
A: No. The MC4-R is designed exclusively for Crestron Home OS. For commercial or enterprise control, consider the CP4 or CP4-N 4-Series processors.
Q: How many wireless devices can connect via infiNET EX?
A: Up to 100 infiNET EX devices are supported, though best practices recommend a limit of 50 for optimal performance.
