| Control Engine |
| Crestron 4-Series; real-time, preemptive multi-threaded/multitasking kernel; Transaction-Safe Extended FAT file system; single program support out of the box; supports up to 10 simultaneously running programs (license required1) |
| Wired Communications |
| Ethernet |
100/1000 Mbps, auto‑switching, auto‑negotiating, auto‑discovery, full/half duplex, industry-standard TCP/IP stack, UDP/IP, CIP, DHCP, SSL, TLS, SSH, SFTP (SSH File Transfer Protocol), FIPS 140-2 compliant encryption, IEEE 802.1xX, SNMP, BACnet™ and IP3, IPv4 or IPv6, Active Directory® service authentication, HTTPS web server, HTTPS web browser setup and Crestron XiO Cloud™ client, SMTP email client |
| Cresnet® Network |
Cresnet master mode |
| USB |
Supports USB mass storage class devices via the rear panel USB 2.0 host port |
| RS-232 |
For 2-way device control and monitoring, COM port supports RS 232 up to 115.2k baud with software handshaking |
| IR |
Supports 1 way device control via infrared up to 1.2 MHz |
| Wireless Communications1
|
| RF Transceiver |
infiNET EX® network 2-way RF, 2.4 GHz ISM Channels 11-26 (2400 to 2483.5 MHz), default channel 15; IEEE 802.15.4 compliant |
| Range |
50 ft (15 m) to nearest mesh network device(s), subject to site-specific conditions and individual device capabilities, range between floors or ceilings is limited to one level2
|
| NOTE: Do not rack mount or stack multiple units when using wireless communications. Use care when positioning the device to avoid interference from nearby RF devices, obstructions, and metal surfaces. |
| Memory |
| SDRAM |
1 GB |
| Flash |
8 GB |
| Memory Card |
Supports microSD cards up to 32 GB |
| External Storage |
Supports USB mass storage devices up to 1 TB |

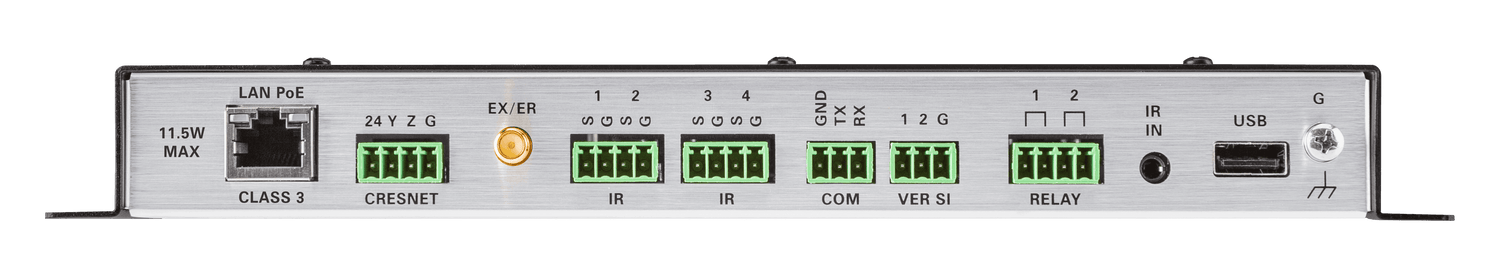

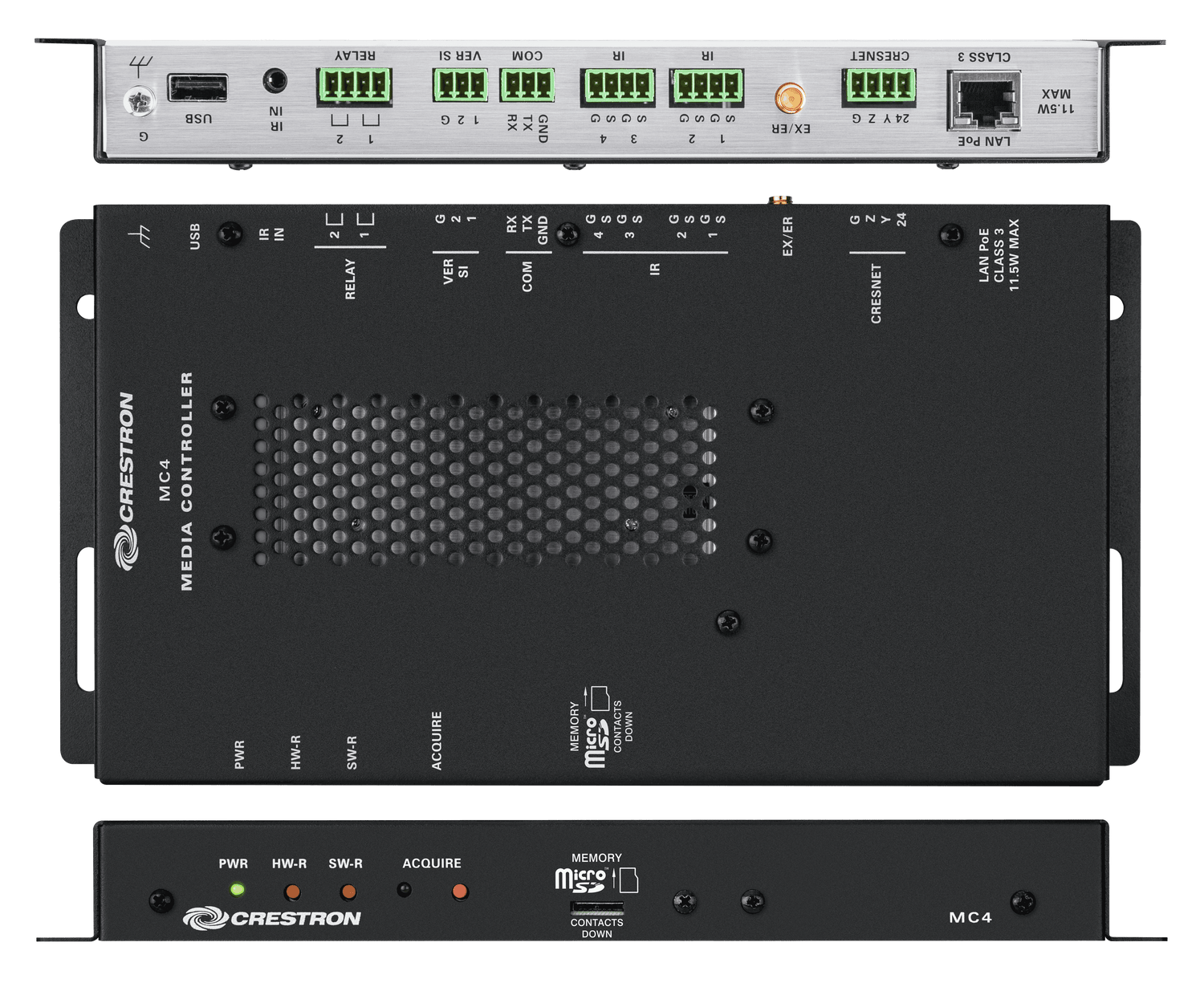

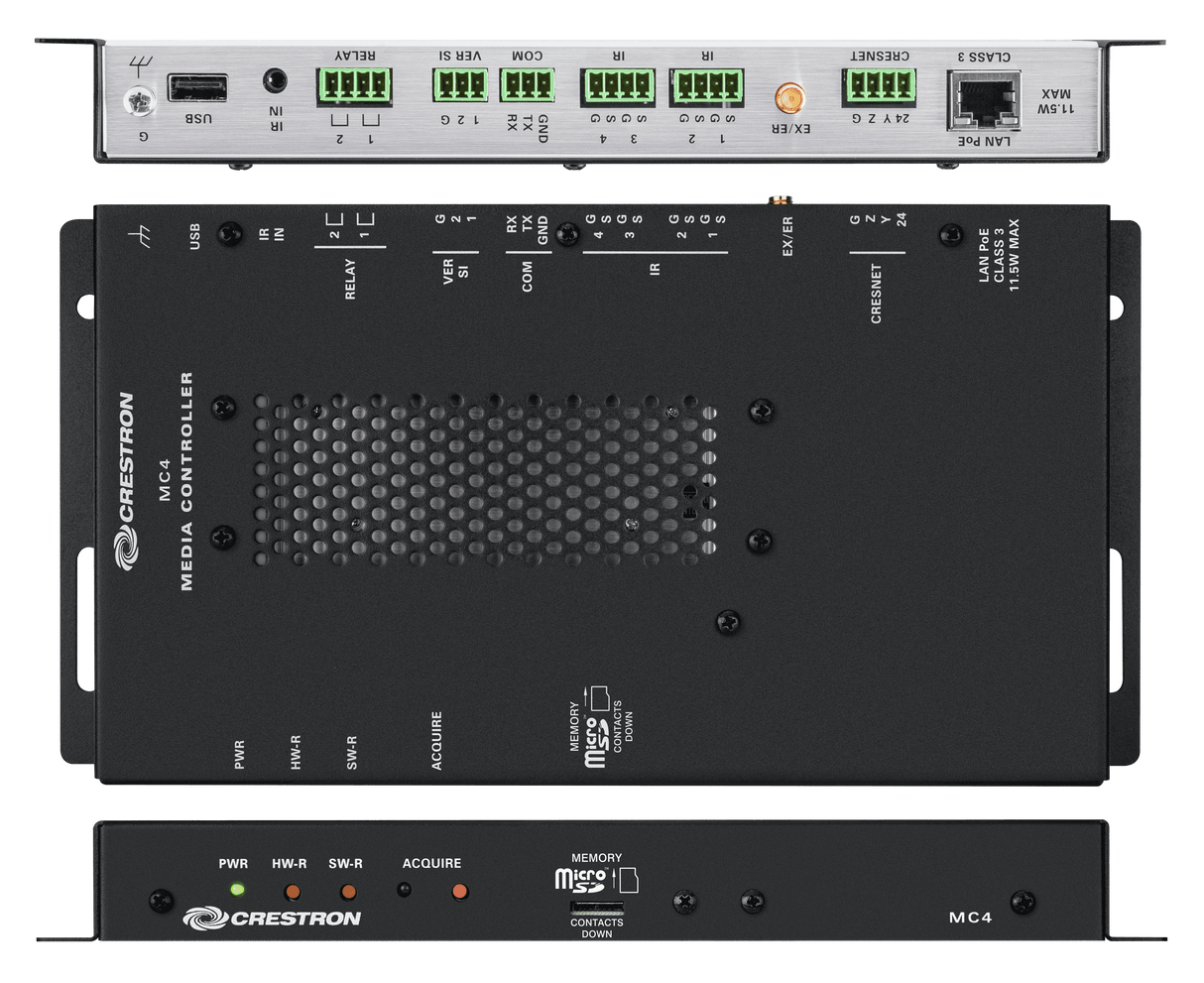

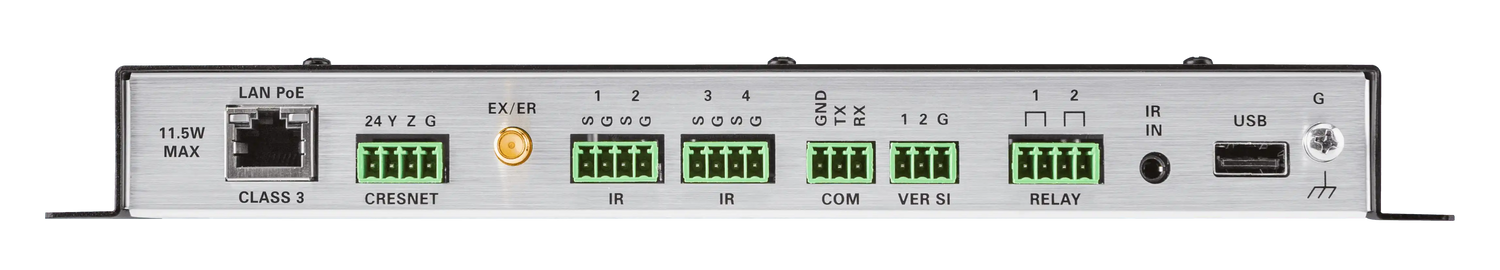

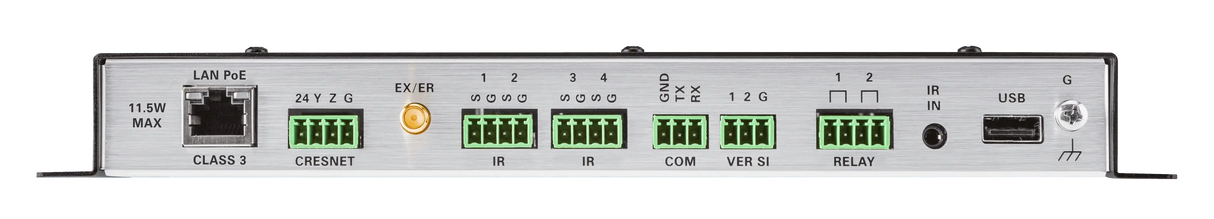

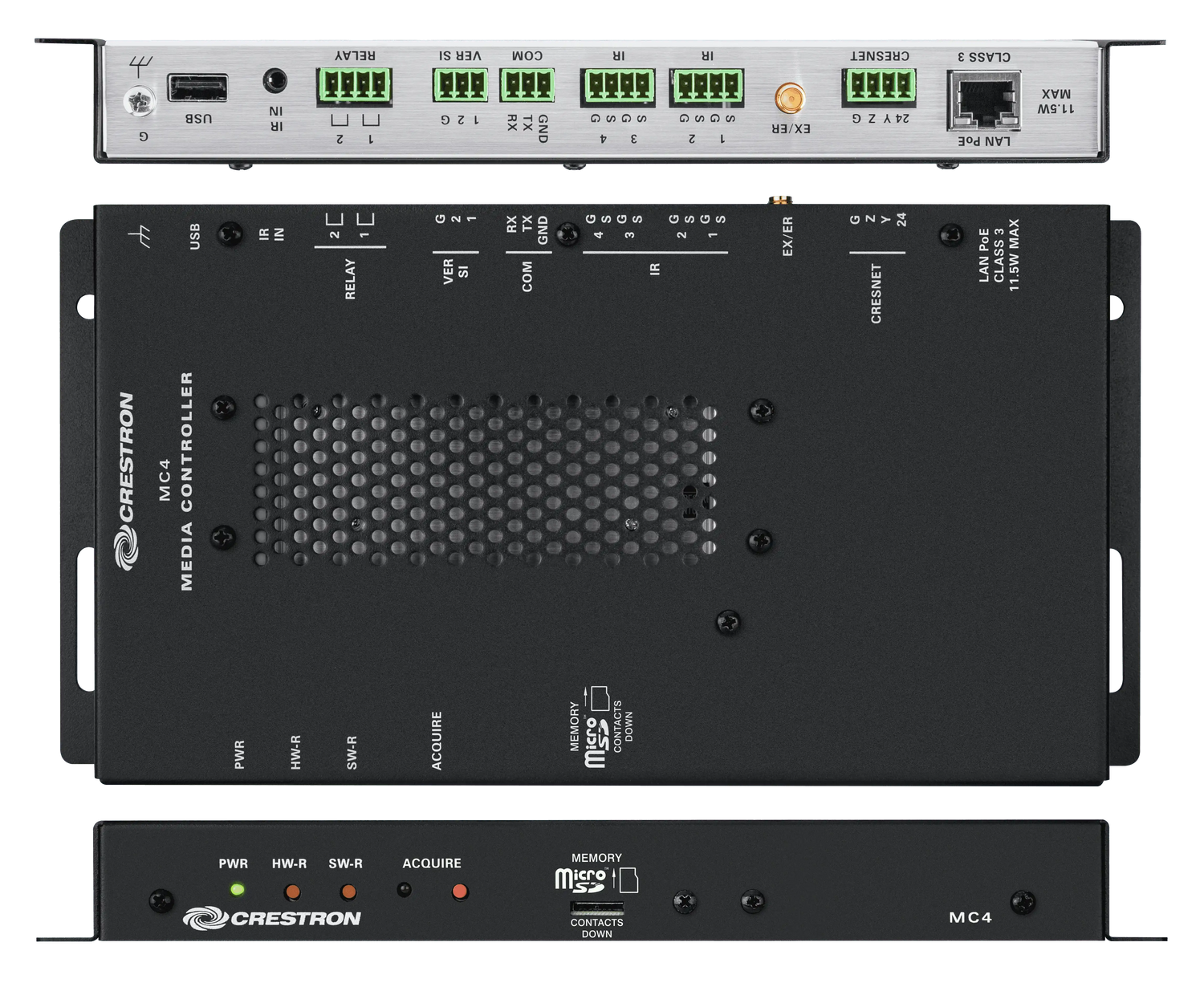

| Connectors and Card Slots |
| MEMORY |
(1) microSD memory card slot;
Accepts one microSD card up to 32 GB for storage of log files |
| G |
(1) 6-32 screw;
Chassis ground lug |
| USB |
(1) USB Type A connector, female;
USB 2.0 port for storage devices |
| IR IN |
(1) 3.5 mm TRS mini phone jack;
For connecting CNXRMIRD IR receiver;
Allows IR wireless control from Crestron and third‑party remotes using RC‑5 IR commands |
| RELAY (1–2) |
(1) 4-pin 3.5 mm detachable terminal block;
Comprises (2) normally open, isolated relays;
Rated 1 A, 30 VAC/VDC;
MOV arc suppression across contacts |
| VER SI (1–2) |
(1) 3-pin 3.5 mm detachable terminal block;
Comprises (2) Versiport digital input/output or analog input ports (referenced to GND);
Digital Input: Rated for 0–24 VDC, input impedance 20k Ω, logic threshold >3.125 V low/0 and <1.875 V high/1;
Digital Output: 250 mA sink from maximum 24 VDC, catch diodes for use with real world loads;
Analog Input: Rated for 0–10 VDC, protected to 24 VDC maximum, input impedance 21k Ω with pull-up resistor disabled;
Programmable 5 V, 2k Ω pull-up resistor per pin |
| COM |
(1) 3-pin 3.5 mm detachable terminal block;
Bidirectional RS-232 port;
Up to 115.2k baud; software handshaking support |
| IR (1–4) |
(2) 4-pin 3.5 mm detachable terminal blocks;
Comprises (4) IR output ports;
IR output up to 1.2 MHz;
1-way Serial TTL/RS-232 (0–5 V) up to 115.2k baud
IRP2 IR emitters sold separately |
| EX/ER |
(1) Connection for supplied antenna
|
| CRESNET |
(1) 4-pin 3.5 mm detachable terminal block;
Cresnet master port1;
Outputs power to Cresnet devices;
See "Power" section below for additional details |
| LAN |
(1) 8-pin RJ-45 connector, female;
100/1000Base-TX Ethernet port;
PoE (Power over Ethernet) PD (Powered Device) port |

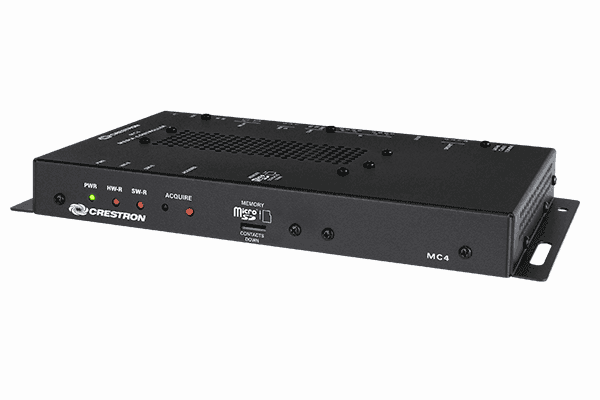

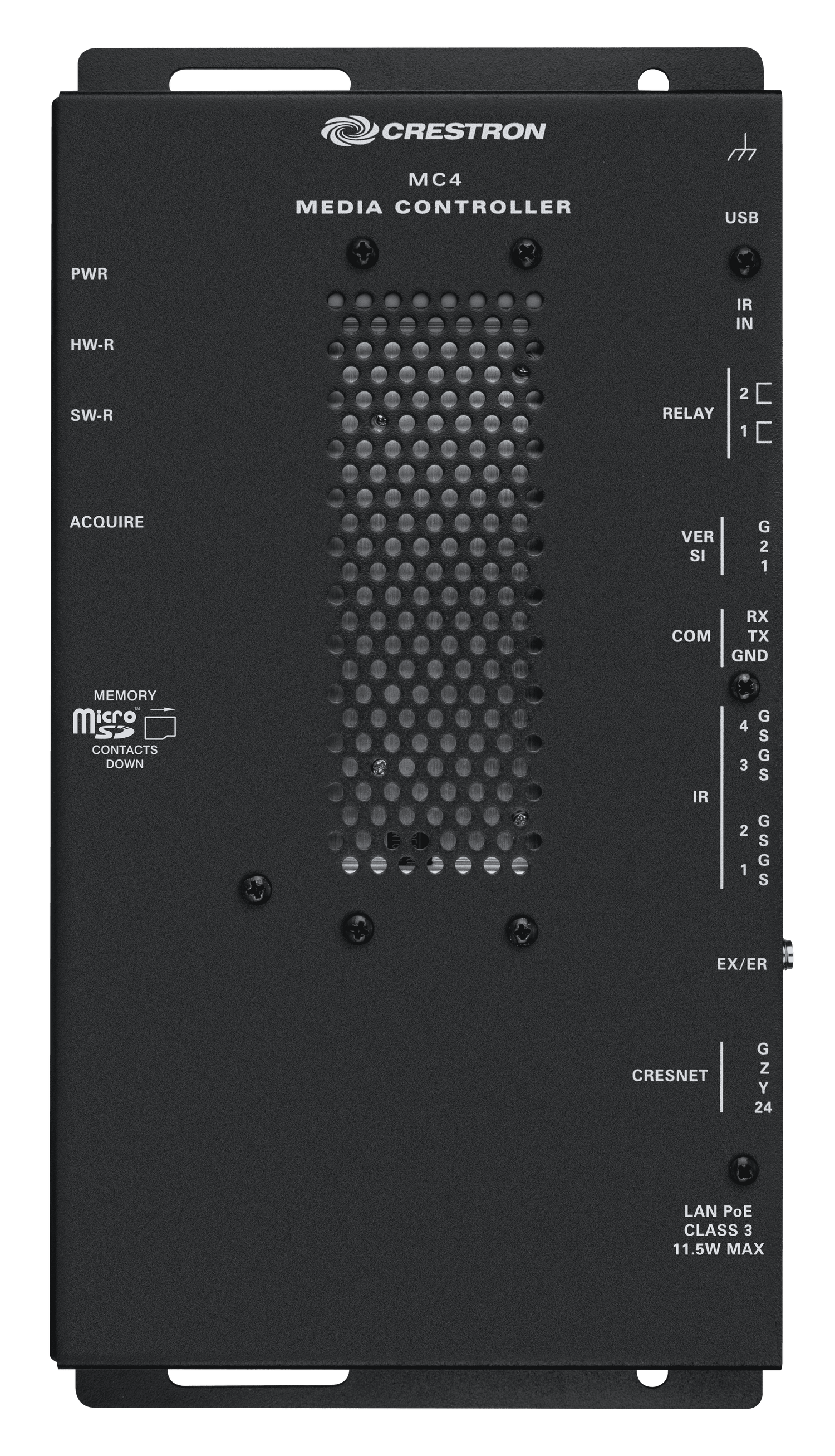

| Controls and Indicators |
| PWR |
(1) Bicolor green/amber LED, indicates operating power is present;
Amber indicates that the device is booting and is not yet ready to operate;
Green indicates that the device is ready to operate |
| HW-R |
(1) Push button, initiates hardware reset |
| SW-R |
(1) Push button, initiates software reset |
| ACQUIRE |
(1) Recessed push button with red LED, used to set up connections with wireless devices |
| LAN |
(1) Bicolor green/amber and (1) Amber LEDs;
Green/amber LED indicates Ethernet link status and connection speed;
Amber LED indicates Ethernet activity |
| Power |
| Power Source Options |
PoE (Power over Ethernet) |
| Power over Ethernet |
IEEE 802.3at Type 1 (802.3af compatible) Class 0 (12.95 W) PoE Powered Device |
| Available Cresnet Power |
2.5 W |
| Power Consumption |
7 W typical |
| Environmental |
| Temperature |
41 to 113 °F (5 to 45 °C) |
| Humidity |
10 to 90% (noncondensing) |
| Heat Dissipation |
24 BTU/hr |
| Enclosure |
| Chassis |
Metal, black finish, with (2) integral mounting flanges; vented top, sides, and bottom |
| Mounting |
Freestanding, surface mount, attach to a single rack rail, or 1 RU 19‑in. rack mountable (rack ears included) |
| Dimensions |
| Height |
1.07 in. (27 mm) |
| Width |
10.15 in. (258 mm) |
| Depth |
5.11 in. (130 mm) |
| Weight |
| 1.0 lb (454 g) |
