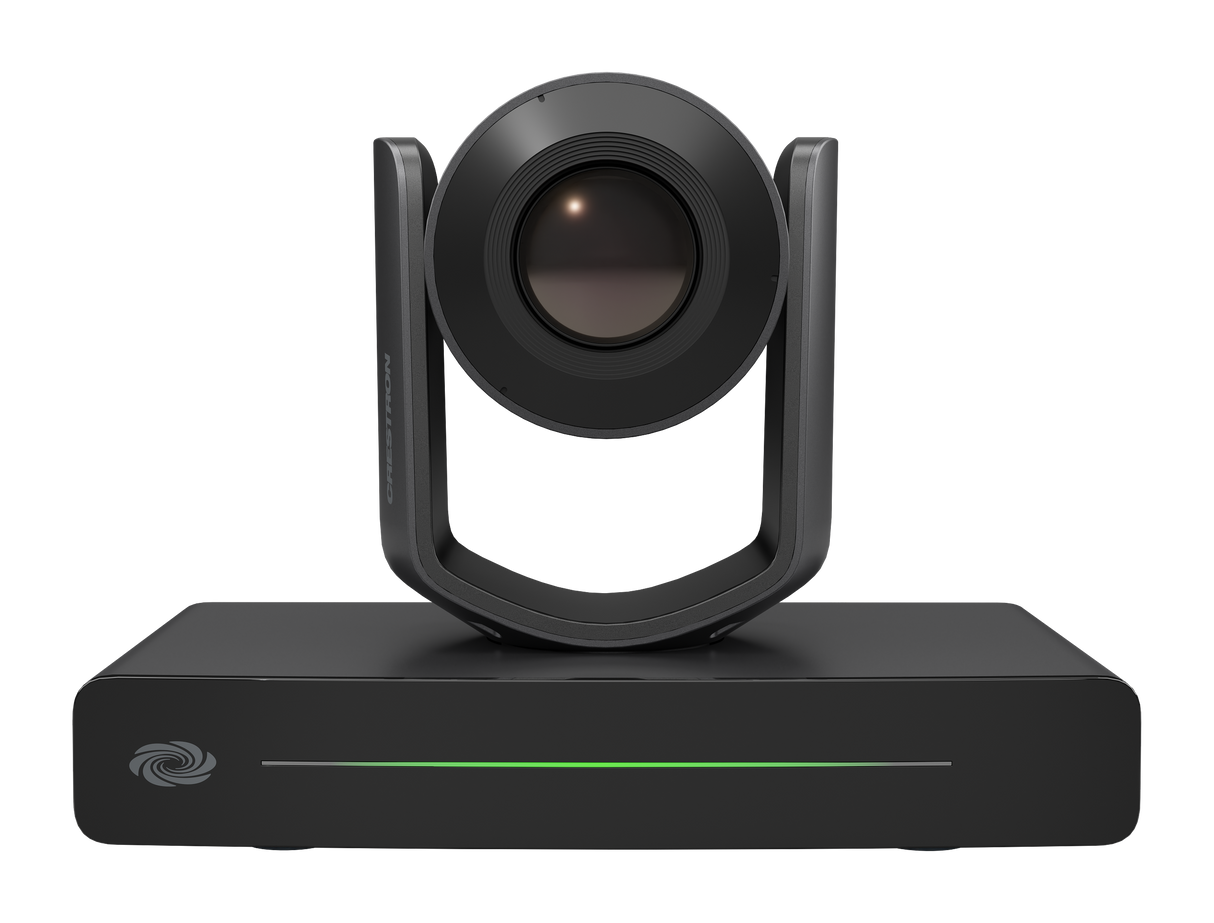

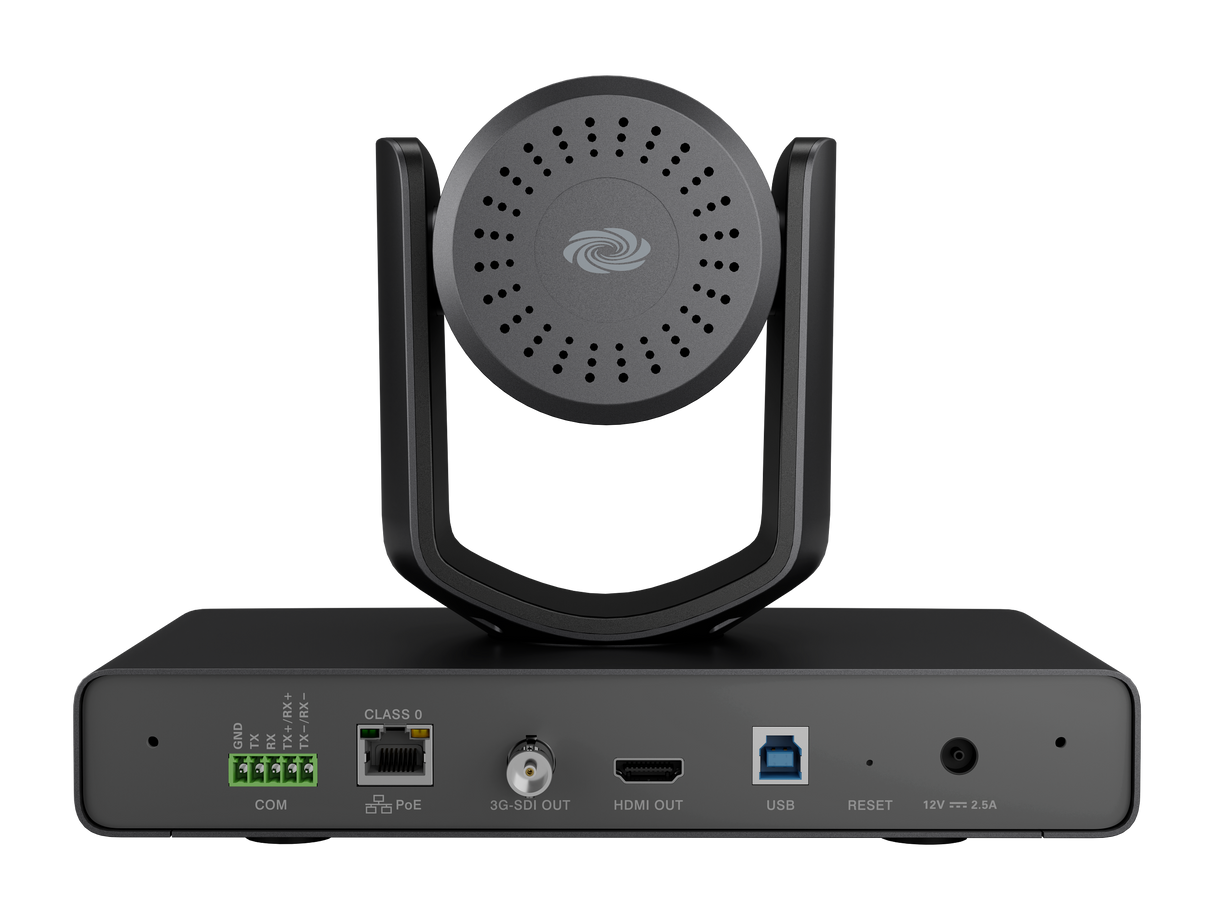

Crestron IV-CAM-P20-GV-B – 1 Beyond p20 PTZ Camera, 20x Zoom, TAA Government

Product Overview

The Crestron IV-CAM-P20-GV-B is a TAA-compliant 20x optical zoom PTZ camera from the Crestron 1 Beyond p-series, designed for large conference rooms, auditoriums, boardrooms, and government meeting spaces requiring long-reach optical zoom and multi-protocol camera control. The GV-B suffix designates this as the government version (Moon Gray finish), fully compliant with the Trade Agreements Act for U.S. federal, state, and local government procurement. It outputs 1080p60 video simultaneously over HDMI, 3G-SDI, USB 3.0, and NDI|HX via Ethernet, and is certified for Microsoft Teams Rooms and Zoom Rooms. Unlike the i-series cameras, the p20 is a standard PTZ camera without built-in AI tracking — it pairs with Crestron Automate VX or external control systems for automated camera management.

Product Description

The IV-CAM-P20-GV-B uses a 1/2.8-inch Sony CMOS sensor with a 20x optical zoom lens covering a focal length range of 5.2 mm to 94 mm, providing a horizontal field of view of 56.45 degrees at the widest setting. The 20x zoom reaches significantly deeper into large rooms compared to 12x zoom cameras, making it appropriate for auditoriums, training theaters, large boardrooms, and any space where the presenter or subject is more than 25 feet from the camera position. Full 1080p60 resolution is available simultaneously over HDMI and 3G-SDI; USB 3.0 provides plug-and-play connectivity to Windows-based UC platforms including Teams Rooms and Zoom Rooms without driver installation. NDI|HX streams video, audio, and control over a single Ethernet cable, simplifying infrastructure for IP video workflows. PoE (IEEE 802.3af Class 3) powers the camera from the same Ethernet cable used for NDI|HX, eliminating dedicated power runs where a PoE-capable switch port is available. Pan range is −130° to +130° and tilt range is −30° to +90°, with pan speeds up to 90°/sec. Control is supported via VISCA/TCP, VISCA/UDP, PELCO-D, PELCO-P, and ONVIF, compatible with virtually all professional control systems. The camera is configured and managed using Crestron 1 Beyond Camera Manager software (Windows). For multi-camera environments, the p20 integrates directly with the Crestron Automate VX Series for voice-activated multi-camera switching. The hardware is functionally identical to the IV-CAM-P20-B (Moon Gray, commercial version) — the GV-B designation adds TAA compliance documentation for qualifying government procurements.

Key Features

• 20x Optical Zoom — 5.2 mm to 94 mm focal length; 56.45° horizontal FOV at widest; reaches subjects at distances beyond 25 feet with clarity.
• TAA Government Compliant — GV-B designation confirms compliance with the Trade Agreements Act for U.S. federal, state, and local government procurement.
• NDI|HX over Ethernet — Streams video, audio, and control over a single network cable for IP-native AV infrastructure.
• Simultaneous HDMI + SDI Output — Both HDMI and 3G-SDI active concurrently at 1080p60 for flexible baseband signal routing.
• USB 3.0 Plug-and-Play — Recognized as a standard USB camera by Windows UC platforms; no driver installation required.
• PoE Power — IEEE 802.3af Class 3; single Ethernet cable carries power, control, and NDI|HX stream.
• Multi-Protocol Control — VISCA/TCP, VISCA/UDP, PELCO-D, PELCO-P, and ONVIF for compatibility with major control systems and video switchers.
• Automate VX Integration — Works with Crestron Automate VX Series for voice-activated multi-camera auto-switching deployments.
• Teams and Zoom Certified — Microsoft Teams Rooms and Zoom Rooms certified for qualified deployments.
• 1 Beyond Camera Manager — Configured via dedicated Windows management software for camera setup and preset management.

Typical Applications

• Government space and federal facility conference rooms requiring TAA-compliant cameras
• Large boardroom and executive conference room with long-throw optical zoom requirements
• Auditorium and all-hands room with presenter at significant distance from camera position
• Training room multi-camera systems with Crestron Automate VX
• Broadcast studio with IP video (NDI) infrastructure
• House of worship and large multi-purpose room production environments

Technical Specifications

Frequently Asked Questions

What is the difference between IV-CAM-P20-B and IV-CAM-P20-GV-B?
The hardware is identical. The GV-B designation indicates TAA (Trade Agreements Act) compliance, which is required for procurement on U.S. federal contracts and many state and local government purchasing vehicles. If your project does not require TAA compliance, the IV-CAM-P20-B is the commercial equivalent at a lower price point.

Does the p20 have built-in AI tracking like the i12?
No. The p-series cameras are standard PTZ cameras without built-in AI tracking or dual-camera design. For automated tracking without an external system, the IV-CAM-I12 (i-series) is the appropriate choice. For multi-camera auto-switching with the p20, use the Crestron Automate VX platform.

What is the recommended room depth for a 20x zoom camera?
The 20x zoom and 56.45° wide-end horizontal FOV make this camera well-suited for rooms deeper than 25 feet, including large boardrooms, auditoriums, and training theaters. For rooms under 20 feet, the 12x i12 or a wide-angle camera may provide better framing at close distances.

Can this camera be used with Crestron Automate VX?
Yes. The IV-CAM-P20-GV-B is a native Crestron 1 Beyond camera and integrates directly with the Automate VX Series for voice-activated multi-camera switching. No third-party camera enablement key is required.

How is the camera powered?
The camera operates from PoE (IEEE 802.3af Class 3) over the Ethernet cable. A 12 VDC, 2.5 A DC power input is available as an alternate source when PoE is not available at the switch port.

What control protocols are supported?
VISCA/TCP, VISCA/UDP, PELCO-D, PELCO-P, and ONVIF are all supported, providing compatibility with virtually all professional PTZ camera controllers and AV switching systems.

Does this camera support 4K output?
No. The maximum output resolution is 1080p60 (Full HD) across all outputs. If 4K capture is required, consult the Crestron 1 Beyond 4K camera product line.
