Crestron IV-CAM-I12-W – 1 Beyond i12 Intelligent PTZ Camera, 12x Zoom, White

Product Overview

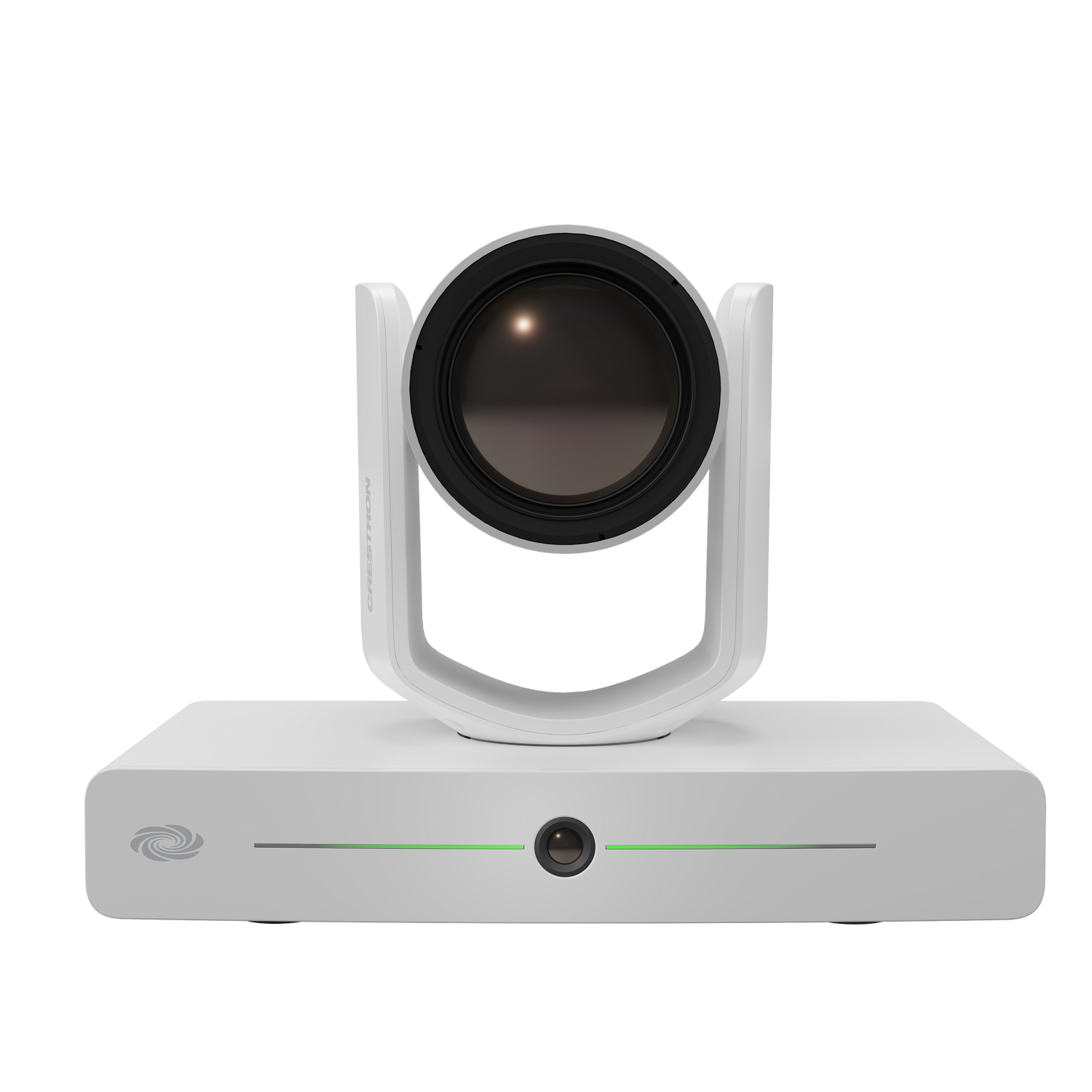

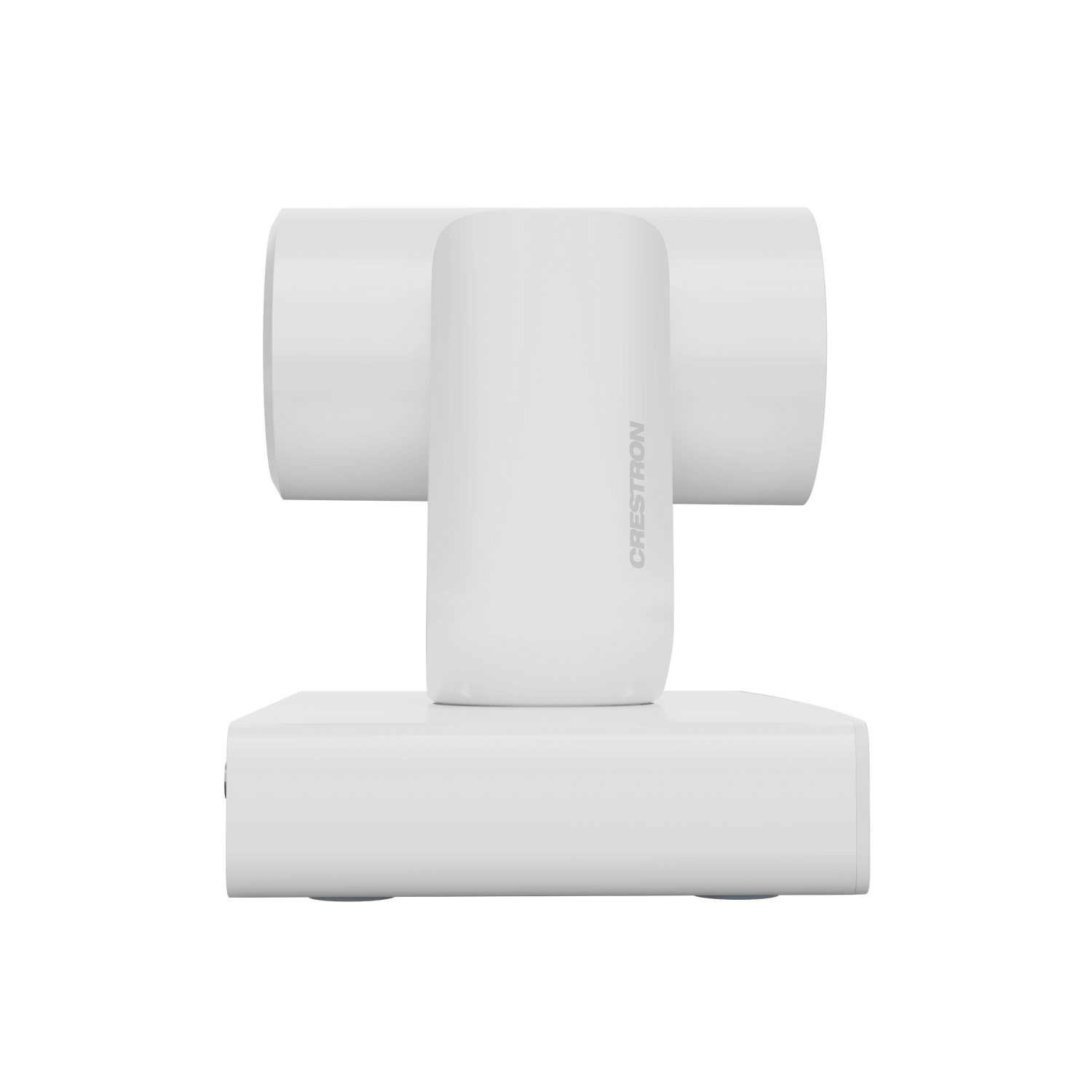

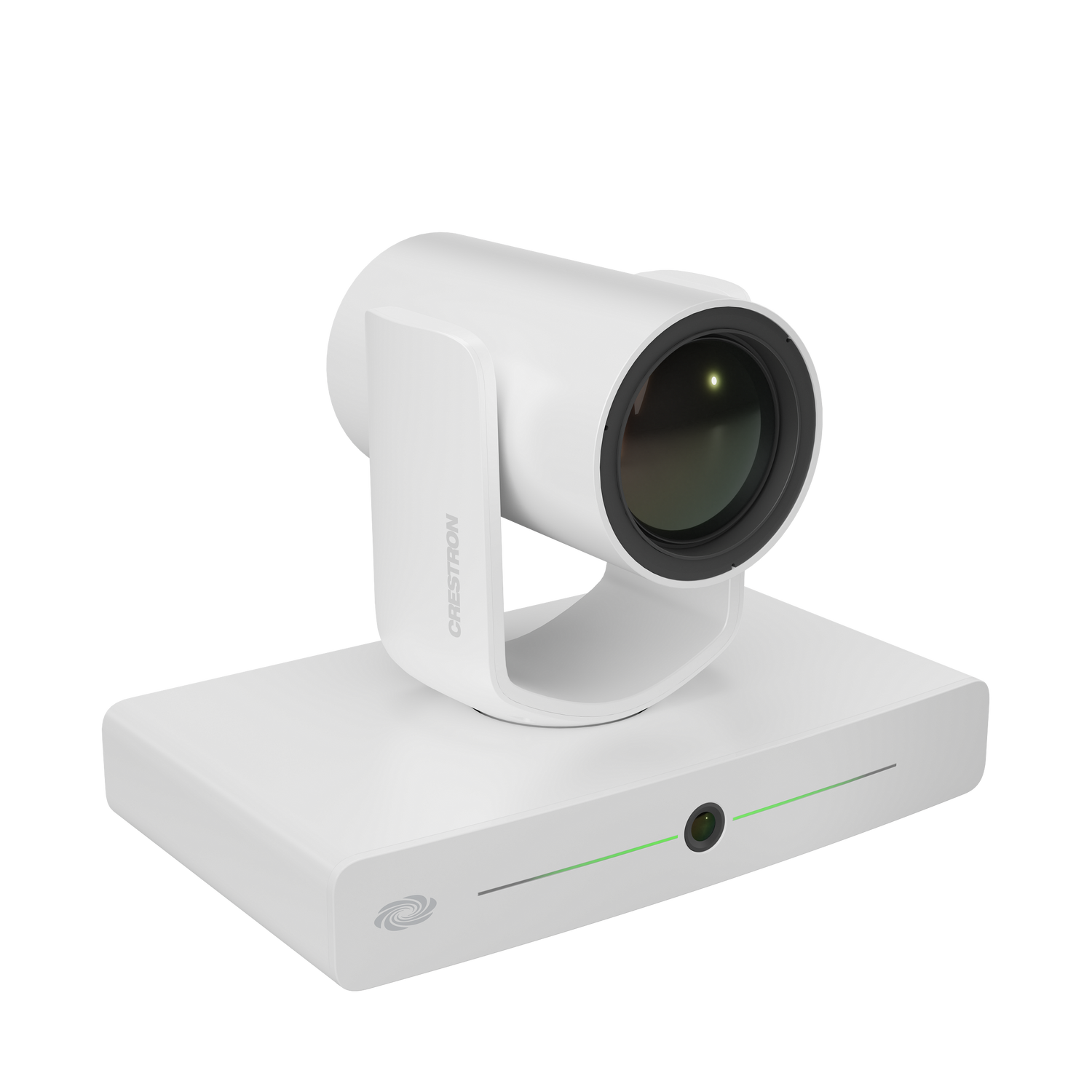

The Crestron IV-CAM-I12-W is a 12x optical zoom intelligent PTZ camera with a built-in dual-camera design that performs automatic group framing and presenter tracking without requiring an external compute device or separate controller. Part of the Crestron 1 Beyond intelligent camera line, it is certified for Microsoft Teams Rooms and Zoom Rooms and delivers video via HDMI, 3G-SDI, USB 3.0, or NDI|HX over a single Ethernet cable. The i12 is suited for medium to large conference rooms, boardrooms, and training spaces where hands-free camera automation is required. Its bright white finish (IV-CAM-I12-W) matches white ceiling and wall installations.

Product Description

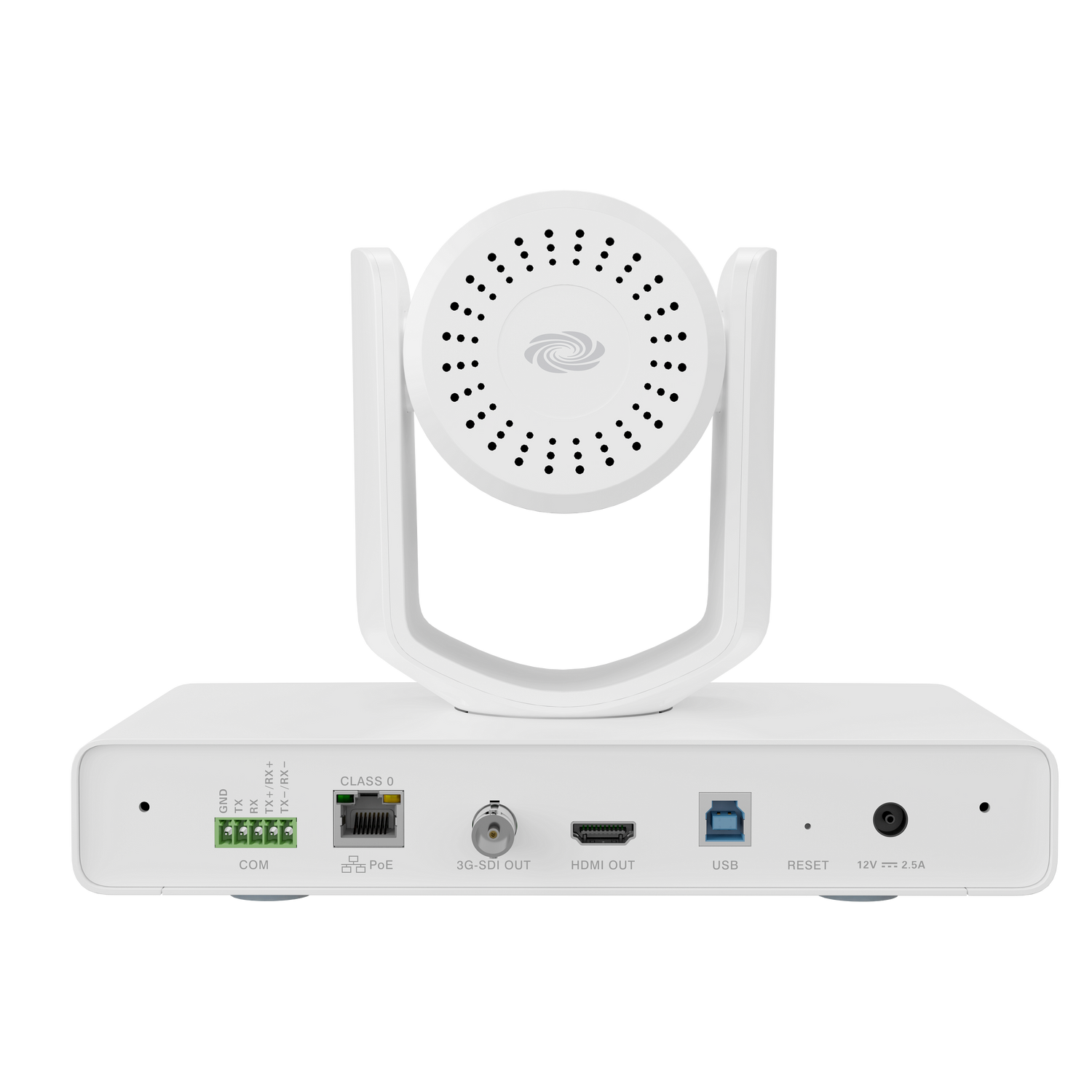

The IV-CAM-I12-W uses a 1/2.8-inch Sony CMOS image sensor paired with a 12x optical zoom lens (4.1 mm to 49.2 mm focal length), providing a wide end horizontal field of view of 67.68 degrees suitable for group shots in rooms with participants at distances of 5 to 25 feet. The integrated wide-angle reference camera continuously monitors the full room scene and directs the PTZ camera to the active speaker or group without any manual operator input. Group framing automatically adjusts to include multiple participants; presenter tracking mode follows a single moving speaker. Two IV-CAM-I12 units can be paired together to deliver automated multi-camera switching without requiring the Crestron Automate VX hardware, making this camera viable as a standalone intelligent system in rooms that don’t require the full Automate VX stack. Full-resolution 1080p60 video is available simultaneously over HDMI and 3G-SDI; USB 3.0 provides plug-and-play connectivity to Windows-based UC platforms; NDI|HX streams video, audio, and camera control over a standard Ethernet cable. PoE power (IEEE 802.3af Class 3) simplifies installation by eliminating separate power runs where a PoE-capable switch is in use, with a 12 VDC DC input available as an alternate power source. Pan range spans −130° to +130°; tilt range covers −30° to +90°. The camera accepts control commands via VISCA/TCP, VISCA/UDP, PELCO-D, PELCO-P, and ONVIF. Microsoft Cloud IntelliFrame support allows the camera to individually frame up to nine in-room participants for a Teams Rooms Pro display layout. Optional wall mount, ceiling J-mount, and universal mounting brackets are available separately.

Key Features

• Dual-Camera Intelligent Design — Built-in wide-angle reference camera directs the PTZ automatically; no external AI compute box required.
• 12x Optical Zoom — 4.1 mm to 49.2 mm focal length; 67.68° horizontal FOV at widest, suitable for rooms 5 to 25 ft deep.
• Group Framing and Presenter Tracking — Automatically frames multiple participants or tracks a single moving presenter without operator input.
• NDI|HX over Ethernet — Delivers video, audio, and control over a single Ethernet cable for simplified AV infrastructure.
• USB 3.0 Plug-and-Play — Recognized as a standard USB camera by Windows UC platforms; no driver installation required.
• HDMI + 3G-SDI Simultaneous Output — Both outputs active concurrently at 1080p60 for flexible signal routing.
• Microsoft Cloud IntelliFrame — Frames up to nine individual participants for Teams Rooms Pro display layouts.
• Two-Camera Pairing — Two IV-CAM-I12 units can pair for automated switching without Automate VX hardware.
• PoE Power — IEEE 802.3af Class 3 PoE; 12 VDC alternate power input available.
• Multi-Protocol Control — Supports VISCA/TCP, VISCA/UDP, PELCO-D, PELCO-P, and ONVIF for compatibility with a wide range of control systems.
• Teams and Zoom Certified — Microsoft Teams Rooms and Zoom Rooms certified for qualified deployments.

Typical Applications

• Conference room and boardroom with hands-free auto-tracking
• Training room multi-camera setups with automated switching
• Government space AV deployments requiring certified UC cameras (TAA version: IV-CAM-I12-GV-B)
• All-hands room and auditorium presenter tracking
• Broadcast studio intelligent camera automation
• Multi-purpose room with Crestron Automate VX integration

Technical Specifications

Frequently Asked Questions

Does the IV-CAM-I12-W require the Crestron Automate VX system to perform auto-tracking?
No. The i12's intelligent tracking features — group framing and presenter tracking — are built into the camera itself. No external AI compute device or Automate VX processor is required for single-camera tracking. Two i12 units can pair for automated multi-camera switching without Automate VX hardware.

What is the recommended room depth range for this camera?
Crestron specifies 5 to 25 feet for group framing, and 10 to 25 feet for presenter tracking mode. For rooms deeper than 25 feet, the IV-CAM-P20 (20x zoom) may be a more appropriate choice.

Can the i12 camera output to HDMI and NDI simultaneously?
Yes. HDMI and 3G-SDI outputs operate simultaneously. NDI|HX streams over the Ethernet port, which can operate concurrently with the HDMI and SDI outputs.

How is the camera powered?
The IV-CAM-I12-W is powered via PoE (IEEE 802.3af Class 3) over the same Ethernet cable used for NDI|HX and control. A 12 VDC, 2.5 A DC power input is available as an alternate source when PoE is not available at the switch port.

Is there a TAA-compliant government version of this camera?
Yes. The IV-CAM-I12-GV-B is the TAA-compliant government version in Moon Gray finish. The IV-CAM-I12-W (white) is the commercial version listed here.

What mounting options are available?
Optional accessories include the IV-CAMA-UMB Universal Mounting Bracket, IVA-WMT-BRKT-1B wall mount bracket, and IVA-CMT-BRKT-1B J-mount ceiling bracket, all sold separately.

What control protocols does the i12 support?
The camera supports VISCA/TCP, VISCA/UDP, PELCO-D, PELCO-P, and ONVIF, covering the majority of professional control system and video switching platforms.
