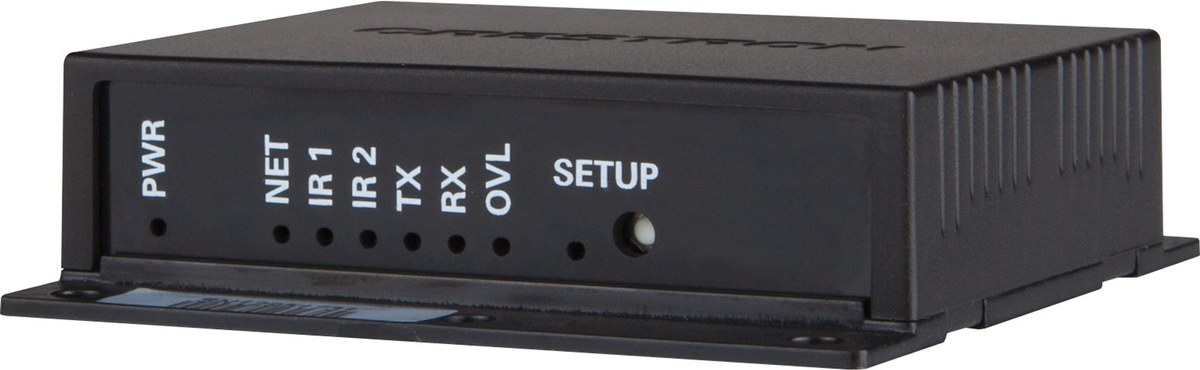

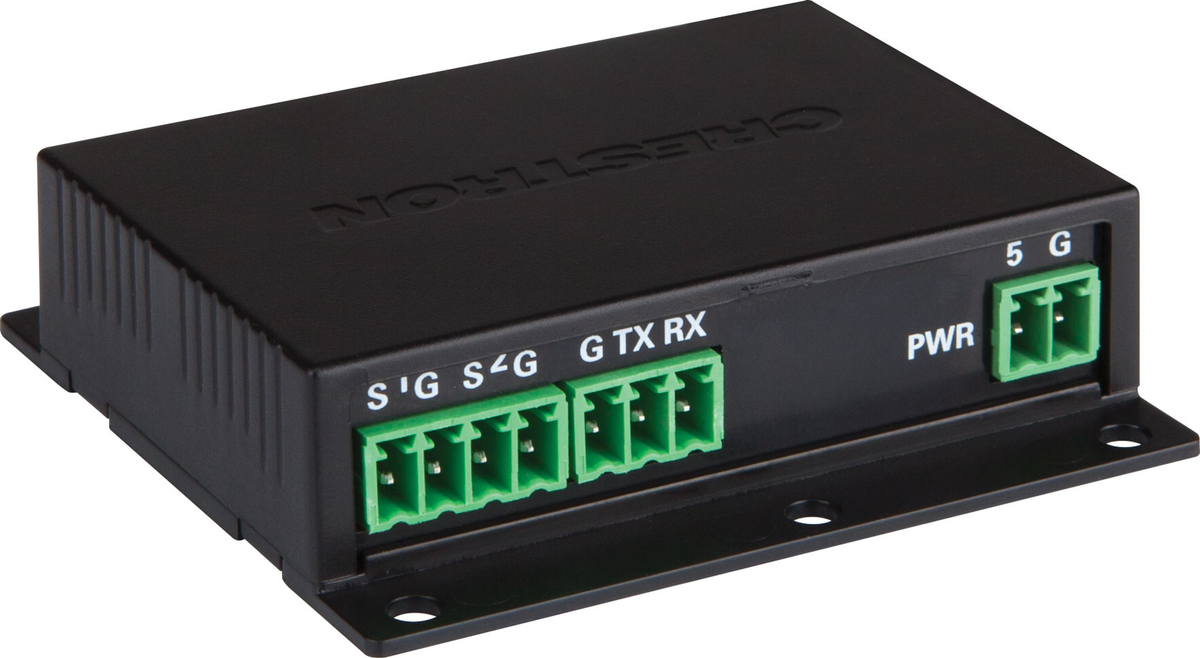

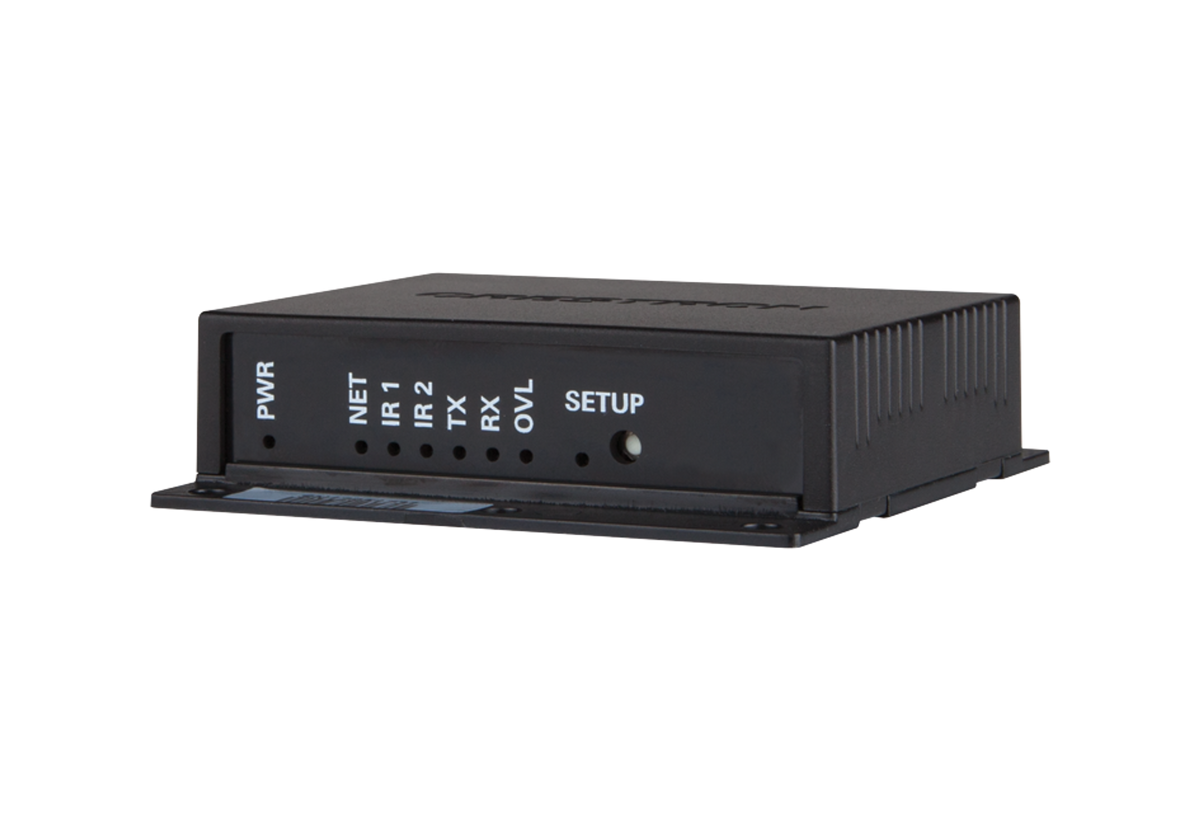

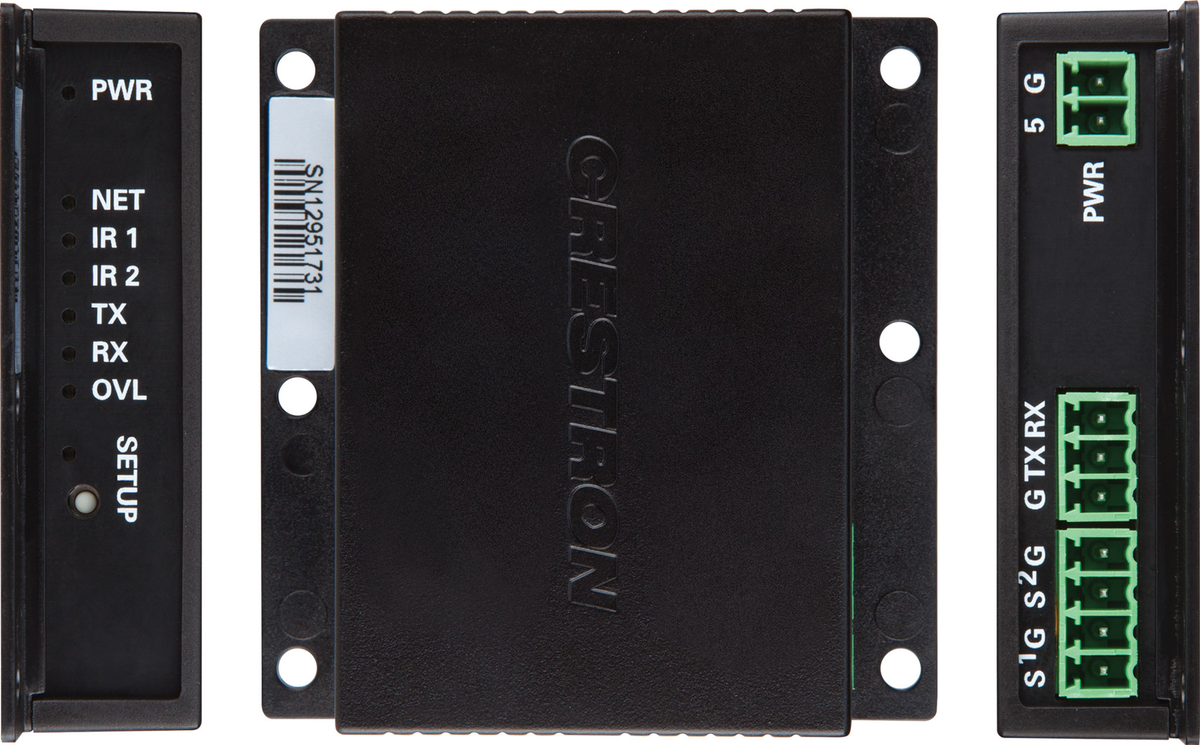

Crestron INET-IOEX-IRCOM – Wireless IR/RS-232 Control Module

Product Overview

The Crestron INET-IOEX-IRCOM is a wireless IR and RS-232 control module operating within the infiNET EX 2.4 GHz mesh wireless ecosystem. It receives control commands from a Crestron processor via an infiNET EX gateway and executes IR or serial commands at the local AV equipment location — without requiring a dedicated wired control run. This module is well suited to retrofit installations and locations where pulling new control cabling is not practical.

Product Description

The INET-IOEX-IRCOM provides IR output ports for controlling IR-capable devices such as displays, AV receivers, and projectors, alongside an RS-232 serial port for devices that accept bidirectional serial control. Commands originate at the Crestron control system, travel wirelessly over the infiNET EX mesh network to the module, and are executed at the equipment rack or mounting location. A compatible infiNET EX gateway — such as the CEN-GWEXER — is required to bridge the infiNET EX wireless network to the wired Crestron control system. The module holds UL Listing and FCC/IC certification for use in North American commercial and residential installations.

Key Features

• Wireless communication via infiNET EX 2.4 GHz mesh protocol
• IR output ports for control of IR-capable AV equipment
• RS-232 serial port for bidirectional serial device control
• Eliminates dedicated wired control runs to remote equipment locations
• Integrates with any Crestron control system via an infiNET EX gateway
• UL Listed; FCC and IC certified
• Suitable for new installations and retrofit projects

Typical Applications

• Retrofit AV control in existing facilities where new control wiring is impractical
• Conference room display and source control over wireless infiNET EX infrastructure
• Hospitality and multi-room residential systems requiring distributed IR/serial control
• Commercial AV installations with equipment in closets or ceiling spaces lacking control wiring
• Education environments where wireless control modules reduce installation time and cost

Technical Specifications

• Model: INET-IOEX-IRCOM
• Manufacturer: Crestron Electronics
• Wireless Protocol: infiNET EX 2.4 GHz mesh
• Control Outputs: IR output ports; RS-232 serial port
• Required Gateway: infiNET EX gateway (e.g., CEN-GWEXER)
• Certifications: UL Listed, FCC certified, IC certified
• Ecosystem: Crestron infiNET EX

Frequently Asked Questions

Q: Does the INET-IOEX-IRCOM require a wired connection back to the Crestron processor?
A: No. The module communicates wirelessly over the infiNET EX mesh network. However, a compatible infiNET EX gateway such as the CEN-GWEXER is required to connect the wireless network to the wired Crestron control system.

Q: What types of devices can the INET-IOEX-IRCOM control?
A: It can control any IR-capable device — displays, projectors, AV receivers — via IR output ports, and any RS-232 serial-controllable device via its serial port.

Q: Is this module appropriate for commercial installations?
A: Yes. The INET-IOEX-IRCOM is UL Listed and FCC/IC certified, making it suitable for both commercial and residential Crestron installations throughout North America.
