Crestron HZ2-SWEX-W – Horizon 2 In-Wall Switch, infiNET EX, 120 VAC, White, Engraved
Crestron HZ2-SWEX-W – Horizon 2 In-Wall Switch, infiNET EX, 120 VAC, White, Engraved is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Crestron HZ2-SWEX-W – Horizon 2 In-Wall Switch, infiNET EX, 120 VAC...
Product Overview

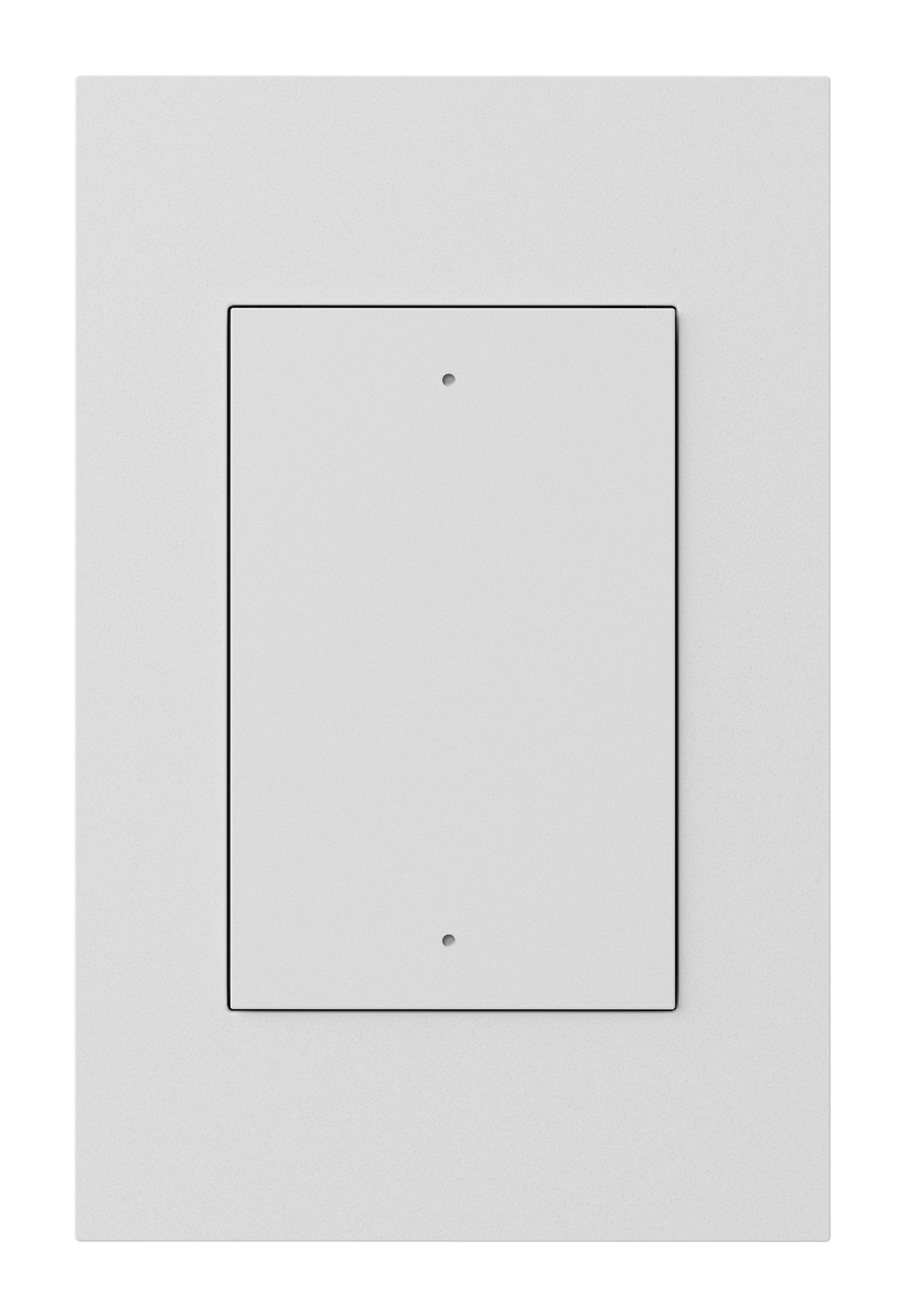

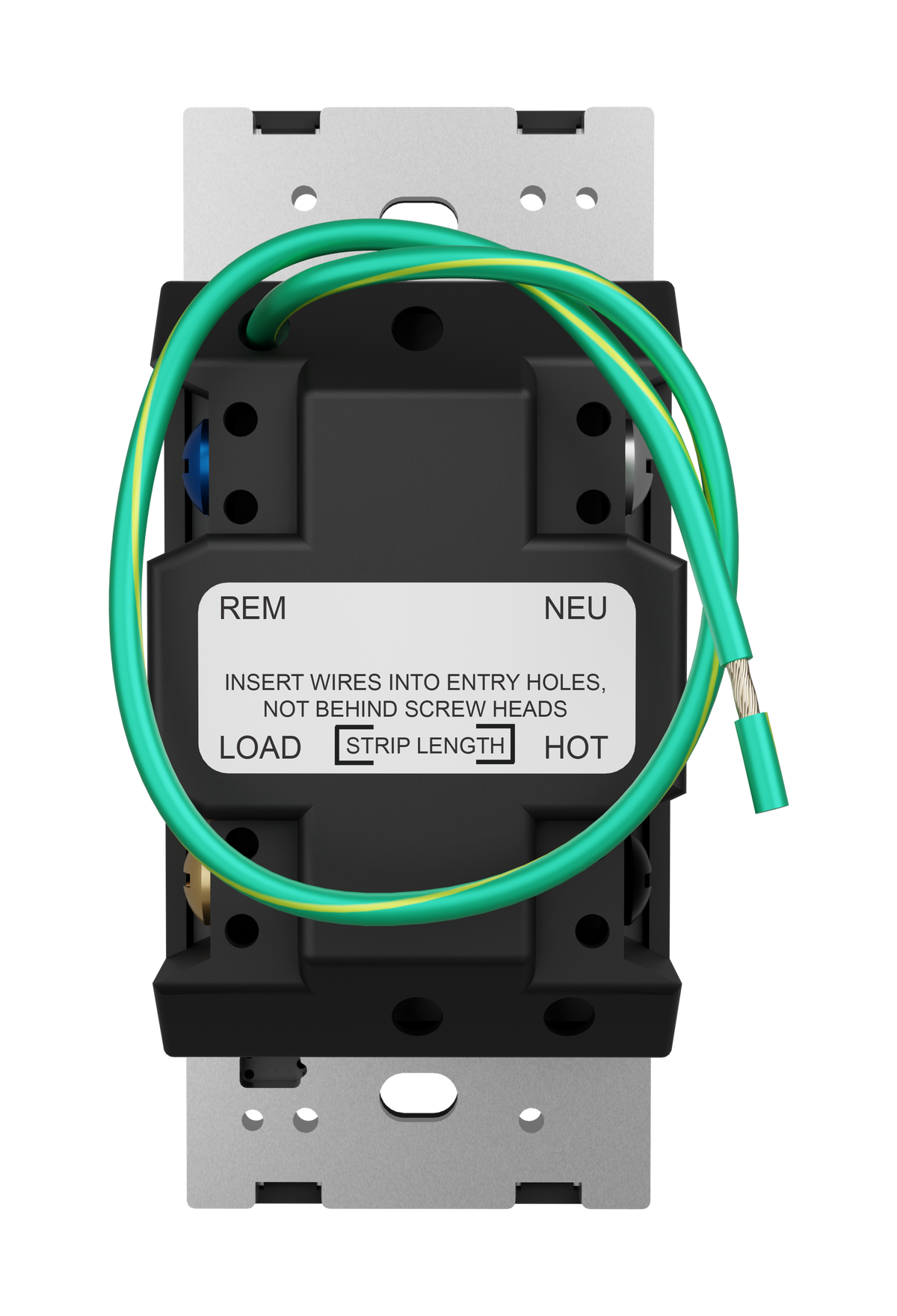

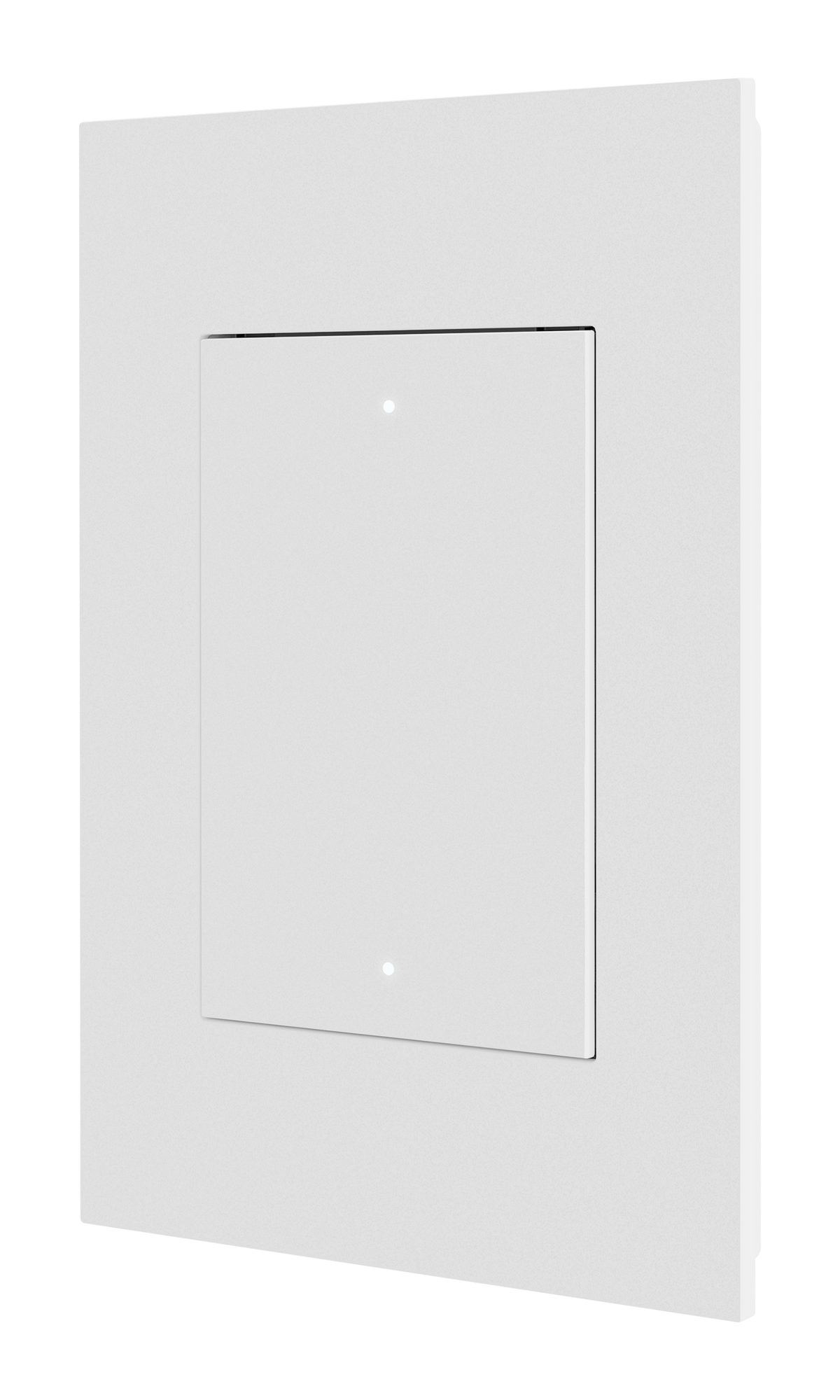

The Crestron HZ2-SWEX-W is a Horizon 2 series in-wall switch with infiNET EX wireless connectivity, finished in white with standard engraving. It provides on/off switching for non-dimmable loads and communicates wirelessly with Crestron control processors via infiNET EX. The white finish is the most widely used option, compatible with standard commercial and residential wall environments.
Product Description
The HZ2-SWEX-W provides on/off load switching for circuits that do not require dimming capability, such as fluorescent fixtures, non-dimmable LED drivers, motors, exhaust fans, and general switched circuits. The white finish aligns with standard wall plate colors used throughout commercial offices, healthcare facilities, education buildings, and residential properties, making it the default choice for broad deployments where visual consistency with standard switch plates is required. Standard engraved button caps ship pre-installed for immediate deployment. The Horizon 2 wireless design eliminates the need for Cresnet wiring at the wall box, reducing installation complexity in both new construction and retrofit scenarios. Full scene control, scheduling, and occupancy automation are supported through Crestron processor programming.
Key Features
- On/off switching for non-dimmable loads
- infiNET EX wireless two-way communication
- White finish for broad commercial and residential compatibility
- Standard engraved button caps included
- 120 VAC compatible
- No Cresnet wiring required at device wall box
- Supports scene control, scheduling, and automation
Typical Applications
- Switching non-dimmable fluorescent and LED tube fixtures in commercial offices
- Exhaust fan and ventilation control in commercial facilities
- Exterior and parking lot lighting control
- Companion switching device alongside Horizon 2 dimmers in the same installation
Technical Specifications
- Output Type: On/off switch
- Communication: infiNET EX wireless
- Voltage: 120 VAC
- Finish: White
- Engraving: Standard (included)
- Series: Horizon 2
Frequently Asked Questions
Q: Can the HZ2-SWEX-W control motor loads such as ceiling fans?
A: The HZ2-SWEX provides on/off switching for motor loads within its rated current limit. Verify load ratings with Crestron specifications before use with motors or inductive loads.
Q: Does the HZ2-SWEX-W provide dimming capability?
A: No. This is a switch (on/off) only. For dimming capability, use the HZ2-DIMEX or HZ2-DIMUEX variants.
Q: Where can I purchase the HZ2-SWEX-W?
A: Available at creationnetworks.net.
