Product Overview

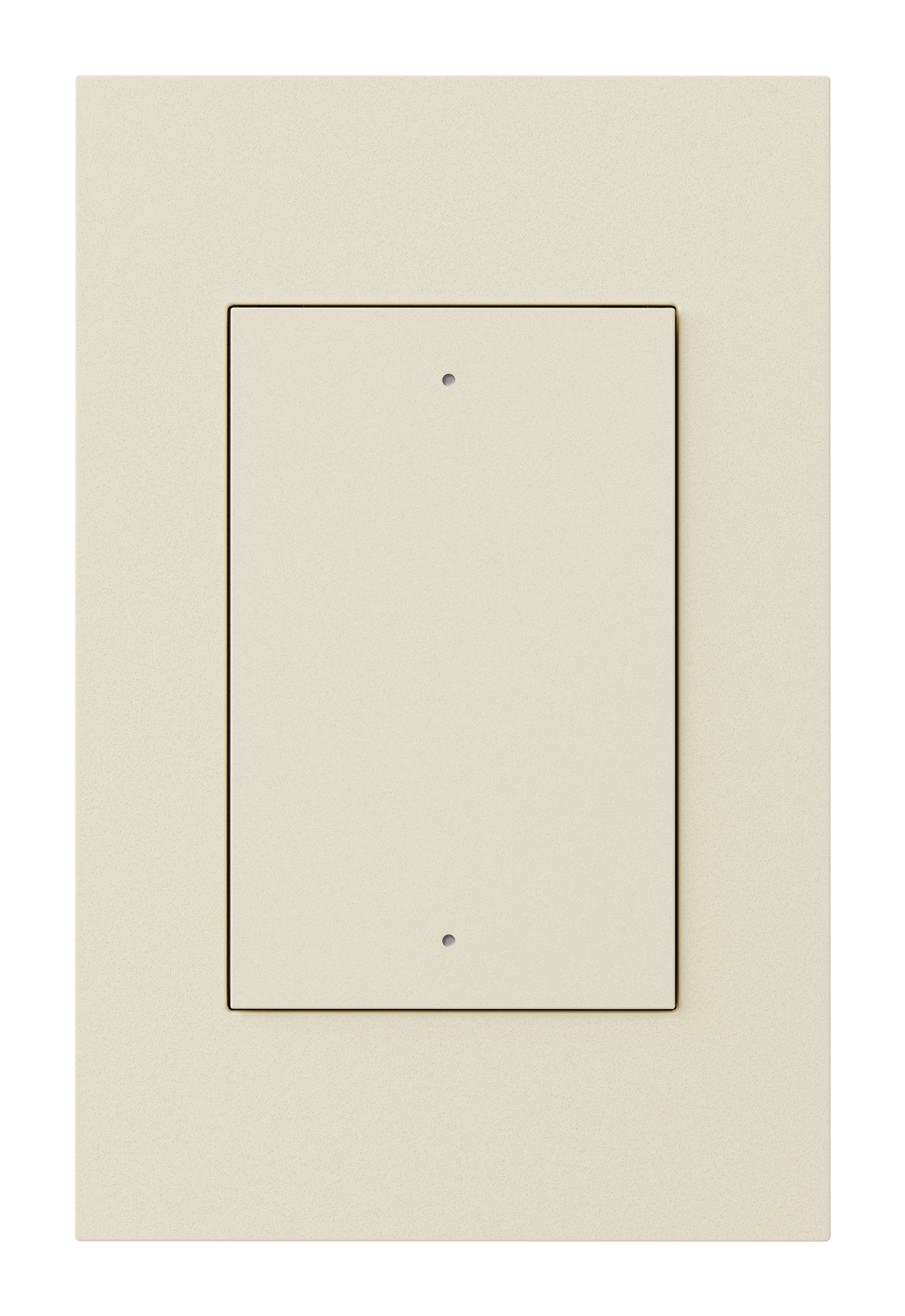

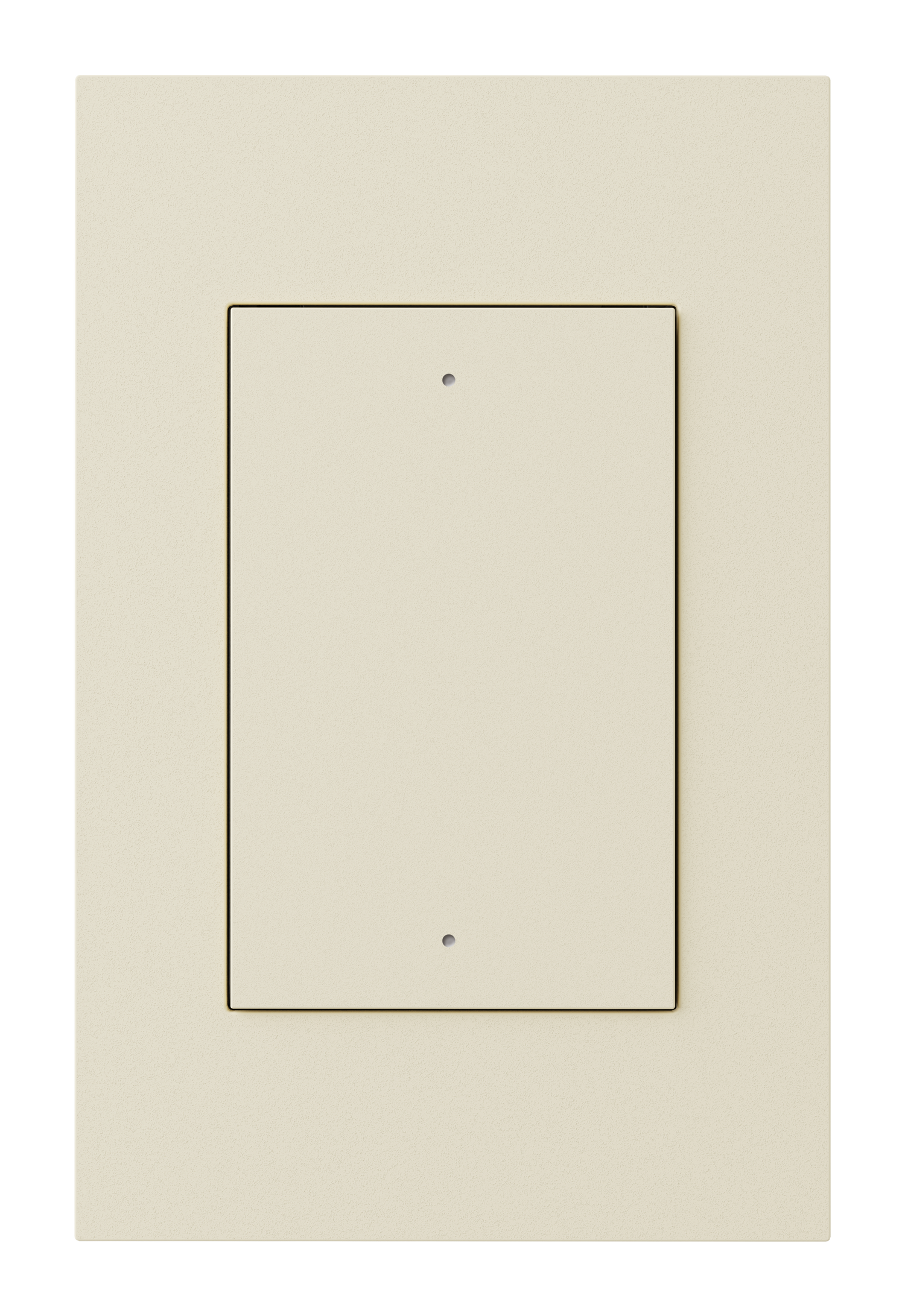

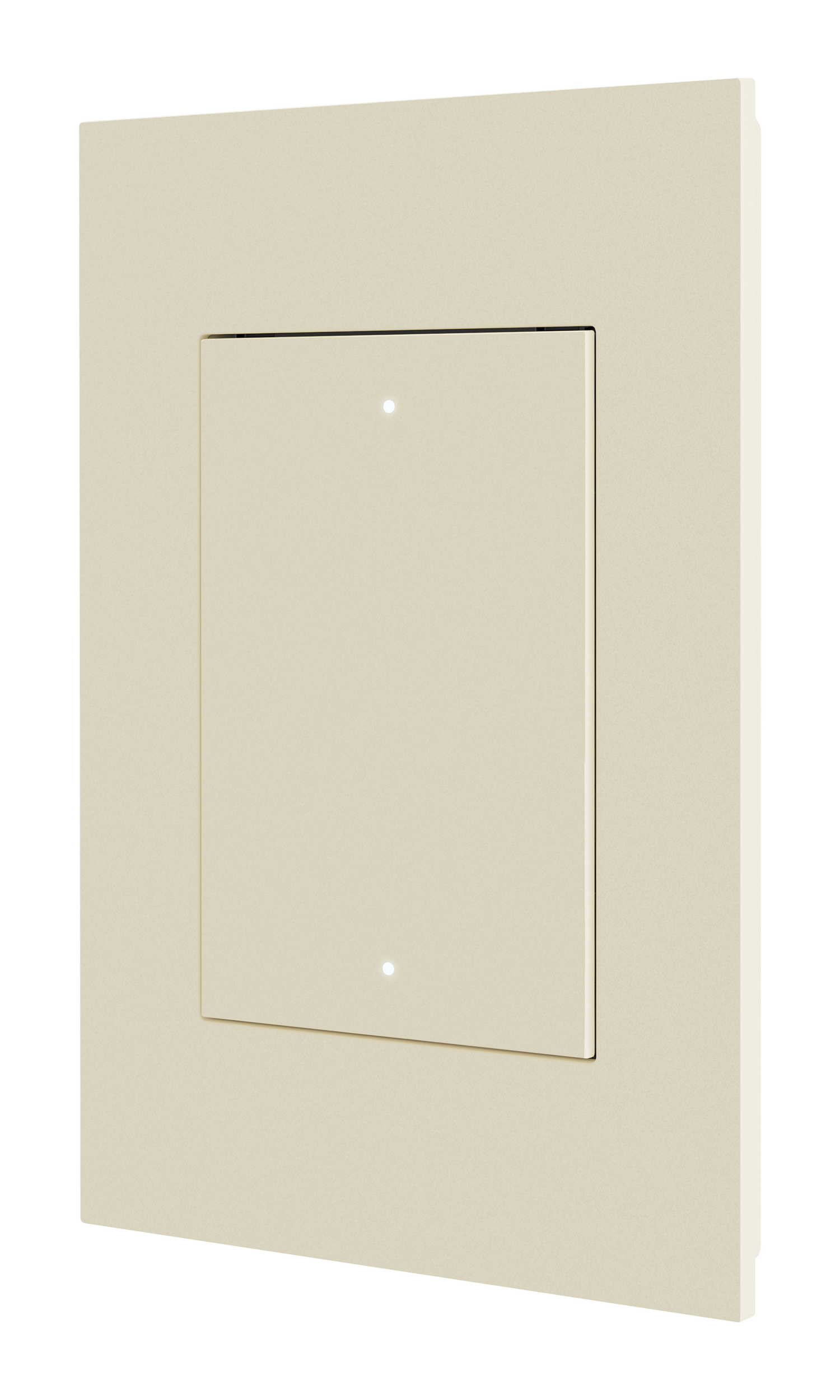

The Crestron HZ2-SWEX-A is a Horizon 2 in-wall relay-based switch with infiNET EX wireless communication, in Alabaster (white textured) finish with custom laser engraving. It provides on/off switching for incandescent, magnetic low voltage, tungsten-halogen, electronic ballast, and motor loads up to 10 A without dimming capability.
Product Description
The HZ2-SWEX-A shares all electrical specifications with the Brushed Brass and Black Glass switch variants, using an Alabaster textured finish with custom-etched button artwork. This finish is specified in standard commercial and institutional environments where a neutral white device appearance is preferred over premium metal or glass options. Custom button artwork in any of Style 1–6 must be provided at time of order via Impress SW, the Crestron Home app, D3Pro, or Crestron Home OS Configurator. Note: the HZ2-SWEX does not include an airgap switch. Neutral wire and HZ2-FP-G faceplate (sold separately) are required. For ordering, visit creationnetworks.net.
Key Features
- Relay-based on/off switch; 10 A maximum; 1/2 HP motor maximum; not a dimmer
- Supports incandescent, MLV, tungsten-halogen, electronic ballasts, and motor loads
- Alabaster (white textured) finish with custom laser-engraved button artwork (Style 1–6)
- infiNET EX wireless, 2.4 GHz, IEEE 802.15.4; Crestron Home OS compatible
- 9 programmable buttons; 5 RGB LEDs; 13 color themes; Tunable White 2000K–8000K
- Remote terminal for up to 4 HZ2-AUX or HZ2-KPEX companion devices; no airgap switch

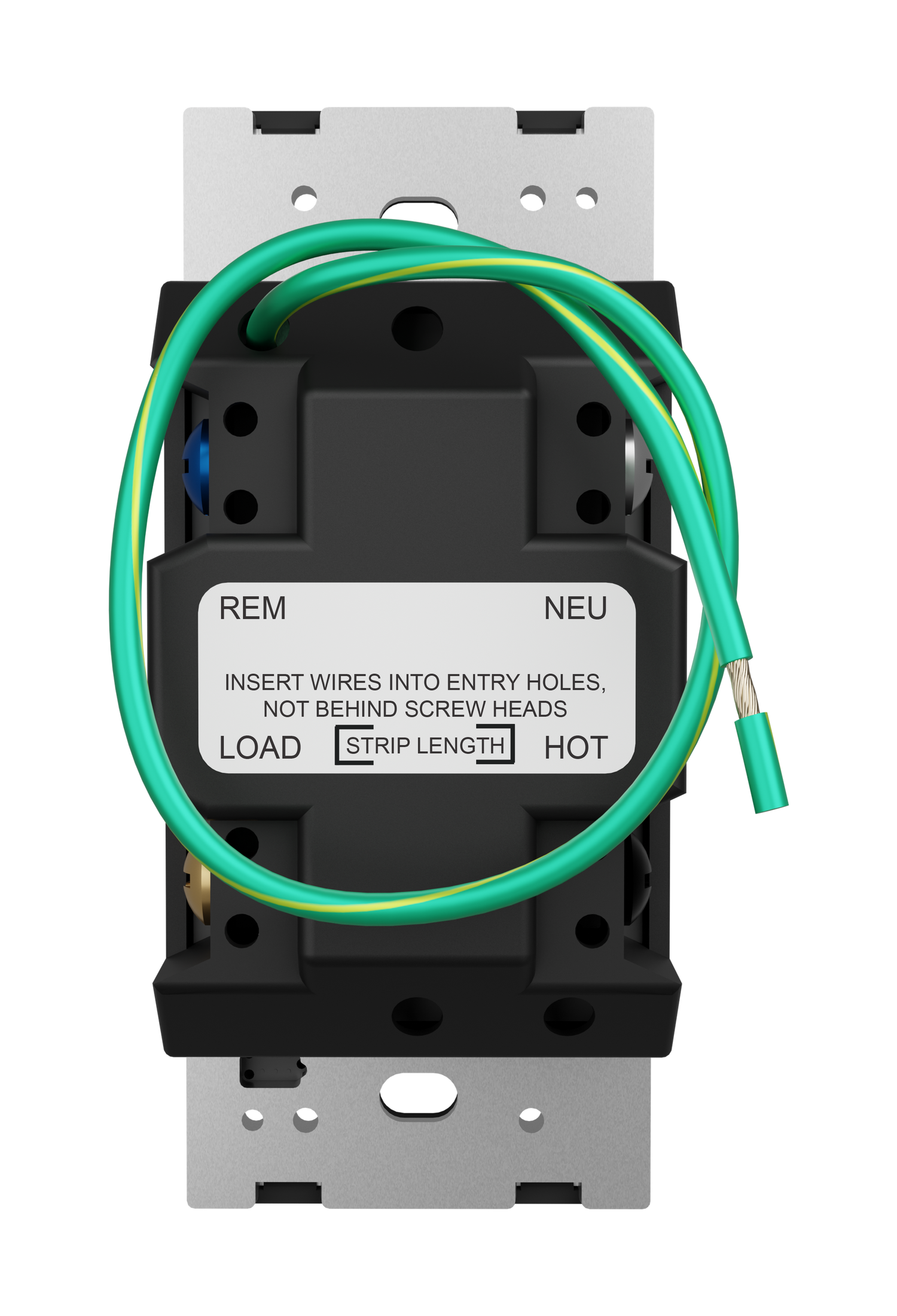

- 120 VAC, neutral required; 14–12 AWG screw clamp terminals
- Dimensions: 4.13 × 1.80 in. (105 × 46 mm); depth 1.75 in. (45 mm); weight 7.4 oz (208 g)
- Certifications: FCC, UL, IC
Typical Applications
- Motor and fan switching in offices, conference rooms, and institutional spaces with Crestron automation
- On/off control of electronic ballast fixtures and non-dimmable LEDs in standard commercial environments
- Installations requiring engraved function labels in a cost-appropriate white finish
- Crestron Horizon 2 deployments mixing switch and dimmer devices in a consistent textured white palette
Technical Specifications
| Specification | Value |
|---|---|
| Switch Type | Relay-based on/off (not a dimmer) |
| Load Types | Incandescent, MLV, Tungsten-Halogen, Electronic Ballasts, 1/2 HP motors |
| Load Rating | 10 A maximum; 1/2 HP motor maximum |
| Airgap Switch | Not included |
| Wireless Protocol | infiNET EX, 2.4 GHz, IEEE 802.15.4 |
| Power Input | 120 VAC, 50/60 Hz; neutral required |
| Finish | Alabaster (white textured), custom engraved |
| Engraving | Custom laser-etched; artwork files required at order |
| Dimensions (H × W) | 4.13 × 1.80 in. (105 × 46 mm) |
| Depth | 1.75 in. (45 mm) |
| Weight | 7.4 oz (208 g) |
| Certifications | FCC, UL, IC |
| Required Accessory | HZ2-FP-G faceplate (sold separately) |
Frequently Asked Questions
- Is the HZ2-SWEX-A suitable for dimming LED circuits?
- No. The HZ2-SWEX is a relay-based on/off switch only. It provides no dimming signal. For dimming LED loads, use the HZ2-DIMUEX (phase dimming) or HZ2-DIMLVEX (0-10V).
- When must engraving files be submitted?
- Artwork must be provided at time of order via Impress SW, Crestron Home app, D3Pro, or CHO Configurator. Made-to-order product; cannot be changed after production.
- What is the difference between Alabaster and White (-W) HZ2 devices?
- Alabaster (-A) and White (-W) are both light-colored textured finishes in the HZ2 series. They serve the same functional role in standard commercial installations. Alabaster tends toward a warmer off-white tone while White is a brighter neutral; both are available with the same electrical specifications.
