Crestron HZ2-KPEX-BR-BRASS – Horizon 2 In-Wall Keypad, infiNET EX, Brushed Brass, Engraved

Product Overview

The Crestron HZ2-KPEX-BR-BRASS is a Horizon 2 in-wall programmable keypad with infiNET EX wireless communication, finished in Brushed Brass metal with custom laser engraving. It provides nine fully programmable push buttons for scene, source, and system control, requiring a companion HZ2 dimmer or switch for load switching in multi-location configurations.

Product Description

Unlike the HZ2 dimmer and switch variants, the HZ2-KPEX does not directly switch or dim a load. It is a keypad designed to pair with HZ2-DIMEX, HZ2-DIMUEX, HZ2-DIMLVEX, or HZ2-SWEX devices via a traveler wire through the Remote terminal, enabling multi-location control. All nine buttons are fully programmable through the Crestron system for scene control, AV source selection, or system commands. The Brushed Brass finish with custom engraving is specified in premium installations where labeled button functions are required. An airgap switch is included on the HZ2-KPEX. Neutral wire and HZ2-FP-G faceplate (sold separately) are required. For ordering, visit creationnetworks.net.

Key Features

• 9 fully programmable push buttons for scene, AV source, and system control
• Custom laser-engraved Brushed Brass metal finish (Style 1–6; artwork files required at order)
• infiNET EX wireless, 2.4 GHz, IEEE 802.15.4; Crestron Home OS compatible
• 5 RGB LED backlights; 13 color themes; Tunable White 2000K–8000K
• Airgap switch included; built-in photosensor

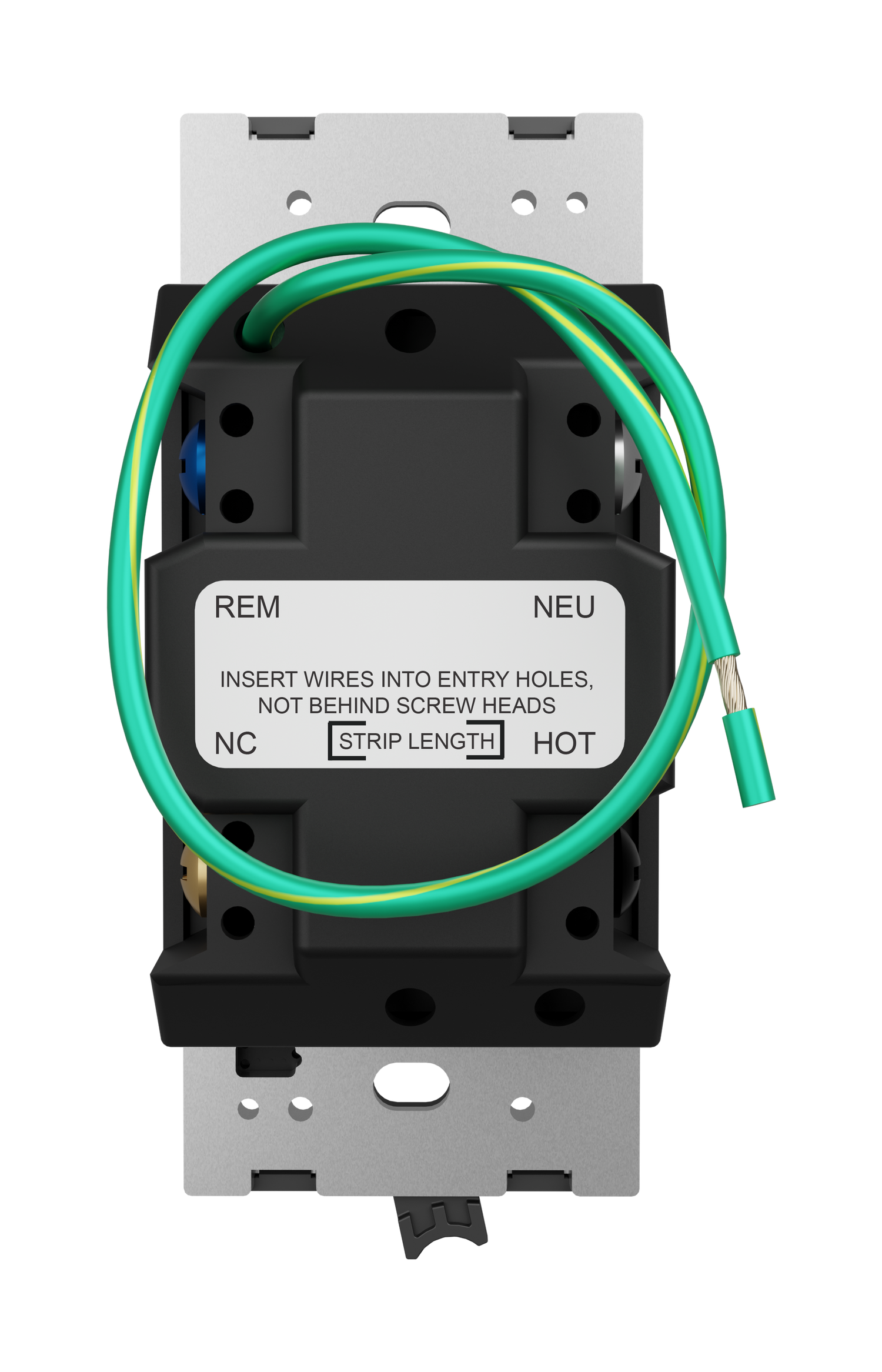

• Remote terminal for wired multi-location pairing with HZ2 dimmers/switches
• Does not switch or dim a load directly — requires companion HZ2 device for load control
• 120 VAC, neutral required; 14–12 AWG screw clamp terminals
• Dimensions: 4.13 × 1.80 in. (105 × 46 mm); depth 1.83 in. (47 mm); weight 7.4 oz (208 g)
• Certifications: FCC, UL, IC

Typical Applications

• Secondary control locations in multi-way lighting circuits alongside HZ2 dimmers
• Scene and source selection keypads in conference rooms, living rooms, and home theaters
• Entry and exit keypads for whole-room or whole-home scene activation
• Premium installations requiring engraved function labels in Brushed Brass hardware

Technical Specifications

Frequently Asked Questions

Does the HZ2-KPEX control a load directly?

No. The HZ2-KPEX is a keypad only and has no load output. It must be paired with a compatible HZ2 dimmer or switch device for load control, either via a traveler wire through the Remote terminal or wirelessly through the Crestron control system.

When must engraving files be submitted?

Engraving artwork must be provided at time of order via Impress SW, Crestron Home app, D3Pro, or CHO Configurator. This is a made-to-order product.

Can this keypad control scenes across multiple rooms?

Yes. When programmed through a Crestron control system, the HZ2-KPEX can send commands to any device in the system, enabling single-button scene activation across multiple rooms or zones.
