Crestron HZ2-KPCN-W – Horizon 2 Cresnet Keypad, White

Product Overview

The Crestron HZ2-KPCN-W is a Horizon 2 in-wall wired Cresnet keypad with nine programmable push buttons in a White textured finish. It communicates over the Cresnet wired bus and draws all power from the bus, requiring no line voltage or neutral wire at the box. It includes two digital/analog input ports for external sensor connections.

Product Description

The HZ2-KPCN-W provides Cresnet-based keypad control for scene, AV source, and system functions in a standard white finish suitable for conventional commercial and residential interiors. The White finish uses the default dot engraving on the Style 1 button assembly. Two daisy-chainable 4-pin Cresnet terminal blocks make network wiring straightforward in multi-device runs. The two input ports accept dry contacts, occupancy sensors, and analog signals (0–10 VDC) with programmable pull-up resistors. No airgap switch is included. A faceplate is included with the textured finish variant. For ordering and project support, visit creationnetworks.net.

Key Features

• Cresnet wired keypad: bus-powered 2 W (83 mA @ 24 VDC); no line voltage or neutral required
• White textured finish with default dot engraving; faceplate included

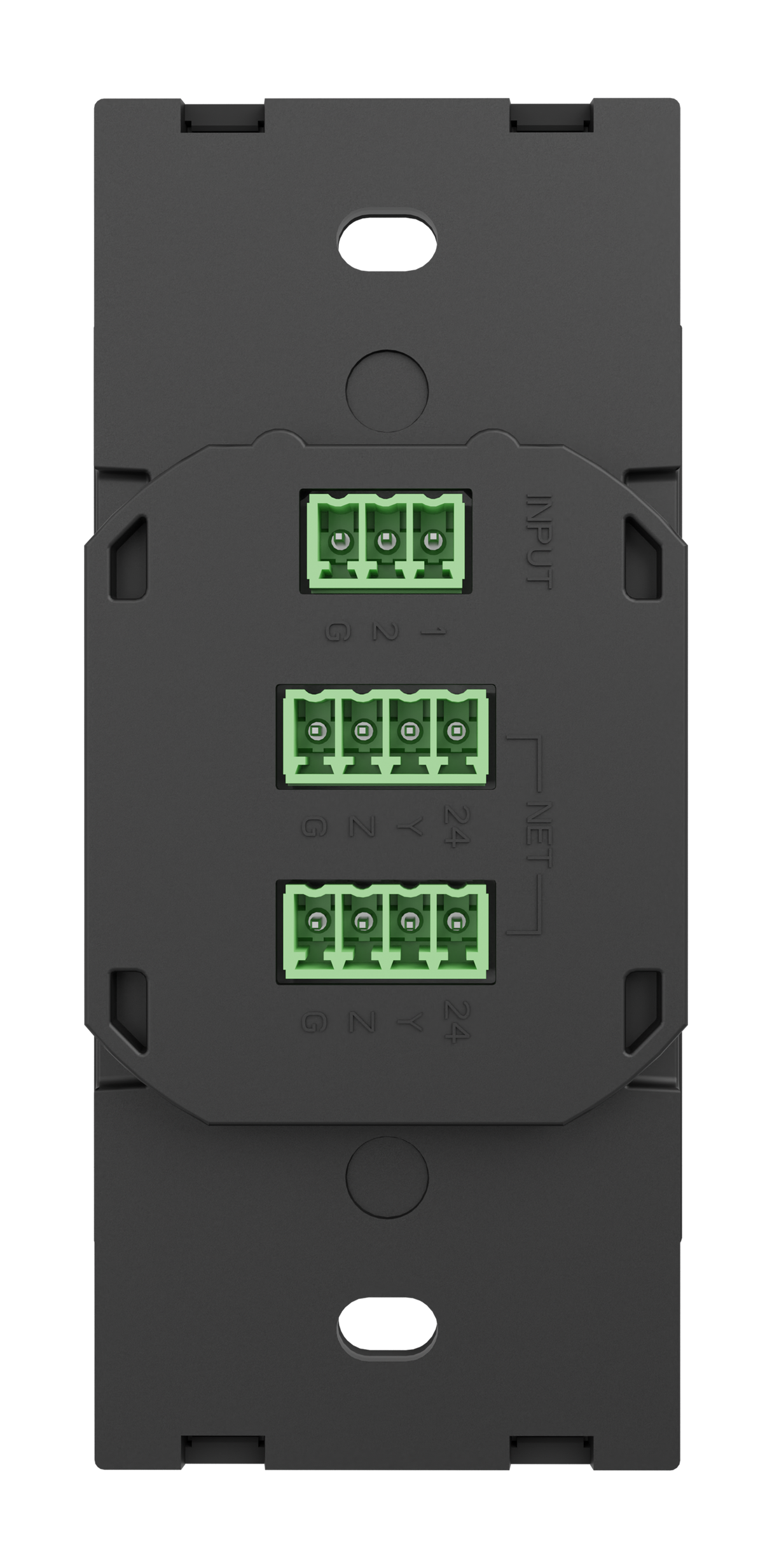

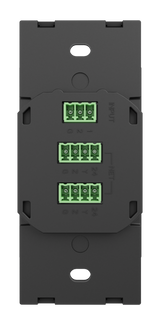

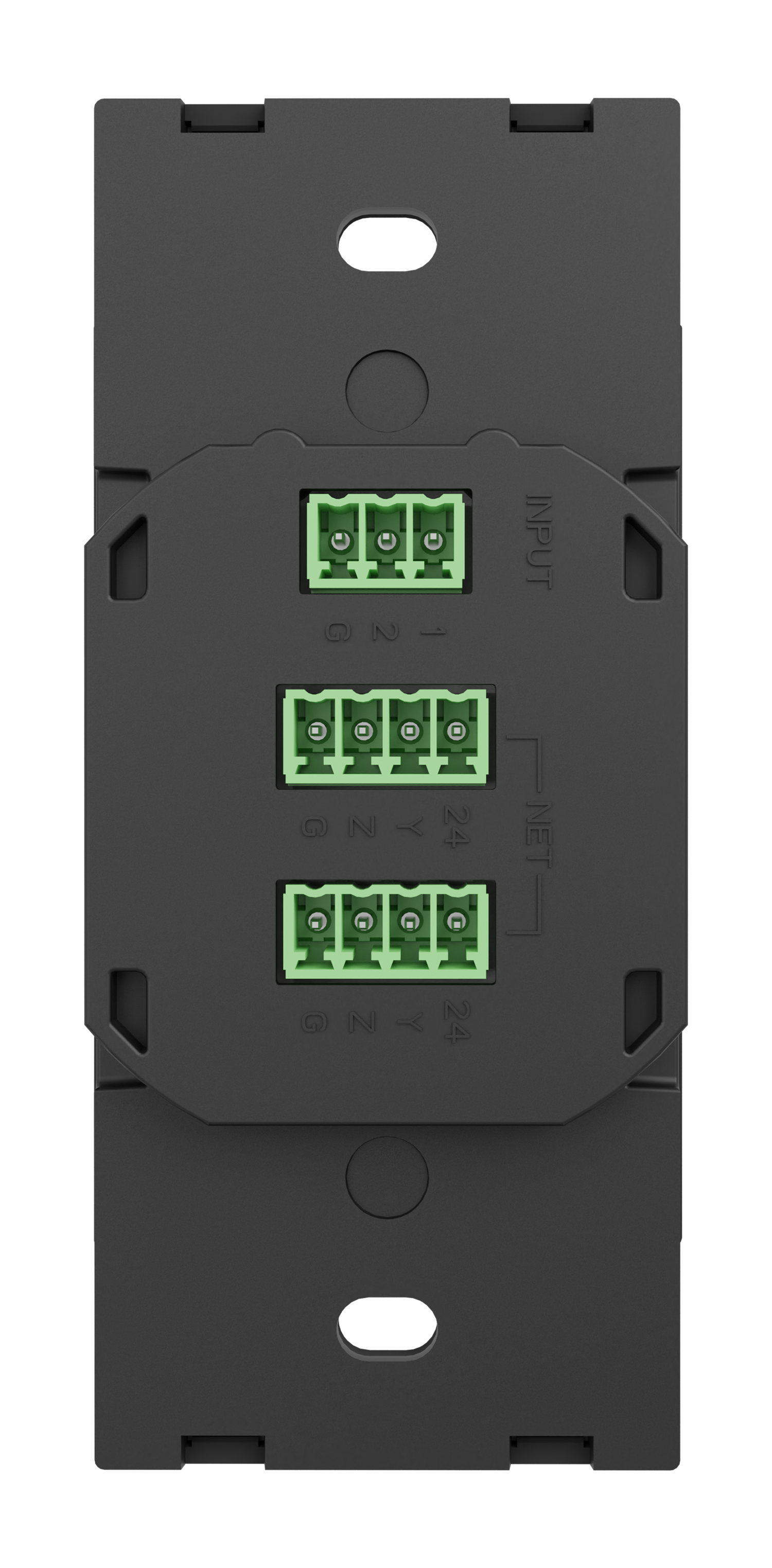

• Dual 4-pin Cresnet terminal blocks for daisy-chain wiring
• 2 digital/analog input ports: 0–24 VDC digital; 0–10 VDC analog; programmable 3V pull-up per input
• 9 programmable push buttons; 5 RGB LEDs; 13 color themes; Tunable White 2000K–8000K
• Built-in photosensor; Crestron Home OS compatible; no airgap switch
• Dimensions: 4.13 × 1.80 in. (105 × 46 mm); depth 0.64 in. (17 mm); weight 7.4 oz (208 g)
• Certifications: IC, FCC Part 15 Class B

Typical Applications

• Scene and source selection keypads in standard white-finish wired Cresnet installations
• Daisy-chained keypads in corridors, offices, and conference rooms on a Cresnet run
• Locations requiring keypad control and external sensor monitoring at the same wall location
• Cost-effective HZ2 Cresnet deployments in commercial environments without custom engraving requirements

Technical Specifications

Frequently Asked Questions

Does the HZ2-KPCN-W include a faceplate?

Yes. The White textured finish variant of the HZ2-KPCN ships with a faceplate. Metal and glass finish variants require a separately purchased faceplate.

Can this keypad be upgraded to custom engraving?

No. This standard (non-ENGRAVED) model comes with default dot engraving on the Style 1 button assembly. To get custom engraved labels, order the HZ2-KPCN-W ENGRAVED variant with the required artwork files at order time.

Does the HZ2-KPCN-W work in the same wall box as a standard decora device?

Yes. It mounts in standard 1- to 4-gang U.S. or 1-gang EU style electrical boxes, with a minimum recommended depth of 3.5 in. At 0.64 in. total depth, it is significantly shallower than the infiNET EX variants, making it suitable for shallow boxes.
