Crestron HZ2-KPCN-GLASS-B – Horizon 2 Cresnet Keypad, Black Glass, Engraved
Crestron HZ2-KPCN-GLASS-B – Horizon 2 Cresnet Keypad, Black Glass, Engraved is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Crestron HZ2-KPCN-GLASS-B – Horizon 2 Cresnet Keypad, Black Glass, ...
Product Overview
The Crestron HZ2-KPCN-GLASS-B is a Horizon 2 in-wall wired Cresnet keypad with nine programmable push buttons, Black Glass finish, and custom laser engraving. It communicates over the Cresnet wired bus, drawing all power from the bus without requiring line voltage or neutral wire at the box.
Product Description
Identical in electrical specification to the HZ2-KPCN-DRK-BRZ, this variant uses a high-gloss Black Glass finish with custom-etched button artwork provided at time of order. The ENGRAVED designation requires engraving files submitted via Impress SW, the Crestron Home app, D3Pro, or Crestron Home OS Configurator before production. Dual 4-pin Cresnet terminal blocks support daisy-chain wiring, and two digital/analog input ports enable sensor integration at the keypad location. No airgap switch is included. Faceplate sold separately. For ordering, visit creationnetworks.net.
Key Features
- Cresnet wired keypad: bus-powered 2 W (83 mA @ 24 VDC); no line voltage or neutral required
- Black Glass finish with custom laser-engraved button artwork (Style 1–6; files required at order)

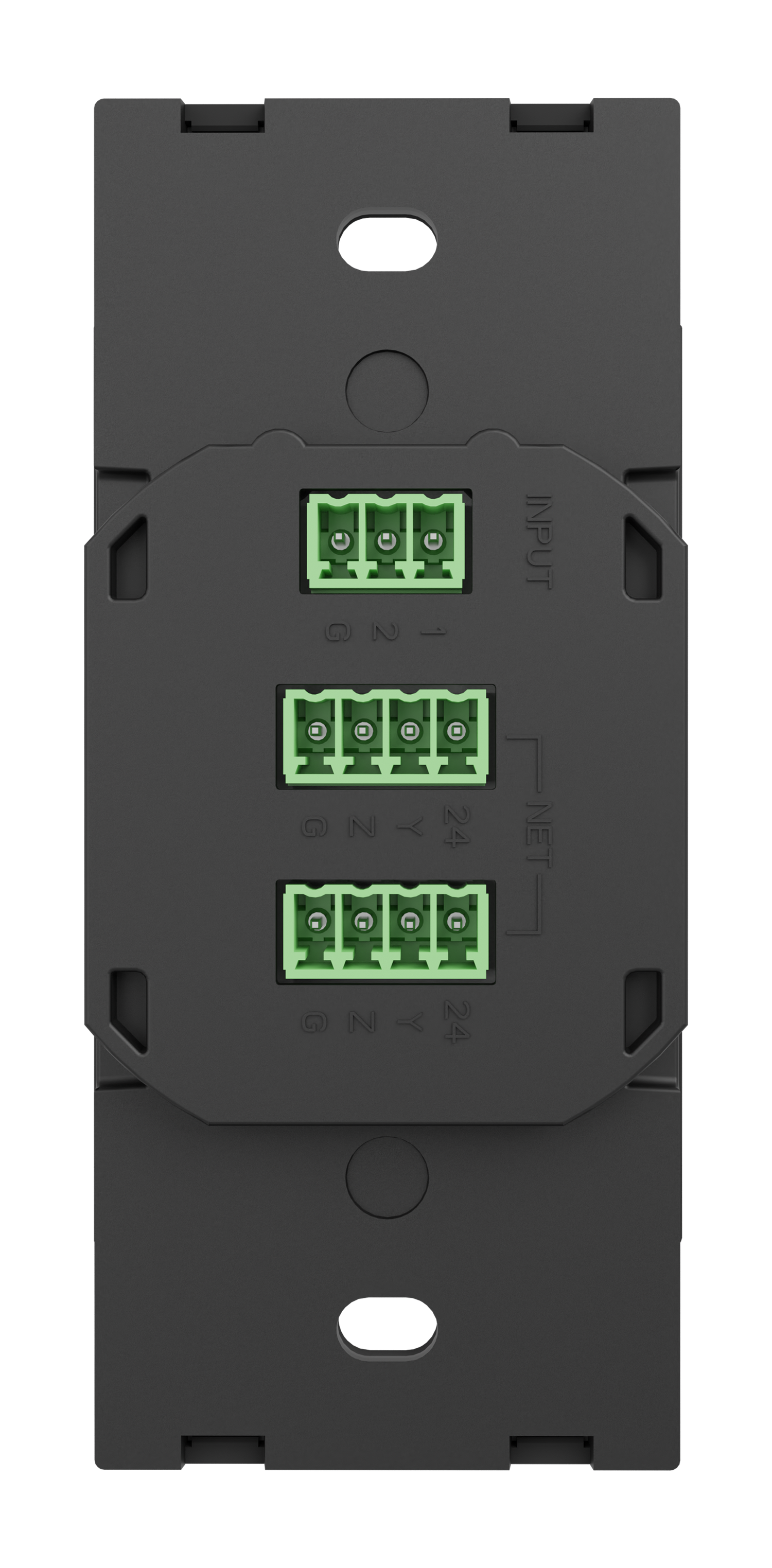

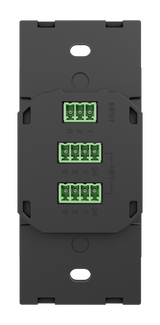

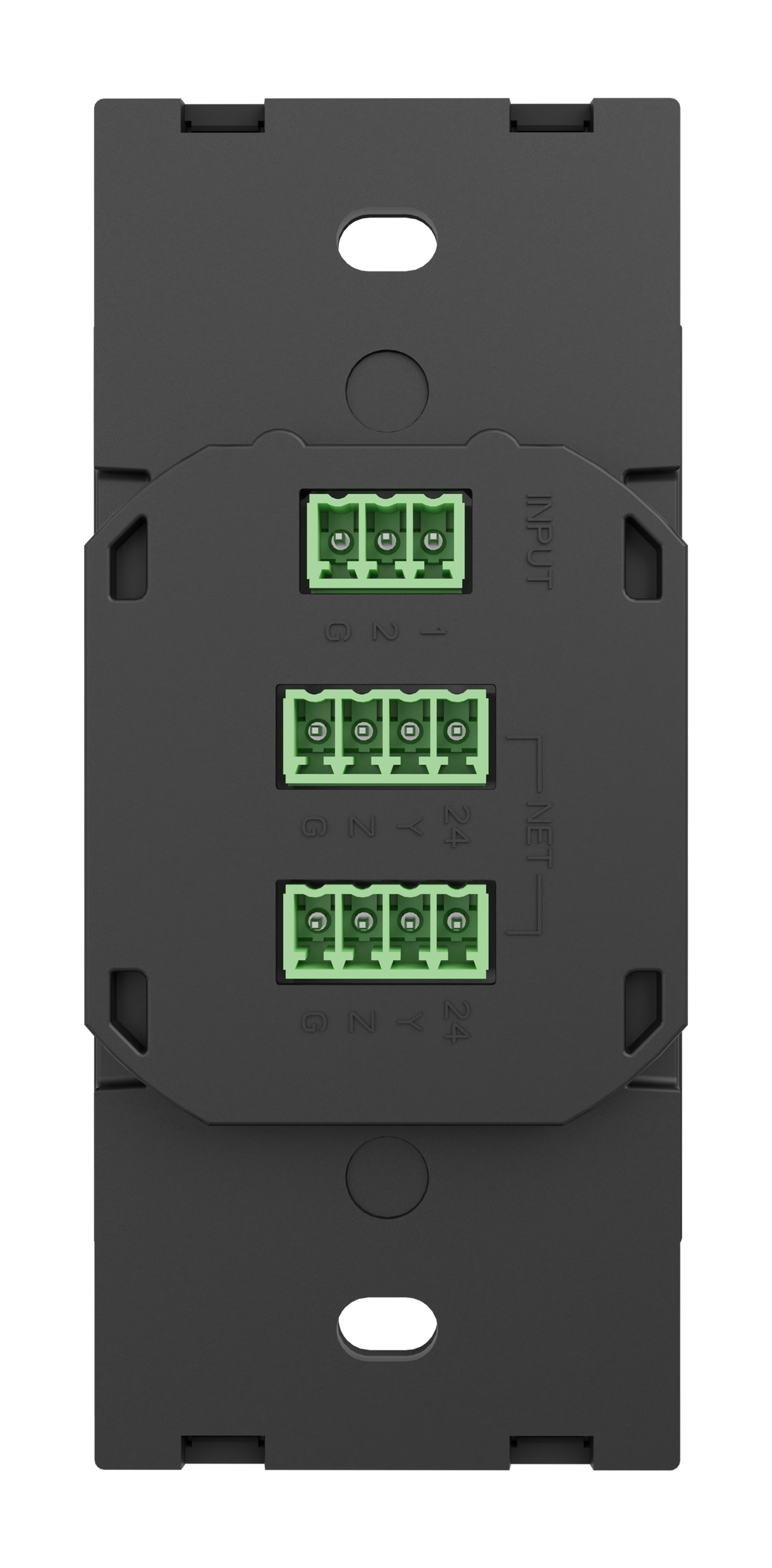

- Dual 4-pin Cresnet terminal blocks for daisy-chain wiring
- 2 digital/analog input ports: 0–24 VDC digital; 0–10 VDC analog; programmable pull-up
- 9 programmable push buttons; 5 RGB LEDs; 13 color themes; Tunable White 2000K–8000K
- Built-in photosensor; Crestron Home OS compatible; no airgap switch
- Dimensions: 4.13 × 1.80 in. (105 × 46 mm); depth 0.71 in. (18 mm); weight 7.4 oz (208 g)
- Certifications: IC, FCC Part 15 Class B
Typical Applications
- Scene and source selection in premium installations specifying Black Glass devices with wired Cresnet control
- Daisy-chained Cresnet control locations requiring engraved function labels in a premium glass finish
- Locations combining keypad control with sensor input monitoring (occupancy, contact closure)
- Executive and hospitality environments specifying a consistent Black Glass aesthetic with labeled controls
Technical Specifications
| Specification | Value |
|---|---|
| Communication | Cresnet (wired) |
| Power | 2 W (83 mA @ 24 VDC over Cresnet) |
| Cresnet Ports | 2× 4-pin 3.5 mm terminal blocks (daisy-chain) |
| Sensor Inputs | 2× digital (0–24 VDC) / analog (0–10 VDC) |
| Buttons | 9 programmable push buttons |
| Finish | Black Glass, custom engraved |
| Engraving | Custom laser-etched; artwork files required at order |
| Airgap Switch | Not included |
| Dimensions (H × W) | 4.13 × 1.80 in. (105 × 46 mm) |
| Depth | 0.71 in. (18 mm) |
| Weight | 7.4 oz (208 g) |
| Certifications | IC, FCC Part 15 Class B |
Frequently Asked Questions
- When must I submit engraving files?
- Engraving artwork must be provided at time of order via Impress SW, Crestron Home app, D3Pro, or CHO Configurator. This is a made-to-order product and cannot be changed after production.
- Does this keypad require line voltage wiring?
- No. The HZ2-KPCN is powered entirely by the Cresnet bus at 2 W / 83 mA. Only the Cresnet cable (24V, Y, Z, G) needs to be run to the box — no line voltage or neutral is needed.
- How is this different from the infiNET EX (KPEX) Black Glass keypad?
- The HZ2-KPCN-GLASS-B uses Cresnet wired communication and is significantly shallower (0.71 in. vs. 1.89 in. for the KPEX Glass variant), making it suitable for shallow wall boxes. It also includes analog/digital input ports and does not require a gateway or line voltage at the box.
