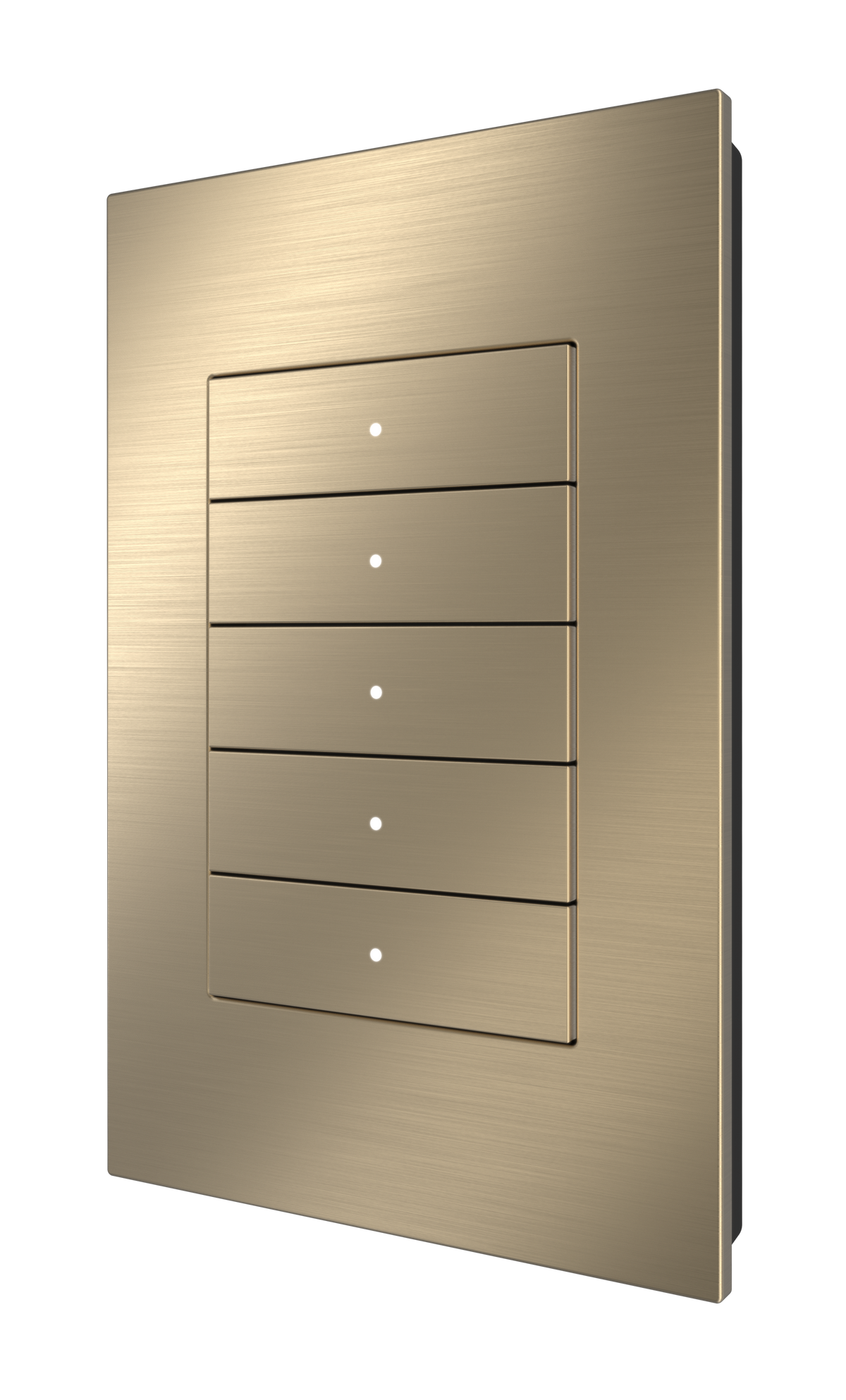

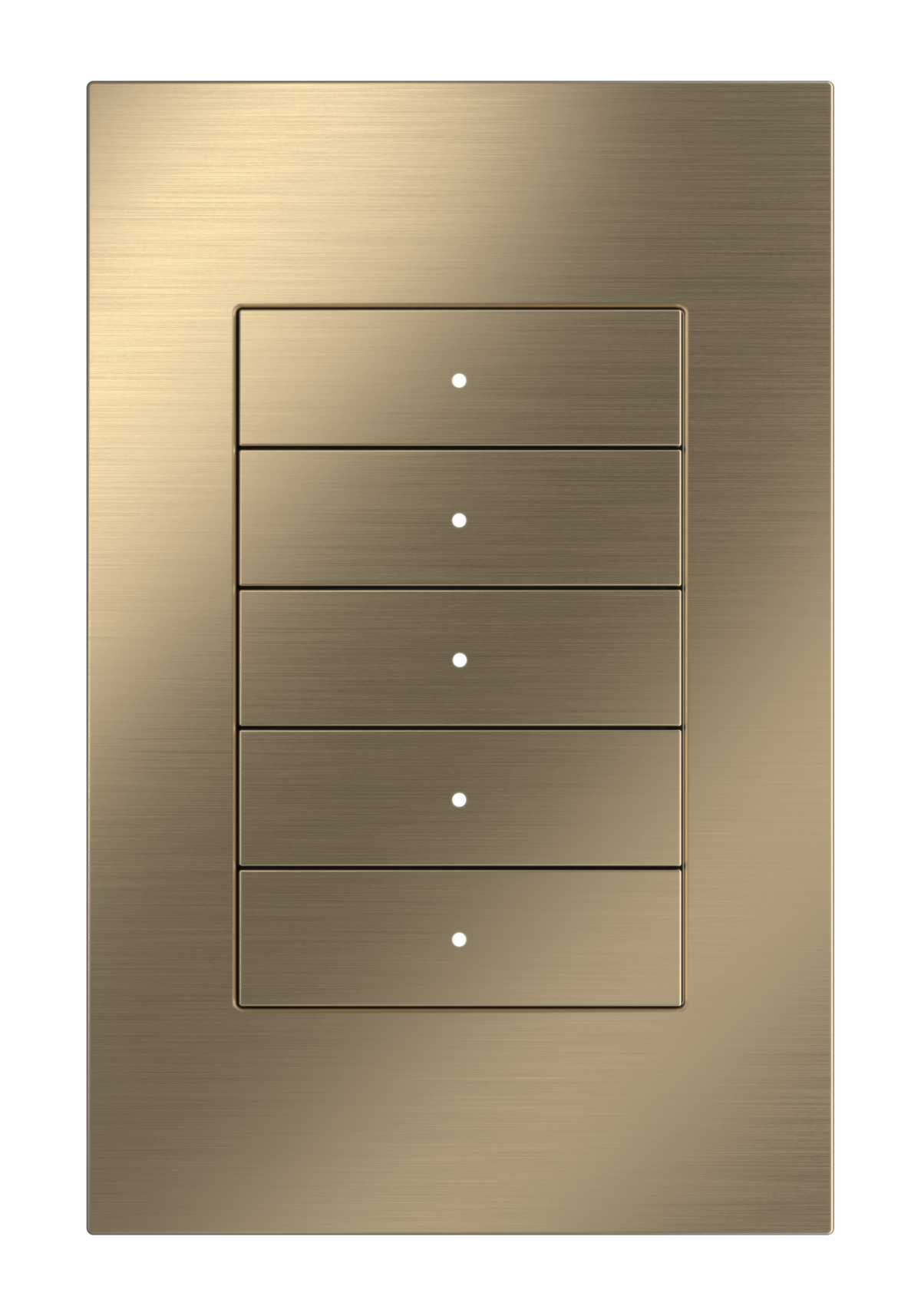

Crestron HZ2-KPCN-BR-BRASS – Horizon 2 Cresnet In-Wall Keypad, Brushed Brass, Standard Engraved
Crestron HZ2-KPCN-BR-BRASS – Horizon 2 Cresnet In-Wall Keypad, Brushed Brass, Standard Engraved is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Crestron HZ2-KPCN-BR-BRASS – Horizon 2 Cresnet In-Wall Keypad, Brus...
Product Overview
The Crestron HZ2-KPCN-BR-BRASS is a Horizon 2 series in-wall keypad with Cresnet wired communication, finished in brushed brass with standard engraving. Unlike the infiNET EX wireless Horizon 2 variants, this model connects to the Crestron system via Cresnet, making it suitable for new construction and structured wiring projects where dedicated Cresnet low-voltage wiring is already planned or installed.
Product Description
The HZ2-KPCN series provides the full Horizon 2 keypad experience — multi-button scene control, premium architectural finishes, and backlit button LEDs — via the proven reliability of Cresnet wired communication. Cresnet provides power to the keypad over the same cable used for data, eliminating the need for a separate power connection at the wall box. The brushed brass finish adds warmth and luxury to the installation, coordinating well with premium furniture and fixtures in hospitality, residential, and executive commercial spaces. Standard engraved button caps allow immediate installation without additional customization steps. The keypad can trigger lighting scenes, AV sources, shade positions, HVAC presets, and other Crestron system functions.
Key Features
- Multi-button scene and system control keypad
- Cresnet wired communication for power and data over a single cable
- Brushed brass finish for premium architectural interiors
- Standard engraved button caps included
- Backlit button LEDs for scene status indication
- Compatible with all Crestron Cresnet-enabled processors
- Supports lighting, AV, shades, and environmental control
Typical Applications
- New construction residential and commercial installations with Cresnet wiring infrastructure
- Executive office and boardroom scene control with premium finish requirements
- Hospitality guestroom and suite scene control keypads
- Whole-home Crestron systems in luxury residences
Technical Specifications
- Communication: Cresnet (wired)
- Power: Cresnet bus power (no separate supply needed)
- Finish: Brushed Brass
- Engraving: Standard (included)
- Series: Horizon 2
Frequently Asked Questions
Q: Does the HZ2-KPCN require a separate power wire at the wall box?
A: No. Cresnet provides both power and data over a single 4-conductor cable, so no separate power wiring is needed at the wall box.
Q: What is the difference between HZ2-KPCN and HZ2-KPEX variants?
A: The HZ2-KPCN uses wired Cresnet communication, while HZ2-KPEX uses wireless infiNET EX. The Cresnet version is preferred for new construction with planned wiring; the wireless version suits retrofits and spaces where wiring is not feasible.
Q: Where can I purchase the HZ2-KPCN-BR-BRASS?
A: Available at creationnetworks.net.
