Crestron HZ2-FP-G3-B-BR-BLK – Horizon 2 3-Gang Faceplate, Brushed Black, Black Trim

Product Overview

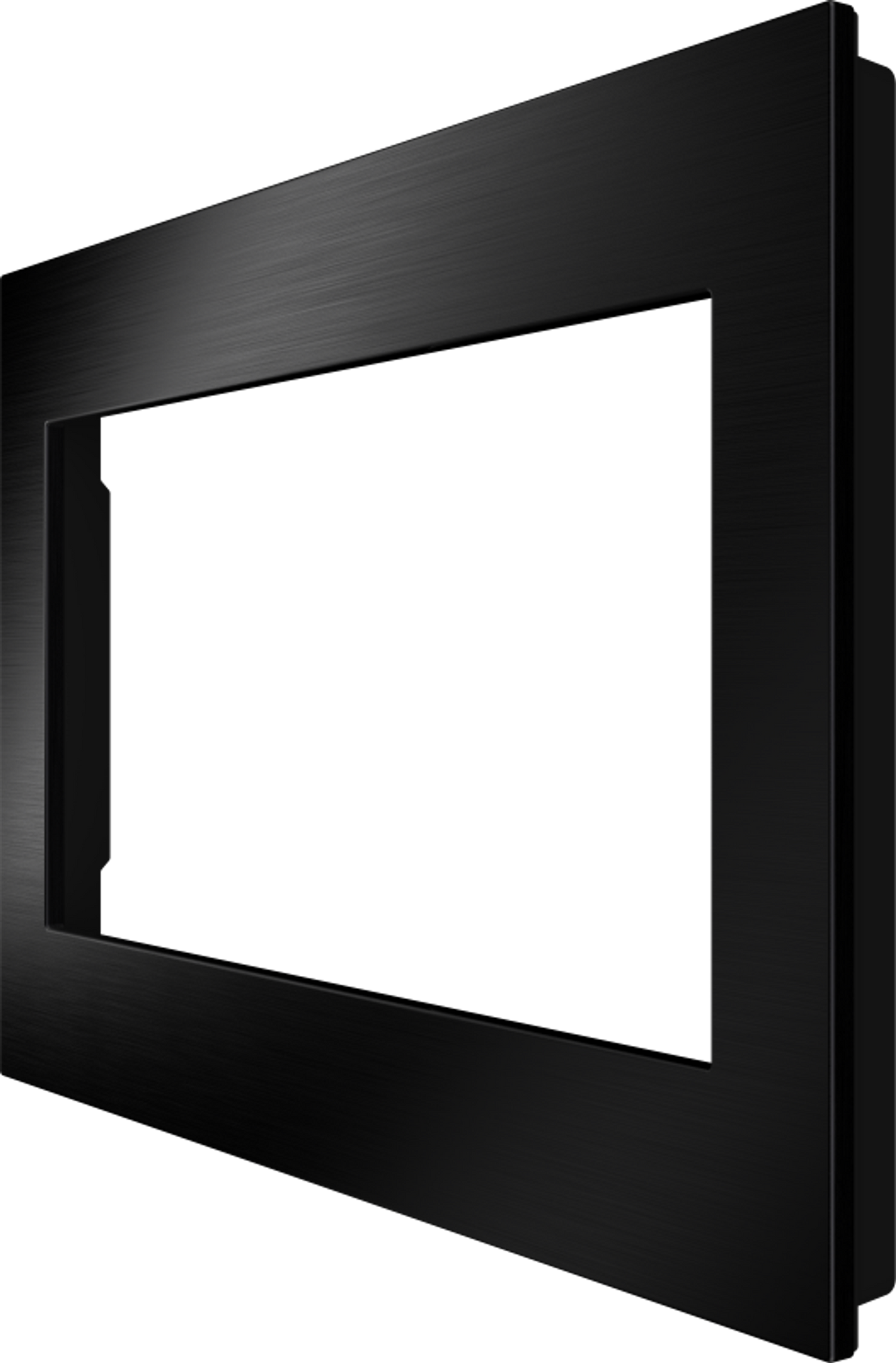

The Crestron HZ2-FP-G3-B-BR-BLK is a 3-gang aluminum faceplate for the Horizon 2 lighting control platform, finished in brushed black metal with matching black trim. It covers three adjacent Horizon 2 devices mounted in a standard US multi-gang electrical box, providing a uniform, architectural finish that matches the design language of the Horizon 2 family. It includes a metal backplate for secure, flush mounting.

Product Description

Horizon 2 faceplates are the finishing element for any Horizon 2 in-wall installation. The HZ2-FP-G3-B-BR-BLK is the 3-gang variant with a brushed black metal surface and black trim insert, suited to contemporary interiors where dark metal accents are part of the design palette. The faceplate installs over three Horizon 2 dimmers, switches, keypads, or multiway remotes mounted in a standard US electrical box, aligning all devices under a single finished plate with a clean, edge-to-edge appearance. The overall faceplate dimensions are 4.73 in. H × 6.69 in. W × 0.46 in. D (120 × 170 × 12 mm). Additional Horizon 2 faceplate options in single-, two-, and four-gang configurations and in brushed brass, dark nickel, glass white, glass black, and other finishes are available at creationnetworks.net.

Key Features

• 3-gang faceplate for Horizon 2 in-wall devices
• Brushed black aluminum with black trim
• Covers three adjacent Horizon 2 dimmers, switches, keypads, or multiway remotes
• Includes metal backplate for stable, flush mounting
• Dimensions: 4.73 in. H × 6.69 in. W × 0.46 in. D (120 × 170 × 12 mm)
• Weight: 7.4 oz (208 g)

Typical Applications

• Multi-device Horizon 2 wall stations with three control elements
• Conference rooms and boardrooms with combined dimmer and keypad arrays
• Residential great rooms, hallways, and home theaters with 3-gang lighting control stations
• Hospitality environments requiring coordinated dark metal finishes
• Commercial office and lobby installations with Horizon 2 control systems

Technical Specifications

• Gang Count: 3
• Finish: Brushed black metal
• Trim Color: Black (-B)
• Height: 4.73 in. (120 mm)
• Width: 6.69 in. (170 mm)
• Depth: 0.46 in. (12 mm)
• Weight: 7.4 oz (208 g)
• Mounting: Standard US multi-gang electrical box or low-voltage bracket
• Includes: Metal backplate
• Compatible Devices: All Horizon 2 in-wall series (HZ2-DIMEX, HZ2-SWEX, HZ2-KPCN, HZ2-KPEX, HZ2-AUX)

FAQs

How many Horizon 2 devices does this faceplate cover?

The HZ2-FP-G3-B-BR-BLK is a 3-gang faceplate designed to cover three side-by-side Horizon 2 in-wall devices mounted in a standard US 3-gang electrical box.

Is this faceplate compatible with all Horizon 2 devices?

Yes. It is compatible with all Horizon 2 in-wall series products including dimmers, switches, keypads, and multiway remotes, provided they are mounted in US electrical boxes.

Does the faceplate include mounting hardware?

Yes. A metal backplate is included. Additional screws or mounting brackets may be needed depending on the electrical box type.

Are other finishes and gang counts available?

Yes. The Horizon 2 faceplate family covers 1-, 2-, 3-, and 4-gang configurations in brushed brass, dark nickel, dark bronze, brushed black, glass white, and glass black finishes. Visit creationnetworks.net for current inventory.
