Crestron HZ2-DIMUEX-BR-BRASS-ENGRAVED – Universal Dimmer, Brushed Brass

Product Overview

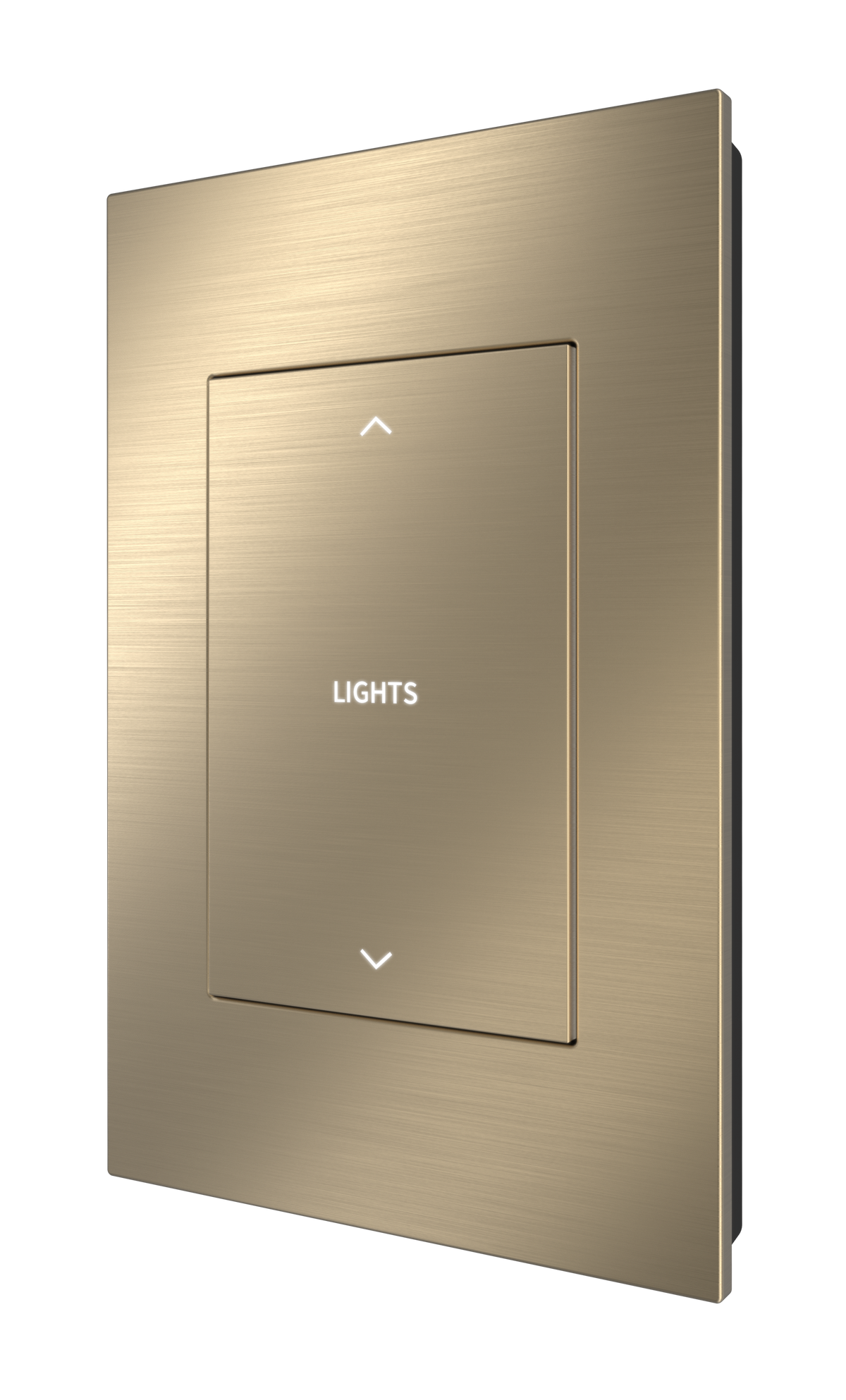

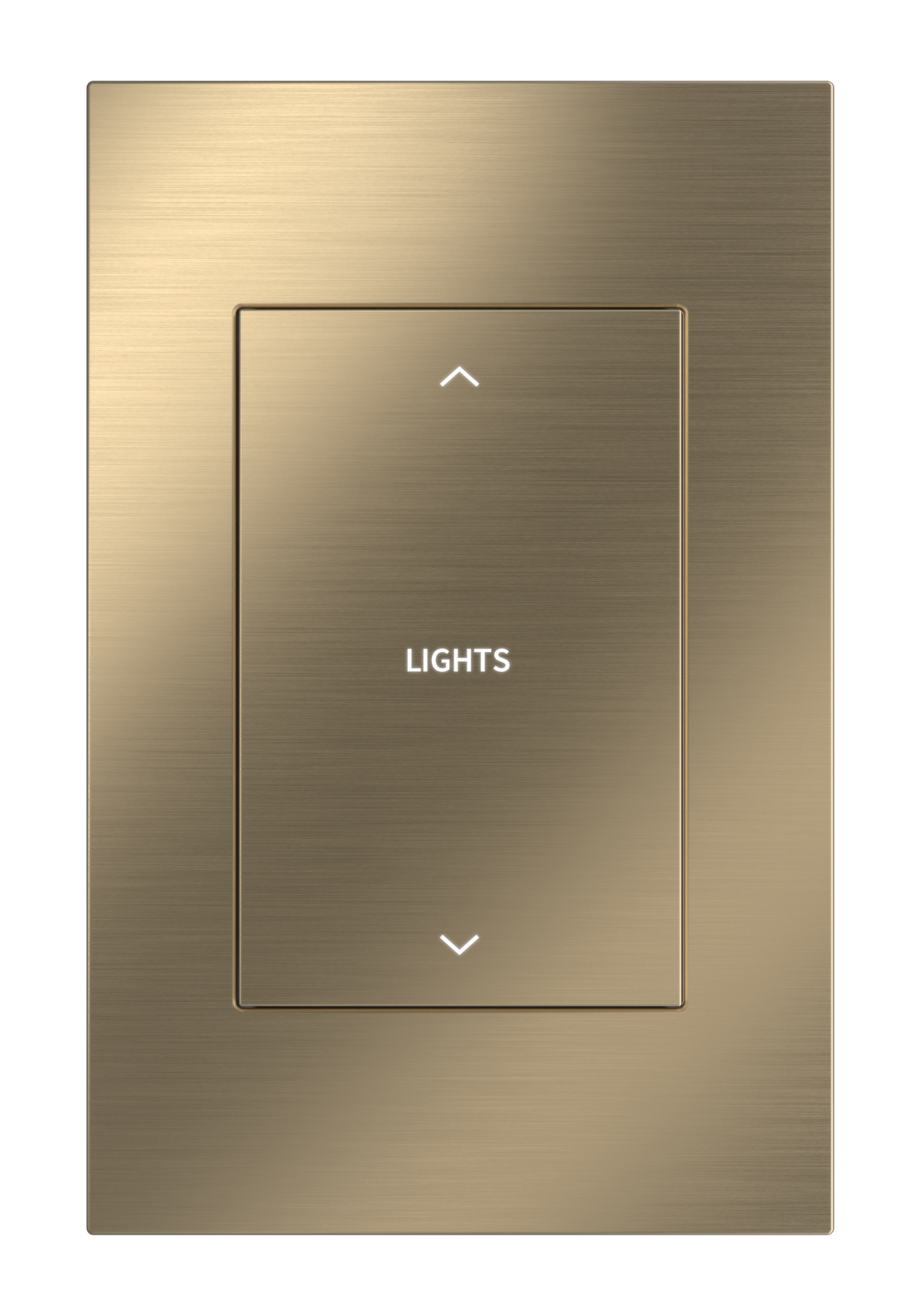

The Crestron HZ2-DIMUEX-BR-BRASS-ENGRAVED is a Horizon 2 series in-wall universal phase dimmer with infiNET EX wireless networking, finished in Brushed Brass with custom laser-engraved button caps. Universal phase dimming supports forward and reverse phase operation, making this device compatible with LED, CFL, incandescent, halogen, magnetic low-voltage (MLV), and electronic low-voltage (ELV) loads on a single platform. Designed for integration with Crestron Home and full Crestron control systems, this single-gang device communicates wirelessly over a 2.4 GHz infiNET EX mesh network. Custom engraving is included at no additional cost.

Product Description

The HZ2-DIMUEX-BR-BRASS-ENGRAVED is the universal-phase variant in the Horizon 2 lineup, offering the widest load compatibility of the HZ2 dimmer family. Both forward-phase (TRIAC) and reverse-phase (ELV) dimming modes are supported, allowing a single SKU to address the majority of dimming load types encountered in commercial and residential projects. Load ratings of 0-300W for LED/CFL, 0-600W for incandescent/halogen, 0-400W for MLV, and 0-400W for ELV are supported at 120VAC. The Brushed Brass finish makes this device appropriate for premium architectural environments, boutique hospitality, and executive spaces where standard hardware finishes are not acceptable. Button caps are custom laser-engraved per order. A neutral wire is required. Communication is via infiNET EX 2.4 GHz wireless mesh, and an infiNET EX gateway must be present on the Crestron network.

Key Features

• Universal phase dimming (forward and reverse phase) — compatible with LED, CFL, incandescent, halogen, MLV, and ELV loads
• Load ratings: 0-300W LED/CFL, 0-600W incandescent/halogen, 0-400W MLV, 0-400W ELV at 120VAC
• infiNET EX 2.4 GHz wireless mesh — requires infiNET EX gateway on the Crestron system
• Brushed Brass finish for premium architectural and hospitality applications
• Custom laser-engraved button caps included — specified at time of order
• Single-gang, in-wall form factor compatible with standard Decora-style openings
• Compatible with Crestron Home, PYNG Hub, and Crestron control systems

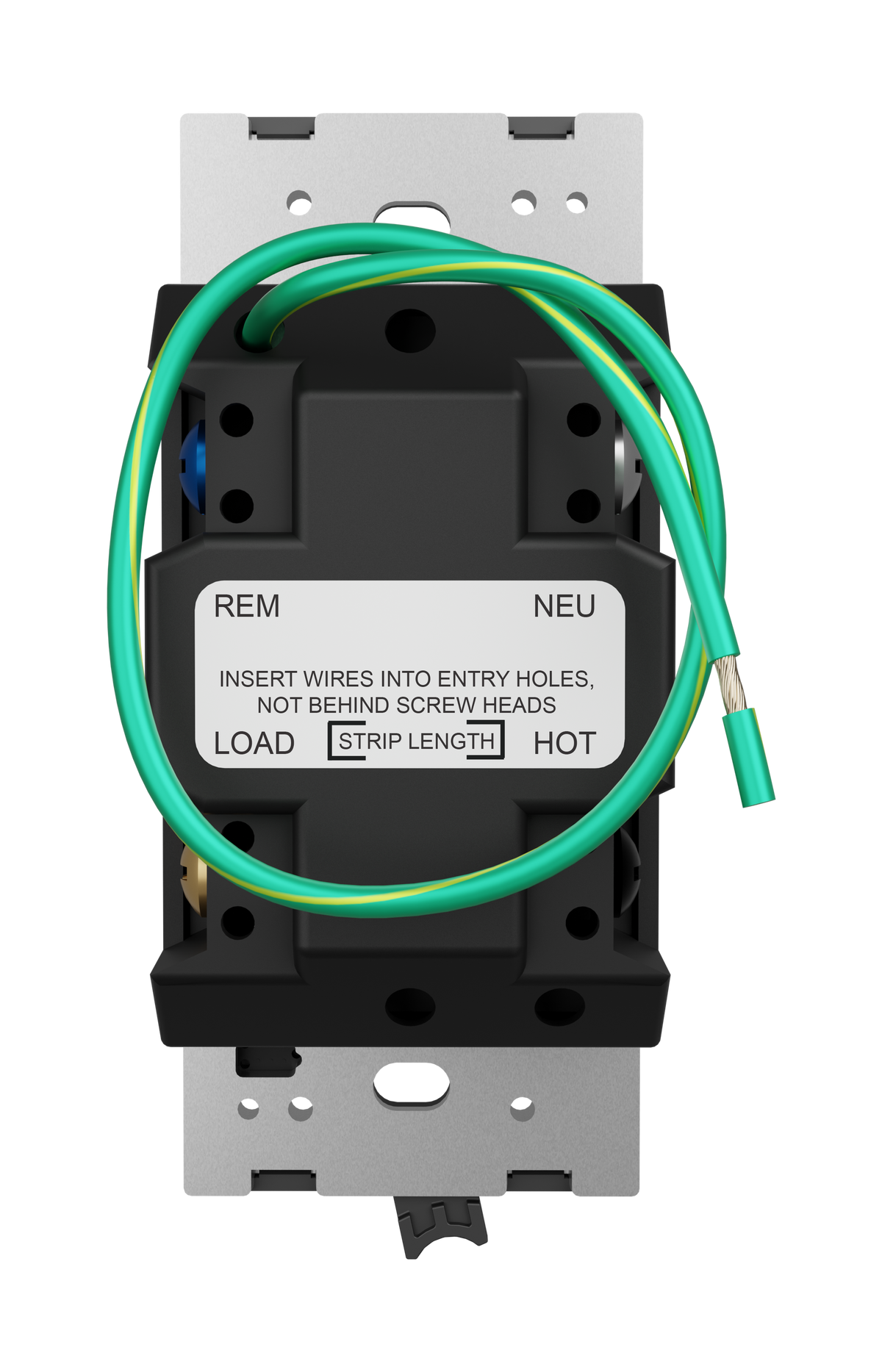

• Neutral wire required for installation

Typical Applications

• High-end residential and boutique hospitality spaces with mixed load types (LED, incandescent, MLV) across the same installation
• Executive offices and boardrooms specifying Brushed Brass hardware to match premium interior finishes
• Crestron Home projects requiring wireless lighting control without home-run low-voltage cabling
• Retrofit installations where load types vary by room and a single universal dimmer SKU simplifies procurement
• Conference and event spaces with a mix of LED and ELV theatrical or architectural fixtures

Technical Specifications

FAQs

What is the difference between the DIMU (universal) and DIM (forward-phase) variants?
The DIMU supports both forward-phase and reverse-phase dimming modes, making it compatible with a broader range of load types including ELV and MLV transformers as well as most LED drivers. The DIM variant supports forward-phase (TRIAC) dimming only, which works with incandescent, halogen, and many LED loads, but not ELV or MLV. For mixed-load projects or where load types are not yet finalized, the DIMU is the more versatile choice.

Does this device work at 277VAC for commercial fluorescent or LED systems?
No. The HZ2-DIMUEX operates at 120VAC only. For 277VAC applications with 0-10V LED drivers or ballasts, the HZ2-DIMLVEX variant (0-10V dimmer) supports 120/277VAC operation and is the correct selection. Contact Creation Networks for guidance on selecting the right model for your voltage and load type.

Can I specify what text appears on the engraved buttons?
Yes. Engraving text is configured per order and laser-etched directly into the button caps. Labels can include scene names, room designations, or other custom text. Reach out to Creation Networks before finalizing your order to confirm label specifications and character limits.
