Product Overview

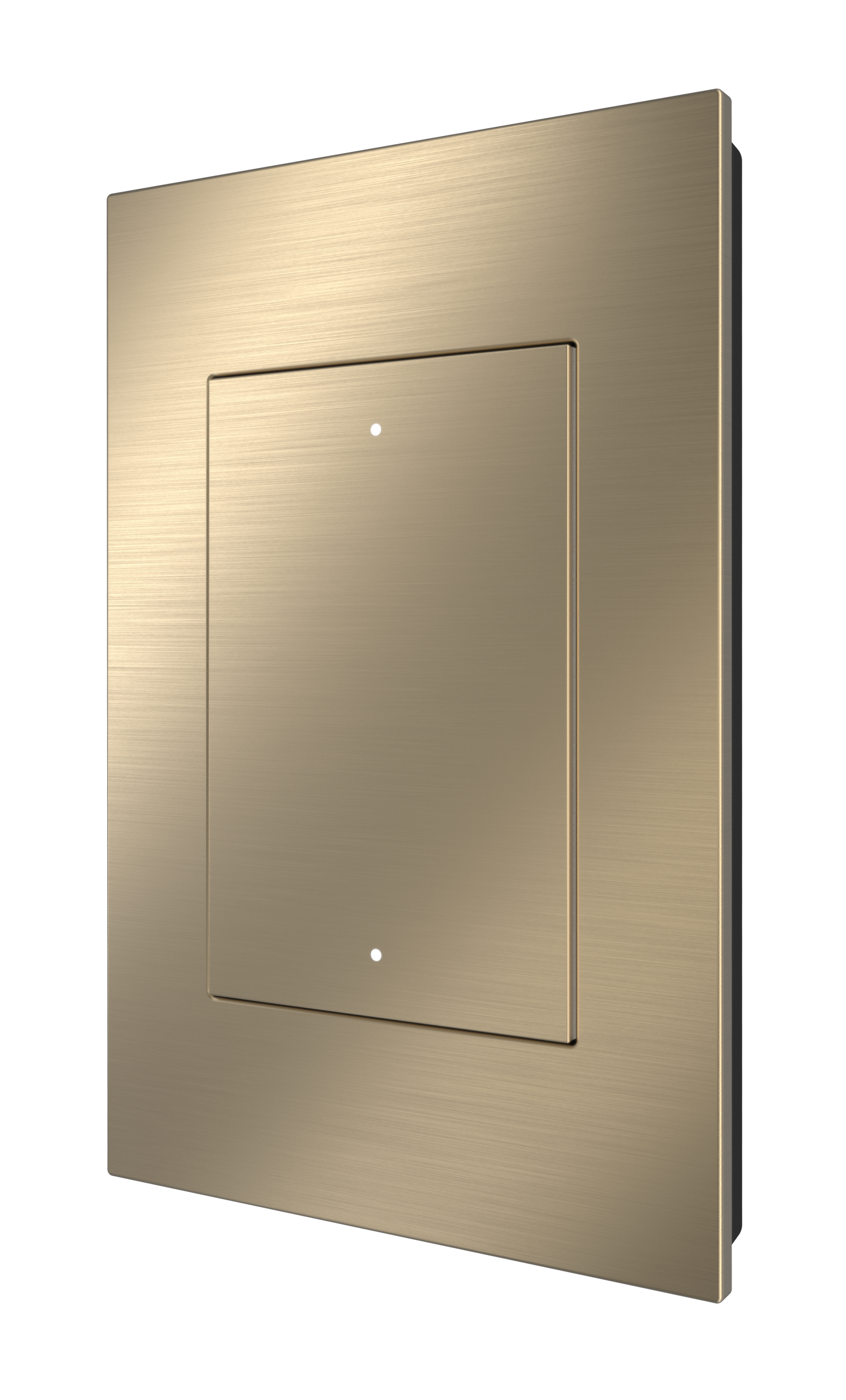

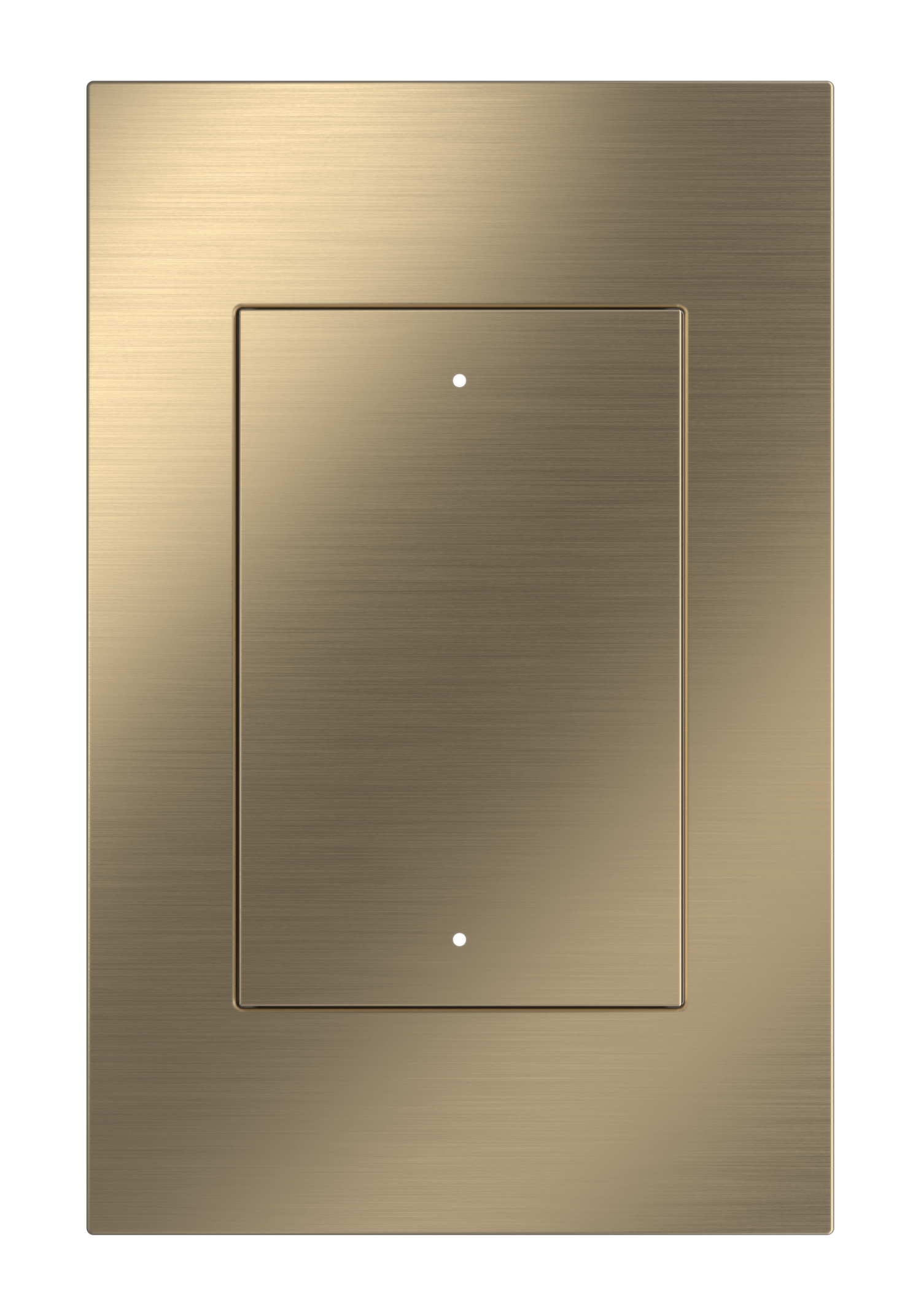

The Crestron HZ2-DIMUEX-BR-BRASS is a Horizon 2 in-wall universal phase dimmer with infiNET EX wireless communication, finished in Brushed Brass metal. Its auto-load detection selects forward or reverse phase dimming to suit incandescent, LED, magnetic low voltage, and electronic low voltage loads up to 600 W/VA, all controllable wirelessly over the infiNET EX 2.4 GHz mesh network.
Product Description
The HZ2-DIMUEX-BR-BRASS provides the broadest load compatibility in the Horizon 2 series. Auto-load detection eliminates manual configuration by selecting the appropriate phase dimming mode for the connected fixture type. Dimming curves are adjustable between linear, logarithmic, and custom profiles with configurable minimum and maximum light levels. The Brushed Brass finish coordinates with premium hardware in modern and transitional interior designs. Nine programmable push buttons with five RGB LED backlights provide local control, while the infiNET EX wireless connection enables full integration with a Crestron control system without dedicated control wiring. Neutral wire and HZ2-FP-G faceplate (sold separately) are required. For ordering information, visit creationnetworks.net.
Key Features
- Universal phase dimming: auto-detects and applies forward or reverse phase for connected load
- Supports incandescent, LED, magnetic low voltage (MLV), and electronic low voltage (ELV) loads
- 600 W/VA maximum load rating; no minimum load
- Adjustable dimming curve: linear, logarithmic, or custom; configurable min/max levels
- infiNET EX wireless, 2.4 GHz, IEEE 802.15.4; Crestron Home OS compatible
- 9 programmable buttons; 5 RGB LEDs; 13 color themes; Tunable White 2000K–8000K

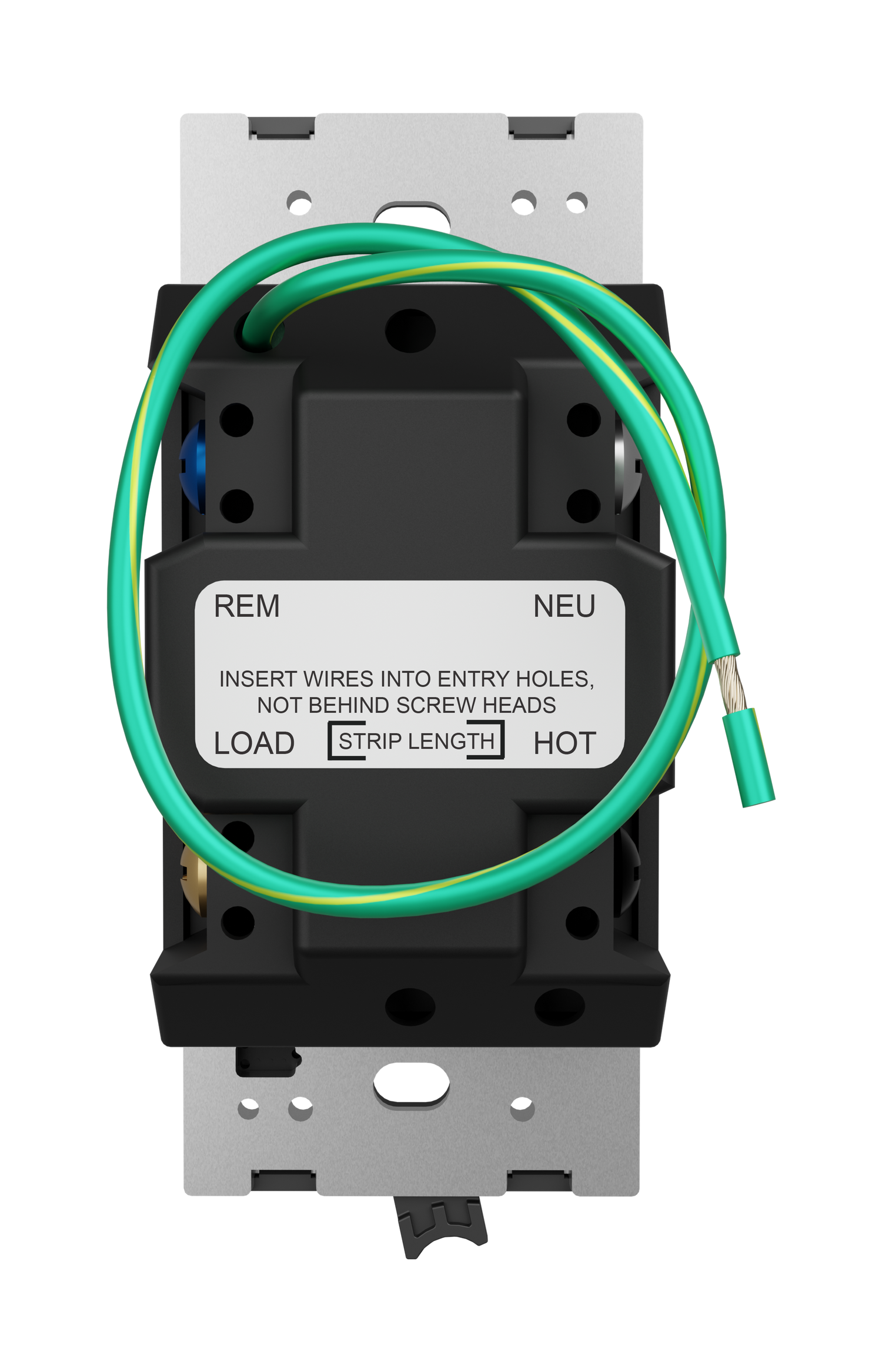

- Brushed Brass metal finish; 120 VAC, neutral required; 14–12 AWG screw clamp terminals
- Dimensions: 4.13 × 1.80 in. (105 × 46 mm); depth 1.83 in. (47 mm); weight 7.4 oz (208 g)
- Certifications: FCC, UL, IC
Typical Applications
- Residential living rooms, bedrooms, and kitchens with mixed fixture types on a single dimmer circuit
- Commercial spaces with LED drivers or ELV fixtures requiring reverse phase control
- Retrofit dimmer installations where the existing fixture type is unknown or mixed
- Designer-specified installations where Brushed Brass hardware finishes are part of the interior scheme
Technical Specifications
| Specification | Value |
|---|---|
| Dimming Technology | Universal phase (forward and reverse; auto-detection) |
| Load Types | Incandescent, LED, MLV, ELV |
| Load Rating | 600 W/VA maximum; no minimum load |
| Dimming Curve | Linear, logarithmic, or custom; adjustable min/max |
| Wireless Protocol | infiNET EX, 2.4 GHz, IEEE 802.15.4 |
| Power Input | 120 VAC, 50/60 Hz; neutral required |
| Finish | Brushed Brass metal |
| Dimensions (H × W) | 4.13 × 1.80 in. (105 × 46 mm) |
| Depth | 1.83 in. (47 mm) |
| Weight | 7.4 oz (208 g) |
| Operating Temperature | 32°–86°F (0°–30°C) |
| Certifications | FCC, UL, IC |
| Required Accessory | HZ2-FP-G faceplate (sold separately) |
Frequently Asked Questions
- What is the difference between the HZ2-DIMUEX and the HZ2-DIMEX?
- The HZ2-DIMUEX is a universal phase dimmer supporting both forward and reverse phase modes with auto-load detection, compatible with incandescent, LED, MLV, and ELV loads. The HZ2-DIMEX supports forward phase only and is suited to incandescent, MLV, and tungsten-halogen loads. Use the HZ2-DIMUEX when the load type includes LEDs or ELV drivers.
- Does the Brushed Brass finish require special care?
- Standard cleaning with a dry or lightly damp cloth is recommended. Avoid abrasive cleaners that could damage the metal finish.
- Can this device work without a Crestron control system?
- Yes. The HZ2-DIMUEX-BR-BRASS has standalone functionality; buttons operate the dimmer locally without a control system connected. Full scheduling, scene, and automation features require integration with a Crestron processor.
