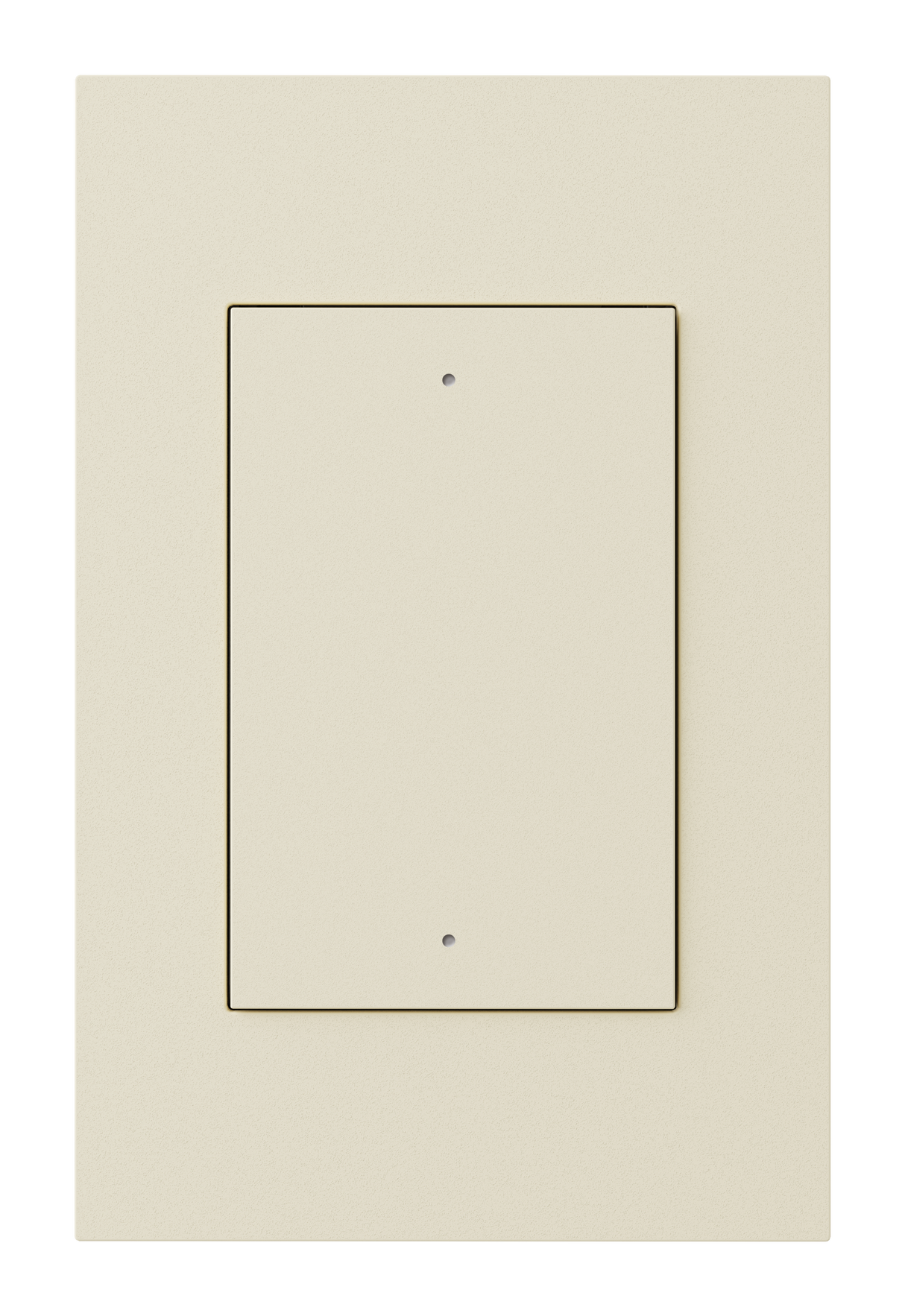

Crestron HZ2-DIMUEX-A – Horizon 2 Universal Dimmer, infiNET EX, Alabaster

Product Overview

The Crestron HZ2-DIMUEX-A is a Horizon 2 in-wall universal phase dimmer with infiNET EX wireless communication, finished in Alabaster (white textured). It auto-detects and applies forward or reverse phase dimming for incandescent, LED, magnetic low voltage, and electronic low voltage loads up to 600 W/VA without requiring dedicated control wiring to the Crestron processor.

Product Description

The HZ2-DIMUEX-A provides universal load compatibility in the standard Alabaster finish that coordinates with conventional commercial device plates. Auto-load detection selects the correct phase mode for the connected fixture, and dimming curves are configurable between linear, logarithmic, and custom profiles. Nine programmable push buttons with RGB LED backlights offer local control, while the infiNET EX wireless connection enables full Crestron Home OS integration. The Alabaster finish uses the default dot engraving on the Style 6 large rocker button assembly (no custom engraving). Neutral wire and HZ2-FP-G faceplate (sold separately) are required. For ordering, visit creationnetworks.net.

Key Features

• Universal phase dimming: auto-detects forward or reverse phase for incandescent, LED, MLV, and ELV loads
• 600 W/VA maximum load rating; no minimum load; adjustable dimming curve (linear, logarithmic, or custom)

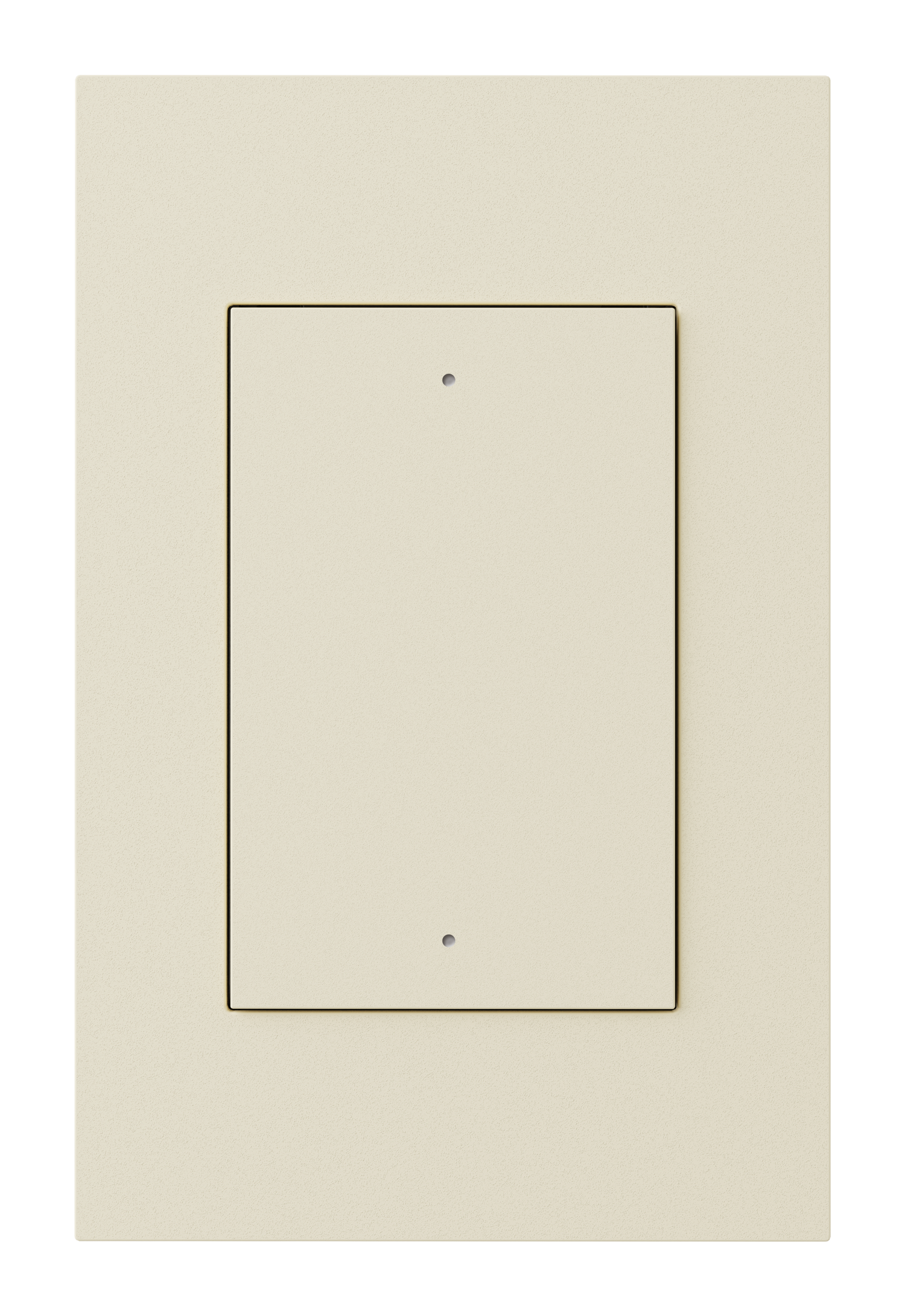

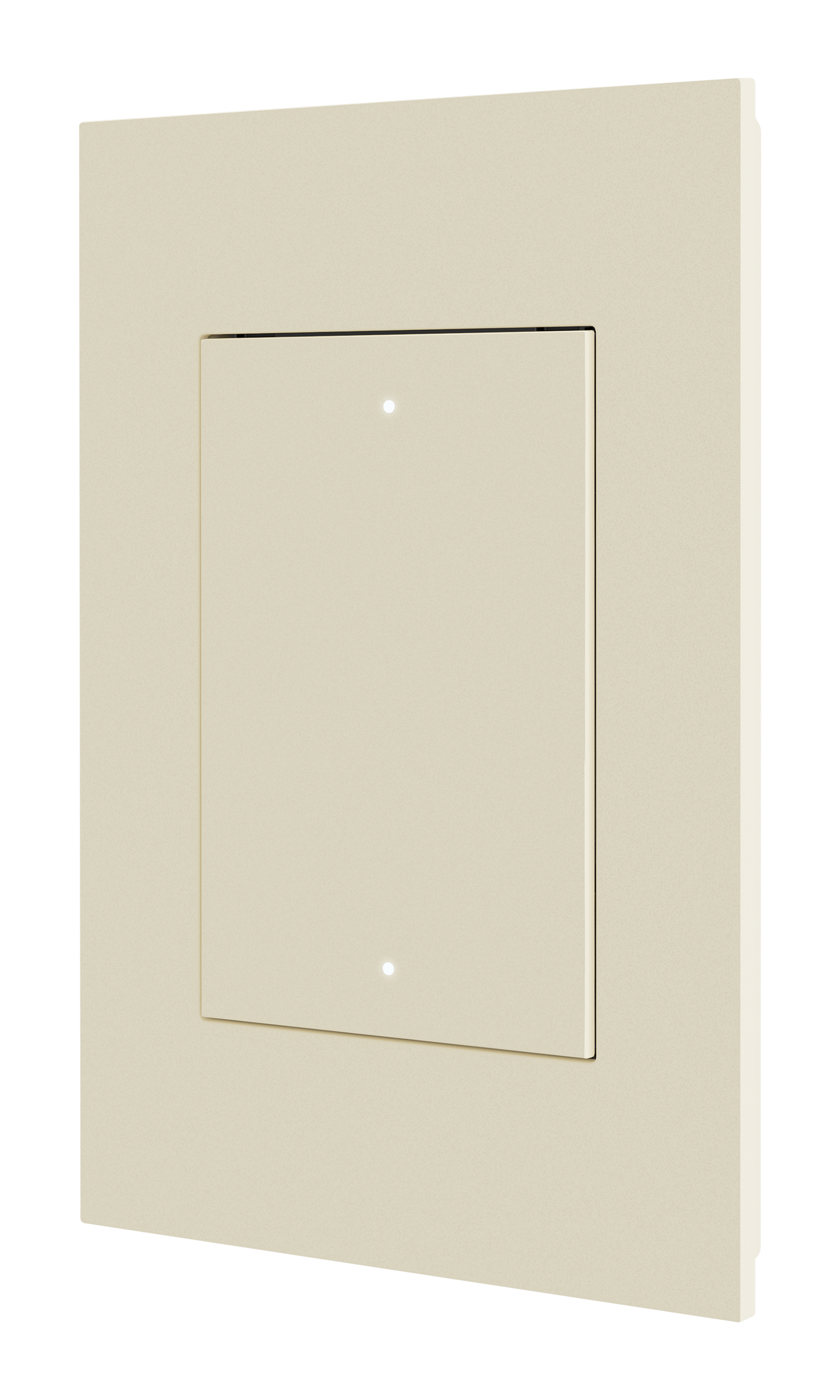

• Alabaster (white textured) finish with default dot engraving on Style 6 button assembly
• infiNET EX wireless, 2.4 GHz, IEEE 802.15.4; Crestron Home OS compatible
• 9 programmable buttons; 5 RGB LEDs; 13 color themes; Tunable White 2000K–8000K
• Built-in photosensor; Remote terminal for multi-location companion HZ2 devices

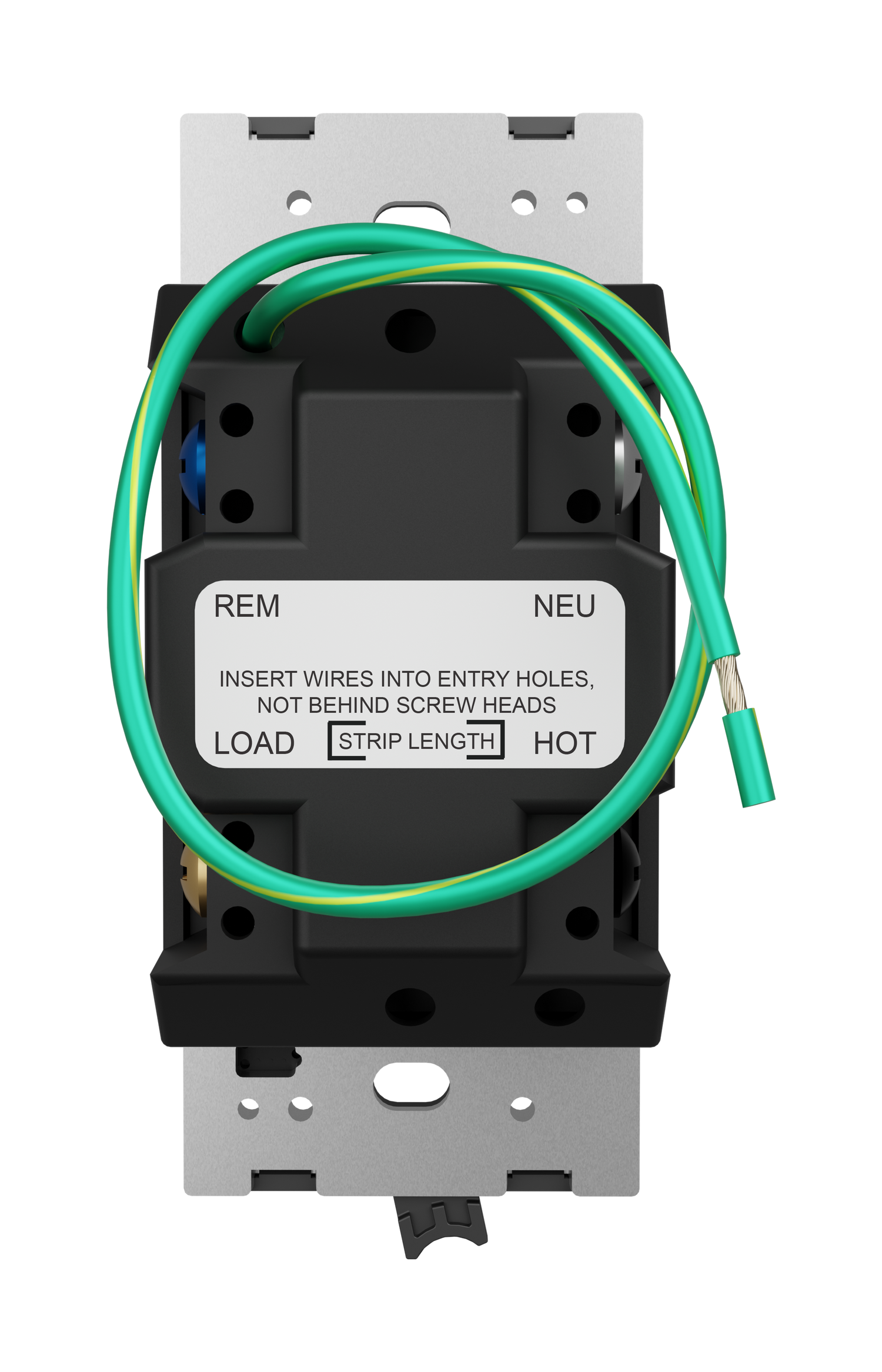

• 120 VAC, neutral required; 14–12 AWG screw clamp terminals
• Dimensions: 4.13 × 1.80 in. (105 × 46 mm); depth 1.75 in. (45 mm); weight 7.4 oz (208 g)
• Certifications: FCC, UL, IC

Typical Applications

• Standard commercial and residential installations requiring universal load compatibility without custom engraving
• Conference rooms, offices, and classrooms with mixed LED and incandescent fixture types
• Retrofit wireless dimming where the fixture load type is mixed or unknown
• Budget-conscious HZ2 deployments specifying the standard Alabaster finish

Technical Specifications

Frequently Asked Questions

Does HZ2-DIMUEX-A include custom engraving?

No. The standard (non-ENGRAVED) Alabaster variant comes with default dot engraving on the Style 6 large rocker button assembly. For custom laser-etched labels, order the HZ2-DIMUEX-A ENGRAVED variant instead.

Can this dimmer handle both LED and incandescent loads?

Yes. The HZ2-DIMUEX auto-detects whether the load requires forward or reverse phase dimming, making it compatible with incandescent, LED, MLV, and ELV fixture types on the same device.

Is a faceplate included?

No. The HZ2-FP-G faceplate is sold separately and is required for installation. The metal backplate is included with the faceplate purchase.
