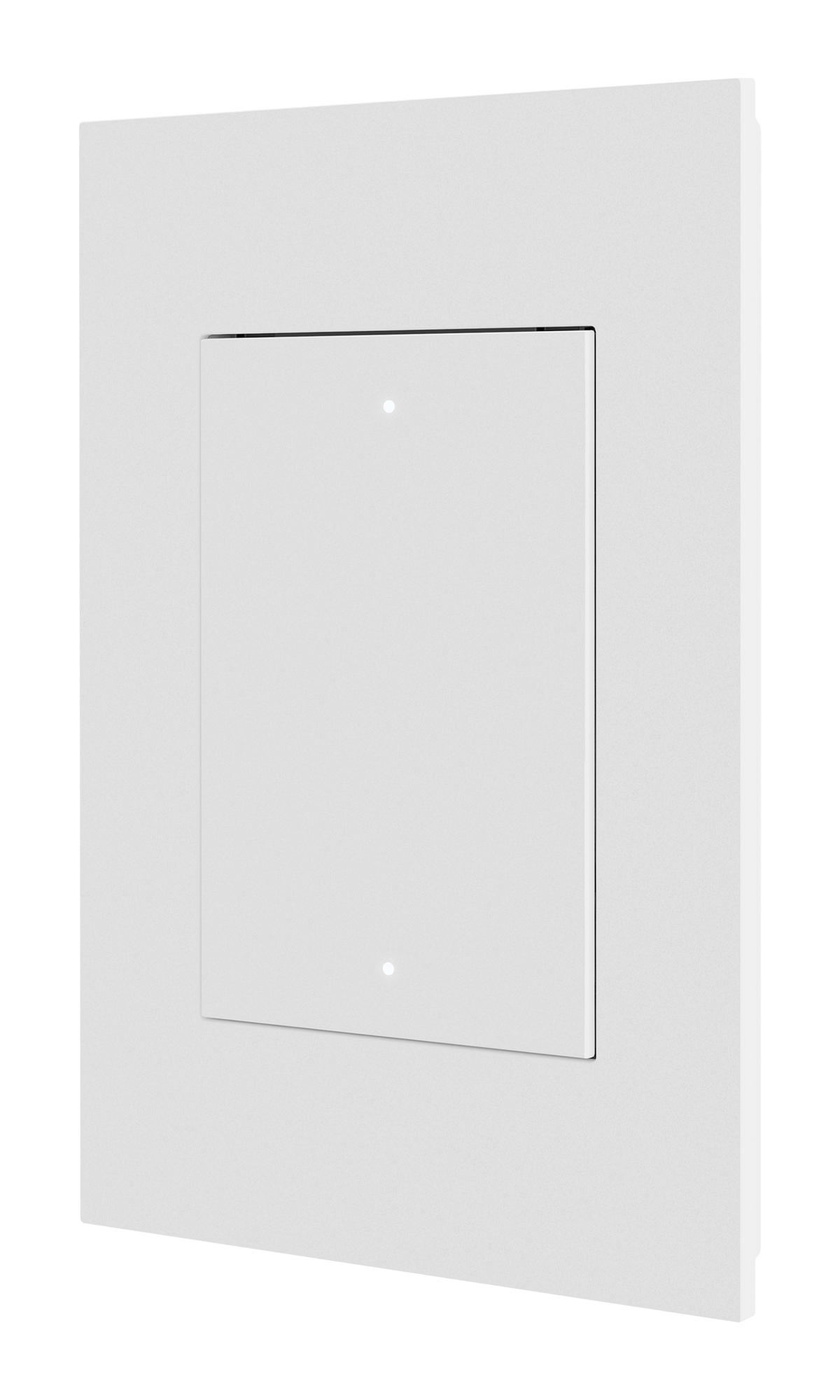

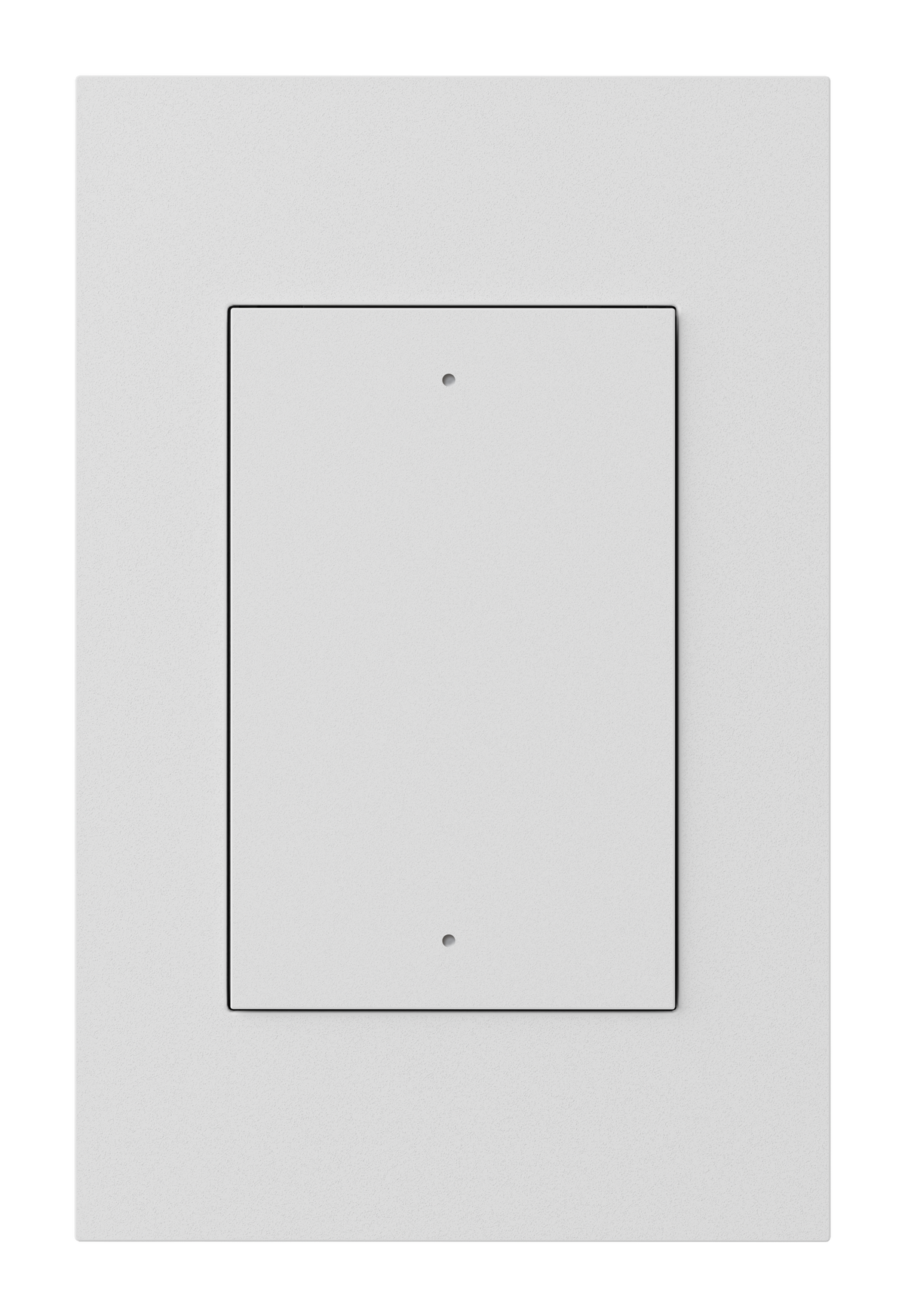

Crestron Horizon 2 In-Wall 0-10V Dimmer with infiNET EX – 120 VAC, Custom Engraved, White

Product Overview

The Crestron Horizon 2 In-Wall 0-10V Dimmer with infiNET EX Wireless Communication (HZ2-DIMLVEX-W) is a white, custom-engraved in-wall dimmer providing 0-10V low-voltage dimming control with integrated infiNET EX two-way wireless communication. Rated for 120 VAC, it is designed for 0-10V dimmable LED drivers and fluorescent ballasts across residential, commercial, and institutional lighting installations.

Product Description

The HZ2-DIMLVEX-W combines a 0-10V dimming output with the Horizon 2 in-wall keypad form factor and infiNET EX wireless communication. The 0-10V dimming method sends a low-voltage control signal to a compatible LED driver or fluorescent ballast, making it well-suited for modern commercial lighting infrastructure, LED panel systems, and fluorescent troffer replacements where TRIAC dimming is not appropriate. The white finish is the standard neutral option for general-purpose commercial and residential applications. Custom laser engraving is factory-applied to the integrator's button label specifications. The integrated infiNET EX wireless eliminates the need for separate control wiring at the device, supporting both retrofit and new construction installations.

Key Features

• 0-10V low-voltage dimming output compatible with 0-10V LED drivers and fluorescent ballasts
• Integrated infiNET EX two-way wireless communication — no dedicated control wiring required
• 120 VAC rated in-wall dimmer in Horizon 2 form factor
• White finish for neutral coordination with standard commercial and residential decor
• Custom laser engraving applied at factory to integrator specifications
• Two-way status feedback for real-time load monitoring within the Crestron system
• Suitable for LED and fluorescent lighting infrastructure in commercial, institutional, and residential spaces

Typical Applications

• Commercial offices with LED panel or troffer fixtures on 0-10V drivers
• Educational facilities with fluorescent or LED classroom lighting on 0-10V ballasts
• Healthcare facilities requiring wireless lighting control over 0-10V LED infrastructure
• Residential spaces with modern 0-10V LED recessed or pendant fixtures
• Retrofit projects adding Crestron wireless control to buildings with existing 0-10V wiring

Technical Specifications

FAQs

Q: Can the HZ2-DIMLVEX-W work with any 0-10V LED driver on the market?
A: The HZ2-DIMLVEX is designed for standard 0-10V control protocol. Most 0-10V LED drivers and fluorescent ballasts following the standard are compatible. Verify the driver's 0-10V input specifications and current sink/source requirements against Crestron's product specifications before installation.

Q: Is there a minimum load requirement for the 0-10V output?
A: Consult Crestron's product specification sheet for minimum and maximum load requirements on the 0-10V control output. Operating outside specified limits may result in control inaccuracies or device damage.

Q: How does the HZ2-DIMLVEX-W compare to the dark bronze version?
A: The HZ2-DIMLVEX-W and HZ2-DIMLVEX-DRK-BRZ are identical in function, load compatibility, wireless protocol, and dimming method. The only difference is the surface finish. Choose white for standard decor environments and dark bronze for premium or warm-tone architectural installations.
