Crestron HZ2-DIMLVEX-GLASS-B – Horizon 2 0-10V Dimmer, infiNET EX, Black Glass, Engraved

Product Overview

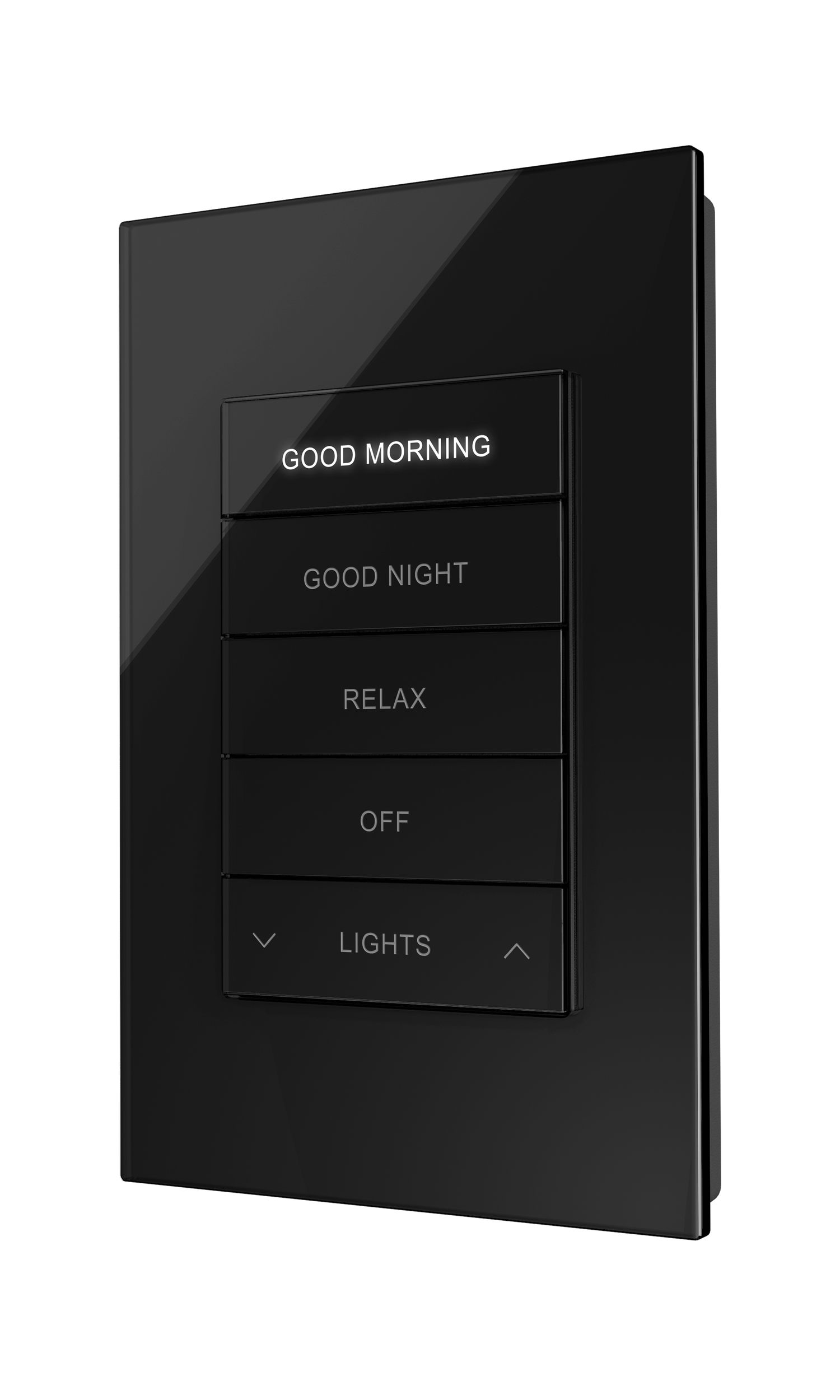

The Crestron HZ2-DIMLVEX-GLASS-B is a Horizon 2 in-wall 0-10V dimmer with infiNET EX wireless communication, featuring a custom-engraved Black Glass finish. It controls 0-10 VDC-compatible LED drivers and ballasts wirelessly over the infiNET EX 2.4 GHz mesh network, with custom laser-etched button engraving ordered at time of purchase.

Product Description

Functionally identical to the HZ2-DIMLVEX-DRK-BRZ, this variant substitutes a Black Glass finish for installations requiring a high-gloss, premium aesthetic. The ENGRAVED designation means custom laser-etched button artwork is applied to any of Style 1–6 button assemblies; engraving artwork files must be provided at order through Impress SW, Crestron Home app, D3Pro, or Crestron Home OS Configurator. It mounts in a standard 1- to 4-gang U.S. electrical box, requires a neutral wire, and includes a 10 A switching relay with 0-10 VDC dim control outputs. An HZ2-FP-G faceplate (sold separately) is required. For ordering, visit creationnetworks.net.

Key Features

• Black Glass finish with custom laser-engraved button artwork (Style 1–6; files required at order)
• 0-10 VDC dimming output for LED drivers and ballasts; 60 mA sink/source
• Integrated 10 A switching relay; no minimum load
• infiNET EX wireless, 2.4 GHz, IEEE 802.15.4; Crestron Home OS compatible
• 9 programmable buttons; 5 RGB LEDs; 13 color themes; Tunable White 2000K–8000K
• Built-in photosensor; Remote terminal for up to 4 companion HZ2-AUX/HZ2-KPEX devices

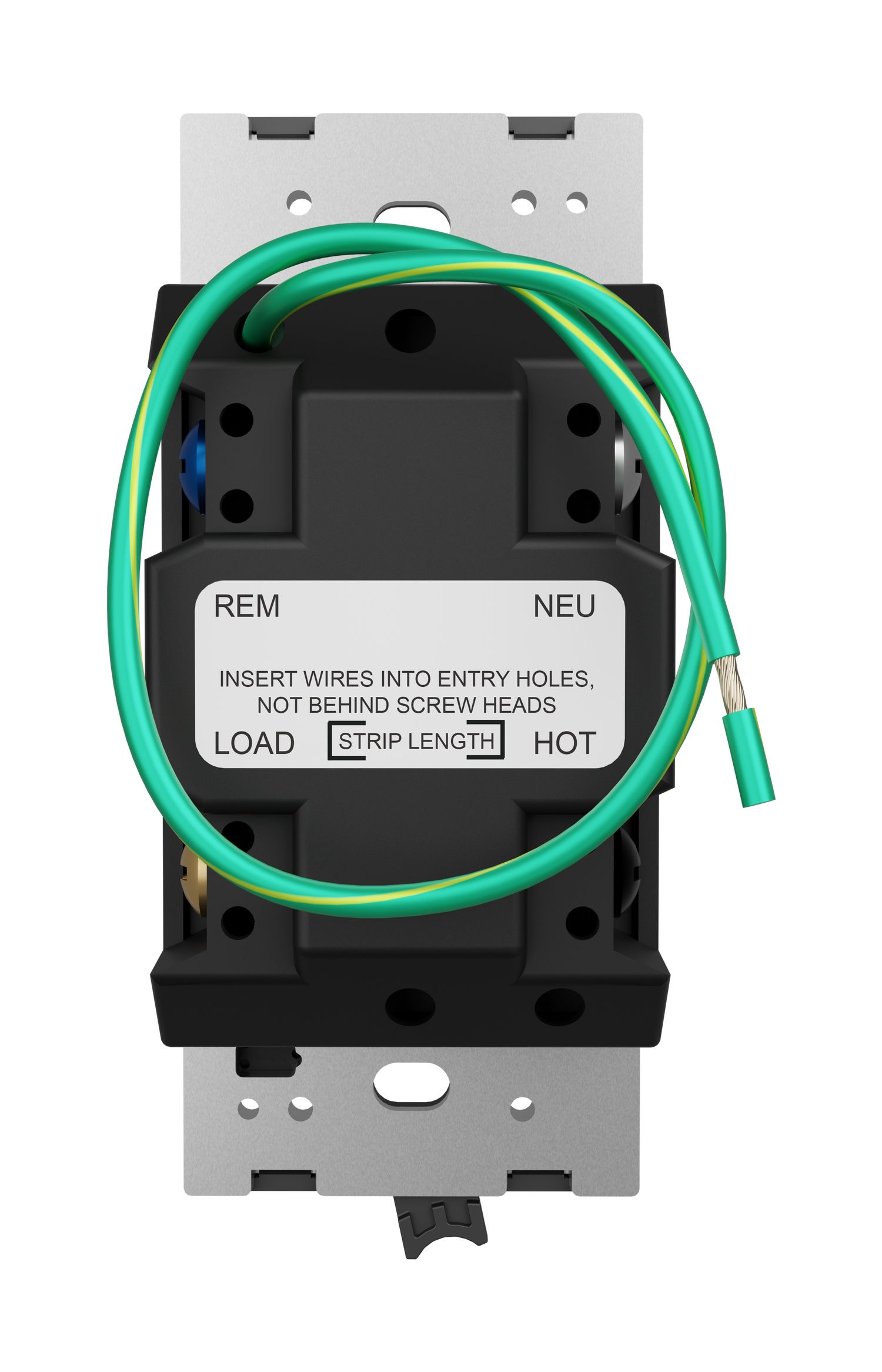

• 120 VAC, neutral required; 14–12 AWG screw clamp terminals
• Dimensions: 4.13 × 1.80 in. (105 × 46 mm); depth 1.89 in. (48 mm); weight 7.4 oz (208 g)
• Certifications: FCC, UL, IC

Typical Applications

• High-end residential and executive commercial spaces where custom engraving and glass finish are specified
• Conference rooms and boardrooms requiring labeled button functions in a premium aesthetic
• Hospitality properties specifying a uniform Black Glass device finish throughout guest areas
• LED driver-controlled architectural lighting in spaces needing wireless dimming control

Technical Specifications

Frequently Asked Questions

When do I need to submit engraving artwork?

Engraving files must be submitted at the time of order via Impress SW, the Crestron Home app, D3Pro, or Crestron Home OS Configurator. The engraved button assembly is manufactured to order and cannot be changed after production.

Is the Black Glass finish more fragile than metal finishes?

The glass finish is a high-quality material used in Crestron’s premium device line. Standard installation care applies; avoid impact or abrasion that could affect the glass surface.

Does this device function identically to the Dark Bronze version?

Yes. The HZ2-DIMLVEX-GLASS-B is electrically and functionally identical to the HZ2-DIMLVEX-DRK-BRZ. The only differences are the finish material and the engraving option.
