Crestron Horizon 2 In-Wall 0-10V Dimmer with infiNET EX – 120 VAC, Custom Engraved, Dark Bronze

Product Overview

The Crestron Horizon 2 In-Wall 0-10V Dimmer with infiNET EX Wireless Communication (HZ2-DIMLVEX-DRK-BRZ) is a dark bronze, custom-engraved in-wall dimmer providing 0-10V low-voltage dimming control with integrated infiNET EX two-way wireless communication. Rated for 120 VAC, it is designed for 0-10V dimmable LED drivers and fluorescent ballasts in premium residential and commercial environments.

Product Description

The HZ2-DIMLVEX-DRK-BRZ combines a 0-10V control output with the Horizon 2 in-wall form factor and infiNET EX wireless communication. Unlike forward-phase dimmers, the 0-10V method sends a low-voltage control signal (0 to 10 volts) to the LED driver or ballast to adjust light output, making it compatible with a wide range of modern LED fixtures, commercial LED drivers, and fluorescent ballasts that accept 0-10V control. The dark bronze finish suits luxury residential and premium hospitality installations where warm metallic hardware finishes are specified. Custom laser engraving is factory-applied to integrator-specified button labels. The wireless design via infiNET EX eliminates the need for dedicated control wiring at the device location, supporting retrofit and new construction deployments alike.

Key Features

• 0-10V low-voltage dimming output compatible with 0-10V LED drivers and fluorescent ballasts
• Integrated infiNET EX two-way wireless communication — no dedicated control wiring required
• 120 VAC rated in-wall dimmer in Horizon 2 form factor

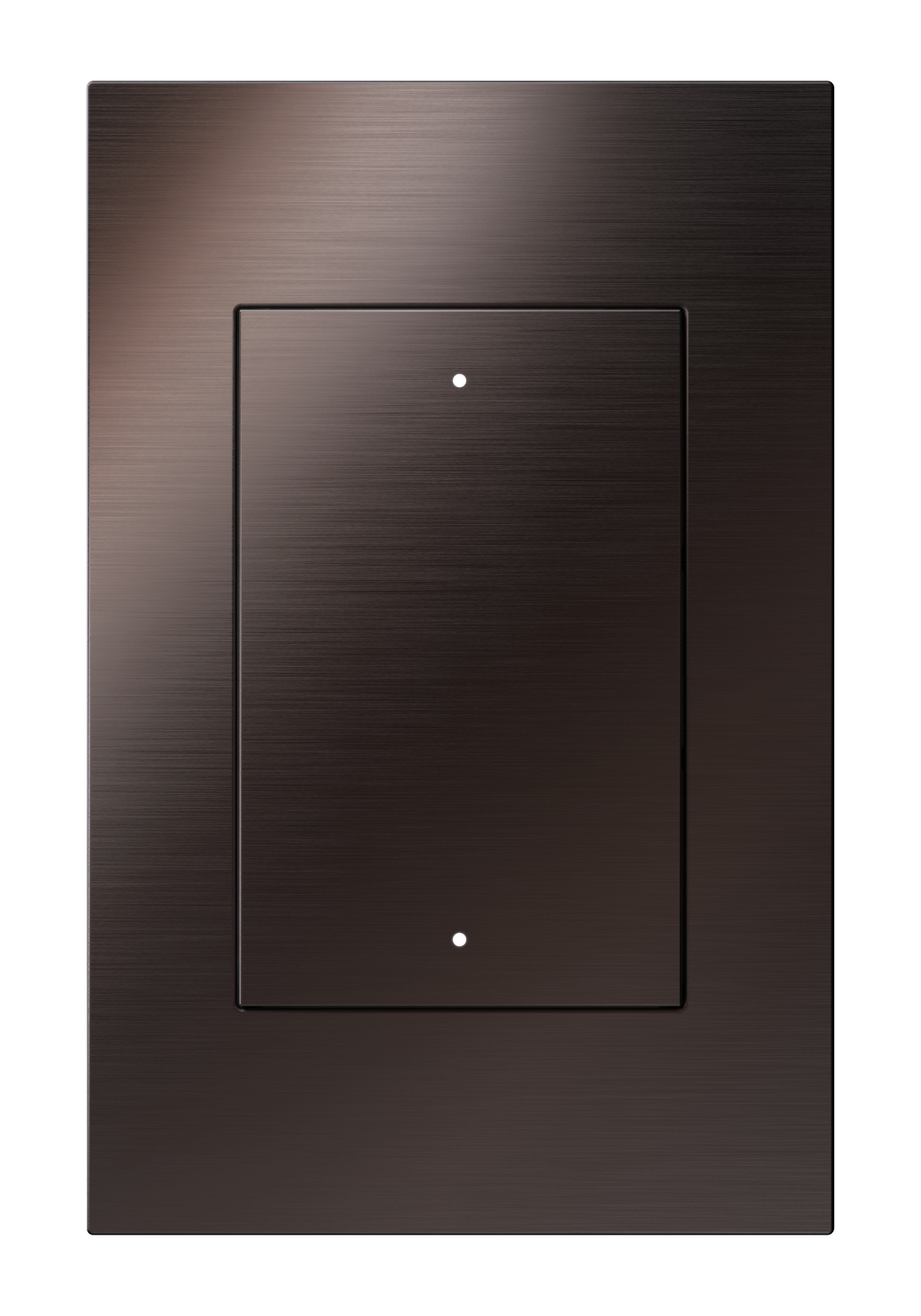

• Dark bronze finish for luxury residential and premium hospitality environments
• Custom laser engraving applied at factory to integrator specifications
• Two-way status feedback for real-time monitoring within the Crestron system
• Suitable for modern LED lighting infrastructure in residential and commercial spaces

Typical Applications

• Luxury residential spaces with 0-10V LED drivers in recessed or pendant fixtures
• Commercial offices with LED troffer or panel fixtures on 0-10V drivers
• Boutique hotel guest rooms and suites with modern LED lighting packages
• Educational and healthcare facilities with fluorescent or LED 0-10V ballast systems
• Retrofit projects adding wireless lighting control to buildings with existing 0-10V LED infrastructure

Technical Specifications

FAQs

Q: What is the difference between the HZ2-DIMLVEX and the HZ2-DIMEX?
A: The HZ2-DIMLVEX uses 0-10V low-voltage dimming, which sends a separate control signal to a compatible LED driver or ballast. The HZ2-DIMEX uses forward-phase (TRIAC) dimming, which modulates the AC line voltage directly. Use HZ2-DIMLVEX when the fixtures or drivers require a 0-10V input; use HZ2-DIMEX for incandescent, halogen, or TRIAC-compatible LED loads.

Q: Does the 0-10V output require separate wiring from the line voltage?
A: Yes. 0-10V dimming requires a separate low-voltage control wire between the dimmer and the LED driver or ballast in addition to the line voltage wiring to the fixture. Verify wiring requirements with Crestron's installation documentation before roughing in.

Q: Can this dimmer control multiple LED drivers from a single control point?
A: The 0-10V output can typically control multiple drivers wired in parallel on the same 0-10V control loop, subject to the total current draw on the control circuit. Refer to the Crestron product specification and the LED driver datasheets to confirm the maximum number of drivers per zone.
