Product Overview

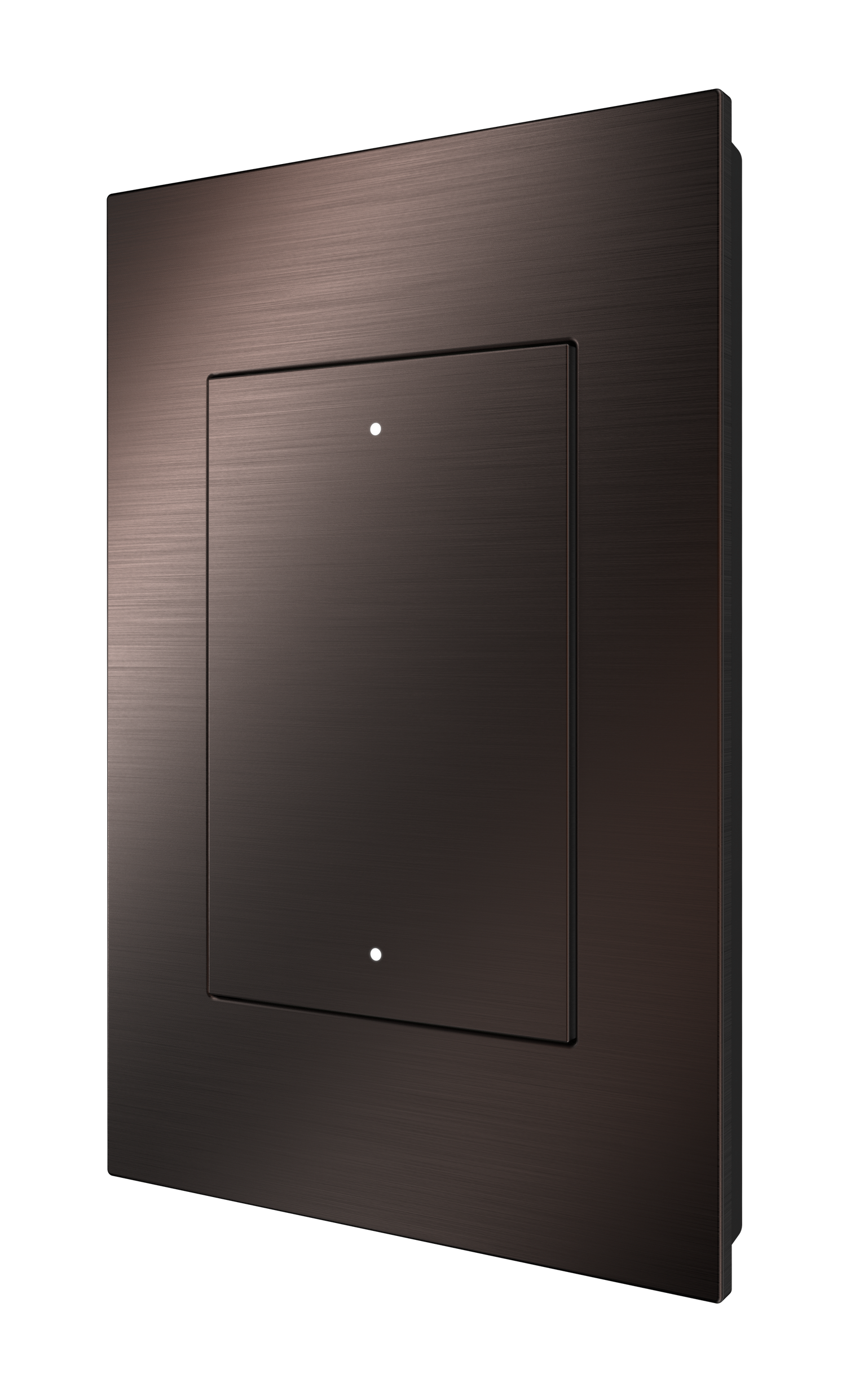

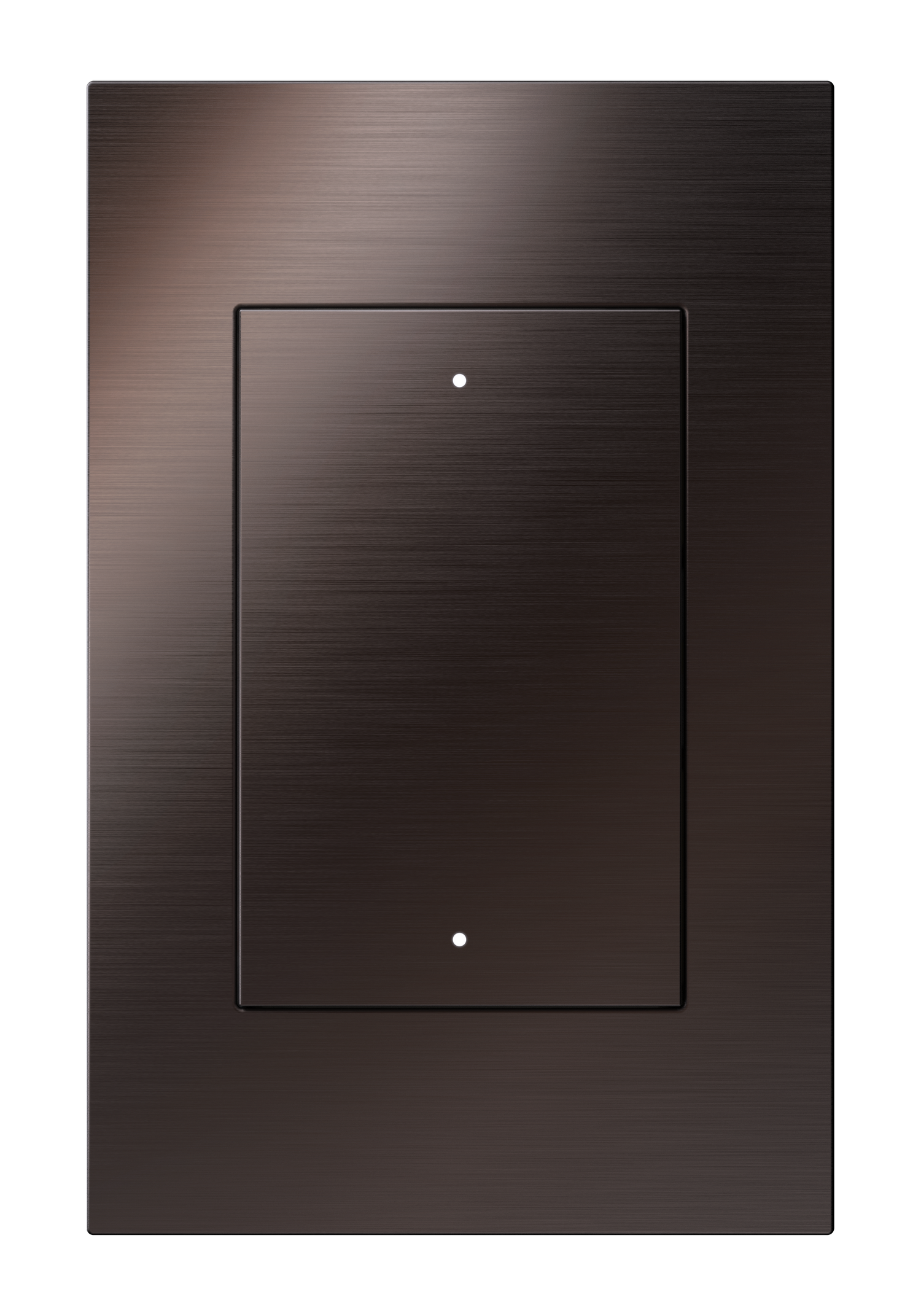

The Crestron HZ2-DIMLVEX-DRK-BRZ is a Horizon 2 in-wall 0-10V dimmer with infiNET EX wireless communication, finished in Dark Bronze metal. It controls 0-10 VDC-compatible LED drivers and ballasts, delivering wireless dimming over the infiNET EX 2.4 GHz mesh network without requiring a dedicated control wire to the Crestron processor.
Product Description
The HZ2-DIMLVEX-DRK-BRZ mounts in a standard 1- to 4-gang U.S. electrical box (3.5 in. depth recommended) and requires a neutral wire. It includes a 10 A load switching relay and separate 0-10 VDC dim control outputs (DIM+ purple, DIM- pink flying leads) with 60 mA sink/source capability. The nine push buttons are backlit by five RGB LEDs with 13 local color themes and Tunable White 2000K–8000K. The built-in photosensor automatically dims the backlight based on ambient light. Up to four companion HZ2-AUX or HZ2-KPEX devices can be wired via the Remote terminal for 3-/4-way circuit configurations. An HZ2-FP-G faceplate (sold separately) is required. For ordering information, visit creationnetworks.net.
Key Features
- 0-10 VDC dimming output for compatible LED drivers and ballasts; 60 mA sink/source
- Integrated 10 A switching relay; no minimum load
- infiNET EX wireless, 2.4 GHz, IEEE 802.15.4; Crestron Home OS compatible
- 9 programmable push buttons; 5 RGB LED backlights; 13 color themes; Tunable White 2000K–8000K
- Built-in photosensor for auto backlight dimming
- Remote terminal for up to 4 HZ2-AUX or HZ2-KPEX companion devices
- Wiring: 120 VAC, 50/60 Hz; neutral required; 14–12 AWG screw clamp terminals
- Dark Bronze metal finish; dimensions: 4.13 × 1.80 in. (105 × 46 mm); 1.89 in. (48 mm) depth
- Weight: 7.4 oz (208 g); certifications: FCC, UL, IC
Typical Applications
- Commercial office and conference room LED lighting control integrated with Crestron automation
- Hospitality environments requiring wireless dimming without additional control wiring
- Retrofit lighting control in spaces where new Cresnet wiring is not practical
- Multi-location dimming in corridors or open-plan areas using HZ2-AUX companion devices
Technical Specifications
| Specification | Value |
|---|---|
| Dimming Technology | 0-10 VDC |
| Load Types | 0-10 VDC LED drivers and ballasts |
| Load Rating | 10 A maximum; no minimum load |
| Dim Control Output | 0–10 VDC, 60 mA sink/source |
| Wireless Protocol | infiNET EX, 2.4 GHz, IEEE 802.15.4 |
| Power Input | 120 VAC, 50/60 Hz; neutral required |
| Mounting | 1–4 gang U.S. electrical box, 3.5 in. depth recommended |
| Buttons | 9 programmable push buttons |
| LED Backlight | 5 RGB LEDs; 13 color themes; Tunable White 2000K–8000K |
| Finish | Dark Bronze metal |
| Dimensions (H × W) | 4.13 × 1.80 in. (105 × 46 mm) |
| Depth | 1.89 in. (48 mm); projects 0.46 in. (12 mm) from wall |
| Weight | 7.4 oz (208 g) |
| Operating Temperature | 32°–86°F (0°–30°C) |
| Humidity | 10–90% RH, non-condensing |
| Certifications | FCC, UL, IC |
| Required Accessory | HZ2-FP-G faceplate (sold separately) |
Frequently Asked Questions
- What types of loads can the HZ2-DIMLVEX-DRK-BRZ control?
- This dimmer is designed specifically for 0-10 VDC controlled LED drivers and fluorescent ballasts. It is not suitable for directly dimming incandescent, magnetic low voltage, or electronic low voltage loads; for those, use the HZ2-DIMUEX (universal dimmer) or HZ2-DIMEX (forward-phase dimmer).
- Is a neutral wire required?
- Yes. The HZ2-DIMLVEX-DRK-BRZ requires a neutral wire at the electrical box. It cannot be installed in a 2-wire configuration without neutral.
- Can this dimmer be used in multi-location configurations?
- Yes. The Remote terminal accepts a traveler wire from up to four HZ2-AUX or HZ2-KPEX companion devices for 3-way and 4-way switching at additional locations.
