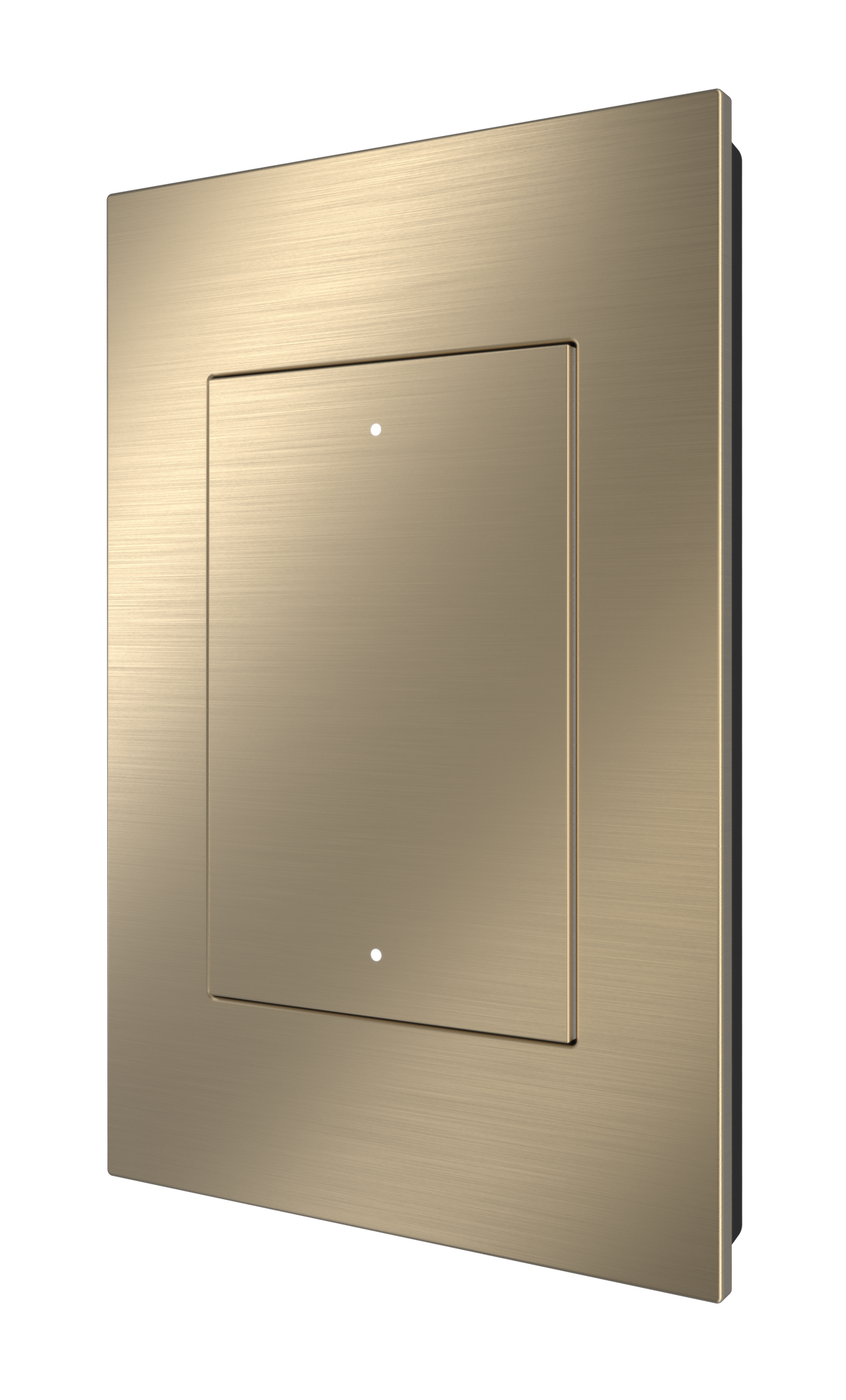

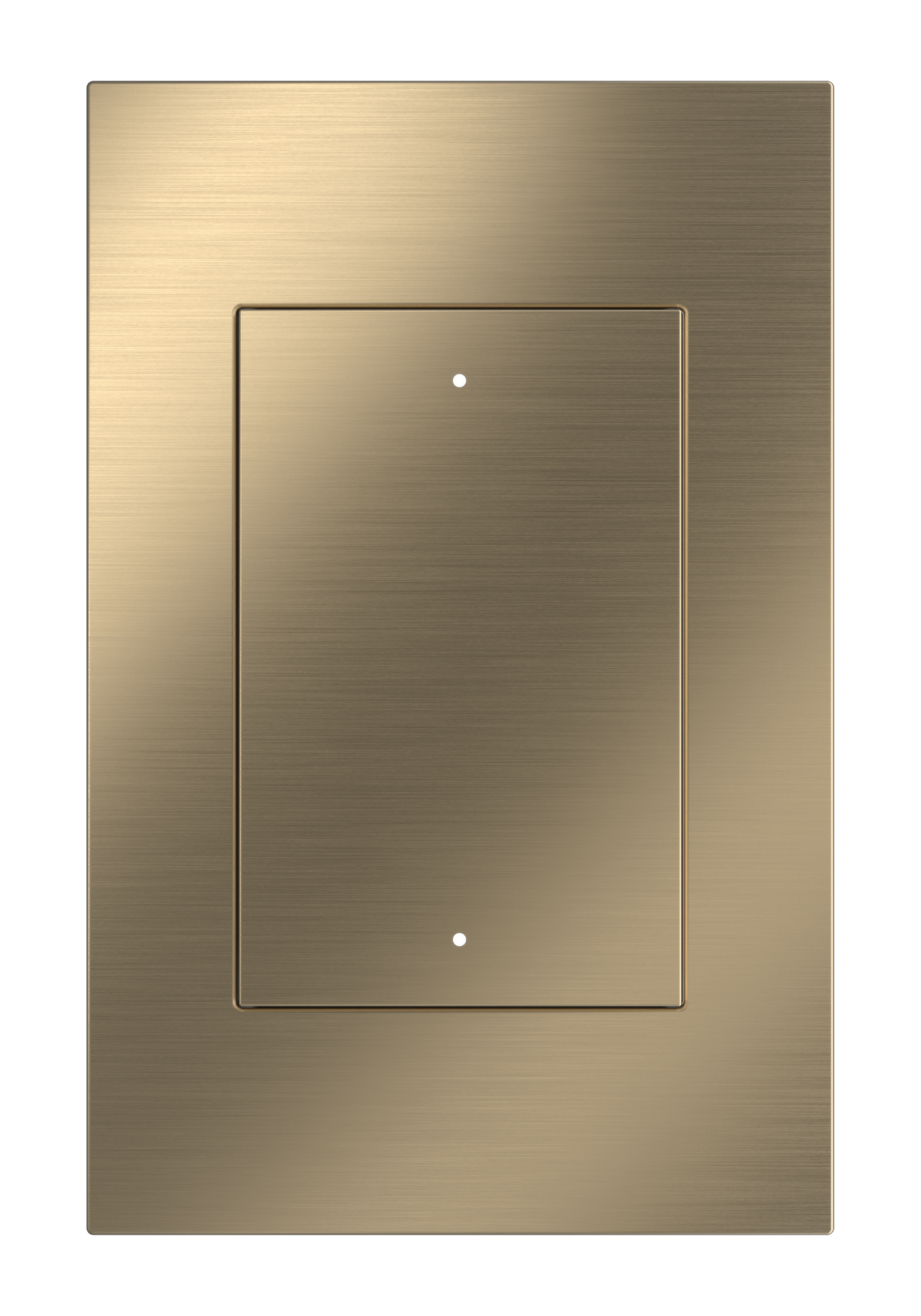

Crestron HZ2-DIMLVEX-BR-BRASS – Horizon 2 0-10V In-Wall Dimmer, infiNET EX, Brushed Brass, Engraved
Crestron HZ2-DIMLVEX-BR-BRASS – Horizon 2 0-10V In-Wall Dimmer, infiNET EX, Brushed Brass, Engraved is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Crestron HZ2-DIMLVEX-BR-BRASS – Horizon 2 0-10V In-Wall Dimmer, inf...
Product Overview
The Crestron HZ2-DIMLVEX-BR-BRASS is a Horizon 2 series in-wall 0-10V dimmer with infiNET EX wireless connectivity, finished in brushed brass with standard engraving. Designed for commercial and high-end residential lighting control, it controls 0-10V dimmable LED drivers and fluorescent ballasts and integrates wirelessly with Crestron control processors via infiNET EX without requiring a Cresnet wired connection at the device location.
Product Description
The HZ2-DIMLVEX series represents Crestron's second-generation Horizon in-wall control surface, combining premium architectural finishes with wireless infiNET EX technology for flexible installation. The brushed brass finish delivers an upscale aesthetic suited to luxury hospitality, executive offices, and high-end residential properties. This variant includes standard engravable button caps pre-engraved for direct installation without additional customization. The 0-10V output is compatible with a wide range of commercial LED drivers, making it a practical choice for energy-efficient lighting systems. The device communicates bidirectionally with the Crestron system, enabling real-time status feedback, automated scene control, scheduling, and occupancy-based responses.
Key Features
- 0-10V dimming output for LED drivers and fluorescent ballasts
- infiNET EX wireless communication for wire-free processor integration
- Two-way communication for real-time feedback and status monitoring
- Brushed brass architectural finish for premium installations
- Standard engraved button caps included for immediate deployment
- 120 VAC compatible
- Compatible with Crestron scene control, scheduling, and occupancy automation
Typical Applications
- Commercial LED lighting control in hotels, executive suites, and boardrooms
- High-end residential lighting control in living rooms, dining rooms, and master suites
- Hospitality and boutique hotel room lighting management
- Energy-efficient office lighting with occupancy and daylight harvesting integration
Technical Specifications
- Output Type: 0–10V DC
- Communication: infiNET EX wireless
- Voltage: 120 VAC
- Finish: Brushed Brass
- Engraving: Standard (included)
- Series: Horizon 2
Frequently Asked Questions
Q: Does the HZ2-DIMLVEX-BR-BRASS require a Cresnet wired connection?
A: No. It uses infiNET EX wireless communication and requires only a standard 120V electrical connection at the wall box.
Q: What type of loads can this dimmer control?
A: The 0-10V output is designed for 0-10V dimmable LED drivers and fluorescent ballasts. It is not a phase-dimmer and cannot directly dim incandescent or MLV/ELV loads without an appropriate 0-10V driver.
Q: Where can I purchase the HZ2-DIMLVEX-BR-BRASS?
A: Available at creationnetworks.net.
