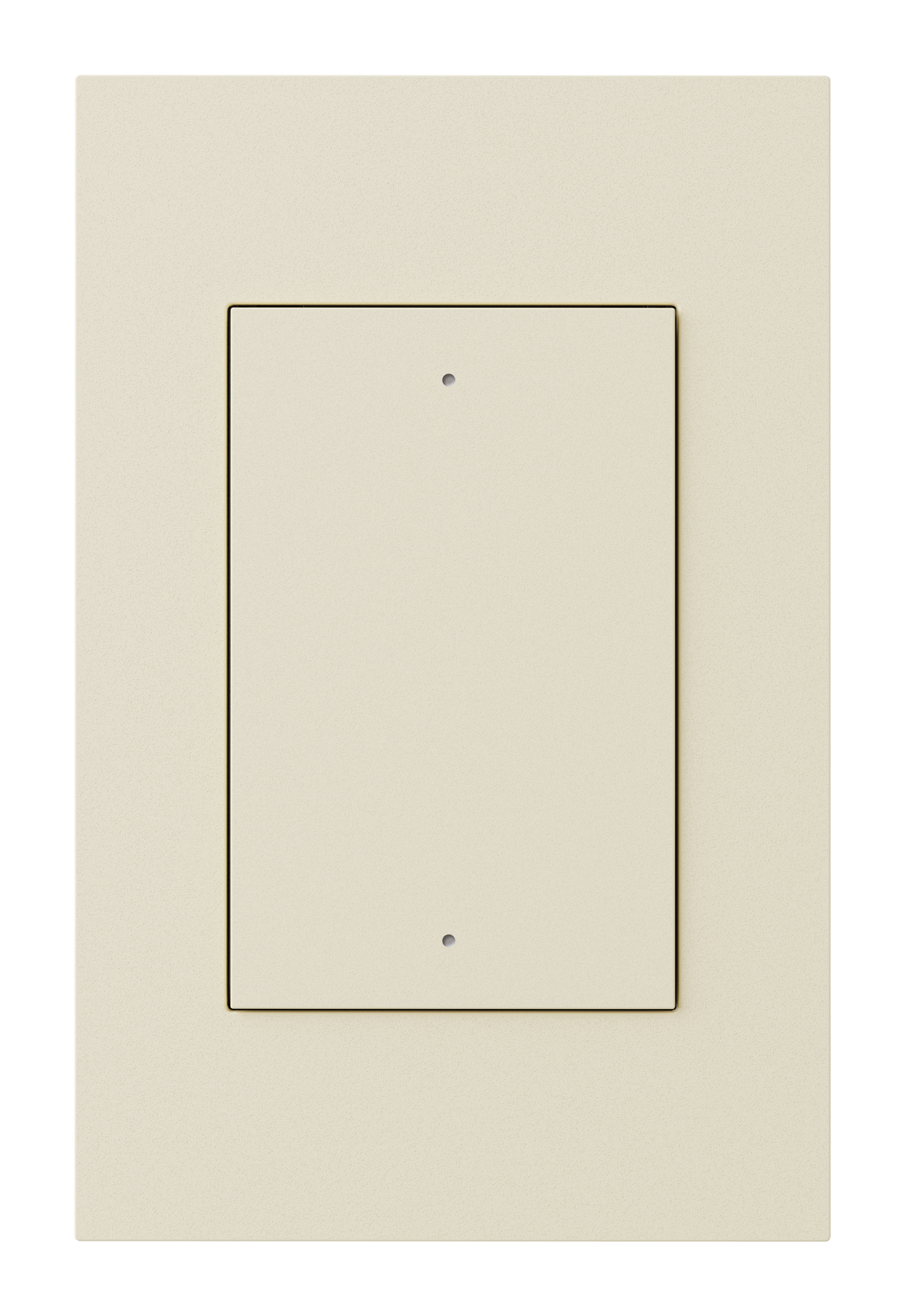

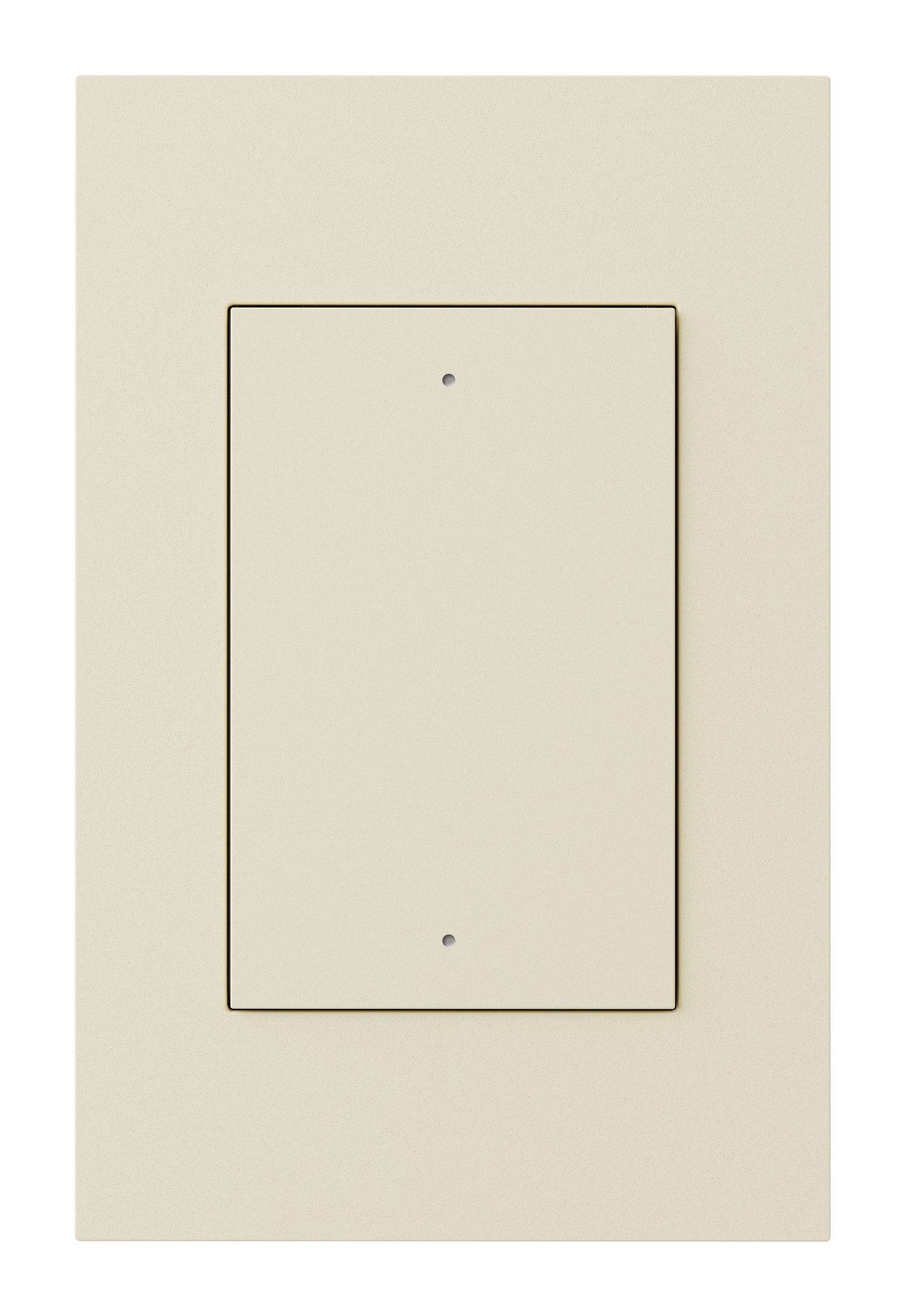

Crestron HZ2-DIMLVEX-A – Horizon 2 0-10V Dimmer, infiNET EX, Alabaster, Engraved

Product Overview

The Crestron HZ2-DIMLVEX-A is a Horizon 2 in-wall 0-10V dimmer with infiNET EX wireless communication, finished in Alabaster (white textured) with custom laser engraving. It controls 0-10 VDC-compatible LED drivers and ballasts wirelessly over the infiNET EX 2.4 GHz mesh network with custom-etched button artwork applied at order.

Product Description

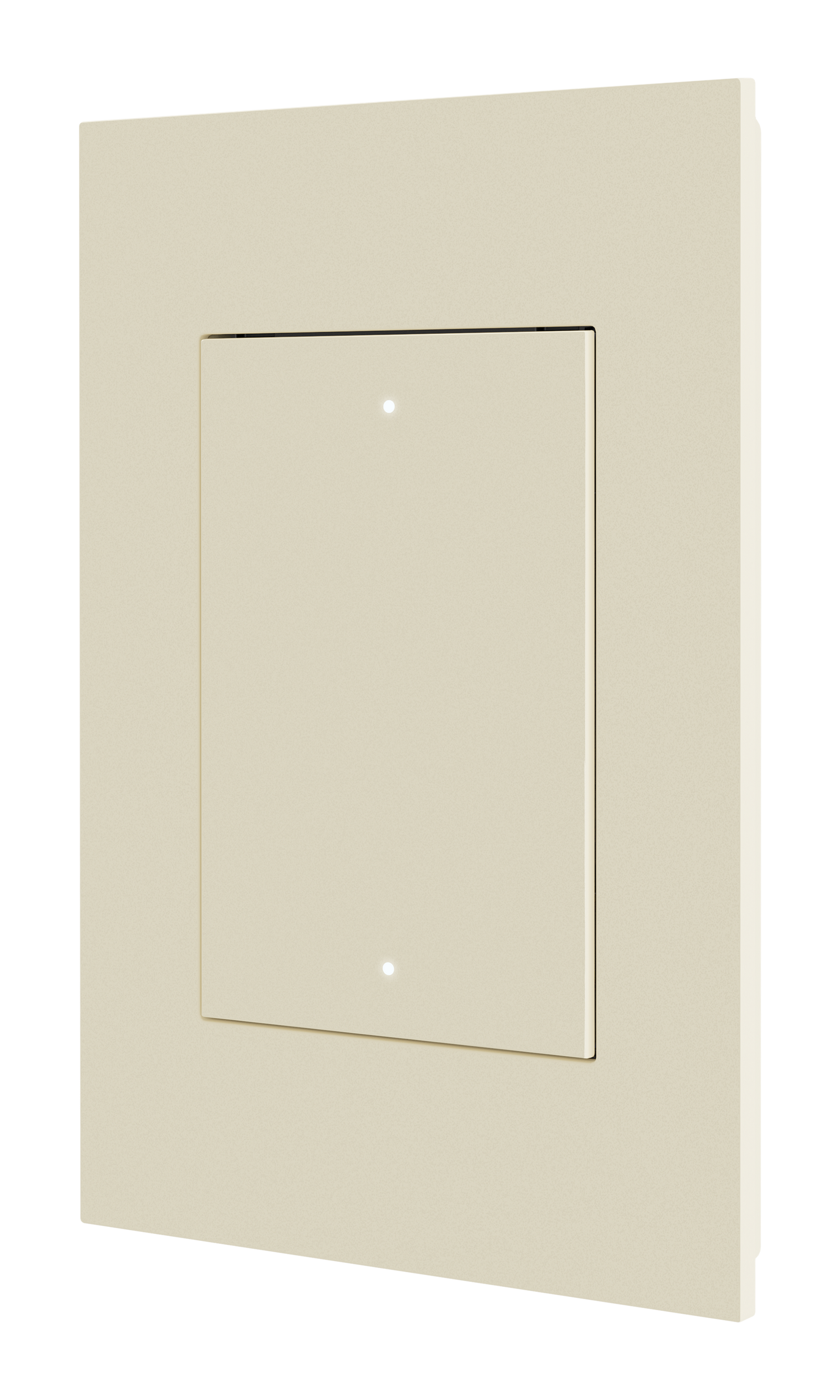

The Alabaster finish is a white textured material suited to standard commercial and residential interiors where a clean, neutral device appearance is preferred. It shares all electrical specifications with other HZ2-DIMLVEX variants: 10 A switching relay, 0-10 VDC dimming outputs (60 mA sink/source via purple DIM+ and pink DIM- flying leads), and infiNET EX wireless integration. Custom laser-etched button artwork in any of Style 1–6 must be provided at time of order via Impress SW, the Crestron Home app, D3Pro, or Crestron Home OS Configurator. Neutral wire and HZ2-FP-G faceplate (sold separately) are required. For ordering, visit creationnetworks.net.

Key Features

• 0-10 VDC dimming output for LED drivers and ballasts; 60 mA sink/source; no minimum load
• Integrated 10 A switching relay
• Alabaster (white textured) finish with custom laser-engraved button artwork (Style 1–6)
• infiNET EX wireless, 2.4 GHz, IEEE 802.15.4; Crestron Home OS compatible
• 9 programmable buttons; 5 RGB LEDs; 13 color themes; Tunable White 2000K–8000K
• Built-in photosensor; Remote terminal for up to 4 HZ2-AUX or HZ2-KPEX companion devices

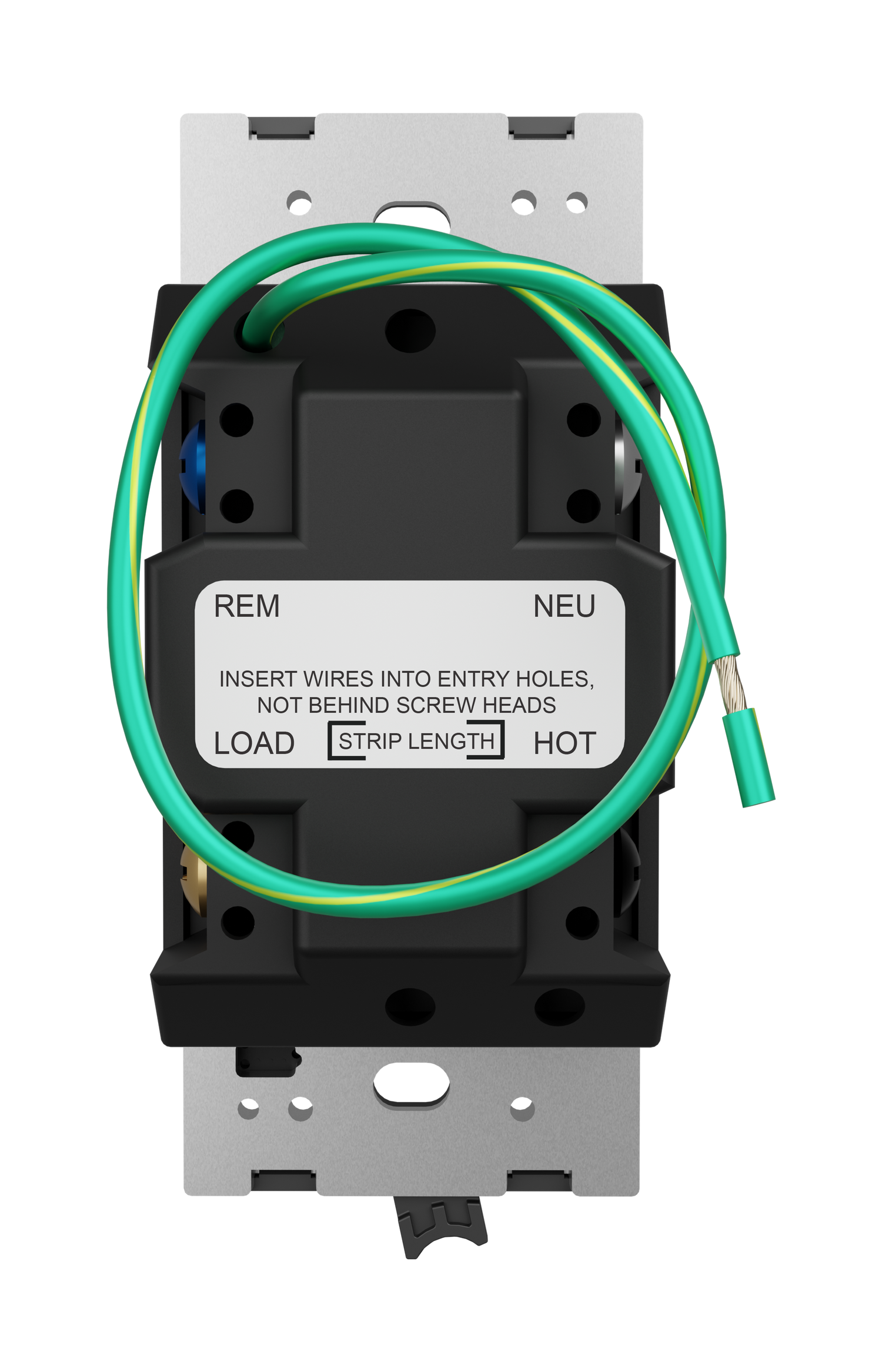

• 120 VAC, neutral required; 14–12 AWG screw clamp terminals
• Dimensions: 4.13 × 1.80 in. (105 × 46 mm); depth 1.75 in. (45 mm); weight 7.4 oz (208 g)
• Certifications: FCC, UL, IC

Typical Applications

• Commercial office 0-10V LED dimming control in standard white-finish AV deployments
• Conference rooms and classrooms requiring engraved button labels in a neutral white device
• Hospitality and institutional projects specifying a consistent alabaster device finish
• Wireless retrofit lighting control for 0-10V LED driver circuits

Technical Specifications

Frequently Asked Questions

How does the Alabaster finish differ from the White finish in the HZ2 series?

Alabaster is a white textured material finish. The White (-W suffix) also refers to a white device but may have a different surface texture. Both are lighter-colored options suited to standard commercial interiors, as opposed to the premium metal and glass finish options.

What is 0-10V dimming and when should I use this device?

0-10 VDC dimming uses a low-voltage control signal to adjust light output on compatible LED drivers and fluorescent ballasts. Use the HZ2-DIMLVEX when your fixtures use 0-10V driver inputs. For line-voltage loads (incandescent, MLV, ELV), use the HZ2-DIMEX or HZ2-DIMUEX instead.

Are artwork files required before ordering?

Yes. The ENGRAVED suffix means this is a custom made-to-order product. Artwork files for laser engraving must be submitted at time of order and cannot be changed after production begins.
