Product Overview

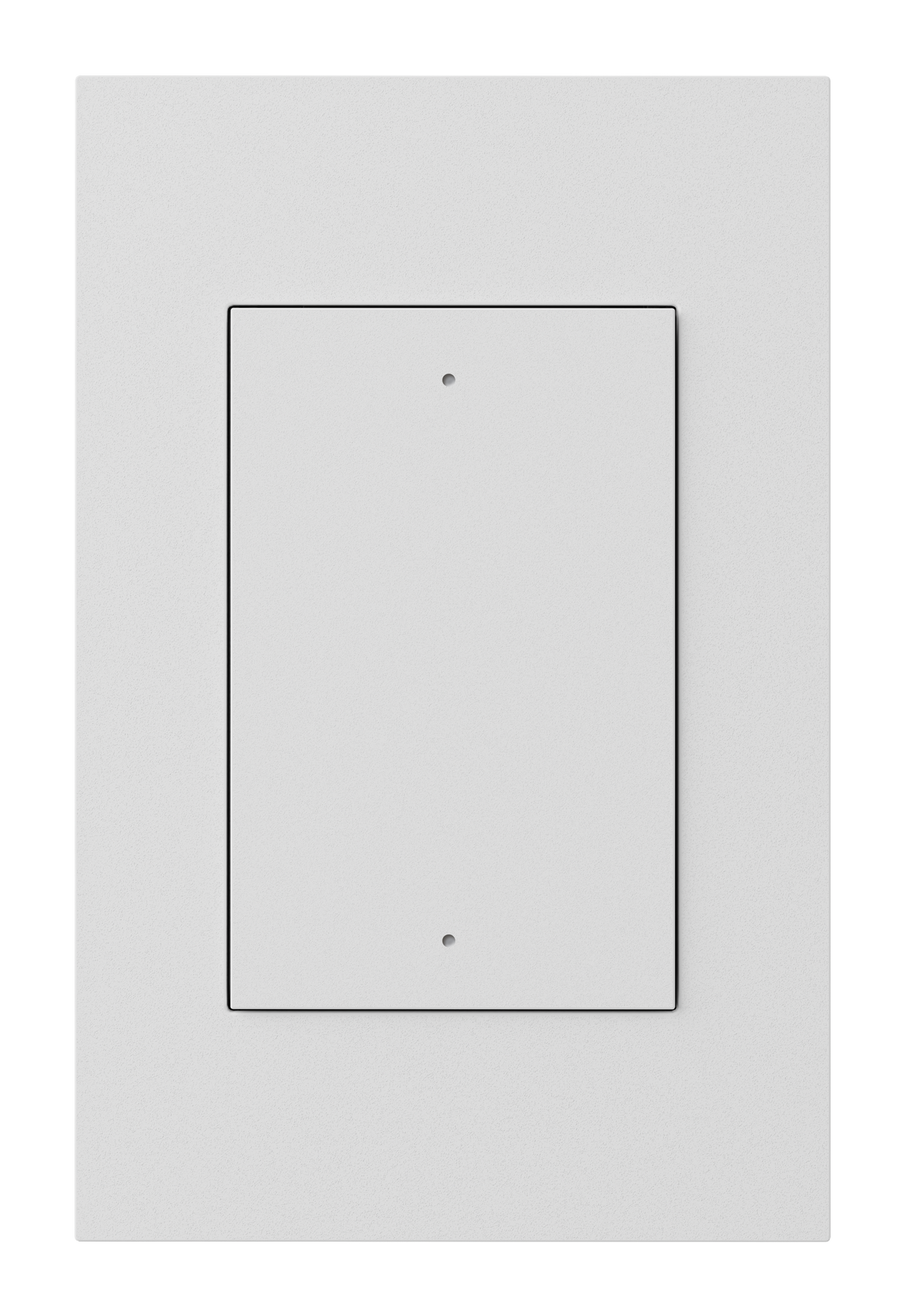

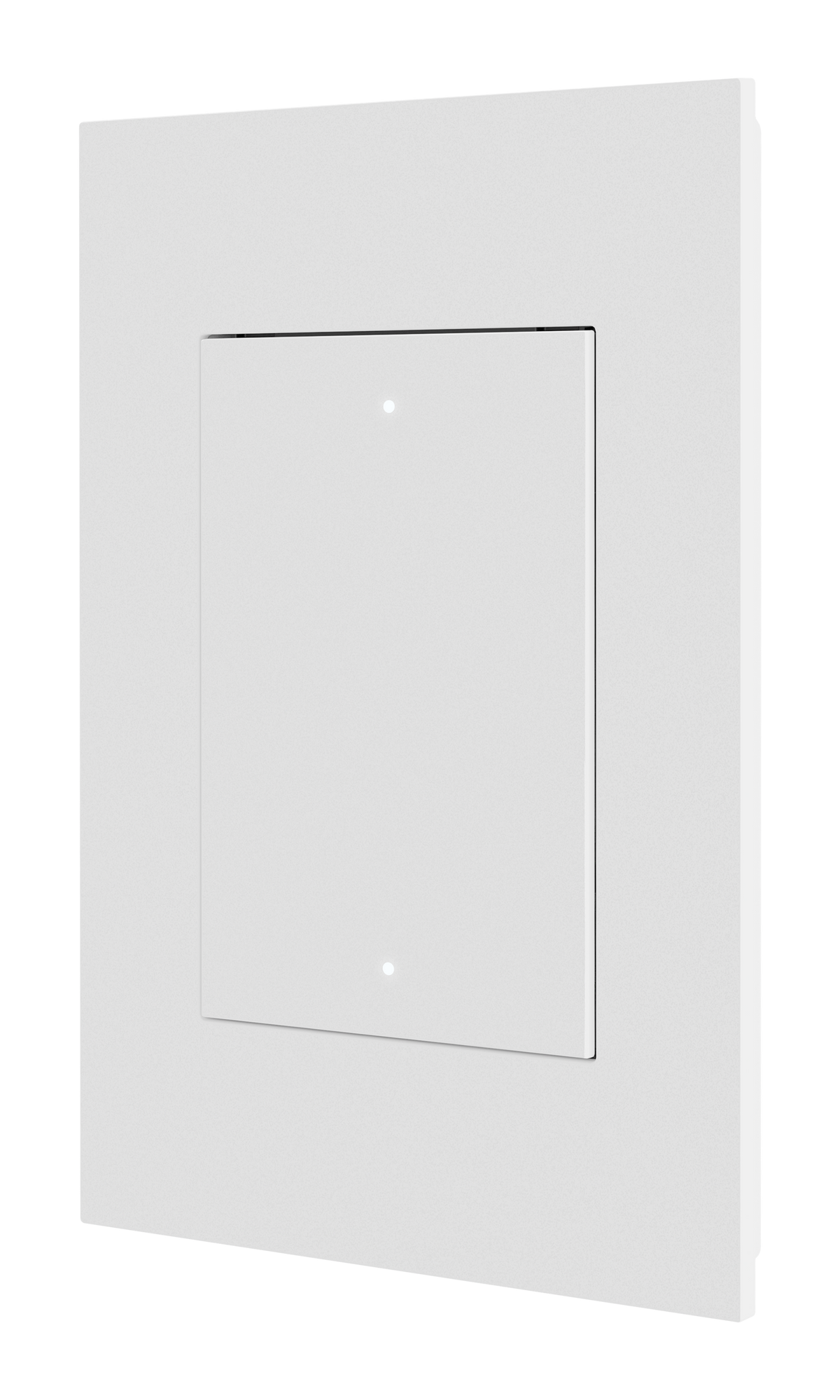

The Crestron HZ2-DIMEX-W is a Horizon 2 series in-wall forward-phase dimmer with infiNET EX wireless connectivity, finished in white with standard engraving. It is designed for incandescent, halogen, and magnetic low-voltage (MLV) loads and communicates wirelessly with Crestron control processors via infiNET EX. The white finish is the most widely specified option, compatible with standard commercial and residential wall plate environments.
Product Description
The forward-phase (TRIAC) dimming technology in the HZ2-DIMEX-W provides reliable and flicker-free performance with incandescent, tungsten halogen, and MLV transformer-driven fixtures. The white finish coordinates with standard white decora-style wall plates, making this device a practical choice for broad commercial and residential deployments where color-matching to existing infrastructure is important. Standard engraved button caps ship pre-installed, enabling immediate use after installation and programming. The Horizon 2 platform supports full Crestron automation including scene control, scheduling, occupancy integration, and daylight harvesting through infiNET EX wireless connectivity without requiring Cresnet at the wall box.
Key Features
- Forward-phase (TRIAC) dimming for incandescent, halogen, and MLV loads
- infiNET EX wireless two-way communication
- White finish for standard commercial and residential installations
- Standard engraved button caps included
- 120 VAC compatible
- No Cresnet wiring required at device location
- Supports scene control, scheduling, and occupancy automation
Typical Applications
- Incandescent and halogen dimming in offices, hospitality, and residential spaces
- MLV track lighting control in retail and gallery environments
- Standard commercial office lighting control with existing incandescent or halogen infrastructure
- Retrofit installations where wireless eliminates need for new Cresnet wiring
Technical Specifications
- Output Type: Forward-phase (TRIAC)
- Communication: infiNET EX wireless
- Voltage: 120 VAC
- Finish: White
- Engraving: Standard (included)
- Series: Horizon 2
Frequently Asked Questions
Q: Is the HZ2-DIMEX-W suitable for LED loads?
A: Forward-phase dimmers can work with some dimmable LED fixtures, but the HZ2-DIMUEX (universal phase) variant is generally better suited for LED loads due to broader compatibility.
Q: Does the HZ2-DIMEX-W require an infiNET EX gateway?
A: Yes, an infiNET EX gateway or a processor with built-in infiNET EX is required within RF range of the device for wireless communication.
Q: Where can I purchase the HZ2-DIMEX-W?
A: Available at creationnetworks.net.
