Crestron HZ2-DIMEX-GLASS-B – Horizon 2 Forward-Phase Dimmer, infiNET EX, Black Glass, Engraved
Crestron HZ2-DIMEX-GLASS-B – Horizon 2 Forward-Phase Dimmer, infiNET EX, Black Glass, Engraved is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Crestron HZ2-DIMEX-GLASS-B – Horizon 2 Forward-Phase Dimmer, infiNE...
Product Overview

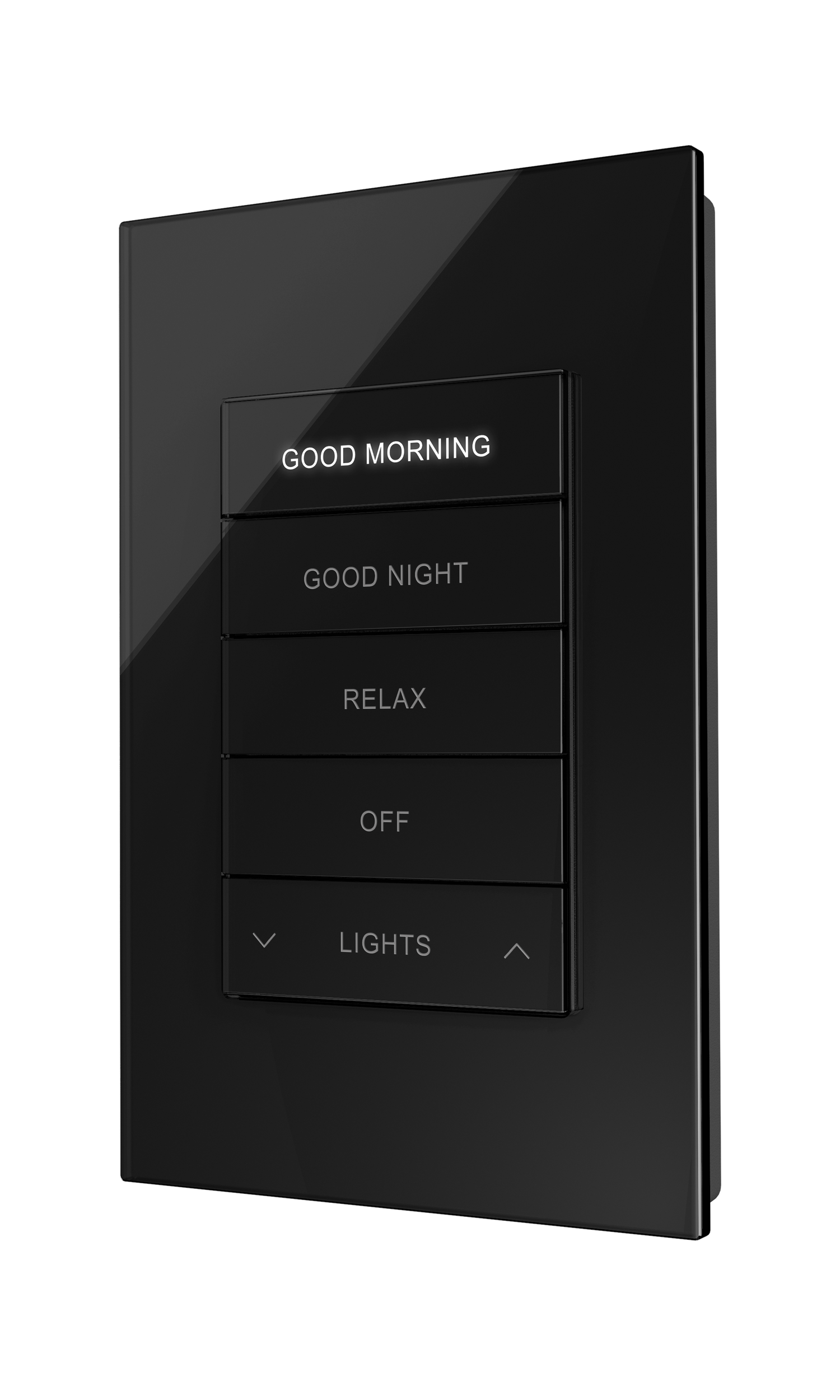

The Crestron HZ2-DIMEX-GLASS-B is a Horizon 2 in-wall forward-phase dimmer with infiNET EX wireless communication, featuring a custom-engraved Black Glass finish. It controls incandescent, magnetic low voltage, and tungsten-halogen loads up to 750 W/VA, with full Crestron Home OS integration and custom laser-etched button artwork applied at order.
Product Description
Electrically identical to the HZ2-DIMEX-DRK-BRZ, this variant uses a high-gloss Black Glass finish and requires custom engraving artwork submitted at time of order through Impress SW, the Crestron Home app, D3Pro, or Crestron Home OS Configurator. It mounts in a standard 1- to 4-gang U.S. electrical box and requires a neutral wire. The airgap switch allows safe lamp maintenance. An HZ2-FP-G faceplate (sold separately) is required. For ordering, visit creationnetworks.net.
Key Features
- Black Glass finish with custom laser-engraved button artwork (Style 1–6; files required at order)
- Forward-phase dimming for incandescent, MLV, and tungsten-halogen loads; 750 W/VA maximum
- Configurable switching mode for nondimmable loads; airgap switch included
- infiNET EX wireless, 2.4 GHz, IEEE 802.15.4; Crestron Home OS compatible
- 9 programmable buttons; 5 RGB LEDs; 13 color themes; Tunable White 2000K–8000K
- 120 VAC, neutral required; 14–12 AWG screw clamp terminals
- Dimensions: 4.13 × 1.80 in. (105 × 46 mm); depth 1.89 in. (48 mm); weight 7.4 oz (208 g)
- Certifications: FCC, UL, IC
Typical Applications
- Luxury residential and executive commercial spaces specifying Black Glass device finishes
- Installations requiring engraved scene labels or source identifiers at the dimmer
- Traditional lighting loads (incandescent, halogen, MLV) in high-end interior designs
- Crestron Horizon 2 deployments requiring a consistent premium glass aesthetic
Technical Specifications
| Specification | Value |
|---|---|
| Dimming Technology | Forward phase |
| Load Types | Incandescent, MLV, Tungsten-Halogen |
| Load Rating | 750 W/VA maximum; no minimum load |
| Wireless Protocol | infiNET EX, 2.4 GHz, IEEE 802.15.4 |
| Power Input | 120 VAC, 50/60 Hz; neutral required |
| Finish | Black Glass, custom engraved |
| Engraving | Custom laser-etched; artwork files required at order |
| Dimensions (H × W) | 4.13 × 1.80 in. (105 × 46 mm) |
| Depth | 1.89 in. (48 mm) |
| Weight | 7.4 oz (208 g) |
| Certifications | FCC, UL, IC |
| Required Accessory | HZ2-FP-G faceplate (sold separately) |
Frequently Asked Questions
- Is this dimmer functionally identical to the Dark Bronze version?
- Yes. The HZ2-DIMEX-GLASS-B is electrically identical to the HZ2-DIMEX-DRK-BRZ. The differences are the finish material (glass vs. metal), depth (1.89 in. vs. 1.83 in.), and the engraving option.
- When must engraving files be submitted?
- Engraving artwork must be provided at the time of order via Impress SW, Crestron Home app, D3Pro, or CHO Configurator. This is a made-to-order item and cannot be changed after production.
- Can I use this dimmer with LED fixtures?
- The HZ2-DIMEX uses forward-phase dimming. For LED loads, the HZ2-DIMUEX (universal dimmer with auto-load detection) or HZ2-DIMLVEX (for 0-10V LED drivers) is recommended.
