Product Overview

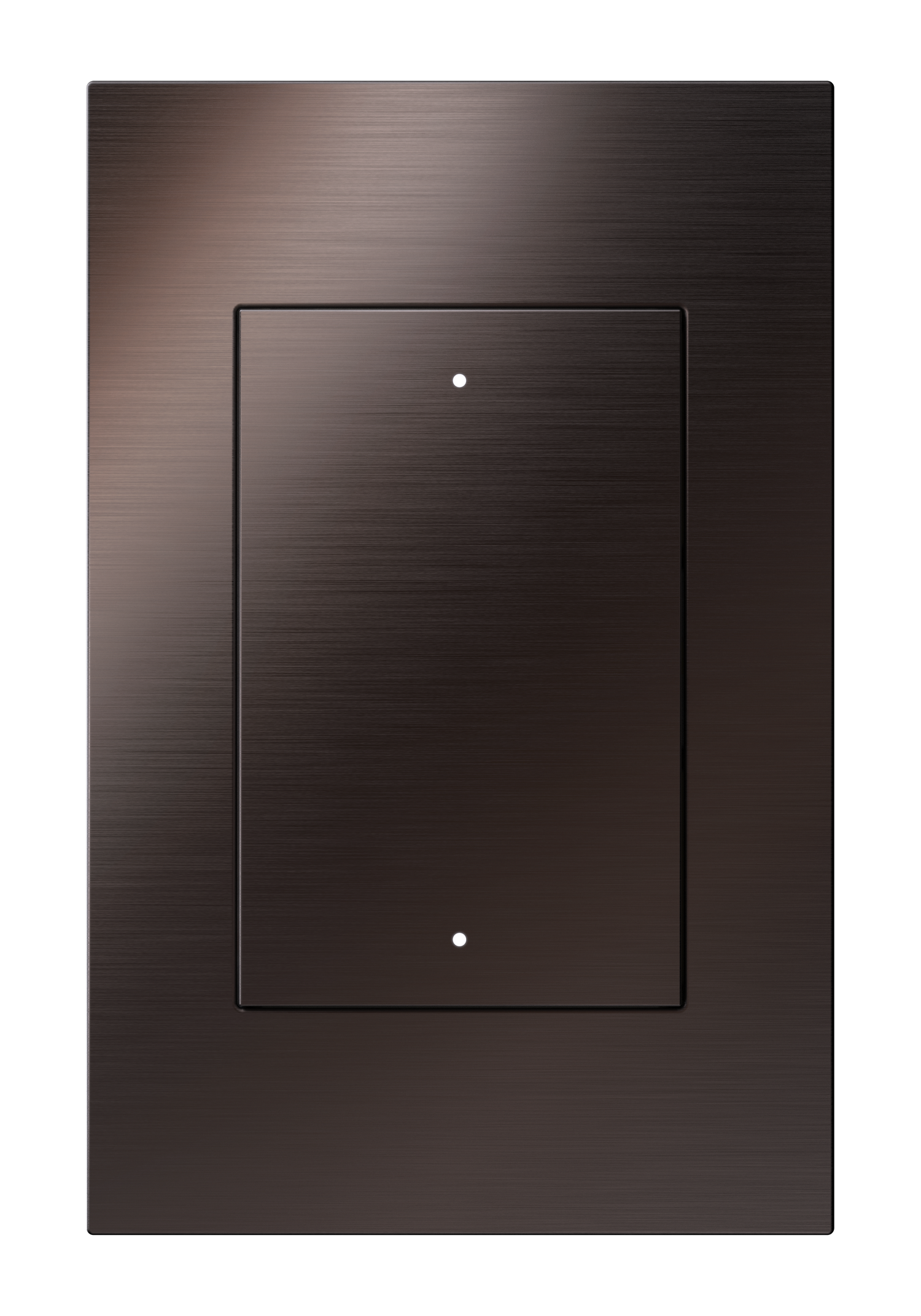

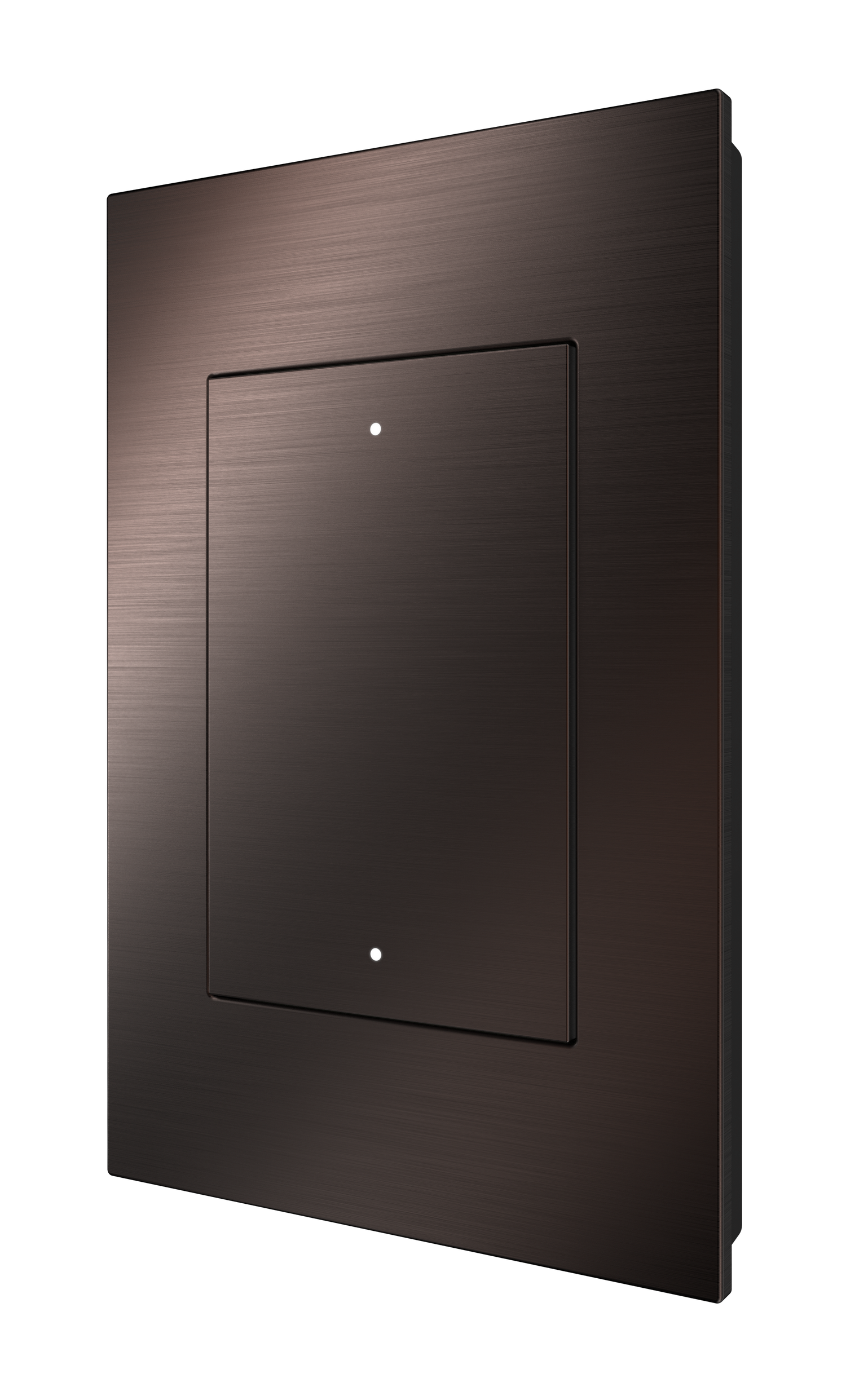

The Crestron HZ2-DIMEX-DRK-BRZ is a Horizon 2 in-wall forward-phase dimmer with infiNET EX wireless communication, finished in Dark Bronze metal. It controls incandescent, magnetic low voltage, and tungsten-halogen loads up to 750 W/VA via forward-phase dimming, with full integration into a Crestron automation system over the infiNET EX 2.4 GHz mesh network.
Product Description
The HZ2-DIMEX is the forward-phase-only member of the Horizon 2 dimmer family, suited to traditional incandescent and magnetic low voltage fixture types. It can also be set to switching mode for nondimmable loads. Nine programmable push buttons with five RGB LED backlights and Tunable White 2000K–8000K provide local control and visual feedback. The Dark Bronze metal finish coordinates with other Horizon 2 devices in darker hardware specifications. Neutral wire and HZ2-FP-G faceplate (sold separately) are required. For ordering and project support, visit creationnetworks.net.
Key Features
- Forward-phase dimming for incandescent, magnetic low voltage, and tungsten-halogen loads
- 750 W/VA maximum load rating; no minimum load; switchable to nondimmable mode
- infiNET EX wireless, 2.4 GHz, IEEE 802.15.4; Crestron Home OS compatible
- 9 programmable buttons; 5 RGB LEDs; 13 color themes; Tunable White 2000K–8000K
- Built-in photosensor; Remote terminal for up to 4 HZ2-AUX or HZ2-KPEX companion devices
- Dark Bronze metal finish; 120 VAC, neutral required
- Dimensions: 4.13 × 1.80 in. (105 × 46 mm); depth 1.83 in. (47 mm); weight 7.4 oz (208 g)
- Certifications: FCC, UL, IC
Typical Applications
- Residential incandescent and halogen lighting circuits integrated with Crestron home automation
- Commercial spaces with magnetic low voltage track and pendant fixtures
- Retrofit wireless dimming installations with existing incandescent or MLV loads
- Multi-location dimming with HZ2-AUX companion devices at corridor or room entry points
Technical Specifications
| Specification | Value |
|---|---|
| Dimming Technology | Forward phase |
| Load Types | Incandescent, MLV, Tungsten-Halogen |
| Load Rating | 750 W/VA maximum; no minimum load |
| Switching Mode | Yes (configurable for nondimmable loads) |
| Wireless Protocol | infiNET EX, 2.4 GHz, IEEE 802.15.4 |
| Power Input | 120 VAC, 50/60 Hz; neutral required |
| Finish | Dark Bronze metal |
| Dimensions (H × W) | 4.13 × 1.80 in. (105 × 46 mm) |
| Depth | 1.83 in. (47 mm) |
| Weight | 7.4 oz (208 g) |
| Certifications | FCC, UL, IC |
| Required Accessory | HZ2-FP-G faceplate (sold separately) |
Frequently Asked Questions
- Can the HZ2-DIMEX-DRK-BRZ dim LED loads?
- The HZ2-DIMEX uses forward-phase dimming and is optimized for incandescent, MLV, and tungsten-halogen loads. For LED and ELV fixtures, use the HZ2-DIMUEX (universal dimmer) which auto-detects the appropriate phase method. For 0-10V LED drivers, use the HZ2-DIMLVEX.
- What is the preset fade time?
- The default fade time is 1 second in standalone mode. This is adjustable through the Crestron control system for custom scene transitions.
- Is an airgap switch included?
- Yes. The HZ2-DIMEX includes an airgap switch for safe lamp maintenance, allowing the load circuit to be physically interrupted without shutting off the device power.
