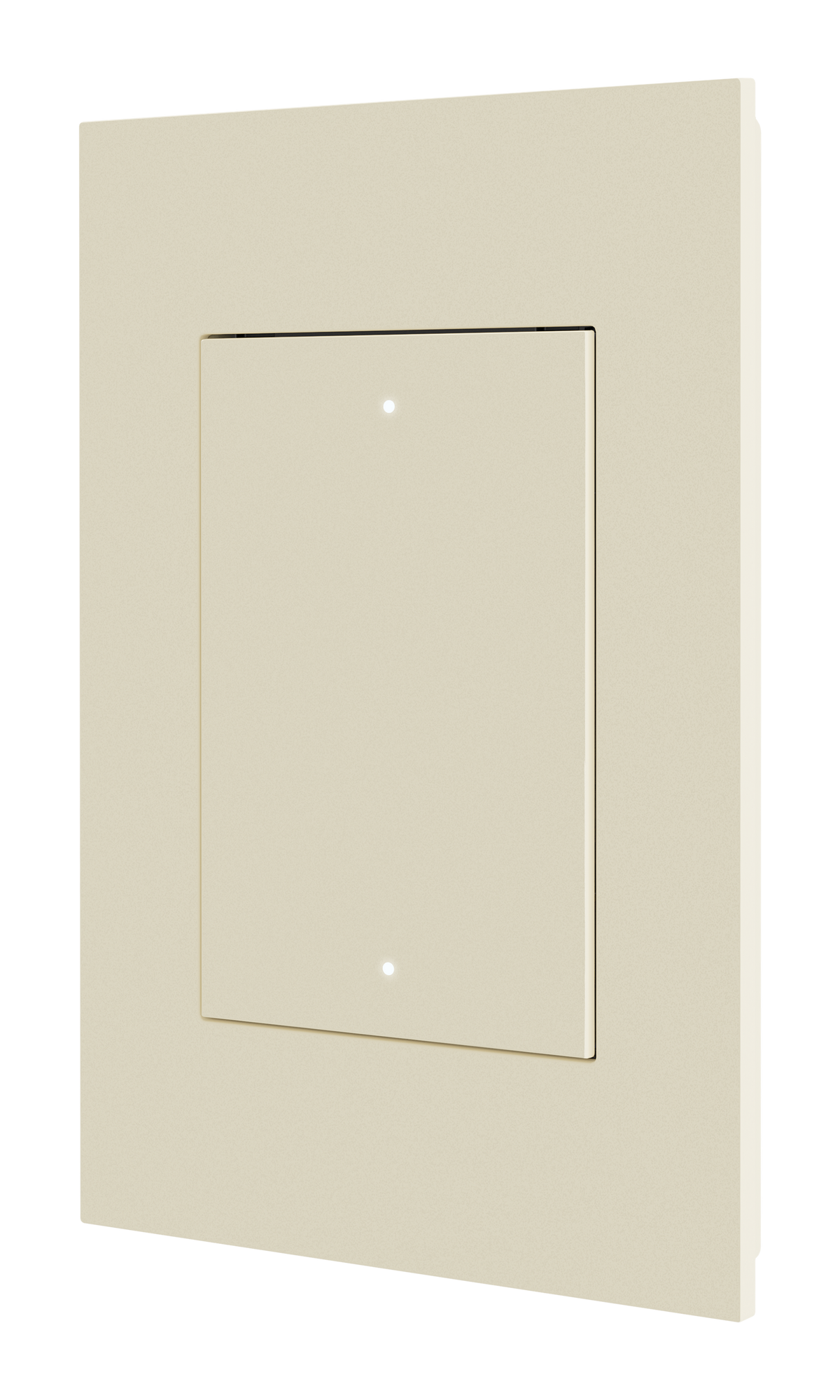

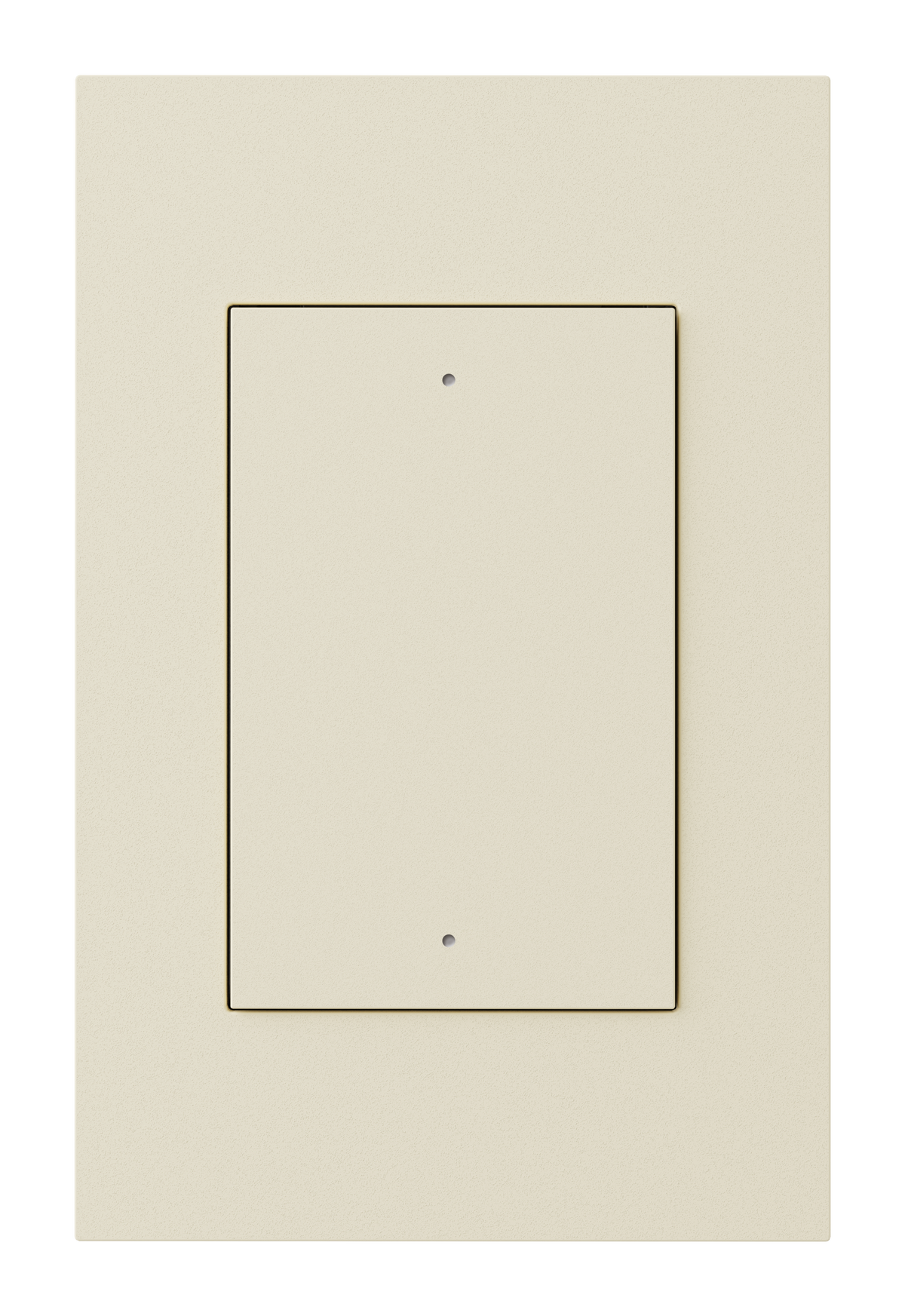

Crestron HZ2-DIMEX-A – Horizon 2 Forward-Phase In-Wall Dimmer, infiNET EX, 120VAC, Almond

Product Overview

The Crestron HZ2-DIMEX-A is a Horizon 2 series in-wall forward-phase dimmer with infiNET EX wireless communication, operating at 120VAC, in Almond finish with standard engraving. The Horizon 2 dimmer series uses a stylized face design distinct from the Cameo 2 line, offering a different aesthetic profile suited to residential environments where the Horizon 2 style is specified. infiNET EX wireless mesh networking enables system integration without dedicated Cresnet homerun wiring.

Product Description

The HZ2-DIMEX series provides forward-phase (leading-edge) dimming for incandescent, halogen, and forward-phase-compatible dimmable LED loads at standard North American 120VAC. The Almond finish coordinates with almond-colored architectural trim and device boxes common in residential installations. Standard engraving provides labeled button identification for typical residential control functions (on/off, raise/lower, scene recall). The infiNET EX wireless mesh radio integrates the dimmer into the Crestron control system via an infiNET EX gateway on the wired Crestron network, allowing the system to command dimmer levels, read load states, and include the dimmer in programmed scenes and schedules. The Horizon 2 form factor uses a distinct keypad layout and aesthetic compared to the Cameo 2 line, with the HZ2 series preferred when the designer or end user selects the Horizon 2 aesthetic.

Key Features

• Horizon 2 forward-phase in-wall dimmer for 120VAC incandescent and compatible LED loads
• infiNET EX wireless mesh for wire-free Crestron system integration
• Almond finish for architectural compatibility with almond trim
• Standard engraving for button identification
• Horizon 2 aesthetic profile for projects specifying Horizon 2 style
• Supports Crestron scene, schedule, and automation programming

Typical Applications

• Residential lighting control in rooms with almond-finish wall plates and trim
• Wireless Crestron home automation installations using infiNET EX
• Horizon 2 keypad-style projects requiring almond finish dimmers
• Single-room or multi-room lighting control with 120VAC incandescent or compatible LED loads

Technical Specifications

• Model: HZ2-DIMEX-A
• Series: Crestron Horizon 2
• Dimmer Type: Forward-phase (leading-edge)
• Communication: infiNET EX wireless
• Voltage: 120VAC
• Finish: Almond
• Engraving: Standard

Frequently Asked Questions

Q: What is the difference between Horizon 2 (HZ2) and Cameo 2 (CM2) dimmers?
A: Both are Crestron in-wall dimmers, but they use different aesthetic designs and button layouts. Horizon 2 uses the HZ2 form factor; Cameo 2 uses the CM2 form factor. The choice depends on the designer’s specified aesthetic for the project.

Q: Is HZ2-DIMEX-A compatible with dimmable LED loads?
A: HZ2-DIMEX-A uses forward-phase dimming. It is compatible with dimmable LED drivers rated for forward-phase (TRIAC) control. Verify LED driver compatibility before specifying. For universal phase compatibility (including ELV and reverse-phase LEDs), specify HZ2-DIMUEX-A.
