Crestron HZ2-AUX-W ENGRAVED – Horizon 2 Multiway Remote, White, Custom Engraved

Product Overview

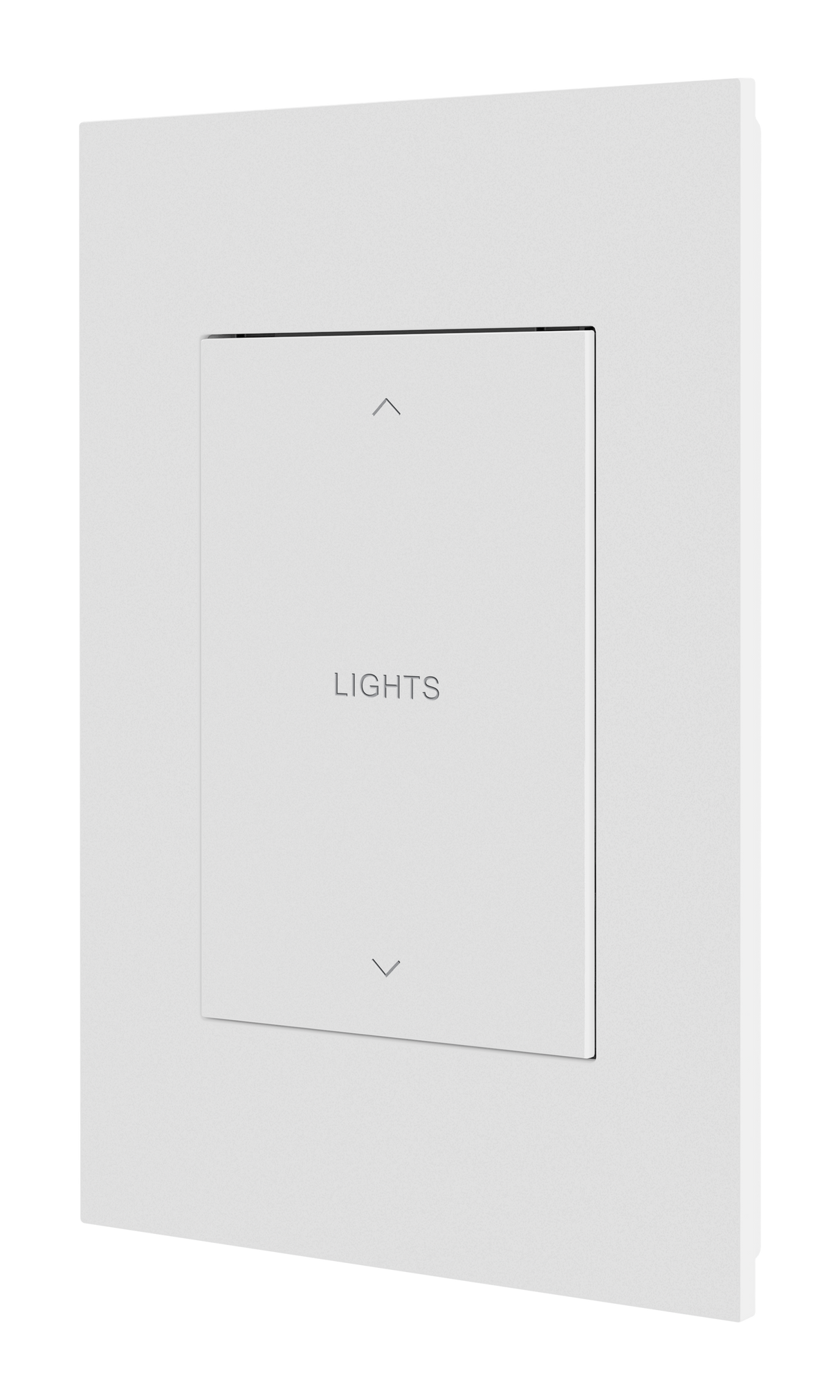

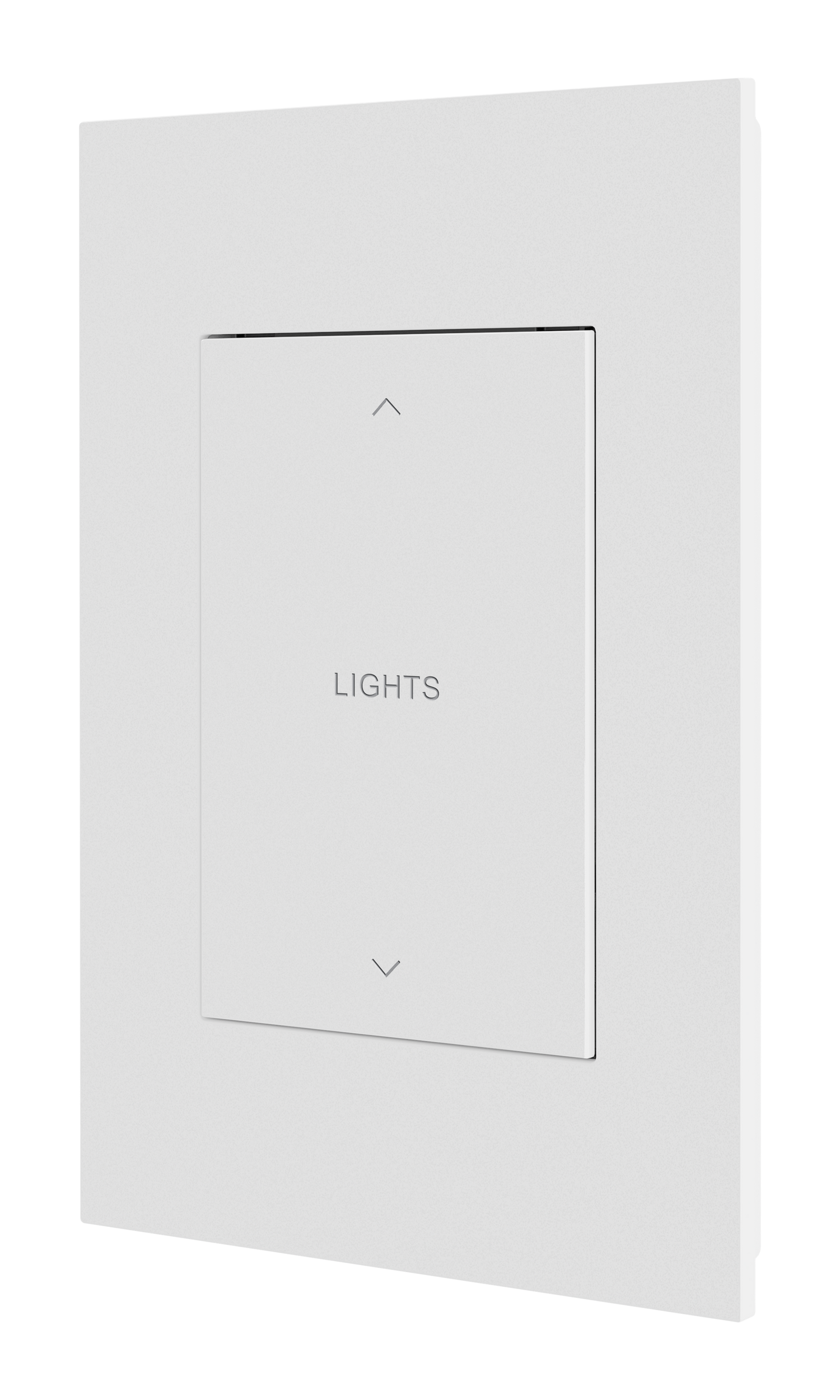

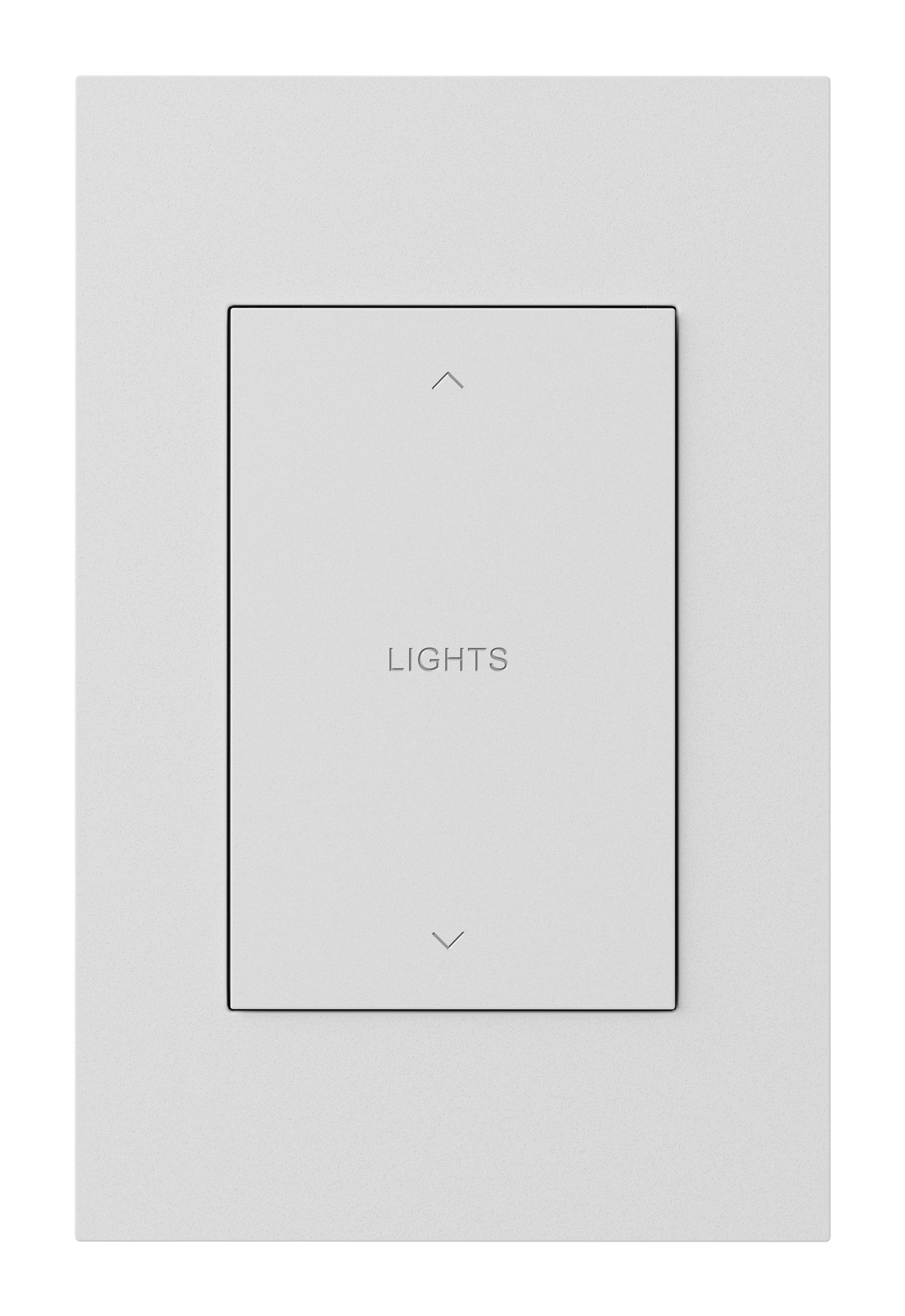

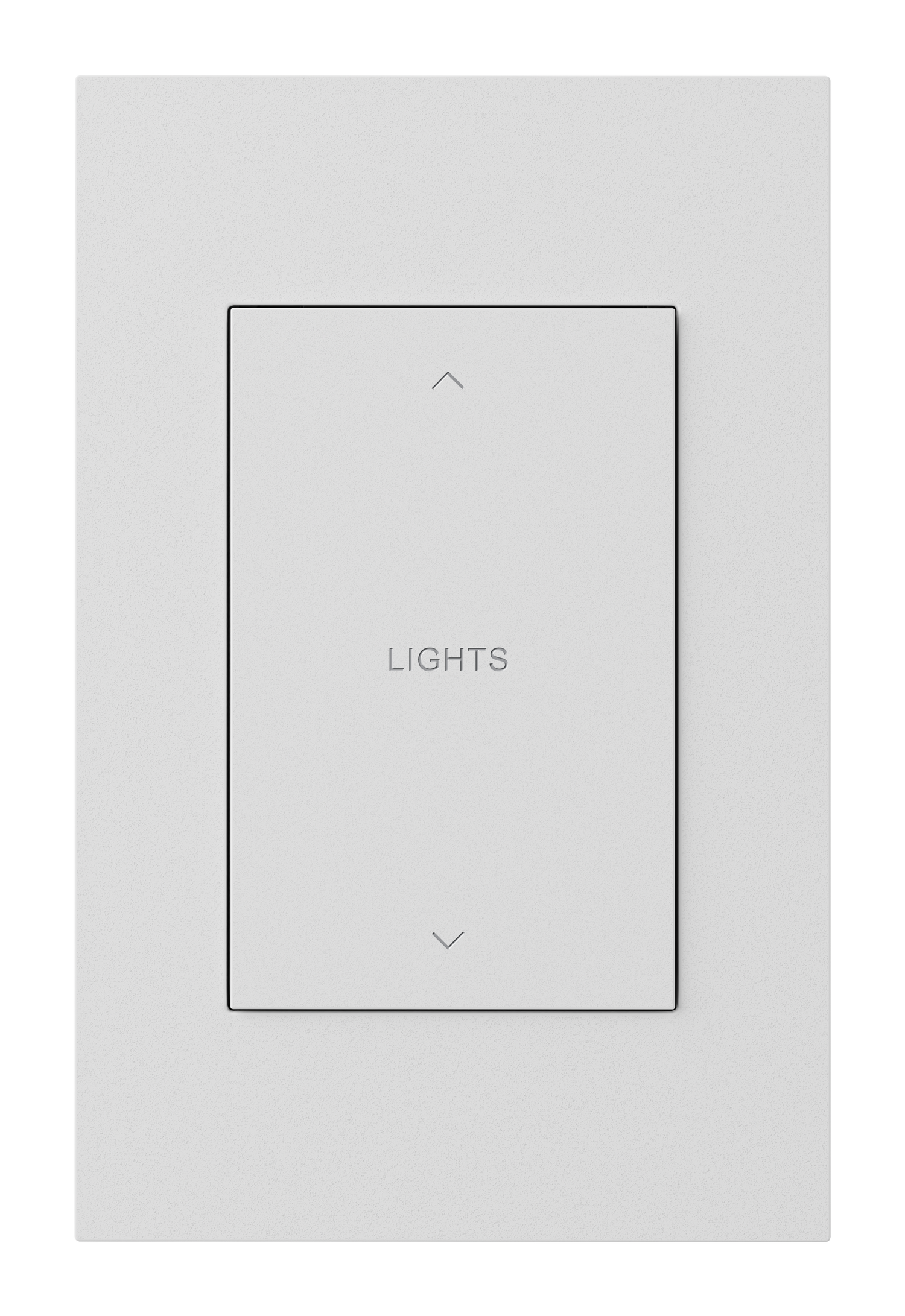

The Crestron HZ2-AUX-W ENGRAVED is a Horizon 2 in-wall multiway remote in white finish with custom laser-etched button engraving. It extends a Horizon 2 primary dimmer or switch to a secondary control location via standard traveler wiring, and is rated for 120 VAC at 50/60 Hz. The Style 6 large rocker carries custom engraving applied by Crestron before shipment; engraving files must be submitted at the time of order. A HZ2-FP-G faceplate is required and sold separately.

Product Description

White is the most commonly specified finish across commercial and residential lighting control installations, and the HZ2-AUX-W ENGRAVED brings custom-labeled multiway switching to any location in white-finish environments. Custom engraving on the rocker button identifies the zone or circuit being controlled — such as “Overhead,” “Entry,” or custom room names — giving the installation a professionally finished appearance. Like all HZ2-AUX devices, it connects to the primary dimmer via standard traveler wire with a maximum run of 250 ft (77 m). No wireless gateway or additional control wiring beyond line and traveler connections is required. Engraving is permanent and cannot be changed after production.

Key Features

• Multiway remote for Horizon 2 HZ2-DIMEX, HZ2-DIMUEX, or HZ2-SWEX (sold separately)
• Style 6 large rocker button with custom laser-etched engraving
• White plastic finish
• Custom engraving applied by Crestron; engraving files required at order time
• 120 VAC, 50/60 Hz; screw clamp terminals, 14–12 AWG
• Maximum traveler wire run: 250 ft (77 m) to primary device
• Mounts in 1–4 gang US electrical box
• Weight: 7.4 oz (208 g)

Typical Applications

• Custom-labeled secondary lighting switches in white-finish commercial spaces
• Stairwells, hallways, and corridors with Horizon 2 multi-way circuits
• Hospitality and residential installations requiring custom rocker engraving
• Horizon 2 deployments with white hardware throughout

Technical Specifications

• Function: Multiway remote
• Compatible Primary Devices: HZ2-DIMEX, HZ2-DIMUEX, HZ2-SWEX
• Button Style: Style 6 — (1) large rocker with custom laser-etched engraving
• Finish: White plastic
• Line Voltage: 120 VAC, 50/60 Hz

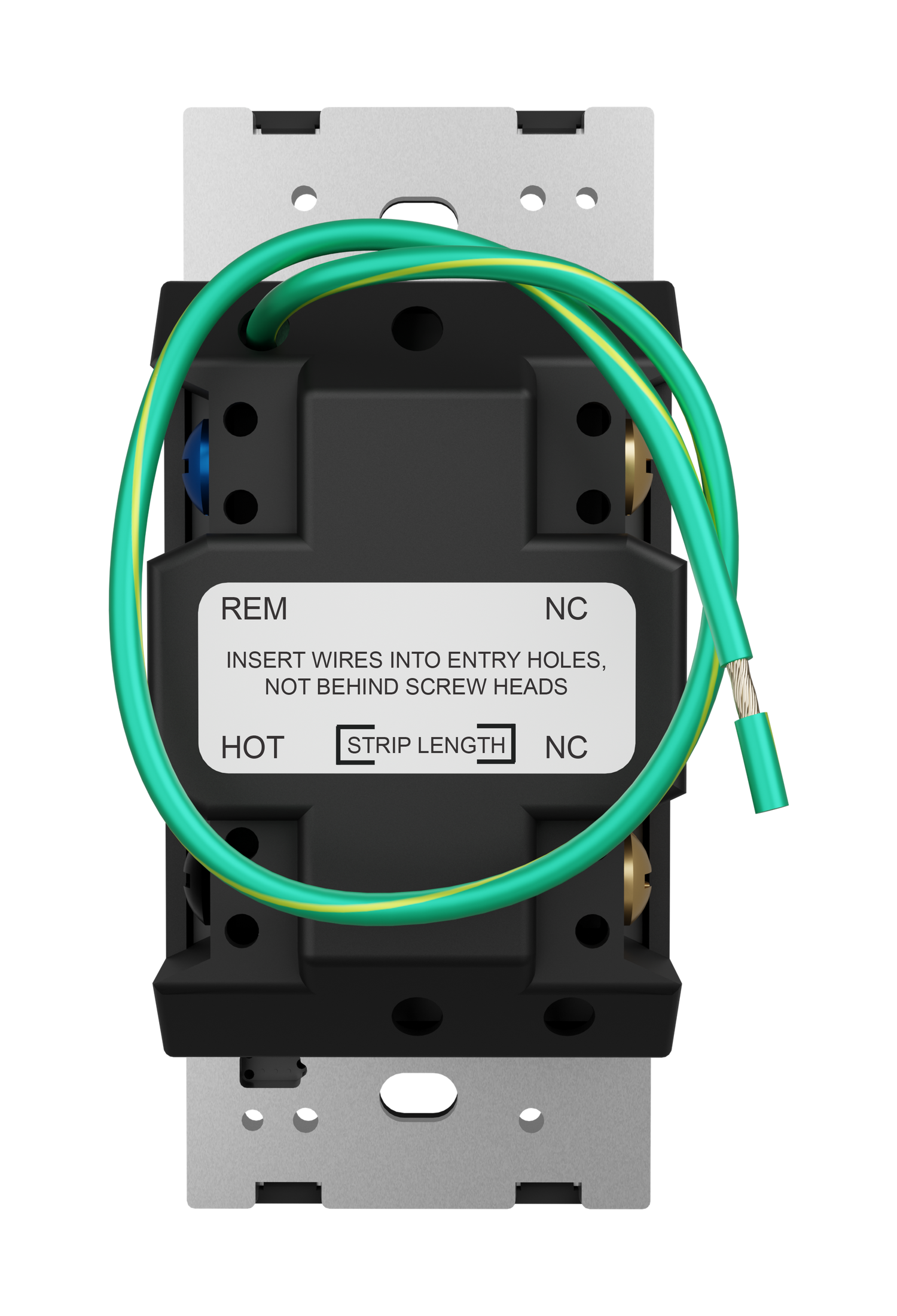

• Connections: Line + Remote (screw clamp, 14–12 AWG); Ground (12 AWG flying lead)
• Max Traveler Wire Distance: 250 ft (77 m)
• Height: 4.13 in. (105 mm)
• Width: 1.80 in. (46 mm)
• Depth: 1.83 in. (47 mm)
• Weight: 7.4 oz (208 g)
• Mounting: 1–4 gang US electrical box; HZ2-FP-G faceplate required (sold separately)
• Operating Temperature: 32–86°F (0–30°C)
• Compliance: FCC, UL, IC

FAQs

When must I submit engraving files?

Engraving files must be submitted at order time. The engraving cannot be changed or added in the field after the device ships.

Can the HZ2-AUX-W ENGRAVED work without the primary Horizon 2 device?

No. It must be used with a compatible primary Horizon 2 dimmer or switch (HZ2-DIMEX, HZ2-DIMUEX, or HZ2-SWEX), sold separately.

Where can I purchase this product?

Available from Creation Networks at creationnetworks.net.
