Crestron HZ2-AUX-BR-BRASS – Horizon 2 Multiway Remote, Brushed Brass

Product Overview

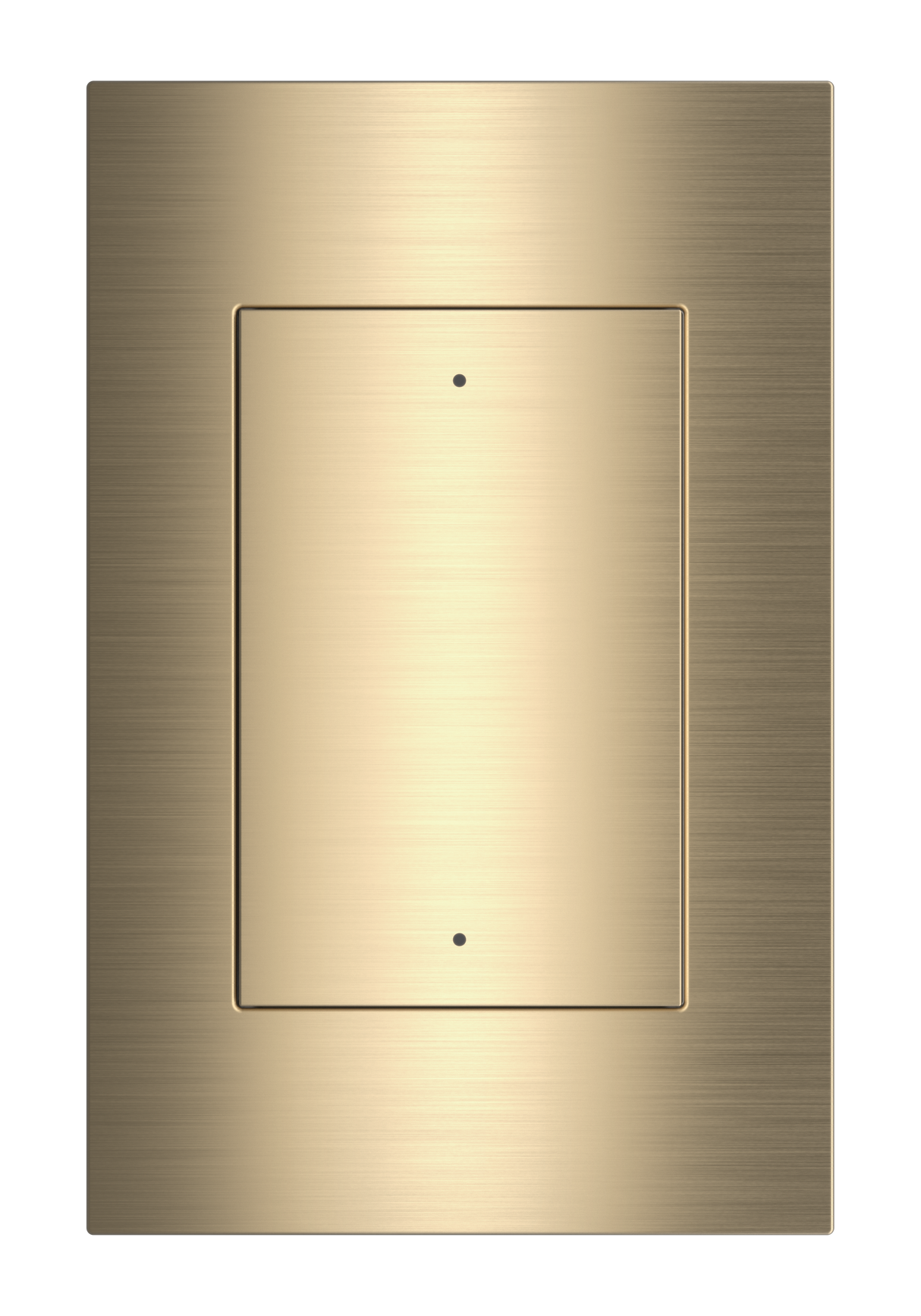

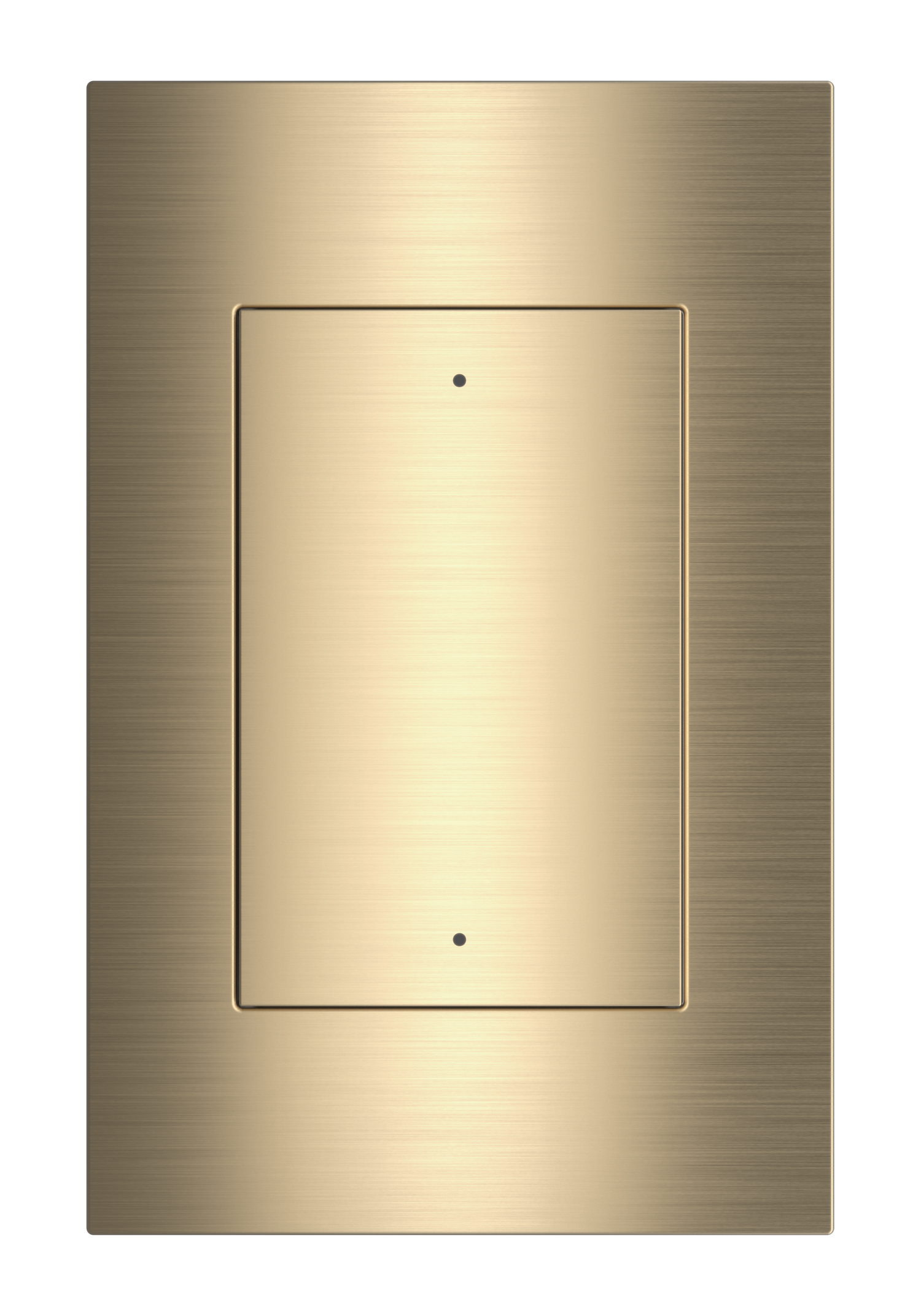

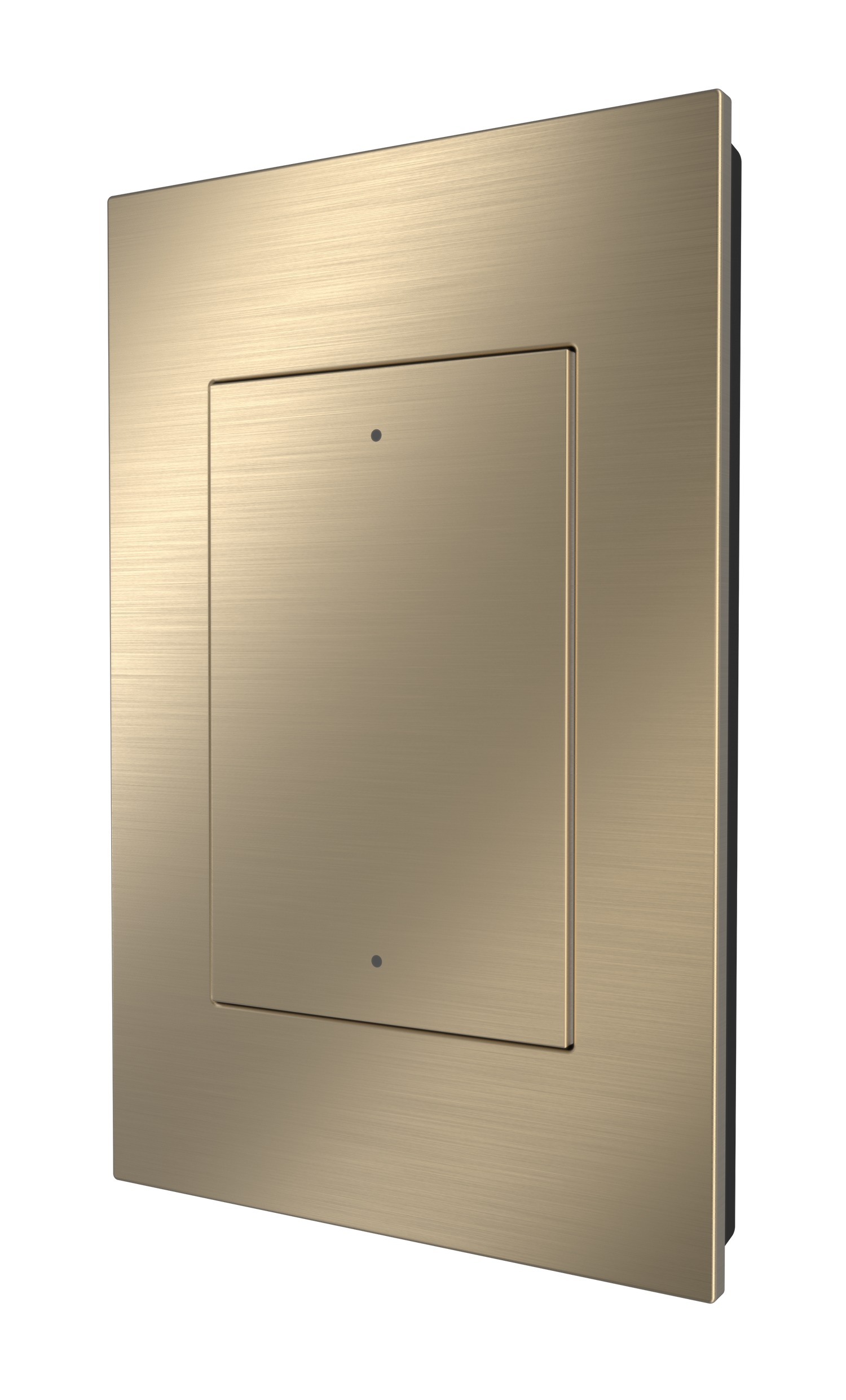

The Crestron HZ2-AUX-BR-BRASS is a Horizon 2 in-wall multiway remote in brushed brass finish. It allows a Horizon 2 dimmer or switch — such as the HZ2-DIMEX, HZ2-DIMUEX, or HZ2-SWEX — to be controlled from an additional location via standard traveler wiring. The device mounts in any 1- to 4-gang US electrical box and is rated for 120 VAC at 50/60 Hz. A Style 6 large rocker button with default dot engraving provides a clean, minimal interface that matches the Horizon 2 aesthetic.

Product Description

Horizon 2 is Crestron’s premium architectural lighting control platform, featuring a consistent design language across dimmers, switches, keypads, faceplates, and accessories. The HZ2-AUX multiway remote extends that aesthetic to three-way and multi-way lighting circuits, providing a companion switch at secondary locations without requiring additional control wiring or network infrastructure. The brushed brass finish coordinates with warm-metal interior design schemes found in hospitality, residential, and upscale commercial spaces. Maximum traveler wire run from the primary device is 250 ft (77 m) using standard 14–12 AWG wire. A compatible HZ2-FP-G faceplate is required and sold separately. The primary Horizon 2 dimmer or switch is also sold separately.

Key Features

• Multiway remote for Horizon 2 HZ2-DIMEX, HZ2-DIMUEX, or HZ2-SWEX (sold separately)
• Style 6 large rocker button with default dot engraving
• Brushed brass metal finish
• 120 VAC, 50/60 Hz input power via line and remote terminals
• Screw clamp wiring terminals accept 14–12 AWG conductors
• Maximum traveler wire run: 250 ft (77 m) to primary device
• Mounts in 1–4 gang US electrical box
• Weight: 7.4 oz (208 g)

Typical Applications

• Three-way and multi-way lighting circuits in residential and commercial spaces
• Stairwell, hallway, and corridor lighting with controls at multiple entry points
• Hospitality guest rooms requiring secondary light switches at bed and entry
• Upscale residential installations with warm-metal interior design themes
• Horizon 2 system expansions requiring multiway switching capability

Technical Specifications

• Function: Multiway remote (traveler-wire auxiliary switch)
• Compatible Primary Devices: HZ2-DIMEX, HZ2-DIMUEX, HZ2-SWEX
• Button Style: Style 6 — (1) large rocker, default dot engraving
• Finish: Brushed brass metal
• Line Voltage: 120 VAC, 50/60 Hz

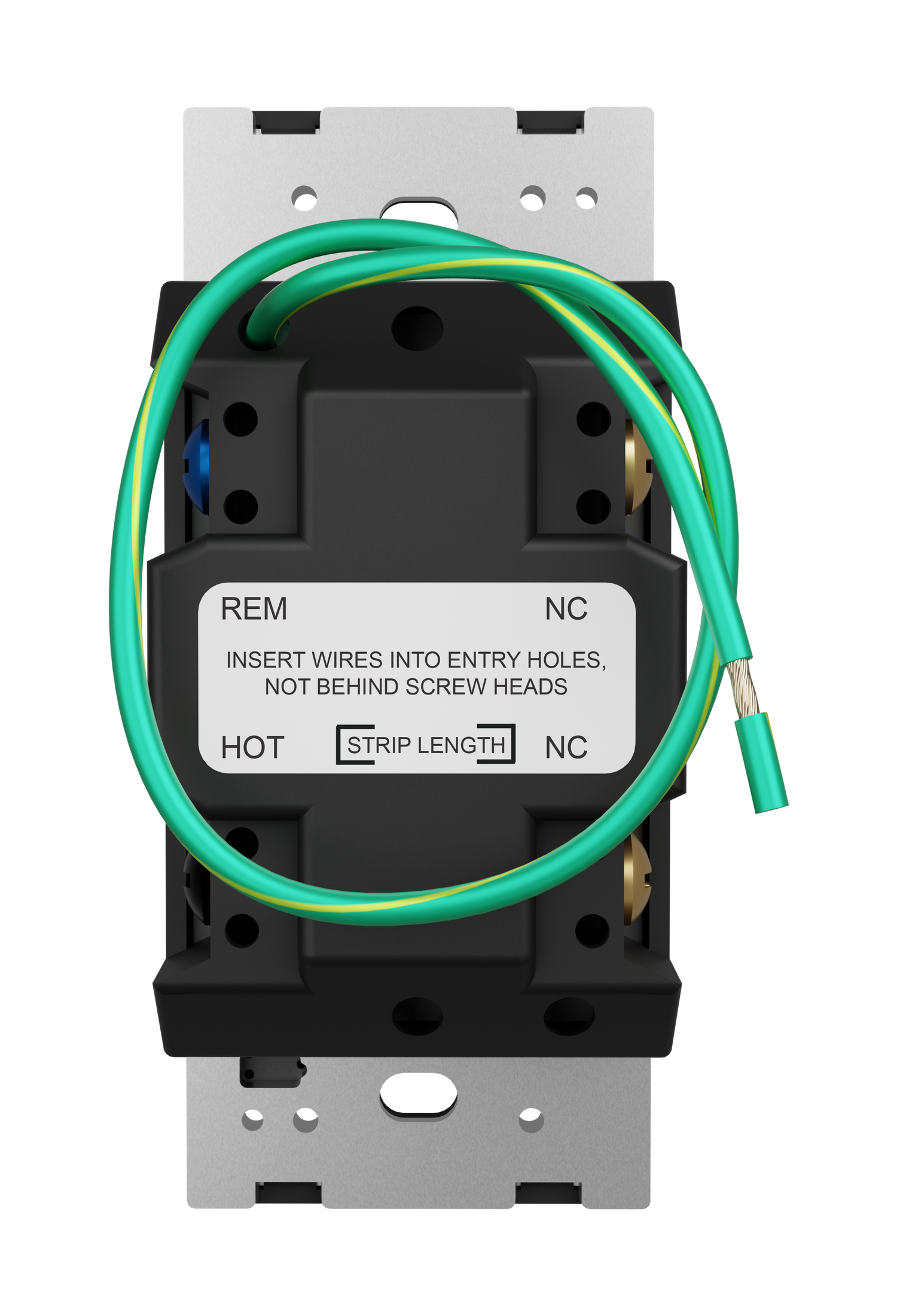

• Connections: Line + Remote (screw clamp, 14–12 AWG); Ground (12 AWG flying lead)
• Max Traveler Wire Distance: 250 ft (77 m)
• Height: 4.13 in. (105 mm)
• Width: 1.80 in. (46 mm)
• Depth: 1.83 in. (47 mm)
• Weight: 7.4 oz (208 g)
• Mounting: 1–4 gang US electrical box; HZ2-FP-G faceplate required (sold separately)
• Operating Temperature: 32–86°F (0–30°C)
• Humidity: 10–90% RH non-condensing
• Compliance: FCC, UL, IC; Regulatory Model M201849006

FAQs

Can the HZ2-AUX-BR-BRASS work as a standalone dimmer?

No. It is a multiway remote only and must be used with a compatible primary Horizon 2 dimmer or switch (HZ2-DIMEX, HZ2-DIMUEX, or HZ2-SWEX), which is sold separately.

Does this device connect wirelessly?

No. The HZ2-AUX uses standard traveler wiring between the remote and primary device. It does not use infiNET EX or any other wireless protocol.

What faceplate is required?

A compatible HZ2-FP-G series faceplate is required and sold separately. Select the appropriate gang count and finish to match your installation.

How long can the traveler wire run be?

The maximum traveler wire distance between the HZ2-AUX and the primary device is 250 ft (77 m) using 14–12 AWG wire.
