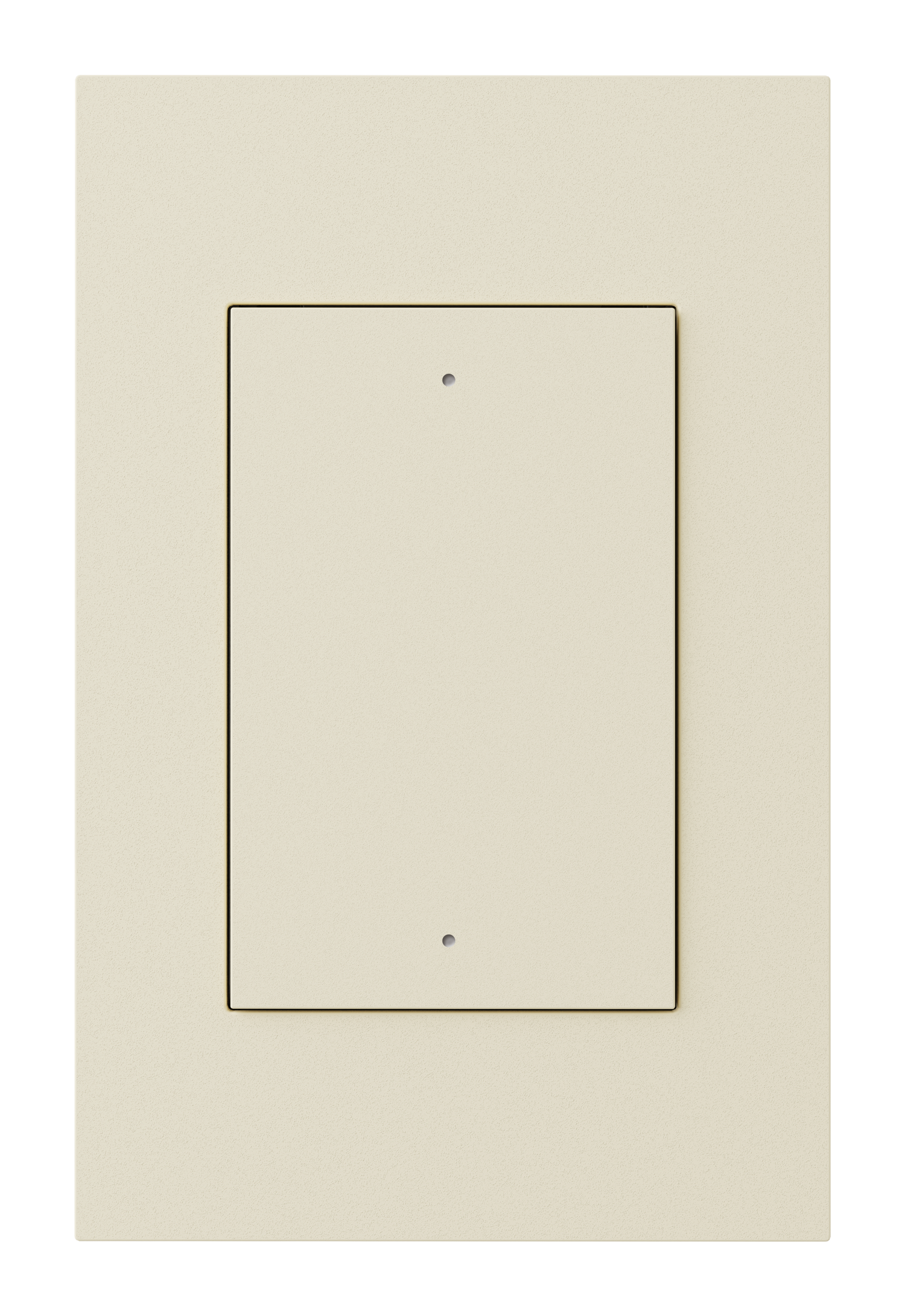

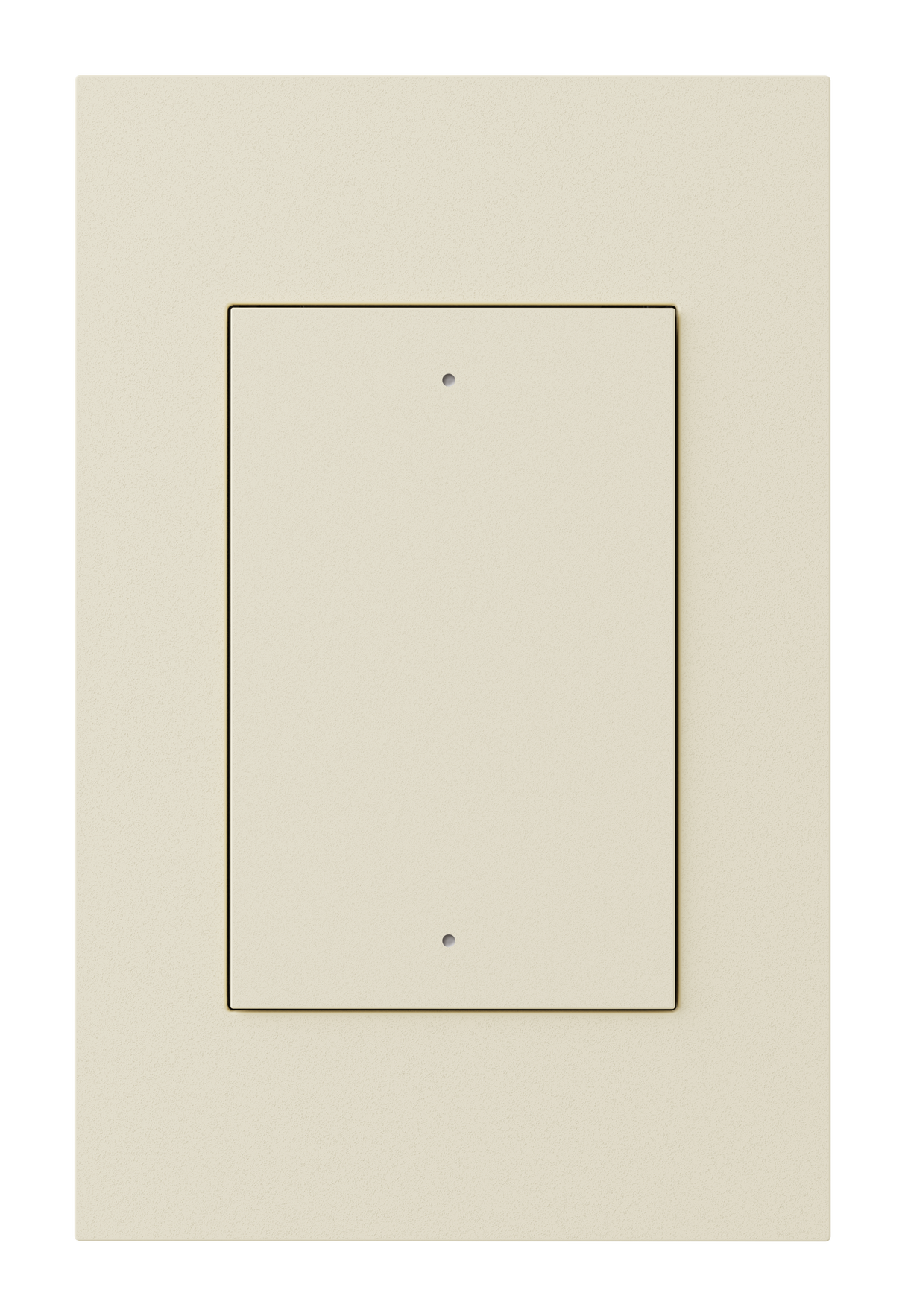

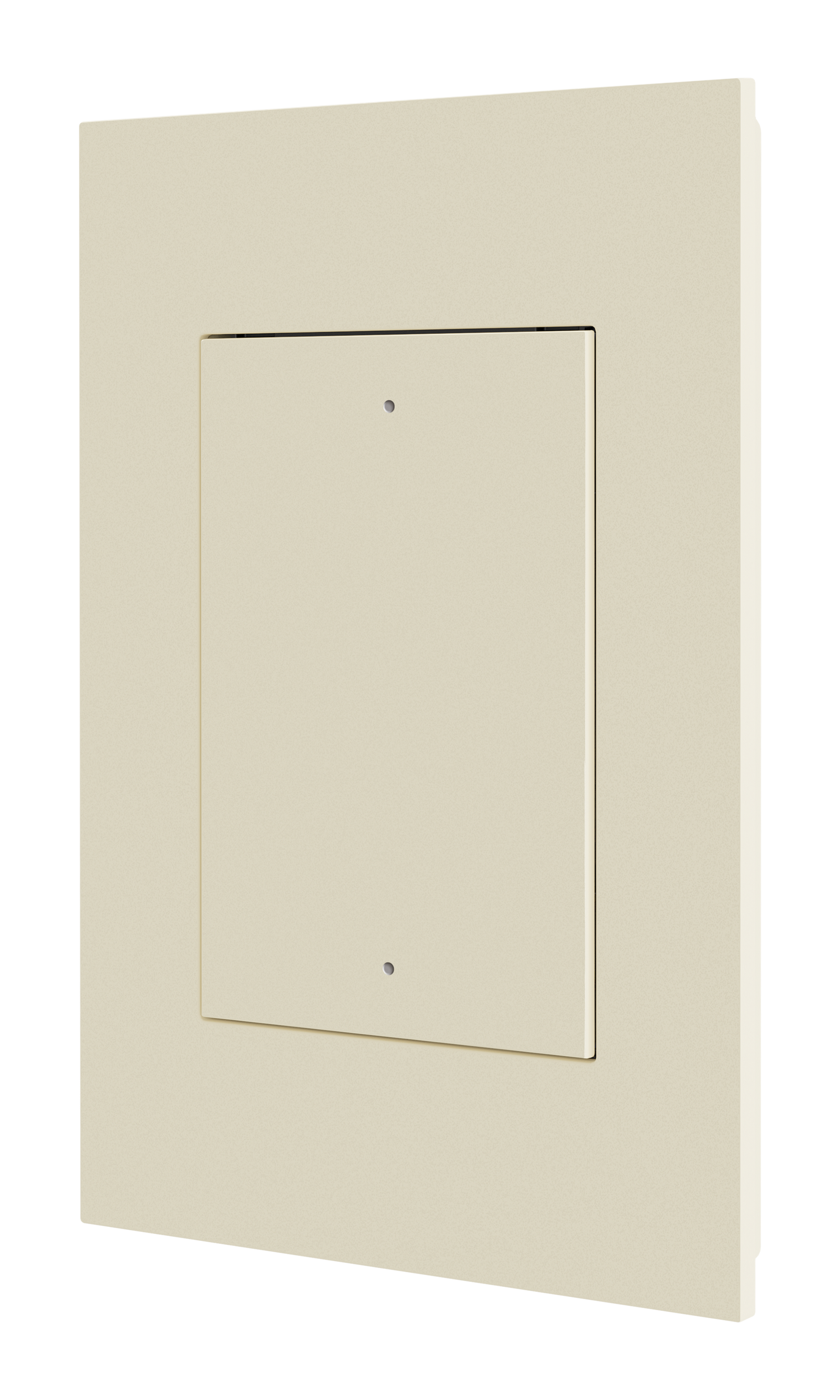

Crestron HZ2-AUX-A – Horizon 2 Multiway Remote, Almond

Product Overview

The Crestron HZ2-AUX-A is a Horizon 2 in-wall multiway remote in almond finish. It provides secondary-location lighting control on a circuit managed by a compatible Horizon 2 primary dimmer or switch (HZ2-DIMEX, HZ2-DIMUEX, or HZ2-SWEX) via standard traveler wiring. Rated for 120 VAC at 50/60 Hz, it mounts in any 1- to 4-gang US electrical box and features the Style 6 large rocker button for simple, intuitive operation. A HZ2-FP-G faceplate is required and sold separately.

Product Description

The HZ2-AUX-A brings Horizon 2 design consistency to three-way and multi-way lighting circuits in almond-finish installations. The almond plastic finish blends into beige and neutral-toned wall decor commonly found in office buildings, healthcare facilities, and older commercial interiors. The Style 6 large rocker button has default dot engraving and provides a clear, easy-to-use interface for secondary light switch positions — hallways, stairwells, room entries, and bedside controls. No wiring other than standard traveler and line connections is required; the device draws power directly from the line voltage circuit. Maximum traveler wire run to the primary device is 250 ft (77 m).

Key Features

• Multiway remote for Horizon 2 HZ2-DIMEX, HZ2-DIMUEX, or HZ2-SWEX (sold separately)
• Style 6 large rocker button with default dot engraving
• Almond plastic finish
• 120 VAC, 50/60 Hz; screw clamp terminals, 14–12 AWG
• Maximum traveler wire run: 250 ft (77 m) to primary device
• Mounts in 1–4 gang US electrical box
• Weight: 7.4 oz (208 g)

Typical Applications

• Three-way and multi-way lighting in almond-finish office, healthcare, and commercial spaces
• Stairwell, hallway, and corridor secondary lighting control
• Horizon 2 multi-way circuits in environments with existing almond hardware
• Hospitality and institutional spaces requiring matching almond device color

Technical Specifications

• Function: Multiway remote
• Compatible Primary Devices: HZ2-DIMEX, HZ2-DIMUEX, HZ2-SWEX
• Button Style: Style 6 — (1) large rocker, default dot engraving
• Finish: Almond plastic
• Line Voltage: 120 VAC, 50/60 Hz

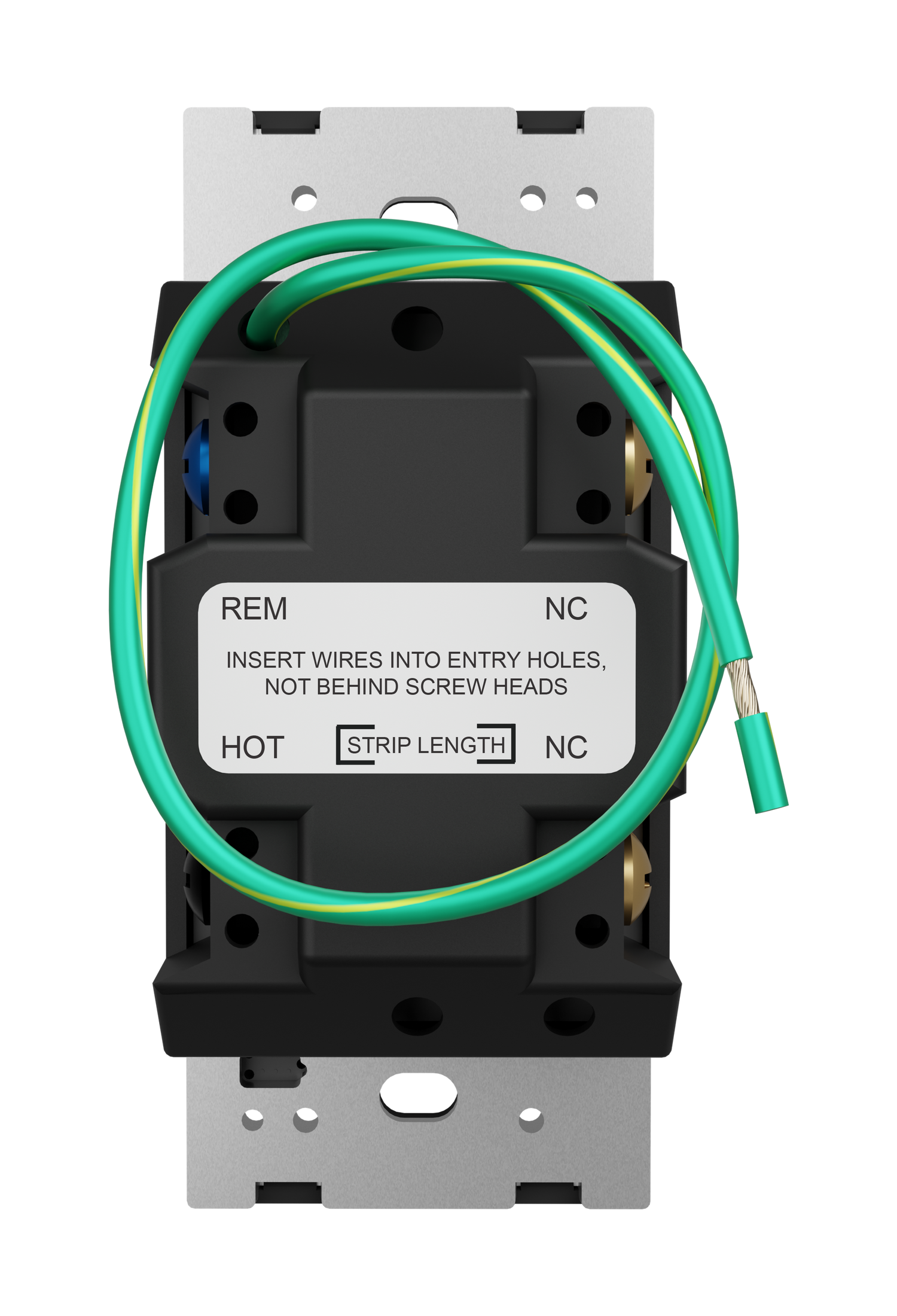

• Connections: Line + Remote (screw clamp, 14–12 AWG); Ground (12 AWG flying lead)
• Max Traveler Wire Distance: 250 ft (77 m)
• Height: 4.13 in. (105 mm)
• Width: 1.80 in. (46 mm)
• Depth: 1.83 in. (47 mm)
• Weight: 7.4 oz (208 g)
• Mounting: 1–4 gang US electrical box; HZ2-FP-G faceplate required (sold separately)
• Operating Temperature: 32–86°F (0–30°C)
• Compliance: FCC, UL, IC

FAQs

Can the HZ2-AUX-A operate as a standalone dimmer?

No. It is a multiway remote and must be used with a compatible Horizon 2 primary dimmer or switch, sold separately.

What faceplate is required?

A compatible HZ2-FP-G series faceplate is required and sold separately at creationnetworks.net.

Is this product available in white or black?

Yes. The HZ2-AUX series is available in white (HZ2-AUX-W), black (HZ2-AUX-B), and metal finish variants. Visit creationnetworks.net for current availability.
