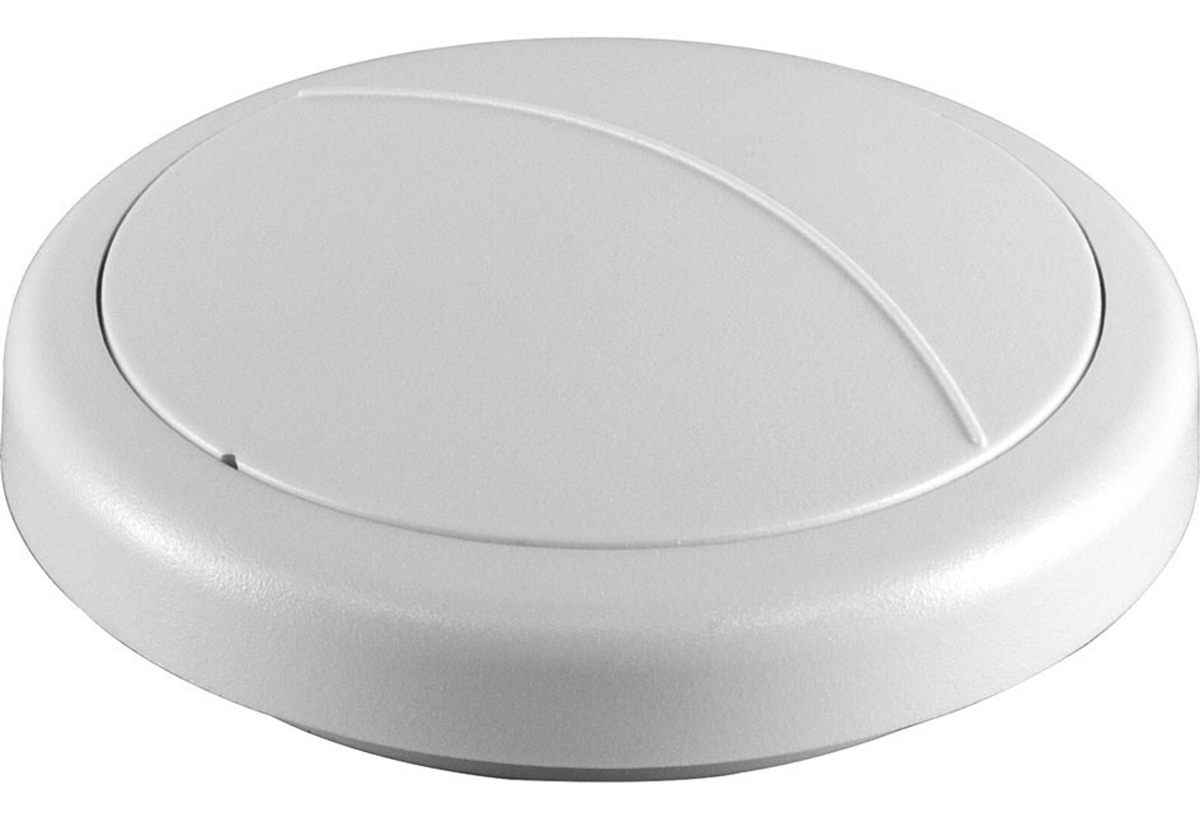

Crestron HTT-B2EX-BATT-W-T – infiNET EX 2-Button Wireless Keypad, Battery, White Textured

Product Overview

The Crestron HTT-B2EX-BATT-W-T is a compact two-button wireless keypad that uses the infiNET EX two-way RF protocol for wire-free control of Crestron-managed systems. Battery-powered with a round form factor and white textured finish, it is designed for desk, tabletop, or surface placement in environments where running control wiring is impractical. Two programmed pushbuttons and two LED indicators allow for simple, targeted control of lighting, shading, or AV devices.

Product Description

infiNET EX is Crestron’s second-generation 2.4 GHz mesh wireless control protocol, based on IEEE 802.15.4. The HTT-B2EX-BATT-W-T communicates bidirectionally with an infiNET EX gateway — such as the CEN-RFGW-EX or a Crestron processor with built-in infiNET EX support — providing confirmed command delivery and network status back to the keypad. Two CR2450 coin cell batteries power the device for an expected service life of approximately five years under normal use conditions. The white textured finish blends into most commercial and residential environments. Because the device uses a coin cell battery instead of line power, no electrical wiring is required at the installation point. The two buttons are not field-replaceable; any custom engravings must be specified at the time of order. An infiNET EX gateway is required and sold separately.

Key Features

• Two programmable pushbuttons with two LED status indicators
• infiNET EX 2-way RF wireless protocol, 2.4 GHz, IEEE 802.15.4
• Channels 11–26; indoor RF range up to 150 ft (46 m)
• Battery powered: (2) CR2450 3V lithium coin cells, approximately 5-year battery life
• Ships with batteries pre-installed
• Compact round form factor: 0.83 in. H × 2.72 in. diameter (21 mm × 69 mm)
• White textured plastic finish with metal base

Typical Applications

• Wireless lighting or shading control in conference rooms and offices
• Tabletop control keypads for AV system activation
• Retrofit installations where wall wiring is not available
• Supplemental control points in rooms with infiNET EX wireless infrastructure
• Residential and light-commercial Crestron wireless control deployments

Technical Specifications

• Buttons: (2) programmable pushbuttons
• LEDs: (2)
• Wireless Protocol: infiNET EX, 2-way RF, 2.4 GHz, IEEE 802.15.4
• RF Channels: 11–26
• Indoor Range: 150 ft (46 m)
• Power: (2) CR2450 3V lithium coin cells; approximately 5-year battery life; ships with batteries installed
• Height: 0.83 in. (21 mm)
• Diameter: 2.72 in. (69 mm)
• Finish: White textured plastic; metal base
• Operating Temperature: 32–104°F (0–40°C)
• Humidity: 0–95% RH non-condensing
• Required Accessory: infiNET EX gateway (CEN-RFGW-EX, DIN-AP3MEX, or compatible Crestron processor), sold separately

FAQs

Does the HTT-B2EX-BATT-W-T require any wiring?

No. It is entirely battery-powered and communicates wirelessly via infiNET EX. No electrical wiring is needed at the mounting location.

Is an infiNET EX gateway required?

Yes. The keypad requires a compatible infiNET EX gateway or a Crestron processor with built-in infiNET EX support to operate. The gateway is sold separately.

How long do the batteries last?

Under normal use conditions, the two CR2450 coin cell batteries provide approximately 5 years of operation. The device ships with batteries pre-installed.

Can the buttons be engraved or relabeled in the field?

No. The button assemblies are not field-replaceable. Custom engravings must be specified at order time and are applied by Crestron before shipping.

Where can I buy the HTT-B2EX-BATT-W-T?

This product is available from Creation Networks at creationnetworks.net, an authorized Crestron dealer.
