Overview
The HD‑TXC‑4KZ‑101‑1G is a DM Lite® 4K60 4:4:4 wall plate transmitter designed to interoperate with a DM Lite® receiver or DMPS Lite™ switcher for the transmission of HDMI®, RS-232, and IR signals. A CAT5e or higher twisted pair cable is used to connect the HD‑TXC‑4KZ‑101‑1G to the DM Lite receiver or DMPS Lite switcher. For 1080p, WUXGA, and 2K signals, a cable length of up to 230 ft (70 m) is supported. For UHD and 4K signals, a cable length of up to 130 ft (40 m) is supported.1
The HD‑TXC‑4KZ‑101‑1G is available in two models: HD‑TXC‑4KZ‑101‑1G-B (black) and HD‑TXC‑4KZ‑101‑1G-W (white).
Interoperability with a DM Lite Receiver or DMPS Lite Switcher
The DM Lite output port of the HD‑TXC‑4KZ‑101‑1G must be connected to a DM Lite input port of a DM Lite receiver or DMPS Lite switcher. Examples of supported DM Lite 4K60 4:4:4 receivers are the HD‑RX‑4KZ‑101, HD‑RXA‑4KZ‑101, HD‑RXC‑4KZ‑101, and HD‑RXCA‑4KZ‑101. Supported DM Lite 4K60 4:2:0 receivers are the HD‑RX‑101‑C‑E, HD‑RXC‑101‑C‑E, HD‑RX‑201‑C‑E, HD‑RX‑101‑C‑1G‑E, and HD‑RXC‑101‑C‑1G‑E. Supported DMPS Lite switchers are the HD‑PS622, HD‑PS621, HD‑PS402, HD‑PS401, and HD‑RX‑4K‑210‑C‑E(‑POE).
Note: When paired with an HD-RX-4K-210-C-E(-POE), the transmitter cannot provide power to the receiver. Power must be connected to the HD-RX-4K-210-C-E(-POE) only.
The HD‑TXC‑4KZ‑101‑1G can be configured and controlled only when it is used with a DMPS Lite switcher. The web interface of the switcher can be used to configure the HD‑TXC‑4KZ‑101‑1G. In addition, control system programming and .AV Framework™ software support of the HD‑TXC‑4KZ‑101‑1G is hosted by the switcher.
4K60 4:4:4 and HDR Support
The HD‑TXC‑4KZ‑101‑1G supports video resolutions up to 4K60 with 4:4:4 color sampling. HDR10, HDR10+, and Dolby Vision® video formats are also supported.

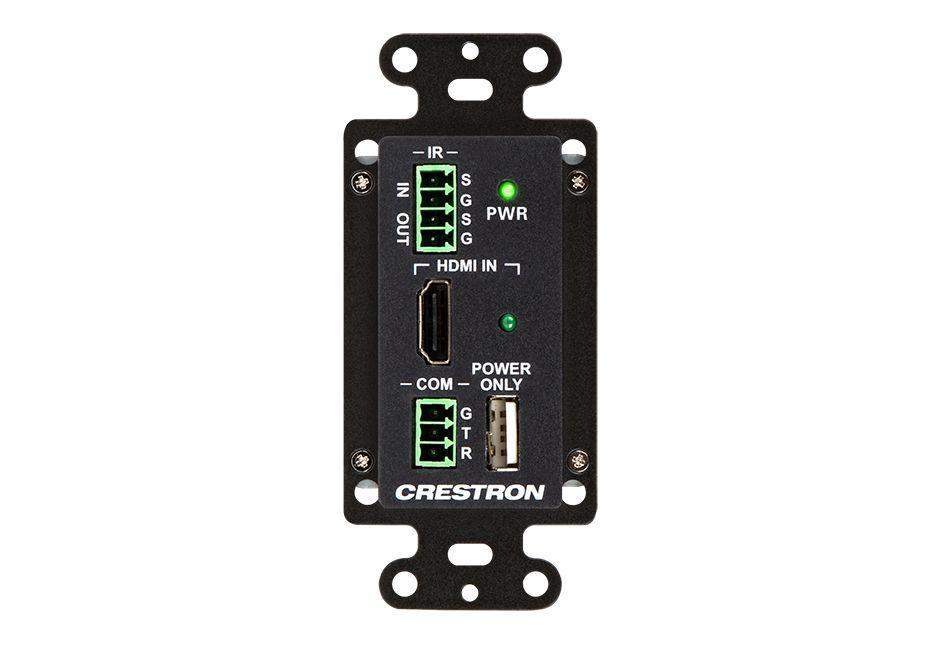

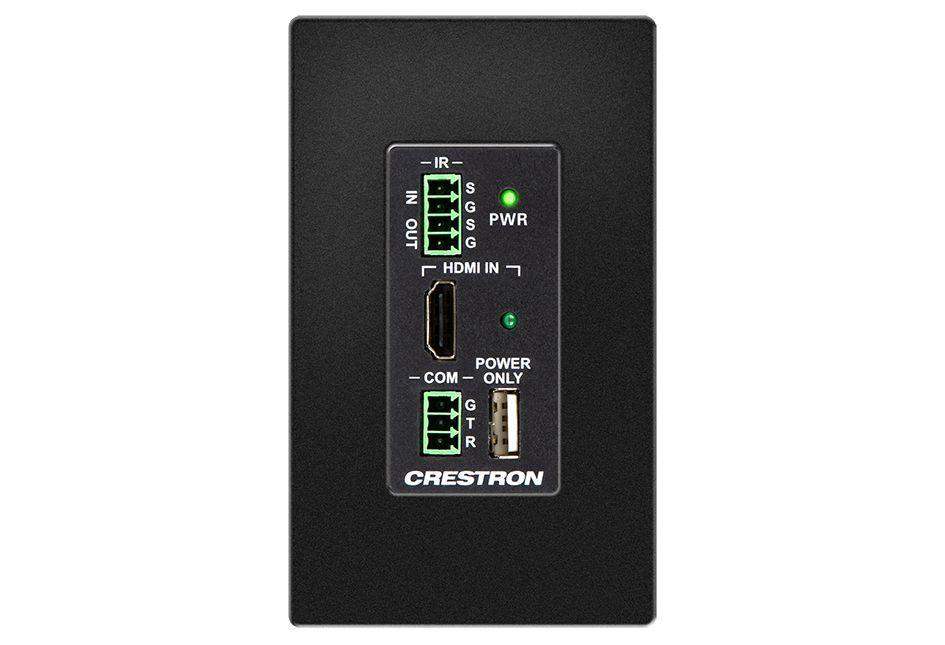

One-Gang Wall Plate Design
The HD‑TXC‑4KZ‑101‑1G is designed to mount into a 1-gang U.S. electrical box or plaster ring (not included). The HD‑TXC‑4KZ‑101‑1G can receive power from the remote DM Lite receiver (surface mountable only) or DMPS Lite switcher.
Features
- Interoperability with a DM Lite® receiver or DMPS Lite™ switcher
- Point-to-point extension of HDMI®, RS-232, and IR signals over a CAT5e or higher cable
- DM Lite transmission distance up to 130 ft (40 m) for UHD and 4K signals or up to 230 ft (70 m) for 1080p, WUXGA, and 2K signals
- 4K60 4:4:4 capability
- HDR10, HDR10+, and Dolby Vision® video formats
- Compliance with HDCP 2.3
- CEC (Consumer Electronics Control) pass-through capability
- Bidirectional RS‑232 and IR pass-through capability
- EDID pass-through capability
- One-gang wall plate design with black finish
- Decorator style faceplate required (FP-G Series sold separately)
- Power from the remote DM Lite receiver (surface mountable only) or DMPS Lite switcher
Specifications
| Video | ||||||||||||||||||||||||||||||||||||||
| Input Signal Type | HDMI® with HDR10, HDR10+, Dolby Vision®, Deep Color, and 4K60 4:4:4 support2 (DVI and Dual-Mode DisplayPort™ interface compatible4) | |||||||||||||||||||||||||||||||||||||
| Output Signal Type | DM Lite® with HDR10, HDR10+, Dolby Vision, Deep Color, and 4K60 4:4:4 support2 | |||||||||||||||||||||||||||||||||||||
| Copy Protection | HDCP 2.3 | |||||||||||||||||||||||||||||||||||||
| Resolutions | Common resolutions are listed in the following table. | |||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||
| Audio | ||||||||||||||||||||||||||||||||||||||
| Input Signal Type | HDMI | |||||||||||||||||||||||||||||||||||||
| Output Signal Type | DM Lite | |||||||||||||||||||||||||||||||||||||
| Digital Formats | Dolby Digital®, Dolby Digital EX, Dolby Digital Plus, Dolby® TrueHD, Dolby Atmos®, DTS®, DTS ES, DTS 96/24, DTS HD® High Res, DTS-HD Master Audio, DTS:X®, LPCM up to 8 channels | |||||||||||||||||||||||||||||||||||||
| Communications | ||||||||||||||||||||||||||||||||||||||
| HDMI | HDCP 2.3, EDID, CEC pass-through | |||||||||||||||||||||||||||||||||||||
| DM Lite | HDCP 2.3, EDID pass-through | |||||||||||||||||||||||||||||||||||||
| RS-232 | 2-way serial pass-through up to 115.2k baud (TD/RD only) | |||||||||||||||||||||||||||||||||||||
| IR | Bidirectional IR signal pass-through up to 60 kHz | |||||||||||||||||||||||||||||||||||||
| Connectors | ||||||||||||||||||||||||||||||||||||||
| IR IN/OUT | (1) 4-pin 3.5 mm detachable terminal block; Comprised of (1) IR input port and (1) IR output port; IR IN is for connection from a Crestron IR control port or other IR signal source and passes the IR input signal to the IR OUT port on the DM Lite receiver; IR OUT is for connection to an IR emitter (IRP2, sold separately) and transmits the IR signal from the IR IN port on the DM Lite receiver; Supports IR up to 60 kHz |
|||||||||||||||||||||||||||||||||||||
| COM | (1) 3-pin 3.5 mm detachable terminal block; Bidirectional RS-232 port; Passes RS-232 TD/RD data to/from the COM port on a DM Lite receiver; Supports up to 115.2k baud |
|||||||||||||||||||||||||||||||||||||
| HDMI IN | (1) HDMI Type A connector, female; HDMI digital video/audio input; DVI and Dual-Mode DisplayPort™ interface compatible4 |
|||||||||||||||||||||||||||||||||||||
| DM LITE OUT | (1) 8‑pin RJ‑45 yellow connector, female, shielded; DM Lite output port for connection to a DM Lite receiver or DMPS Lite™ switcher1, 5 |
|||||||||||||||||||||||||||||||||||||
| 24V 0.75A | (1) 2-pin 3.5 mm detachable terminal block; 24VDC power input; Power pack sold separately, required only if the HD-TXC-4KZ-101-1G is used with a wall plate receiver3 |
|||||||||||||||||||||||||||||||||||||
| Ground | [(1) Chassis ground lug | |||||||||||||||||||||||||||||||||||||
| Controls and Indicators | ||||||||||||||||||||||||||||||||||||||
| LINK | (1) Green LED, indicates that a DM Lite link is established. | |||||||||||||||||||||||||||||||||||||
|
PWR |
(1) LED, indicates that power is being applied to the device. Amber indicates that the device is booting. Green indicates that the device is operational. | |||||||||||||||||||||||||||||||||||||
| HDMI IN | (1) Green LED, indicates that the device is receiving an HDMI signal | |||||||||||||||||||||||||||||||||||||
| DM LITE OUT | (2) LEDs on RJ‑45 connector. Green indicates that a DM Lite link is established. Flashing amber indicates non‑HDCP video, and solid amber indicates HDCP video. |
|||||||||||||||||||||||||||||||||||||
| Power | ||||||||||||||||||||||||||||||||||||||
| Power Pack | Input: 100-240VAC Output: 24VDC 0.75A Model: PW-2407WUL (sold separately, required only if the HD-TXC-4KZ-101-1G is used with a wall plate receiver)3 |
|||||||||||||||||||||||||||||||||||||
| Environmental | ||||||||||||||||||||||||||||||||||||||
| Temperature | 32° to 104°F (0° to 40°C) | |||||||||||||||||||||||||||||||||||||
| Humidity | 20% to 90% RH (non-condensing) | |||||||||||||||||||||||||||||||||||||
| Construction | ||||||||||||||||||||||||||||||||||||||
| Composition | Metal housing and bracket with black polycarbonate front label overlay | |||||||||||||||||||||||||||||||||||||
| Mounting | Mounts in a 1-gang (or larger) 2-1/4 inch (57 mm) deep U.S. electrical box or plaster ring (not included) | |||||||||||||||||||||||||||||||||||||
| Faceplate | Requires a decorator style faceplate (FP-G series, sold separately) |
|||||||||||||||||||||||||||||||||||||
| Dimensions | ||||||||||||||||||||||||||||||||||||||
| Height | 4.12 in. (105 mm) | |||||||||||||||||||||||||||||||||||||
| Width | 1.72 in. (44 mm) | |||||||||||||||||||||||||||||||||||||
| Depth | 2.19 in. (56 mm) | |||||||||||||||||||||||||||||||||||||
| Weight | ||||||||||||||||||||||||||||||||||||||
| 5.54 oz (157 g) | ||||||||||||||||||||||||||||||||||||||
| Compliance | ||||||||||||||||||||||||||||||||||||||
|
Regulatory Model: M202045001 |
||||||||||||||||||||||||||||||||||||||
| Maximum DM Lite Transmission Distance | ||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
