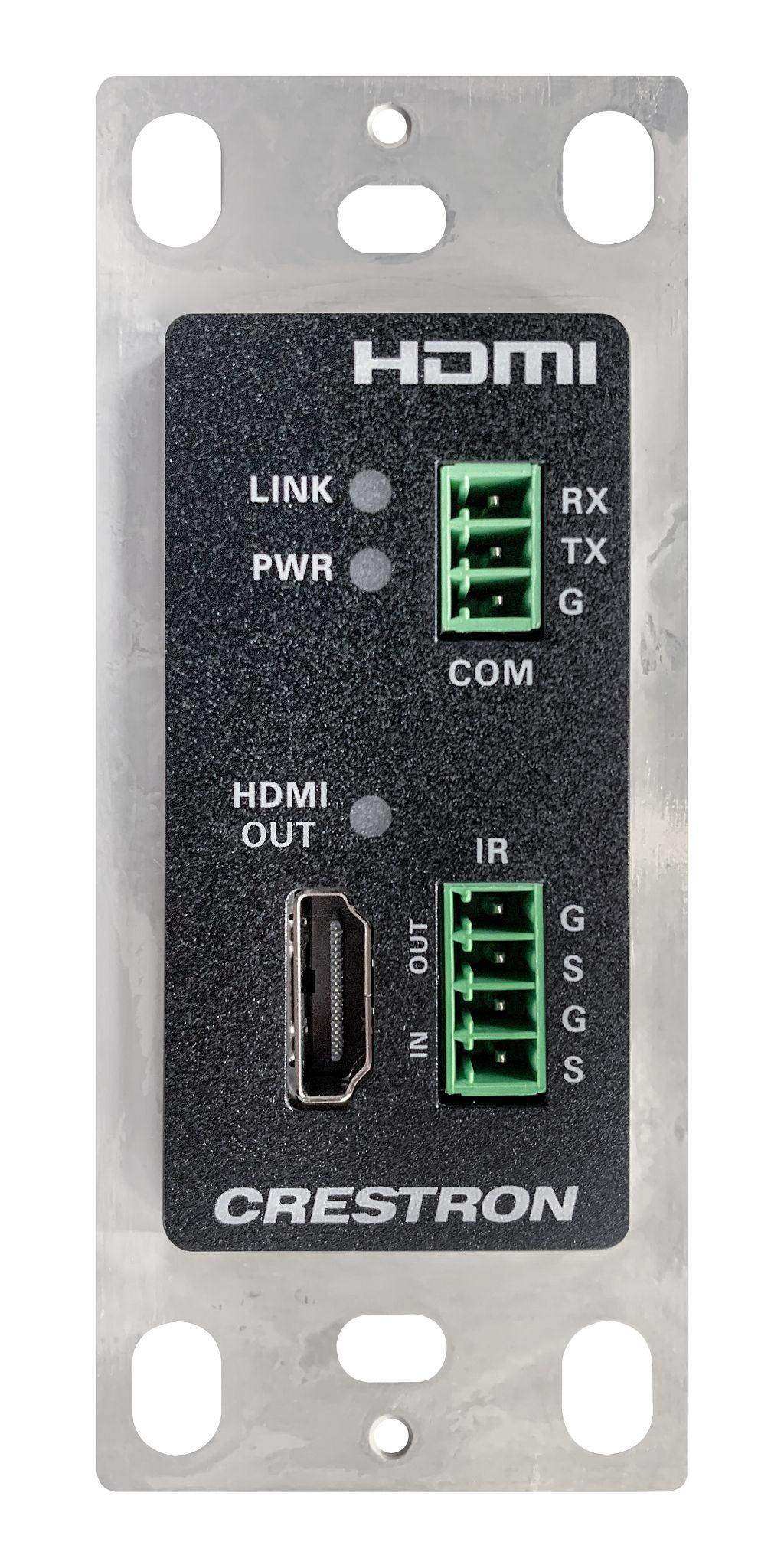

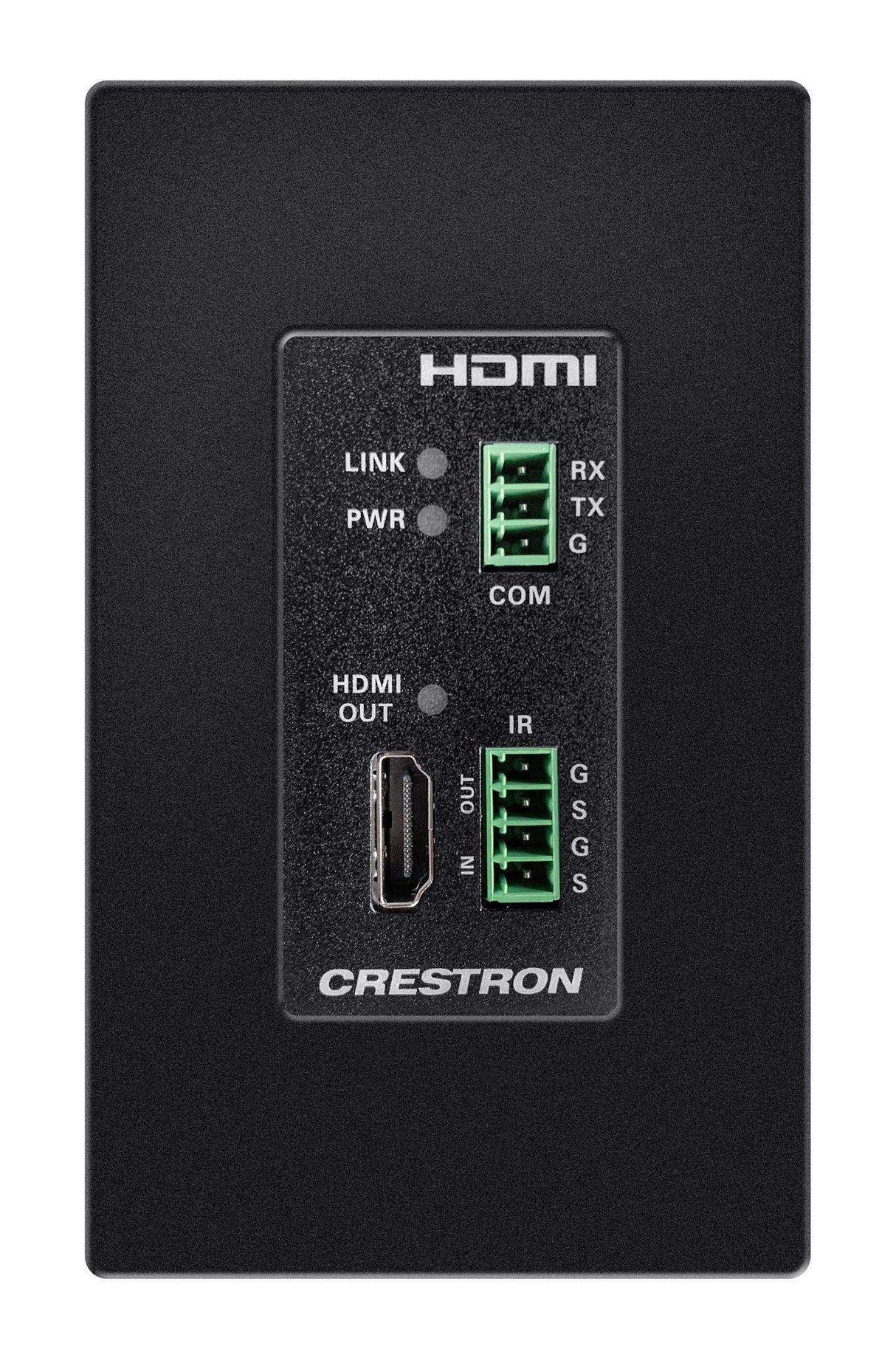

Crestron HD-RXC-4KZ-101-1G-B – DM Lite 4K60 4:4:4 Wall Plate Receiver, HDMI/RS-232/IR, Black

Product Overview

The Crestron HD-RXC-4KZ-101-1G-B is a single-gang black wall plate DM Lite receiver that accepts a 4K60 4:4:4 HDMI, RS-232, and IR signal from a compatible DM Lite transmitter over a single Cat5e or Cat6 cable and outputs HDMI directly to a wall-mounted display at the receiver end. It is the display-side counterpart to the HD-TXC-4KZ-101-1G-B wall plate transmitter, creating a complete wall plate-to-wall plate DM Lite signal extension solution for commercial conference rooms, training rooms, and boardrooms where the display is wall-mounted and HDMI output at the display wall is required with a flush single-gang appearance.

Product Description

In commercial AV installations where both the presenter connection and the display connection need wall plate form factors — rather than having the receiver chassis mounted in an equipment rack or above the ceiling — the HD-RXC-4KZ-101-1G-B provides the display-wall-mounted HDMI output in a matching single-gang wall plate housing. This is the common approach in smaller conference rooms and huddle spaces where there is no equipment rack, or in premium boardroom installations where rack equipment behind the display wall is not desirable. The receiver wall plate mounts in a standard single-gang wall box behind or beside the display, with a short HDMI cable from the wall plate output to the display HDMI input. RS-232 from the receiver wall plate provides display power and input control, and IR output extends control commands to IR-controlled devices. The receiver provides Power over CATx to the paired transmitter — no local power supply required at the transmitter wall plate. A short HDMI cable from receiver to display completes the installation without any rack-mount AV equipment.

Key Features

• 4K60 4:4:4 HDMI Output at Display Wall: Receives DM Lite signal from compatible transmitter and outputs 4K60 4:4:4 HDMI directly to wall-mounted display — enabling wall plate-to-wall plate AV signal extension without rack-mount receivers or above-ceiling chassis.
• Single-Gang Wall Plate, Black Finish: Single-gang form factor installs at the display wall in a standard wall box for a clean, professional appearance matching the overall wall plate scheme at the display position.
• RS-232 Output: RS-232 serial port at the receiver wall plate enables direct display control (power on/off, input selection) from the room control system, with RS-232 data carried over the same CATx cable as the video signal from the transmitter end.
• IR Output: IR blaster output at the receiver wall plate extends IR control commands to IR-controlled source devices at the display wall position.
• PoE to Transmitter: Provides Power over CATx to the paired transmitter wall plate — eliminating the need for a separate power supply at the transmitter end.
• CATx Infrastructure: Operates over standard Cat5e or Cat6 UTP using existing structured cabling — no proprietary cable required.
• HDCP Compliant: Passes HDCP-protected content from the DM Lite signal chain to the connected display.
• Pairs with HD-TXC-4KZ-101-1G-B/W Transmitters: Matched receiver for wall plate-to-wall plate DM Lite signal extension with Crestron HD-TXC transmitter wall plates.

Typical Applications

• Smaller conference rooms and huddle spaces without equipment racks, using wall plate-to-wall plate DM Lite signal extension from presenter wall to display wall
• Boardroom display wall installations where rack-mount receivers behind the display are not desired and a flush single-gang receiver wall plate is preferred
• Training room display-wall receiver for DM Lite signal arriving from presenter podium or table wall plate transmitter
• Government and corporate meeting rooms with wall plate AV infrastructure using DM Lite for signal extension without dedicated AV rack equipment

Technical Specifications

Competitor comparison: not applicable for this product.

Frequently Asked Questions

Can this receiver be used without a wall box — just surface-mounted behind a display?
The HD-RXC-4KZ-101-1G-B is designed for standard single-gang wall box installation. For above-ceiling or rack-mount receiver applications, Crestron offers DM-RMC series room media center receivers that combine DM signal reception with additional control and audio output features. Contact Creation Networks for receiver selection guidance.

Does the receiver power the paired transmitter over Cat cable?
Yes — the receiver provides Power over CATx to the compatible transmitter, eliminating the need for a separate power supply at the transmitter wall plate location.

What is the compatible transmitter for this receiver?
The HD-TXC-4KZ-101-1G-B (black) and HD-TXC-4KZ-101-1G-W (white) wall plate transmitters are the matched transmitters for this receiver. Contact Creation Networks for complete wall plate pairing guidance.

What is the warranty on the Crestron HD-RXC-4KZ-101-1G-B?
Crestron provides a standard 3-year limited warranty. Contact Creation Networks for warranty service details.
