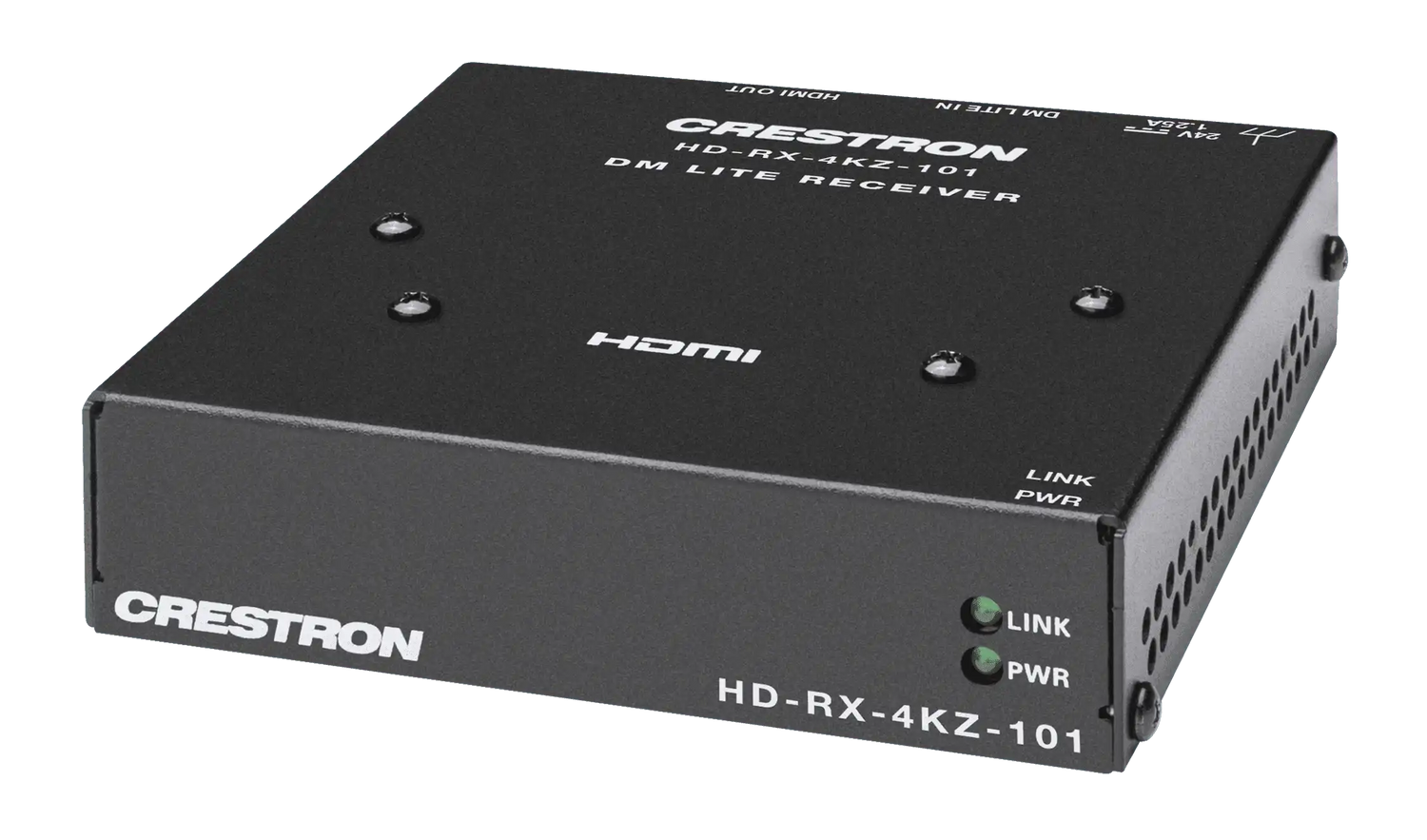

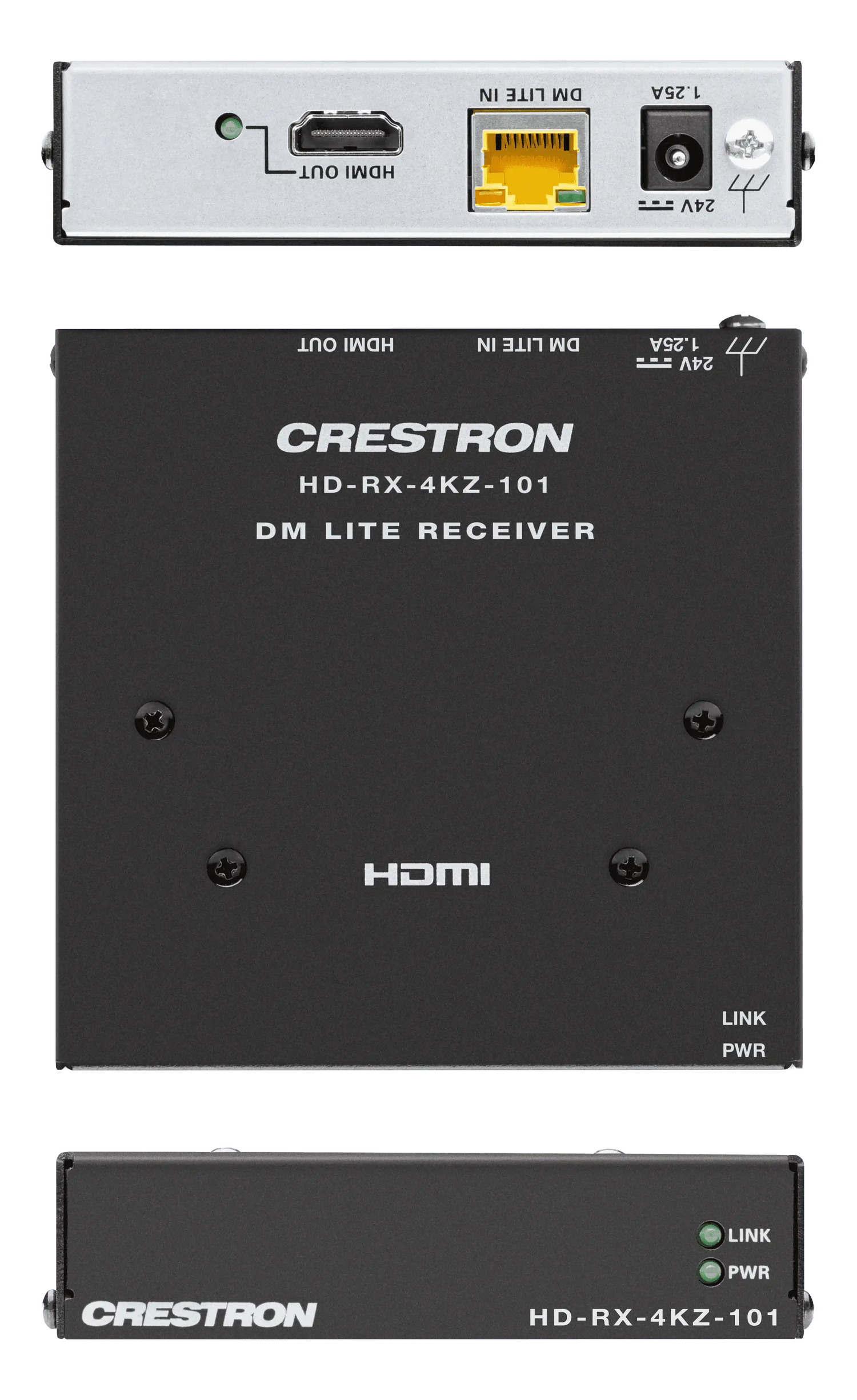

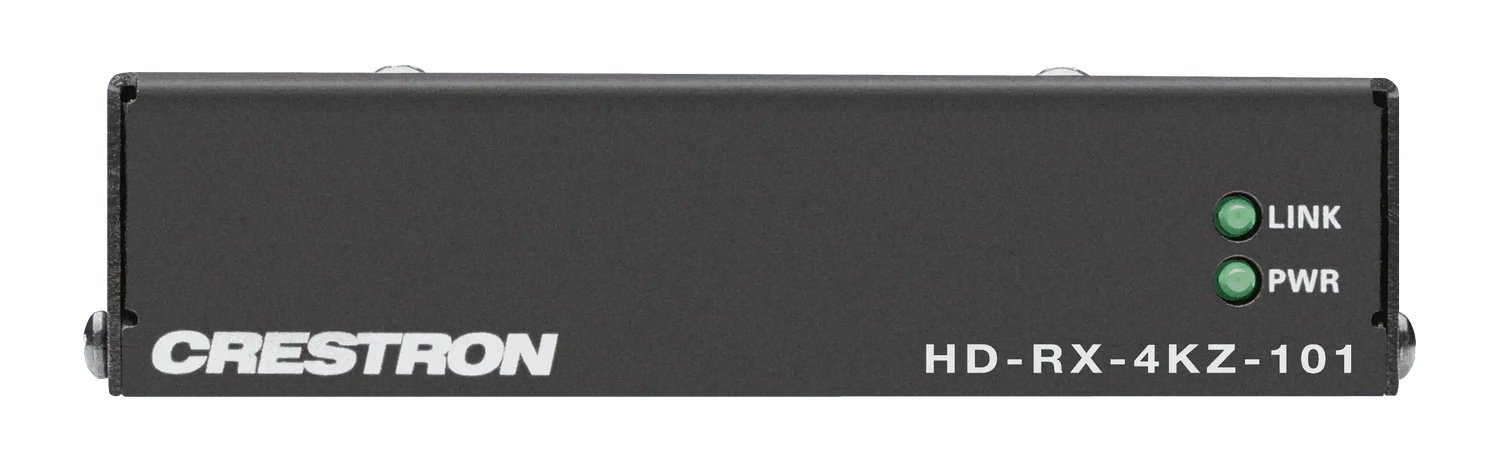

Crestron HD-RX-4KZ-101 DM Lite® 4K60 4:4:4 Receiver for HDMI® Signal Extension over CATx Cable (Discontinued)

$450.00
Shipping calculated at checkout.
Availability: Discontinued
Crestron  |  SKU: HD-RX-4KZ-101

Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.

Accepted payment methods

Discontinued, please see it's replacement, the HD-RXC-4KZ-101

The HD-RX-4KZ-101 is a DM Lite® 4K60 4:4:4 receiver designed to interoperate with a DM Lite® transmitter or DMPS Lite™ switcher for the transmission of an HDMI® signal. A CAT5e or higher twisted pair cable is used to connect the HD-RX-4KZ-101 to the DM Lite transmitter or DMPS Lite switcher. For 1080p, WUXGA, and 2K signals, a cable length of up to 230 ft (70 m) is supported. For UHD and 4K signals, a cable length of up to 130 ft (40 m) is supported.1

Interoperability with a DM Lite Transmitter or DMPS Lite Switcher
The DM Lite input port of the HD-RX-4KZ-101 must be connected to a DM Lite output port of a DM Lite transmitter or DMPS Lite switcher. Examples of supported DM Lite 4K60 4:4:4 transmitters are the HD-TX-4KZ‑101, HD-TX-4KZ‑111, HD-TXA-4KZ‑101, HD-TXC-4KZ‑101, and HD-TXCA-4KZ‑101. Supported DM Lite 4K60 4:2:0 transmitters are the HD-TX-101‑C‑E, HD-TXC-101‑C‑E, HD-TX-301‑C‑E, HD-TX-101‑C‑1G‑E, HD-TXC-101‑C‑1G‑E, and HD-TX-201‑C‑2G‑E. Supported DMPS Lite switchers are the HD‑PS622, HD‑PS621, HD‑PS402, and HD‑PS401.

The HD-RX-4KZ-101 can be configured and controlled only when it is used with a DMPS Lite switcher. The web interface of the switcher can be used to configure the HD-RX-4KZ-101. In addition, control system programming and .AV Framework™ software support of the HD-RX-4KZ-101 is hosted by the switcher.

4K60 4:4:4 and HDR Support
The HD-RX-4KZ-101 supports video resolutions up to 4K60 with 4:4:4 color sampling. HDR10, HDR10+, and Dolby Vision® video formats are also supported.2

Compact, Surface-Mountable Design
Compact in design, the HD-RX-4KZ-101 can be mounted onto a flat surface such a wall behind a flat-panel display or a ceiling above a projector. It can also be attached to a single rack rail in the back of an equipment cabinet. The HD-RX-4KZ-101 can receive power from the included power pack or from the remote DM Lite transmitter or DMPS Lite switcher.3


Key Features
  • Interoperability with a DM Lite® transmitter or DMPS Lite™ switcher
  • Point-to-point extension of an HDMI® signal over a CAT5e or higher cable
  • DM Lite transmission distance up to 130 ft (40 m) for UHD and 4K signals or up to 230 ft (70 m) for 1080p, WUXGA, and 2K signals
  • 4K60 4:4:4 capability
  • HDR10, HDR10+, and Dolby Vision® video formats
  • Compliance with HDCP 2.3
  • CEC (Consumer Electronics Control) pass-through capability
  • EDID pass-through capability
  • Compact, surface-mountable design
  • Power from 24VDC power pack (included) or from remote DM Lite transmitter or DMPS Lite switcher
Specs
Video
Input Signal Type DM Lite® with HDR10, HDR10+, Dolby Vision®, Deep Color, and 4K60 4:4:4 support2
Output Signal Type HDMI® with HDR10, HDR10+, Dolby Vision, Deep Color, and 4K60 4:4:4 support (DVI compatible)4
Copy Protection HDCP 2.3
Resolutions Common resolutions are listed in the following table.
Scan Type Resolution Frame Rate Color Sampling Color Depth
Progressive 4096x2160 DCI 4K & 3840x2160 4K UHD 24 Hz 4:4:4 12 bit
30 Hz 4:4:4 12 bit
60 Hz 4:2:2 12 bit
60 Hz 4:4:4 8 bit
2560x1600 WQXGA 60 Hz 4:4:4 8 bit
1920x1080 FHD 1080p 60 Hz 4:4:4 12 bit
Interlaced 1920x1080 HD 1080i 30 Hz 4:4:4 12 bit
Note: The maximum supported resolution is 4K60 with 4:4:4 color sampling. Custom resolutions are supported at pixel clock rates up to 600 MHz.
Audio
Input Signal Type DM Lite
Output Signal Type HDMI
Digital Formats Dolby Digital®, Dolby Digital EX, Dolby Digital Plus, Dolby® TrueHD, Dolby Atmos®, DTS®, DTS ES, DTS 96/24, DTS HD® High Res, DTS-HD Master Audio, DTS:X®, LPCM up to 8 channels
Communications
HDMI HDCP 2.3, EDID, CEC pass-through
DM Lite HDCP 2.3, EDID pass-through
Connectors
HDMI OUT (1) HDMI Type A connector, female;
HDMI digital video/audio output;
DVI compatible4
DM LITE IN (1) 8‑pin RJ‑45 yellow connector, female, shielded;
DM Lite input port for connection to the DM Lite output port of a DM Lite transmitter or DMPS Lite™ switcher1, 5
24V 1.25A (1) 2.1 x 5.5 mm DC power connector;
24VDC power input;
PW-2420RU power pack included3
Controls and Indicators
LINK (1) Green LED, indicates that a DM Lite link is established.

PWR

 (1) LED, indicates that power is being applied to the device. Amber indicates that the device is booting. Green indicates that the device is operational.
HDMI OUT (1) Green LED, indicates that the device is transmitting an HDMI signal
DM LITE IN (2) LEDs on RJ 45 connector. Green indicates that a DM Lite link is established.
Flashing amber indicates non-HDCP video, and solid amber indicates HDCP video.
Power
Power Pack (Included) Input: 100-240VAC
Output: 24VDC 2.5A
Model: PW-2420RU3
Environmental
Temperature 32° to 104°F (0° to 40°C)
Humidity 20% to 90% RH (non-condensing)
Enclosure
Chassis Metal, black finish, vented sides, 2 mounting brackets included
Mounting Freestanding, surface mountable, or attachment to a single rack rail
Dimensions
Height 4.13 in. (105 mm)
Width 4.18 in. (106 mm)
Depth 1.08 in. (27 mm)
Weight
11.82 oz (335 g)
Compliance
Regulatory Model: M202047002
Intertek® Listed for US and Canada, CE, IC, FCC Part 15 Class B digital device
Maximum DM Lite Transmission Distance
Resolution Frame Rate (Hz) Color Sampling Color Depth Cable Type1
DM-CBL-ULTRA DM® Ultra Cable DM-CBL-8G DM 8G® Cable or CAT5e (UTP) or Higher
1920x1080 HD 1080i 30 4:4:4 12 bit 230 ft (70 m) 195 ft (60 m)
1920x1080 FHD 1080p 60 4:4:4 8, 12 bit
1600x1200 UXGA 60 4:4:4 8, 12 bit
2048x1080 DCI 2K 60 4:4:4 8, 12 bit
1920x1200 WUXGA 60 4:4:4 8, 12 bit
2048x1152 QWXGA 60 4:4:4 8, 12 bit
2560x1080 UWFHD 60 4:4:4 8 bit
2560x1440 WQHD Reduced Blanking 60 4:4:4 8 bit
2560x1600 WQXGA Reduced Blanking 60 4:4:4 8 bit
2048x1152 QWXGA 60 4:4:4 12 bit
3840x2160 4K UHD and 4096x2160 DCI 4K 30 4:2:2 12 bit
30 4:4:4 8 bit
60 4:2:0 8 bit
3840x2160 4K UHD and 4096x2160 DCI 4K 30 4:4:4 12 bit 130 ft (40 m) 100 ft (30 m)
60 4:2:0 12 bit
60 4:2:2 12 bit
60 4:4:4 8 bit
