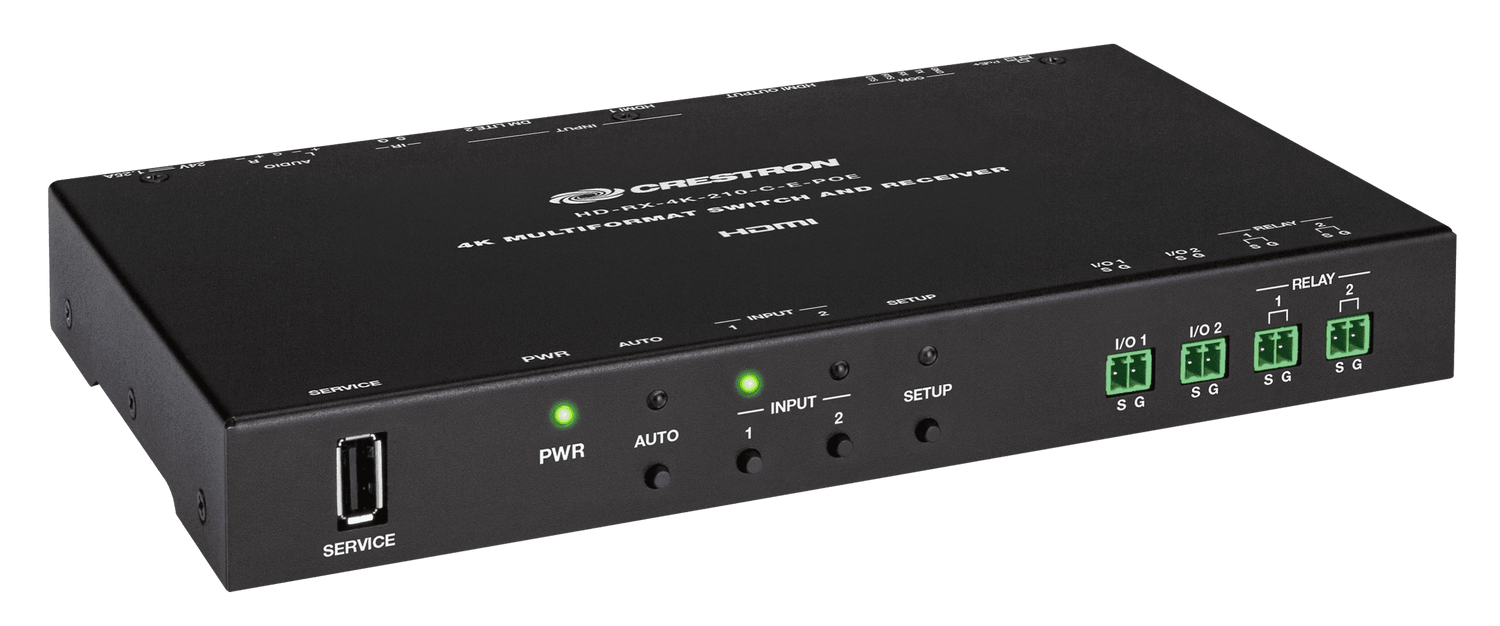

Crestron HD-RX-4K-210-C-E-POE DMPS Lite™ 4K Multiformat 2x1 AV Switch and Receiver with PoE+

Crestron SKU: HD-RX-4K-210-C-E-POE
No reviews

Price:
Sale price$1,486.00

Description

The Crestron HD‑RX‑4K-210-C-E-POE is a multiformat AV switch and receiver that provides HDMI® video switching and audio presentation capabilities in areas such as conference rooms and classrooms. Compatible with all DM Lite® transmitters, the HD‑RX‑4K-210-C-E-POE provides one DM Lite input for connection to one transmitter.

NOTE: Firmware version 1.0.5357.12100 or later is required to support the DM Lite® 4K60 4:4:4 (4KZ) transmitters. Pairing the 4K60 4:4:4 transmitters with HD-RX-4K-210-C-E-POE firmware version 1.0.5005.18300 or earlier may result in an unstable DM Lite connection and loss of the audio/video signal.

A CATx (CAT5e or higher) twisted pair cable connects a transmitter to the HD‑RX‑4K-210-C-E-POE for the transmission of HDMI signals. For resolutions up to 2K, the maximum transmission distance is 230 ft (70 m). For higher resolutions up to 4K, the maximum transmission distance is 130 ft (40 m).1

NOTE: Power is transmitted over the CATx cable that connects the HD‑RX‑4K-210-C-E-POE to a DM Lite transmitter. When paired with a 4K60 4:4:4 (4KZ) transmitter, the transmitter cannot provide power to the HD-RX-4K-210-C-E-POE. The HD-RX-4K-210-C-E-POE must provide power to the 4KZ transmitter.

In addition to one DM Lite input, the HD‑RX‑4K-210-C-E-POE provides one HDMI input that can be connected to a local AV source or to an optional Crestron® media presentation wall plate (MP-WP152 or MPI-WP150 Series, sold separately).

Automatic Switching of Inputs
Automatic switching between the DM Lite input and HDMI input can occur based on the last connected input or on the routing priority assigned to each input. Switching behavior is configurable using the web interface or programmable using a Crestron control system. In addition, input selection push buttons on the front panel of the HD‑RX‑4K-210-C-E-POE enable the desired input to be selected manually.

HDMI Output with 4K Scaler
A single HDMI output with a built-in scaler connects to a display or other device with an HDMI input. Input resolutions are automatically scaled to match the native resolution of the display device, resulting in optimal image quality. For applications requiring comprehensive EDID management, the web interface can be used to ensure that every input is displayed at its optimal resolution and format. Input resolutions up to 4K60 4:2:0 are supported.

Gigabit Ethernet PoE+ Powered Device (PD) Port
The HD‑RX‑4K-210-C-E-POE includes a Gigabit Ethernet PoE+ PD port that can be connected to a PoE+ port on a Gigabit Ethernet switch. PoE+ eliminates the need for the HD‑RX‑4K-210-C-E-POE or the connected DM Lite transmitter to be connected to the PW-2412WU power pack (sold separately for the HD-RX-4K-210-C-E-POE).2

Device Control
Equipped with onboard control ports, the HD‑RX‑4K-210-C-E-POE can control various devices in a room. The COM (RS-232) port and CEC over the HDMI output can enable the display device to be turned on or off automatically without the use of a control system. With the use of a control system, the IR port can also control the display device. Two relay ports are provided for controlling a projection screen and other low-voltage contact-closure activated equipment. Two Versiport I/O ports enable the integration of devices such as power sensors and motion detectors. An Ethernet port connection to a LAN also provides control by enabling use of the built-in web interface as well as connection to a control system.

NOTE: The IR, COM, and Ethernet ports cannot be used to extend signals over a DM Lite connection.

.AV Framework™ Technology Support
In addition to a built-in web interface and control system programming, the built-in .AV Framework technology of the MPC3-201 and MPC3-302 Series control systems can be used to control the HD‑RX‑4K-210-C-E-POE as a switcher. (For information about .AV Framework technology, visit www.crestron.com/avframework.)

XiO Cloud® Service Support
The HD-RX-4K-210-C-E-POE is compatible with the XiO Cloud service, which is an IoT (Internet of Things) platform for remotely provisioning, monitoring, and managing Crestron devices across an enterprise or an entire client base. Built on the Microsoft® Azure® software platform and using industry-leading Azure IoT Hub technology, the XiO Cloud service enables installers and IT managers to deploy and manage thousands of devices in the amount of time it previously took to manage a single device. Unlike other virtual machine-based cloud solutions, Azure services provide unlimited scalability to suit the ever-growing needs of an enterprise. For more information, visit www.crestron.com/xiocloud.

Native Integration with Cisco Webex® and Touch 10 Devices
Native integration of the Cisco API enables source inputs of the HD-RX-4K-210-C-E-POE to be added to a compatible Cisco Webex video conference system that is controlled by a Cisco Touch 10 control unit. Eliminating the need for control system programming, integration with Cisco® devices is accomplished by using the Crestron Configuration tool, which is hosted on the Crestron website at configuration.crestron.com. Configuration includes the selection of the desired Crestron and Cisco hardware models and the assignment of HD-RX-4K-210-C-E-POE input names and icons for use on the Cisco Touch 10 screen. The resulting configuration file is then downloaded from the website and loaded to the HD-RX-4K-210-C-E-POE using the HD-RX-4K-210-C-E-POE web interface. Communication is established between the HD-RX-4K-210-C-E-POE and Cisco devices, enabling the Cisco Touch 10 to display and control the additional HD-RX-4K-210-C-E-POE inputs.

Compact Design
Compact in design, the HD‑RX‑4K-210-C-E-POE can be mounted onto a flat surface such as a wall or attached to the underside of a table. The device can also be mounted to a rack rail.


  • 4K/60 4:2:0 capability
  • One DM Lite® port for interoperability with one DM Lite transmitter
  • One HDMI® input
  • One HDMI output with 4K scaler
  • Gigabit Ethernet PoE+ powered device (PD) port
  • Stereo line level audio output
  • IR, RS-232, relay, and I/O control ports
  • CEC (Consumer Electronics Control) capability
  • Automatic switching of inputs
  • EDID management
  • HDCP management including HDCP 2.2 support
  • Built-in web interface for easy configuration and monitoring
  • Compatibility with Crestron® 3-Series® or later control systems
  • .AV Framework™ technology support
  • XiO Cloud® service support
  • Native integration with Cisco Webex® and Touch 10 devices
  • Compact surface-mount design
Video
Switcher 2x1 auto-switching or manual, audio-follows-video, Crestron Auto-Locking® and QuickSwitch HD™ technologies
Scaler (HDMI Output) 4K video scaler with intelligent frame rate conversion, Deep Color support, content-adaptive noise reduction, 3:2/2:2 pull-down detection and recovery
Input Signal Types HDMI with Deep Color and 4K (DVI and Dual-Mode DisplayPort™ interface compatible3) on Input 1, DM Lite with Deep Color and 4K on Input 2
Output Signal Types HDMI with Deep Color and 4K (DVI compatible4)
Copy Protection HDCP 2.2
Maximum Resolutions Common resolutions are listed below for the HDMI and DM Lite inputs.
Scan
Type
Resolution Frame
Rate
Color
Sampling
Color
Depth
Progressive 4096x2160 DCI 4K and 3840x2160 4K UHD 24 Hz 4:4:4 30 bit
30 Hz 4:4:4 24 bit
30 Hz 4:2:2 36 bit
60 Hz 4:2:0 24 bit
2560x1600 WQXGA 60 Hz 4:4:4 36 bit
1920x1080 HD 1080p 60 Hz 4:4:4 36 bit
NOTES:
  • Custom resolutions are supported at pixel clock rates up to 300 MHz.
  • Interlaced video sources are not supported.
Scaler Output Resolutions, HDMI
Auto (EDID preferred), 1280x720p@50Hz (720p50), 1280x720p@60Hz (720p60), 1920x1080i@25Hz (1080i25), 1920x1080i@30Hz (1080i30), 1920x1080p@30Hz (1080p30), 1920x1080p@25Hz (1080p25), 1920x1080p@24Hz (1080p24), 1920x1080p@50Hz (1080p50), 1920x1080p@60Hz (1080p60), 3840x2160p@24Hz, 3840x2160p@25Hz, 3840x2160p@30Hz, 4096x2160p@24Hz, 4096x2160p@25Hz, 4096x2160p@30Hz, 3840x2160p@50Hz, 3840x2160p@60Hz, 4096x2160p@50Hz, 4096x2160p@60Hz
Audio
Input Signal Types HDMI (Dual-Mode DisplayPort interface compatible3), DM Lite
Output Signal Types HDMI, stereo analog
Digital Formats 2-channel LPCM
Analog Formats Stereo 2-channel
Digital-to-Analog Conversion 24-bit 48 kHz
Output Impedance 200 ohms balanced, 100 ohms unbalanced
Maximum Output Level 4 Vrms balanced, 2 Vrms unbalanced
Output Volume -80 to +20 dB level adjustment range plus Mute
Mute Enable or disable independently for HDMI and analog audio output
Analog Output Performance Frequency Response: 20 Hz to 20 kHz ±0.5 dB
S/N Ratio: >95 dB @ 10 dBV, 20 Hz to 20 kHz, A-weighted
THD+N: <0.005% @ 1 kHz and 10 dBV
Stereo Separation: 20 Hz to 20 kHz ≤80 dB
Acoustic Noise Not applicable (fanless)
Communications
Ethernet 100/1000 Mbps, auto-switching, auto-negotiating, auto-discovery, full/half duplex, CIP, DHCP, web browser setup and control
RS-232 2-way device control and monitoring up to 115.2k baud with hardware and software handshaking
IR 1-way device control via infrared up to 60 kHz
HDMI HDCP 2.2, EDID, CEC
DM Lite HDCP 2.2, EDID

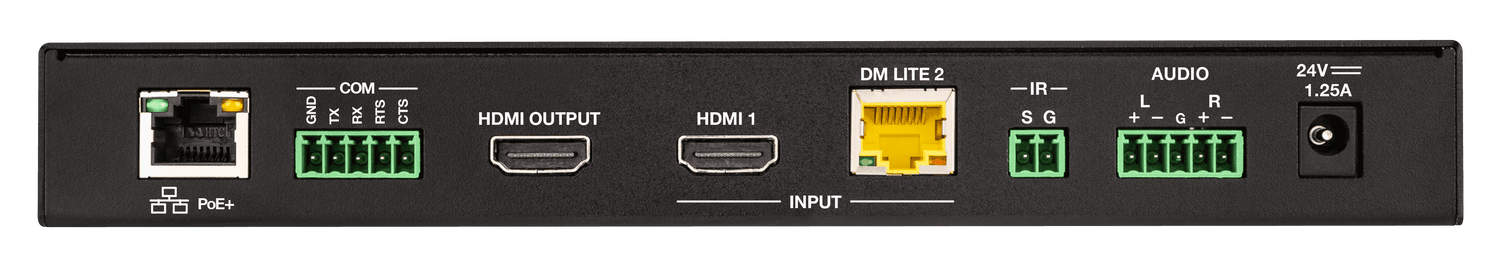

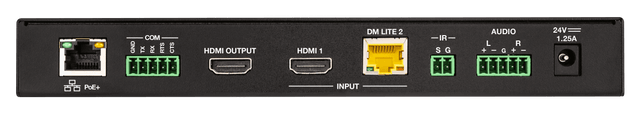

Connectors
HDMI INPUT 1 (1) HDMI Type A connector, female;
HDMI digital video/audio input;
DVI and Dual-Mode DisplayPort interface compatible3
DM Lite INPUT 2 (1) 8-pin RJ-45 yellow connector, female, shielded;
DM Lite input port for connection to a DM Lite transmitter
HDMI OUTPUT (1) HDMI Type A connector, female;
HDMI digital video/audio output;
DVI compatible4
NOTE: CEC over the HDMI output provides Power On/Off control of the display device without a control system or full programmable control of any device with a control system.
AUDIO L/R (1) 5-pin 3.5 mm detachable terminal block;
Balanced/unbalanced stereo line-level audio output;
Maximum Output Level: 4 Vrms balanced, 2 Vrms unbalanced;
Output Impedance: 200 ohms balanced, 100 ohms unbalanced
Ethernet (1) 8-pin RJ-45 connector, female;
100BASE-TX/1000BASE-T Ethernet port
PoE+ Powered Device (PD) port,
IEEE 802.3at Type 2 PoE+ Class 4 (25.5 W) compliant2
I/O 1-2 (2) 2-pin detachable terminal blocks;
Comprised of 2 Versiport digital input/output or analog input ports (referenced to GND);
Digital Input: Rated to 0-24 VDC, input impedance 20k ohms, logic threshold >3.125 V low/0 and <1.875 V high/1;
Digital Output: 250 mA sink from maximum 24 VDC, catch diodes for use with real world loads;
Analog Input: Rated for 0-10 VDC, protected to 24 VDC maximum, input impedance 21k ohms with pull-up resistor disabled;
Programmable 5 V, 2k ohms pull-up resistor per pin
RELAY 1-2 (2) 2-pin detachable terminal blocks;
Comprised of 2 normally open, isolated relays;
Rated 1 A, 30 VAC/VDC;
MOV arc suppression across contacts
IR (1) 2-pin 3.5 mm detachable terminal block;
IR output control port; supports IR up to 60 kHz;
IRP2 emitter sold separately
NOTE: The IR port provides Power On/Off control of the display device with the use of a control system.
COM (1) 5-pin 3.5 mm detachable terminal block;
Bidirectional RS-232 port;
Supports RS-232 up to 115.2k baud with hardware and software handshaking
NOTE: The COM port provides Power On/Off control of the display device without a control system or full programmable control of any device with a control system.
24V 1.25A (1) 2.1 x 5.5 mm DC power connector;
24 VDC power input;
PW-2412WU power pack (optional, sold separately)
NOTE: Either POE+ or the optional power pack can be used to power the HD-RX-4K-210-C-E-POE and the connected DM Lite transmitter. A power pack must not be connected to both devices simultaneously. When paired with a 4K60 4:4:4 (4KZ) transmitter, the HD-RX-4K-210-C-E-POE must provide power to the 4KZ transmitter. A 4KZ transmitter cannot provide power to the HD-RX-4K-210-C-E-POE.
SERVICE (1) USB Type A connector, female;
For factory use only

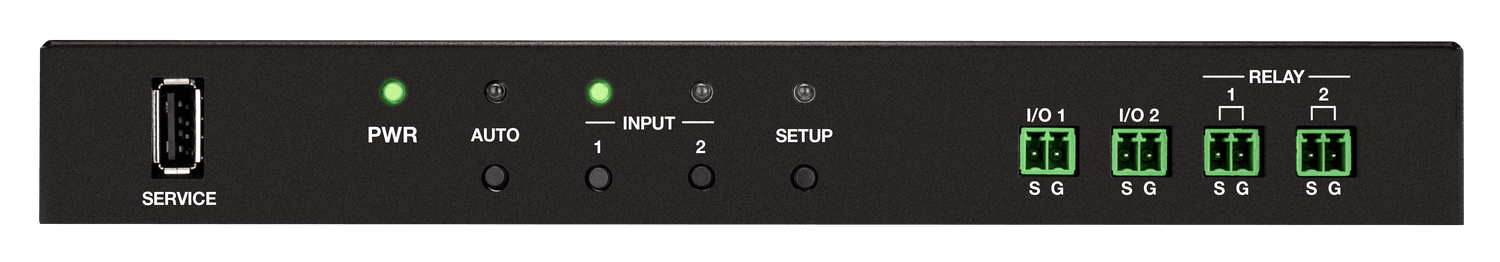

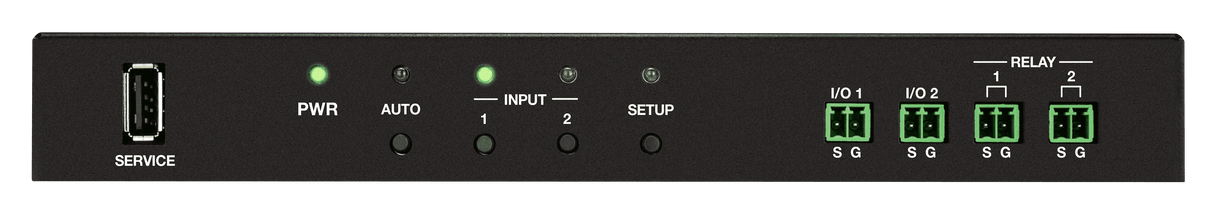

Controls and Indicators
PWR (1) LED, indicates that power is being applied to the HD-RX-4K-210-C-E-POE from PoE+ or from the power pack connected to either the HD-RX-4K-210-C-E-POE or the transmitter. Amber indicates that the HD-RX-4K-210-C-E-POE is booting. Green indicates that the HD-RX-4K-210-C-E-POE is operational.
INPUT 1-2 (2) Push buttons for manual input selection and (2) LEDs. Green indicates that video is switched. Amber indicates that video is detected but is not switched.
AUTO (1) Push button to enable or disable automatic switching, and (1) green LED to indicate that automatic switching is enabled
SETUP (1) Red LED and (1) push button for display of IP address on the HDMI output
DM Lite (2) LEDs on RJ-45 connector. Green indicates that a DM Lite link is established. Flashing amber indicates non-HDCP video, and solid amber indicates HDCP video.
Ethernet (2) LEDs on RJ-45 connector. Green indicates that an Ethernet link is established. Flashing amber indicates Ethernet activity.
Power
PoE+ or optional power pack for supplying power to the HD-RX-4K-210-C-E-POE and the connected DM Lite transmitter:
PoE+ IEEE 802.3at Type 2 Class 4 (25.5 W) compliant powered device (PD), powered by a PoE+ port of Gigabit Ethernet switch2
Power Pack (Optional) Input: 100-240 VAC, 50/60 Hz
Output: 1.25 A @ 24 VDC
Model: PW-2412WU (sold separately)
NOTE: A power pack must not be connected to the HD-RX-4K-210-C-E-POE and DM Lite transmitter simultaneously. When paired with a 4K60 4:4:4 (4KZ) transmitter, a power pack--if used--must be connected to the HD-RX-4K-210-C-E-POE only. A 4KZ transmitter cannot provide power to the HD-RX-4K-21-C-E-POE.
Power Consumption 10.5 W typical
Environmental
Temperature 32° to 104° F (0° to 40° C)
Humidity 10% to 90% RH (non-condensing)
Heat Dissipation 35.8 BTU/hr
Enclosure
Chassis Metal, black finish, vented sides, 2 mounting flanges attached
Mounting Surface or rack rail mount
Dimensions
Height 5.11 in. (130 mm)
Width 10.53 in. (268 mm) with mounting flanges attached
Depth 1.10 in. (28 mm)
Weight
2.3 lb (1.05 kg) with mounting flanges attached
Compliance
Regulatory Model M1845001
UL® Listed for US and Canada, CE, IC, FCC Part 15 Class B digital device
