Crestron HD-PS402 – 4×2 Presentation System with HDMI and DM Lite, 4K60

Product Overview

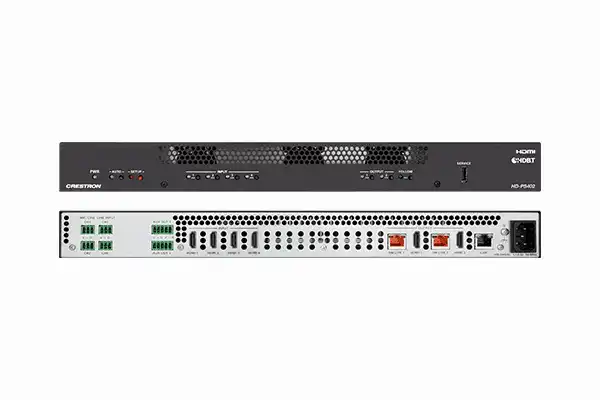

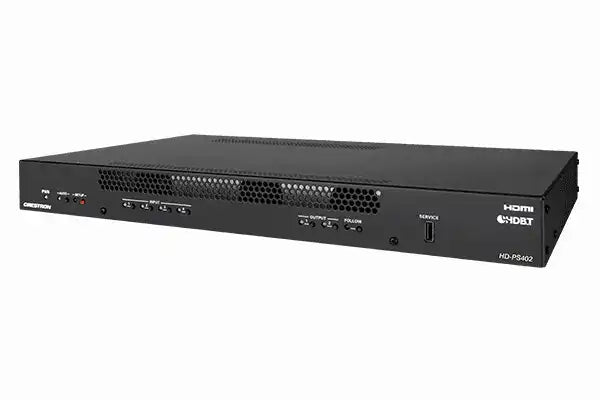

The Crestron HD-PS402 is a 4×2 4K60 presentation system combining HDMI and DM Lite inputs with dual display outputs, DSP audio processing, and integrated room control — a complete single-device conference room AV system for dual-display rooms with multiple presenter sources. It accepts up to 4 inputs (HDMI and DM Lite CATx) and routes any source to either of 2 HDMI display outputs independently, with built-in audio processing, amplification, and Crestron 4-Series-level room control integration in a rack-mount chassis designed for conference rooms that need a complete integrated AV processing and presentation system rather than separate switcher, amplifier, and control processor components.

Product Description

Conference rooms requiring dual-display multi-source presentation with integrated audio and built-in room control have traditionally required multiple rack components — a matrix switcher, a DSP audio processor, a power amplifier, and a separate control processor. The HD-PS402 consolidates these in a single rack-mount device: 4×2 4K60 switching, audio DSP and amplification, and integrated Crestron room control for source selection, volume, and display control from touch panels and wall panels. DM Lite inputs extend presenter connections from wall plate transmitters over CATx cable, while local HDMI inputs connect directly at the rack for room PCs and video conferencing codecs. Both display outputs can show the same source or independent sources simultaneously. Built-in amplification drives room speakers directly from the HD-PS402 without a separate power amplifier for standard commercial conference room speaker loads.

Key Features

• 4×2 4K60 Switching: Routes any of 4 inputs (HDMI and DM Lite) to any combination of 2 HDMI display outputs simultaneously — independent source selection per display for dual-display conference rooms at 4K60 resolution.
• DM Lite and HDMI Inputs: Accepts DM Lite CATx signals from presenter wall plate transmitters alongside local HDMI inputs for room PCs and video conferencing codecs at the rack.
• Integrated Audio DSP: Built-in audio processing for microphone input, USB audio from video conferencing systems, and speaker output — eliminates separate DSP for standard conference room audio configurations.
• Integrated Power Amplification: Built-in amplifier drives conference room speakers directly from the HD-PS402 without a separate power amplifier chassis for standard commercial speaker loads.
• Integrated Room Controller: Built-in room control capability for source selection, display power, volume, and room automation from Crestron touch panels and wall panels.
• Single-Rack-Unit Integration: Consolidates switching, audio, amplification, and room control in a single rack-mount device — reduces rack space and simplifies system design vs. separate component approach.

Typical Applications

• Small and medium dual-display conference rooms requiring integrated 4×2 switching, audio, amplification, and room control in a single rack unit
• Training rooms with presenter CATx wall plate inputs, local HDMI instructor PC, dual displays, and integrated room speaker amplification
• Corporate standardization of integrated presentation systems across multiple conference room sizes
• Boardrooms requiring dual-display multi-source 4K60 presentation with integrated audio without multiple separate rack components

Technical Specifications

Competitor comparison: not applicable for this product.

Frequently Asked Questions

Does the HD-PS402 require a separate Crestron 4-Series control processor?
The HD-PS402 has a built-in room controller sufficient for many standard conference room AV control requirements. For advanced automation — scheduling integration, multi-room coordination, HVAC/lighting control, or complex macros — a separate Crestron 4-Series processor can be added. Contact Creation Networks for system design guidance.

What presenter wall plate transmitters pair with the HD-PS402 DM Lite inputs?
Compatible DM Lite wall plate transmitters include the HD-TXC-4KZ-101-1G-B/W, HD-TX-201-C-2G-E-B-T, and HD-TX-4KZ-211-2G-B. Contact Creation Networks to confirm transmitter compatibility and wall plate selection for your specific presenter connectivity requirements.

What is the warranty on the Crestron HD-PS402?
Crestron provides a standard 3-year limited warranty. Contact Creation Networks for warranty service and support details.
