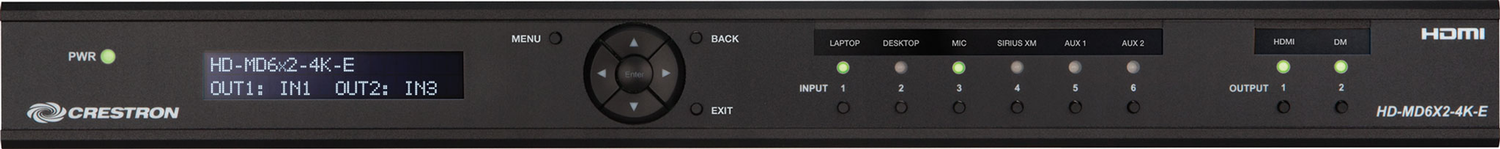

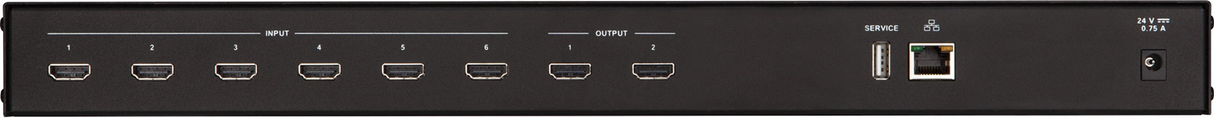

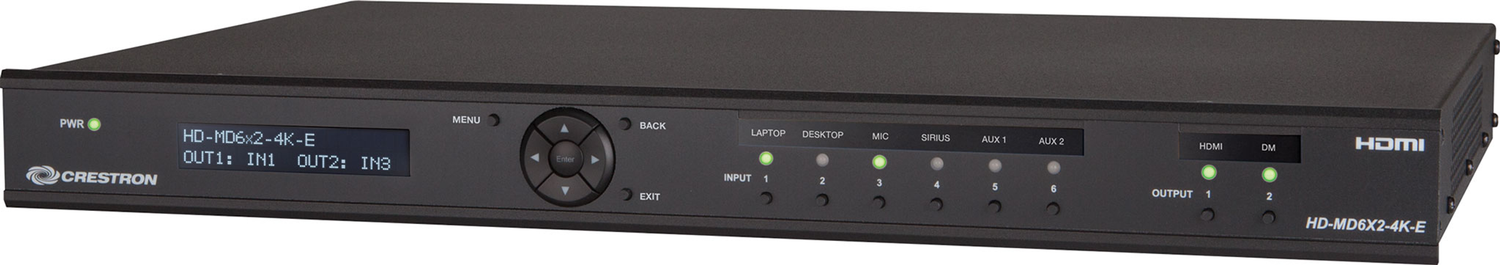

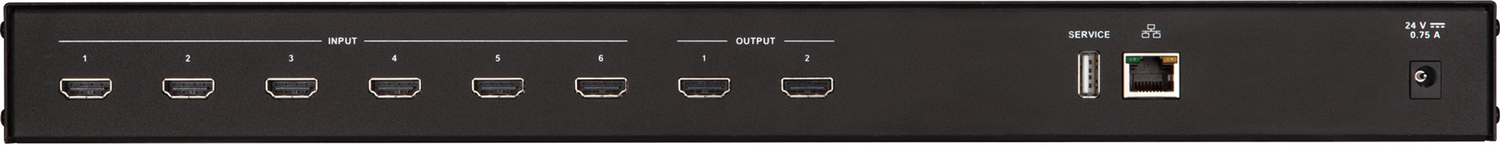

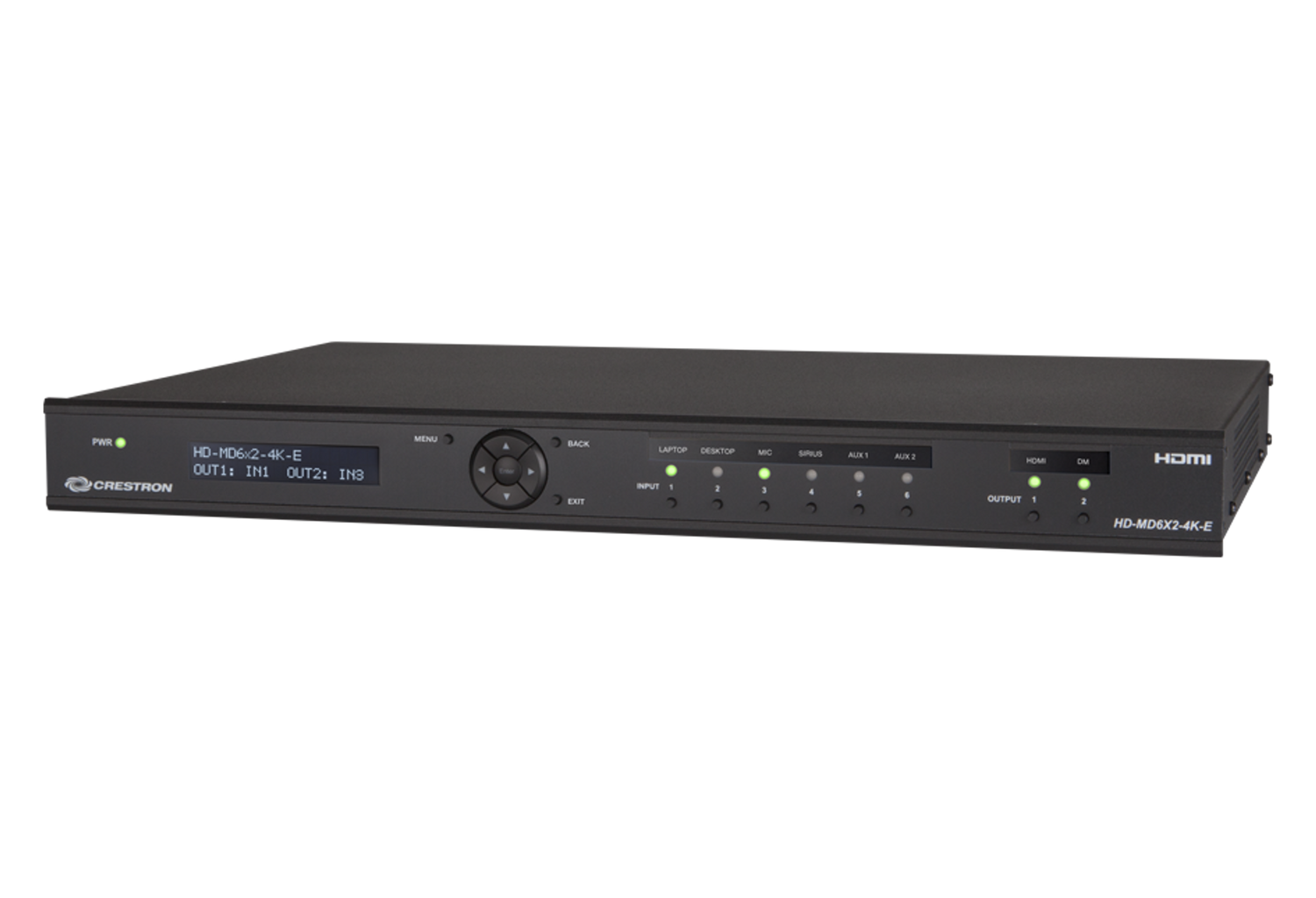

Crestron HD-MD6X2-4K-E – 6x2 4K HDMI Switcher

Product Overview

The Crestron HD-MD6X2-4K-E is a 6-input by 2-output 4K HDMI matrix switcher for professional AV installations. It routes any of 6 HDMI sources to either or both of 2 HDMI outputs simultaneously, supporting 4K resolution for high-resolution display environments. The unit is suited to conference rooms, training spaces, and presentation environments where multiple sources and displays need to be managed from a single switcher.

Product Description

The HD-MD6X2-4K-E handles 6 HDMI inputs and provides 2 independent HDMI outputs, enabling flexible source-to-display routing in multi-source, multi-display installations. The switcher supports 4K video resolution with HDCP compliance, ensuring compatibility with protected content from Blu-ray players, streaming devices, and other HDCP sources. It includes RS-232 and IR control ports for integration with Crestron processors or standalone serial and IR control systems. The unit is designed as a compact appliance that can be surface-mounted, rack-mounted with optional accessories, or installed discreetly in a furniture credenza or AV rack.

Key Features

• 6 HDMI inputs, 2 HDMI outputs (6x2 matrix switching)
• 4K resolution support for high-resolution display environments
• HDCP compliant for protected content pass-through
• RS-232 control port for Crestron or third-party control integration
• IR control input and output for device control pass-through
• Compact form factor for discreet installation in furniture or racks
• Any input routable to either or both outputs simultaneously

Typical Applications

• Conference room AV switching with multiple laptop and device inputs
• Training rooms with multiple presenter sources and dual display outputs
• Huddle spaces requiring flexible HDMI source selection
• Boardroom AV infrastructure with video conferencing and local presentation sources
• Classroom technology installations with projector and display dual-output routing

Technical Specifications

• Model: HD-MD6X2-4K-E
• Inputs: 6x HDMI
• Outputs: 2x HDMI
• Video Resolution: 4K
• HDCP: Compliant
• Control Ports: RS-232, IR
• Form Factor: Compact appliance

Frequently Asked Questions

Q: Can both outputs display different sources simultaneously?
A: Yes. The HD-MD6X2-4K-E is a matrix switcher, so each output can independently display any of the 6 inputs at the same time.

Q: Does the HD-MD6X2-4K-E require a Crestron control processor to operate?
A: No. The switcher can be controlled via the front panel, RS-232, or IR commands without a Crestron processor. When integrated with a Crestron system, it can be controlled programmatically via RS-232 or TCP/IP.

Q: What is the maximum supported resolution?
A: The HD-MD6X2-4K-E supports 4K HDMI video. Refer to the Crestron product documentation for specific resolution and refresh rate combinations that are confirmed supported.
