| Video |
| Input Signal Type |
HDMI w/HDR10, Deep Color, 3D, & 4K60 4:4:4 support[1] (DVI & Dual-Mode DisplayPort compatible[2]) |
| Output Signal Type |
HDMI w/HDR10, Deep Color, 3D, & 4K60 4:4:4 support[1] (DVI compatible[2]) |
| Copy Protection |
Selectable for HDCP 2.2, HDCP 1.4, or HDCP disabled |
Maximum Resolutions
| Scan Type |
Resolution |
Frame
Rate |
Color
Sampling |
Color
Depth |
| Progressive |
4096x2160 DCI 4K
or
3840x2160 4K UHD |
24 Hz |
4:4:4 |
36 bit |
| 30 Hz |
4:4:4 |
36 bit |
| 60 Hz |
4:2:2 |
36 bit |
| 60 Hz |
4:4:4 |
24 bit |
| 2560x1600 WQXGA |
60 Hz |
4:4:4 |
36 bit |
| 1920x1080 HD 1080p |
60 Hz |
4:4:4 |
36 bit |
| Interlaced |
1920x1080 HD 1080i |
30 Hz |
4:4:4 |
36 bit |
NOTE: Common resolutions are shown; other resolutions are supported at pixel clock rates up to 600 MHz
|
| Audio |
| Input Signal Type |
HDMI (Dual-Mode DisplayPort compatible[2]) |
| Output Signal Type |
HDMI |
| Formats |
Dolby Digital®, Dolby Digital EX, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS®, DTS-ES, DTS 96/24, DTS HD High Res, DTS HD Master Audio, DTS:X, LPCM up to 8 channels |
| Communications |
| USB |
USB 2.0 host; supports firmware update and custom EDID upload via a USB flash drive |
| HDMI |
HDCP & EDID (does not pass CEC) |
| HDCP Version |
Selectable for HDCP 2.2, 1.4, or OFF;
HDCP encrypted content is blanked in OFF mode |
| EDID Mode |
Selectable for DEFAULT or COPY 1ST;
• The factory default EDID is 4K60 4:4:4 non-HDR video with 2-channel LPCM audio;
• The factory default EDID can be replaced with a custom EDID via USB;
• Sliding the switch from DEFAULT to COPY 1ST copies and stores the EDID from the device at OUTPUT 1 and passes it to the INPUT source device;
• Sliding the switch from COPY 1ST to DEFAULT erases the stored EDID and uses the factory default or custom EDID;
Note: Changing the device at OUTPUT 1 will not update the stored EDID until the switch is moved to DEFAULT and back to COPY 1ST
|

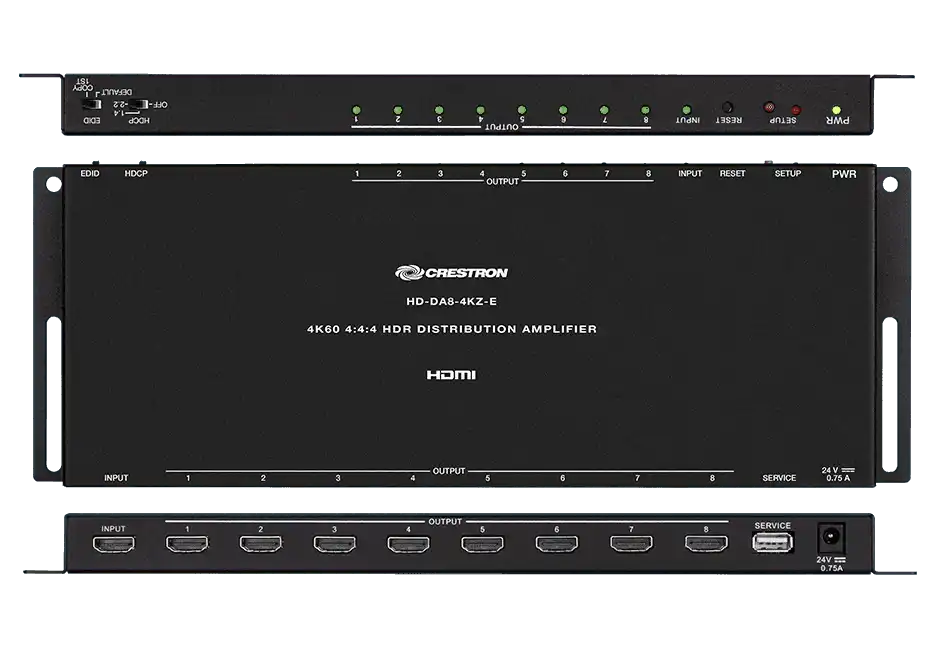

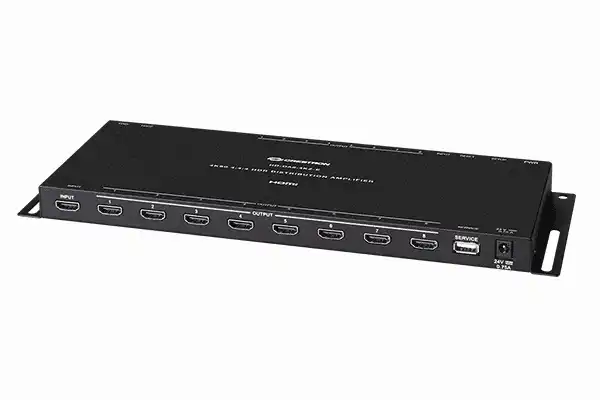

| Connectors |
| INPUT |
(1) HDMI Type A connector, female;
HDMI digital video/audio input[1];
(DVI & Dual-Mode DisplayPort compatible[2]) |
| OUTPUT 1 – 8 |
(8) HDMI Type A connectors, female;
HDMI digital video/audio outputs[1];
(DVI compatible[2]) |
| SERVICE |
(1) USB Type A connector, female;
USB 2.0 host port;
For firmware update and custom EDID upload via a USB flash drive |
| 24VDC 0.75A |
(1) 2.1 x 5.5 mm DC power connector;
24 Volt DC power input;
PW-2407WU power pack included |
| Controls & Indicators |
| PWR |
(1) Bi-color LED, indicates operating power is supplied via the power pack; illuminates amber while booting, green when operating |
| SETUP |
(1) Pushbutton and (1) red LED, restores factory settings |
| RESET |
(1) Recessed pushbutton for hardware reset |
| INPUT |
(1) Green LED, indicates video signal presence at the HDMI input |
| OUTPUT 1 – 8 |
(8) Green LEDs, each indicates video signal transmission at the corresponding HDMI output |
| HDCP |
(1) 3-position slide switch, selects the HDCP version (OFF, 1.4, or 2.2) |
| EDID |
(1) 2-position slide switch, selects the EDID mode (DEFAUT or COPY 1ST) |
| Power |
| Power Pack (included) |
Input: 100-240 Volts AC, 50/60 Hz;
Output: 0.75 Amps @ 24 Volts DC;
Model: PW-2407WU
|
| Power Consumption |
11.5 W |
| Environmental |
| Temperature |
32° to 104° F (0° to 40° C) |
| Humidity |
10% to 90% RH (non-condensing) |
| Enclosure |
| Chassis |
Metal, black finish, with (2) integral mounting flanges |
| Mounting |
Freestanding, surface mount, or attach to a single rack rail |
| Dimensions |
| Height |
0.87 in (22 mm) |
| Width |
12.82 in (326 mm) |
| Depth |
4.67 in (119 mm) |
| Compliance |
| CE, IC, FCC part 15 Class B digital device |
