Crestron GLS-OIR-CSM-EX-BATT – Wireless PIR Occupancy Sensor, infiNET EX, Battery-Powered
Crestron GLS-OIR-CSM-EX-BATT – Wireless PIR Occupancy Sensor, infiNET EX, Battery-Powered is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Crestron GLS-OIR-CSM-EX-BATT – Wireless PIR Occupancy Sensor, infiN...
Product Overview

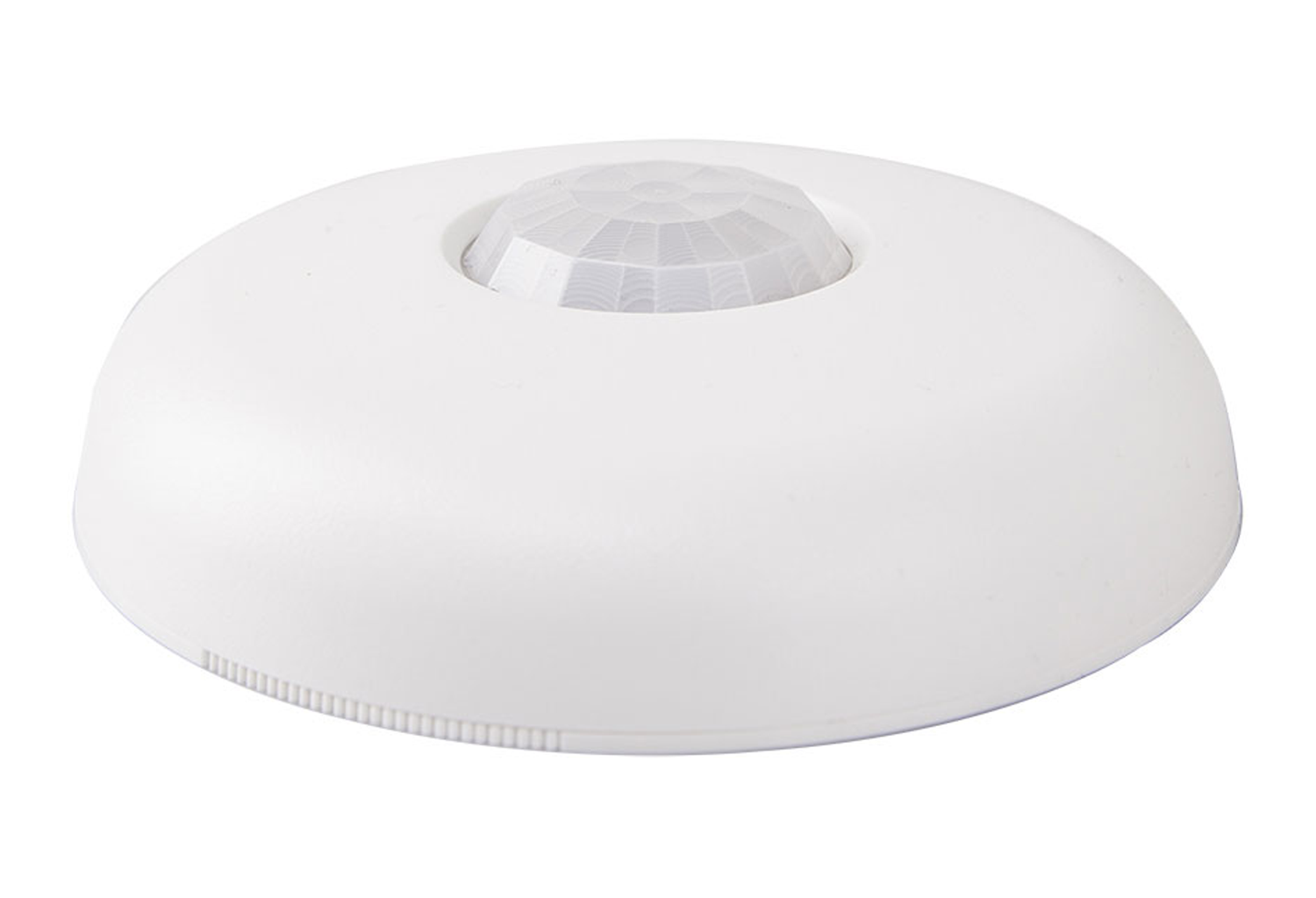

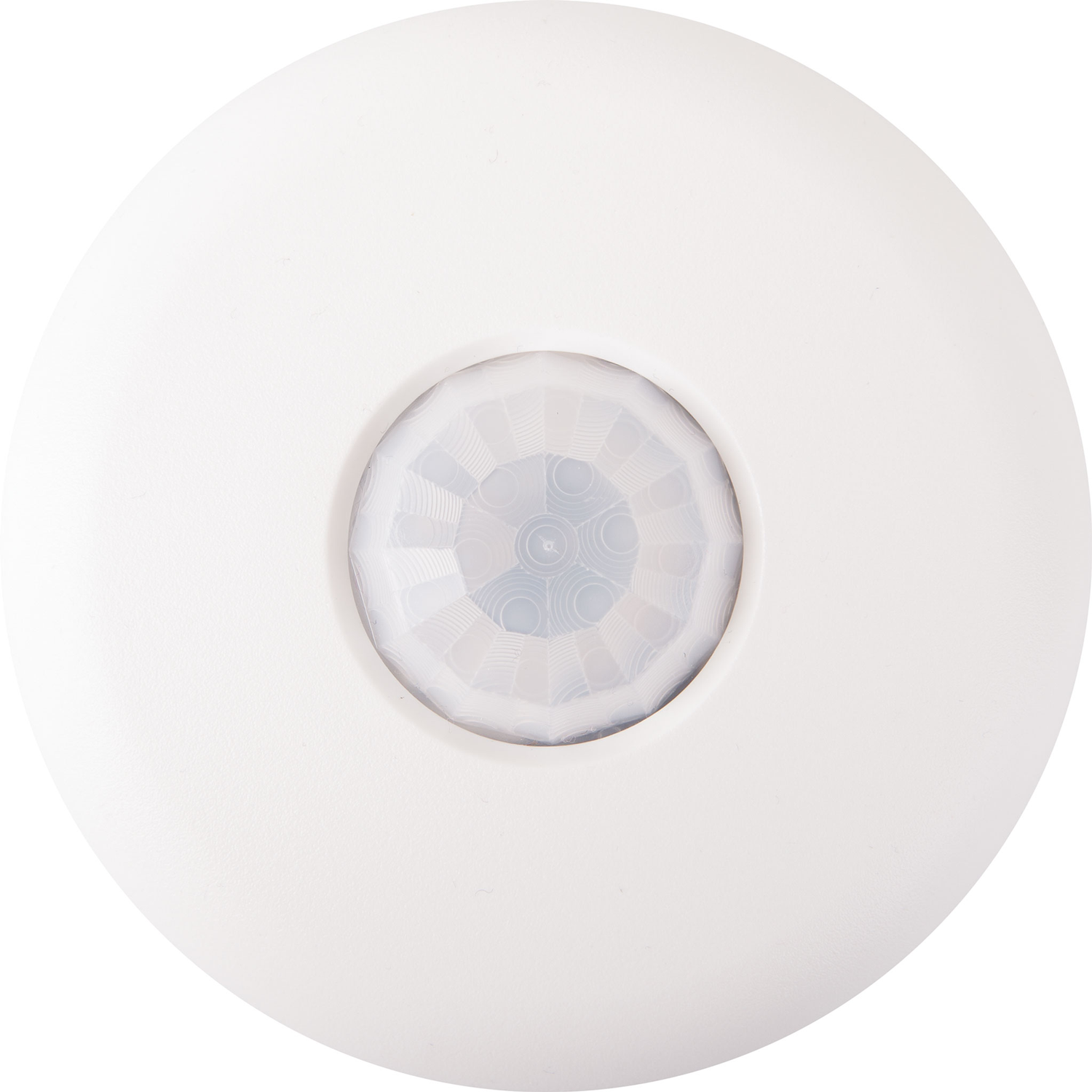

The Crestron GLS-OIR-CSM-EX-BATT is a wireless battery-powered passive infrared (PIR) occupancy sensor for ceiling surface-mount installation. It communicates via infiNET EX 2.4 GHz mesh wireless and runs for up to 10 years on an included 9V lithium battery, making it ideal for retrofit and renovation projects where wiring is not available.
Product Description
The GLS-OIR-CSM-EX-BATT detects occupancy over 500 sq ft in a 360° pattern from a ceiling surface-mount position. Sensitivity, timeout (30 seconds to 30 minutes), and detection zone masks are field-adjustable via controls behind the removable cover. Half and perforated masks are included for customizing the detection area. Vacancy mode (manual-on) is supported with a 15-second grace period. The sensor operates as a leaf node only on the infiNET EX mesh and requires a compatible gateway (CEN-GWEXER, DIN-AP3MEX, MC3, or PYNG-HUB, sold separately). The wireless range is approximately 50 ft (15 m) to the nearest gateway or mesh device. For ordering and project support, visit creationnetworks.net.
Key Features
- PIR occupancy detection; 360° pattern; 500 sq ft coverage from ceiling mount
- Battery-powered: Ultralife U9VL-J-P 9V lithium (included); up to 10-year battery life
- infiNET EX 2-way RF, 2.4 GHz, IEEE 802.15.4; 50 ft (15 m) range to nearest mesh device
- Adjustable timeout: 30 seconds to 30 minutes
- Vacancy mode with 15-second grace period; half and perforated detection masks included
- Red LED (PIR detection) and green LED status indicators; test pushbutton
- Ceiling surface-mount; 3 in. (76 mm) screw spacing
- Dimensions: 1.19 in. H × 4.38 in. diameter (31 × 112 mm)
- Weight: 3.5 oz (98 g) without battery; 4.8 oz (135 g) with battery
- Certifications: UL Listed, CE, IC, FCC Part 15 Class B
Typical Applications
- Retrofit occupancy sensing in commercial offices, conference rooms, and classrooms where wiring is not accessible
- Vacancy-based lighting control in spaces requiring wireless installation
- Temporary or modular installations requiring a battery-powered sensor with no electrical rough-in
- Small-to-medium rooms (up to 500 sq ft) in infiNET EX Crestron automation systems
Technical Specifications
| Specification | Value |
|---|---|
| Sensor Technology | Passive Infrared (PIR) |
| Coverage Area | 500 sq ft (46.5 sq m) |
| Coverage Pattern | 360° |
| Major Motion Area | 150–500 sq ft (13.9–46.4 sq m) |
| Minor Motion Area | 0–150 sq ft (0–13.9 sq m) |
| Battery | Ultralife U9VL-J-P 9V 1200 mAh lithium (included) |
| Battery Life | Up to 10 years (normal conditions) |
| Wireless Protocol | infiNET EX, 2.4 GHz, IEEE 802.15.4 |
| RF Range | ~50 ft (15 m) to nearest mesh device |
| Timeout Settings | 30 sec to 30 min (adjustable) |
| Dimensions (H × Diameter) | 1.19 in. × 4.38 in. (31 × 112 mm) |
| Weight (with battery) | 4.8 oz (135 g) |
| Mounting | Ceiling surface mount; 3 in. (76 mm) screw spacing |
| Finish | White plastic |
| Operating Temperature | 32°–104°F (0°–40°C) |
| Humidity | 0–95% RH, non-condensing; indoor use only |
| Certifications | UL Listed, CE, IC, FCC Part 15 Class B |
| Required Gateway (sold separately) | CEN-GWEXER, DIN-AP3MEX, MC3, or PYNG-HUB |
Frequently Asked Questions
- How long does the battery last?
- The included Ultralife U9VL-J-P 9V 1200 mAh lithium battery is rated for up to 10 years under normal operating conditions. Battery life depends on detection frequency and RF transmission activity.
- Does this sensor support vacancy mode?
- Yes. In vacancy mode, occupants must manually turn on lights while the sensor handles automatic turn-off after detecting vacancy. A 15-second grace period prevents false turn-offs during brief exits.
- Can this sensor be used without a Crestron control system?
- The GLS-OIR-CSM-EX-BATT communicates via infiNET EX and requires a compatible gateway connected to a Crestron control system for automation functionality. It cannot operate as a standalone device to directly switch a load.
