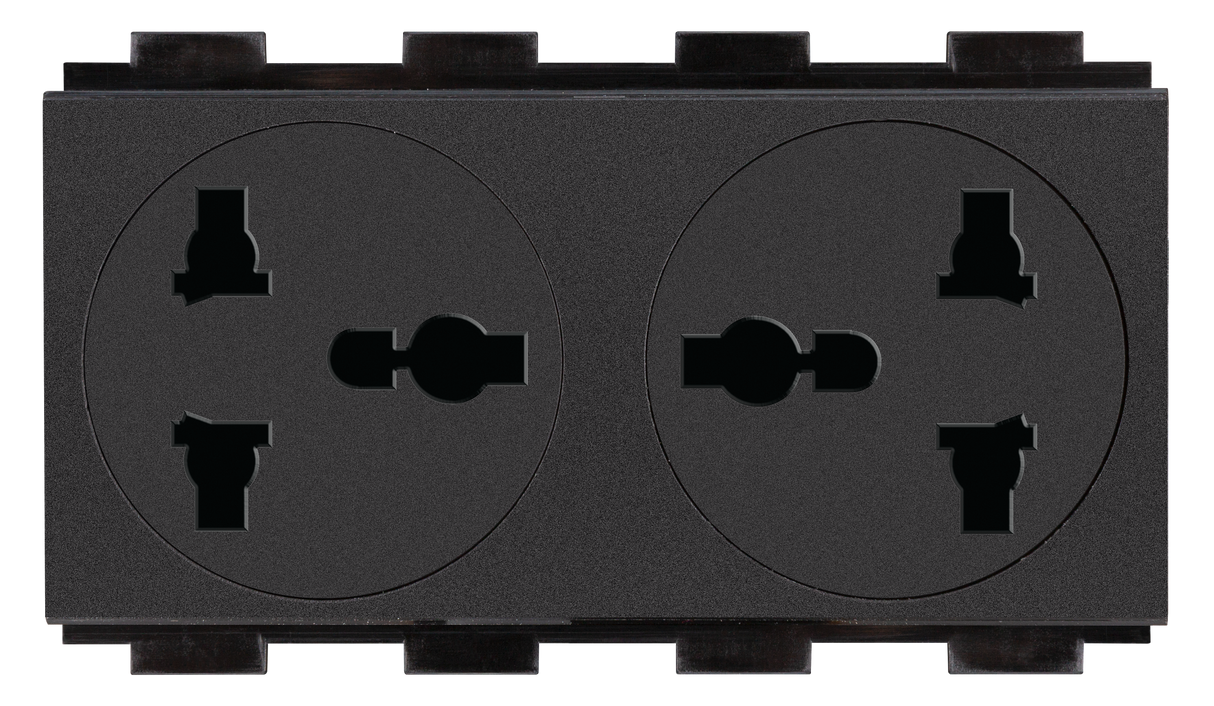

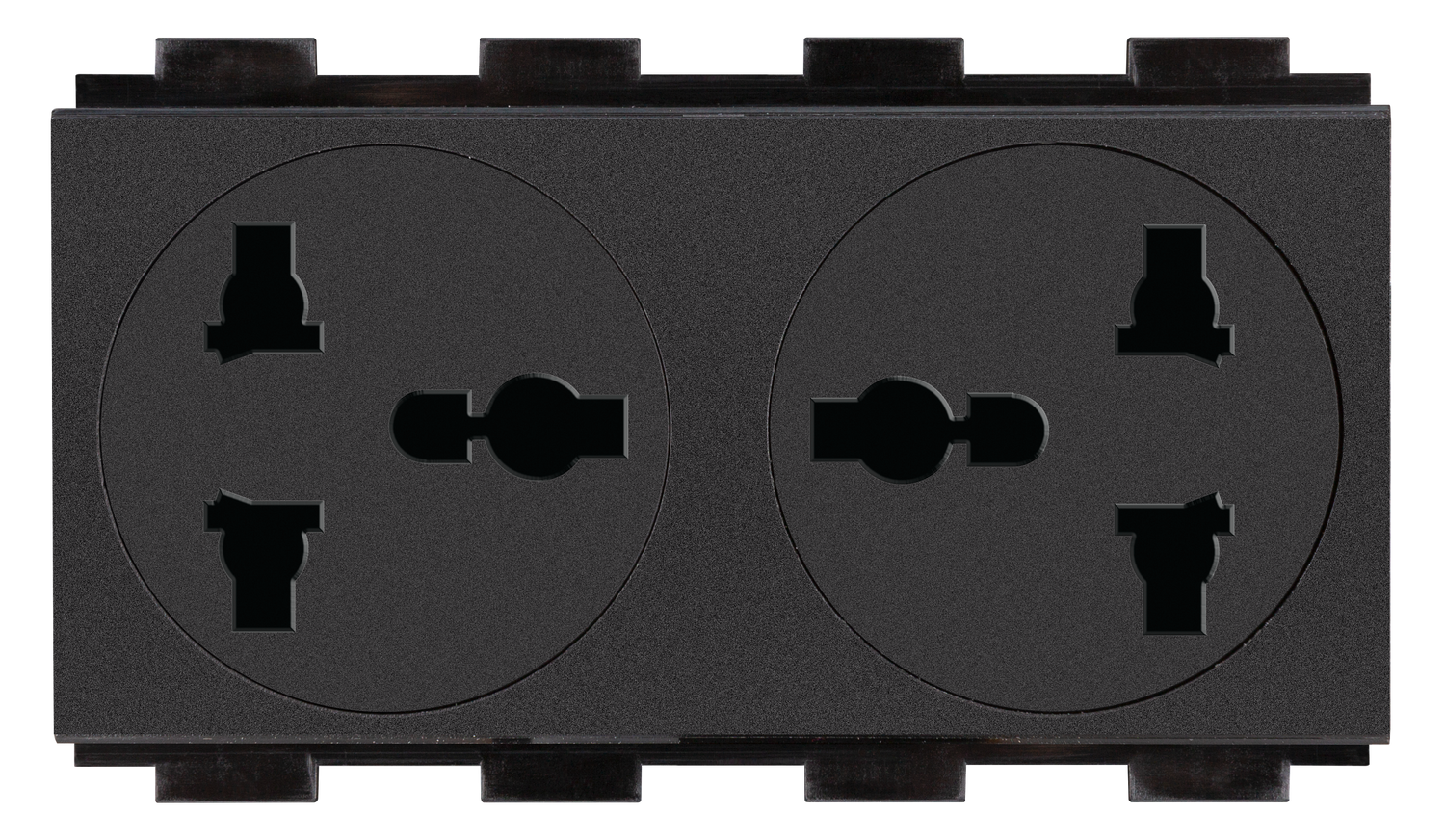

Crestron FT2A-PWR-UN-2 – FlipTop Dual Universal AC Power Module

Product Overview

The Crestron FT2A-PWR-UN-2 is a dual AC power outlet module for the FT2 Series FlipTop tabletop connectivity system. It provides four universal AC outlets — two accessible above the table surface and two below — and accepts mains voltage from 120 to 240 VAC at 50 or 60 Hz, making it compatible with electrical standards across North America, Europe, Asia, Australia, and other regions. The module occupies four consecutive module slots in the FT2 FlipTop chassis.

Product Description

The FT2 Series FlipTop is Crestron’s modular pop-up table connectivity system, designed for conference tables, training rooms, and collaborative workspaces where cable management and clean desk surfaces are priorities. The FT2A-PWR-UN-2 power module drops into the FlipTop chassis to add mains power directly at the table, eliminating power strips and floor cable runs. Its universal voltage input and compatibility with multiple international outlet configurations — including Type B, F, G, and I plugs — make it suitable for multi-region deployments or facilities serving international visitors. The module ships with a 9 ft (2.74 m) mating power cable; a country-specific cord set is required and sold separately. Other FT2 modules for HDMI, USB, data, and audio connectivity are available at creationnetworks.net to complete the FlipTop assembly.

Key Features

• 4 universal AC outlets total: 2 above table, 2 below table
• Universal input: 120–240 VAC, 50/60 Hz, rated 10A
• Compatible with Type B (US/Canada/Mexico), F (EU), G (UK), and I (AU/NZ/CN) outlet configurations
• Occupies 4 consecutive module slots in the FT2 FlipTop chassis
• Includes 9 ft (2.74 m) mating power cable; country cord set sold separately
• Precision-fit black plastic drop-in module construction

Typical Applications

• Conference room tables requiring accessible mains power at the table surface
• Training and classroom environments with FT2 FlipTop connectivity systems
• International meeting rooms requiring multi-region AC outlet compatibility
• Boardrooms and executive suites with modular table connectivity
• Hospitality and event spaces with temporary or permanent AV tables

Technical Specifications

• Outlets: (4) universal AC receptacles (2 above table, 2 below table)
• Input Voltage: 120–240 VAC, 50/60 Hz
• Maximum Current: 10A
• Module Slots Required: 4 consecutive slots in FT2 chassis
• Included Cable: 9 ft (2.74 m) mating power cable
• Compatible Outlet Configurations: Type B, F, G, I (international)
• Compatible Regions: US, Canada, Mexico, EU, Japan, Korea, Singapore, Saudi Arabia, Australia, New Zealand, China
• Operating Temperature: 32–113°F (0–45°C)
• Humidity: 10–90% RH non-condensing
• Compliance: WEEE
• Housing: Black precision-fit plastic

FAQs

Does the FT2A-PWR-UN-2 include a power cord?

The module includes a 9 ft (2.74 m) mating cable, but a country-specific cord set is required and sold separately. Confirm the appropriate cord set for your region when ordering.

How many module slots does this take up in the FT2 chassis?

The FT2A-PWR-UN-2 occupies 4 consecutive module slots. Ensure your FT2 chassis has 4 contiguous open slots before installation.

Can this module be used in North America and Europe without modification?

Yes. The universal input (120–240 VAC) and multi-configuration outlet design allow the same module hardware to be deployed across most regions, with the appropriate country cord set attached.

What FT2 chassis is required?

The FT2A-PWR-UN-2 is designed for FT2 Series FlipTop chassis. It is not compatible with earlier FT or FTQ series chassis. Verify chassis compatibility before ordering.

Where can I purchase this module?

The FT2A-PWR-UN-2 is available at creationnetworks.net from Creation Networks, an authorized Crestron dealer.
