Crestron FT2A-CBLR-BRKT-700 – Mid-Row Cable Retractor Bracket for FT2-700 FlipTop
Crestron FT2A-CBLR-BRKT-700 – Mid-Row Cable Retractor Bracket for FT2-700 FlipTop is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Crestron FT2A-CBLR-BRKT-700 – Mid-Row Cable Retractor Bracket for F...
Product Overview

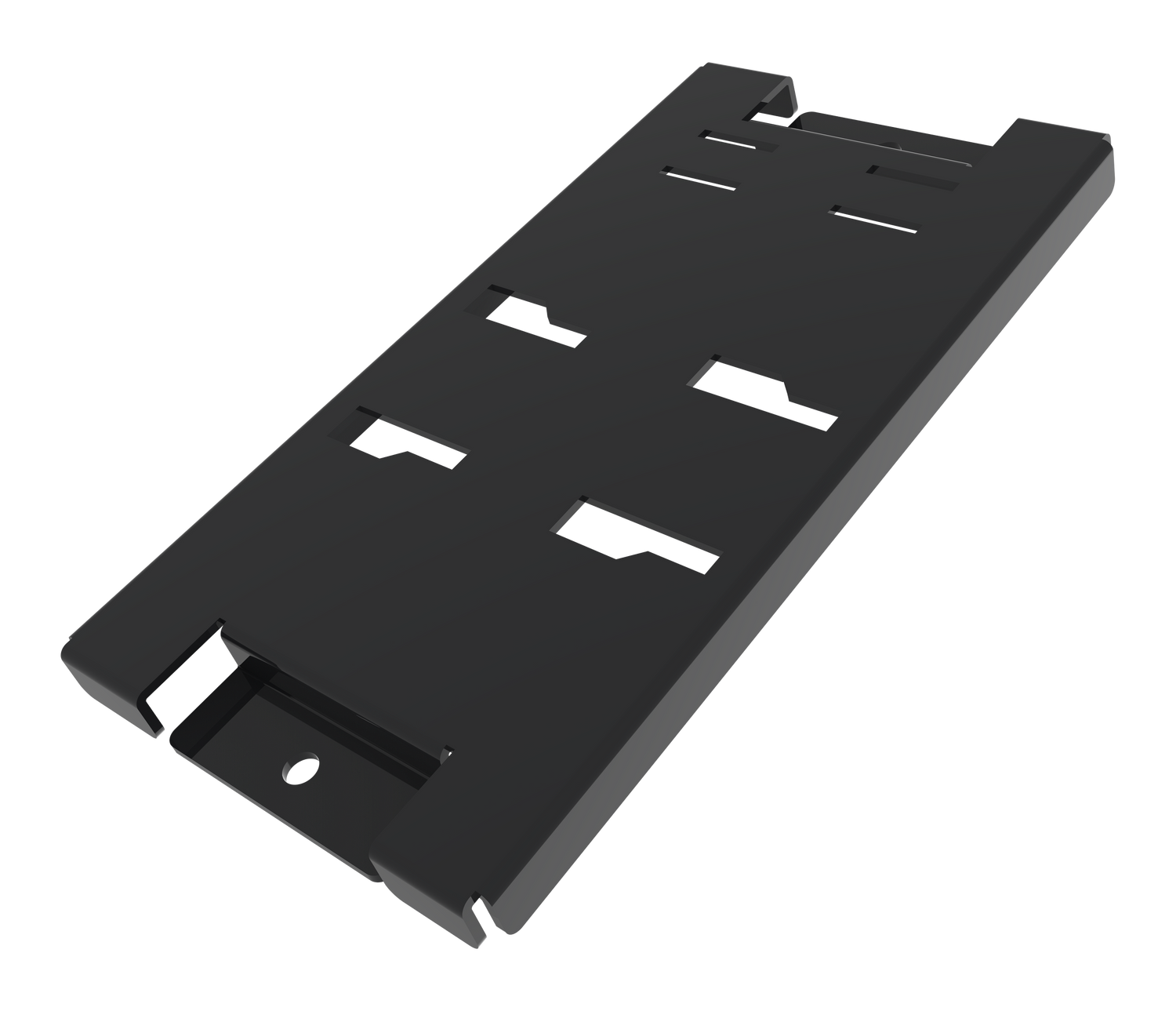

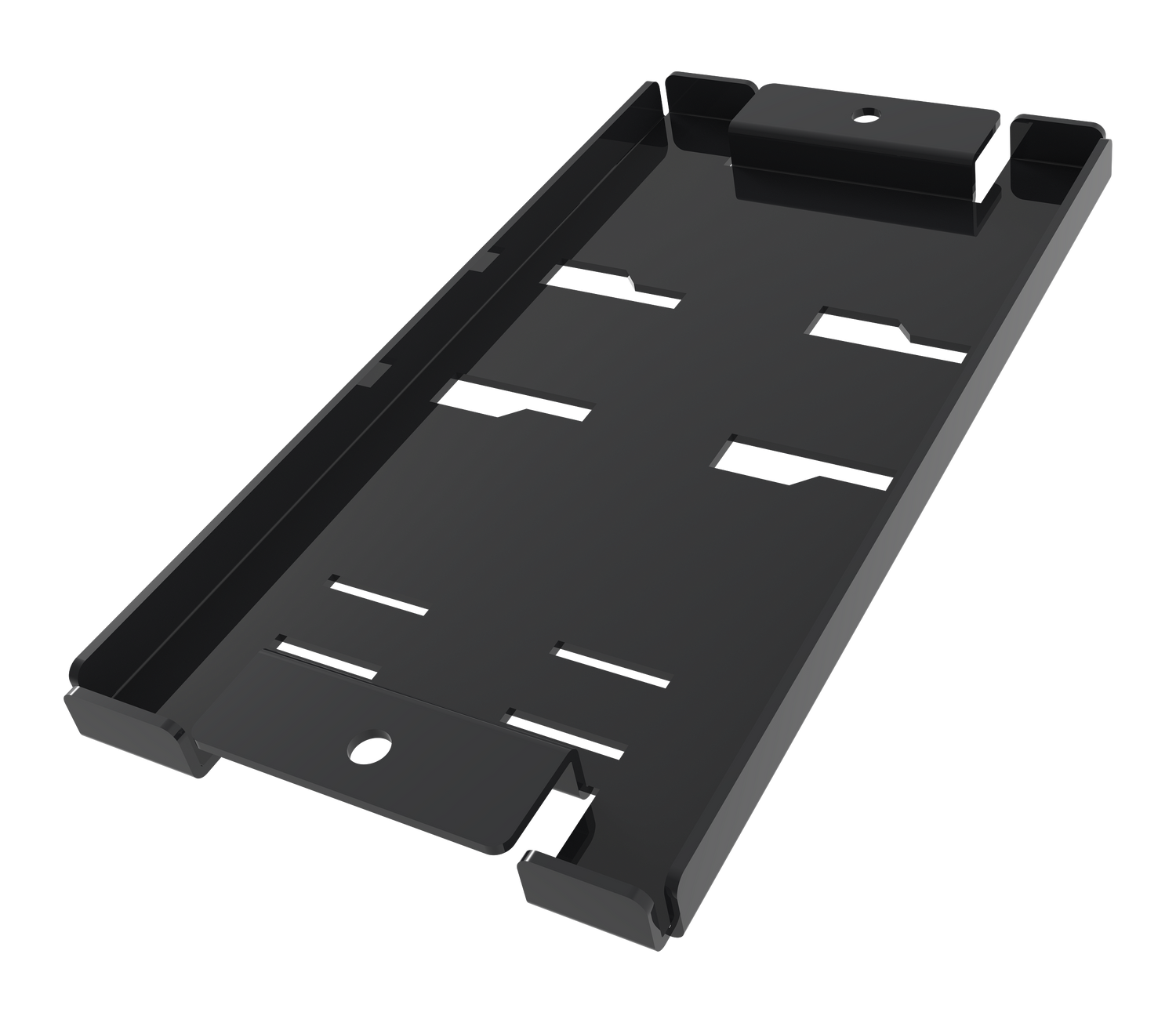

The Crestron FT2A-CBLR-BRKT-700 is a mid-row cable retractor adapter bracket for FT2-700 Series FlipTop systems (FT2-700-MECH and FT2-700-ELEC). It enables the installation of a cable retractor in the center module position of either module row on the FT2-700, a capability not available without this bracket. The kit includes the bracket and two 10-32 mounting screws.
Product Description
In standard FT2-700 FlipTop configurations, cable retractors can only be installed in end module positions. The FT2A-CBLR-BRKT-700 bracket unlocks the center module slots (positions 3 and 4) for retractor placement, providing more flexibility in FlipTop cable management design. The center-mounted retractor connector sits 90 degrees relative to other connectors in the row. Supports gravity retractors (FT2A-CBLR-GR, requires 2.75 in. clearance) and one-touch retractors (FT2A-CBLR-1T, requires 9 in. clearance). Up to two brackets per FlipTop (one front row, one rear row) are supported. Compatible retractors are sold separately at creationnetworks.net.
Key Features
- Mid-row cable retractor bracket for FT2-700 Series FlipTop
- Enables retractor installation in center module positions (slots 3 and 4)
- Compatible with FT2A-CBLR-GR (gravity) and FT2A-CBLR-1T (one-touch) retractors
- Bracket dimensions: 6.875 in. × 3.60 in.
- Includes 1 bracket + 2 mounting screws (10-32 × 5/16 SEMS Pan Head Phillips)
- Up to 2 brackets per FlipTop supported
Typical Applications
- FT2-700 FlipTop installations requiring center-row cable retractor placement
- Conference tables with FT2-700 systems needing flexible retractor positioning
- AV integrators customizing FlipTop cable management layout
Technical Specifications
- Compatible Systems: FT2-700-MECH, FT2-700-ELEC
- Compatible Retractors: FT2A-CBLR-GR (2.75 in. clearance needed); FT2A-CBLR-1T (9 in. clearance needed)
- Module Positions Used: Slots 3 and 4 (center)
- Bracket Dimensions: 6.875 in. × 3.60 in.
- Included: 1 bracket, 2 screws (10-32 × 5/16 SEMS Pan Head Phillips)
- Max Per FlipTop: 2 brackets
FAQs
- Is the cable retractor included?
- No. This is the bracket accessory only. Compatible retractors (FT2A-CBLR-GR or FT2A-CBLR-1T) are sold separately.
- What is the center-mounted connector orientation?
- The center retractor’s connector sits 90 degrees relative to the other connectors in the same module row.
- Where can I buy this?
- Available from Creation Networks at creationnetworks.net.
