Crestron FT2A-CBLR-1T-USB – One-Touch Retractable USB-A to USB-B Cable Module for FT2 ELEC Series

Product Overview

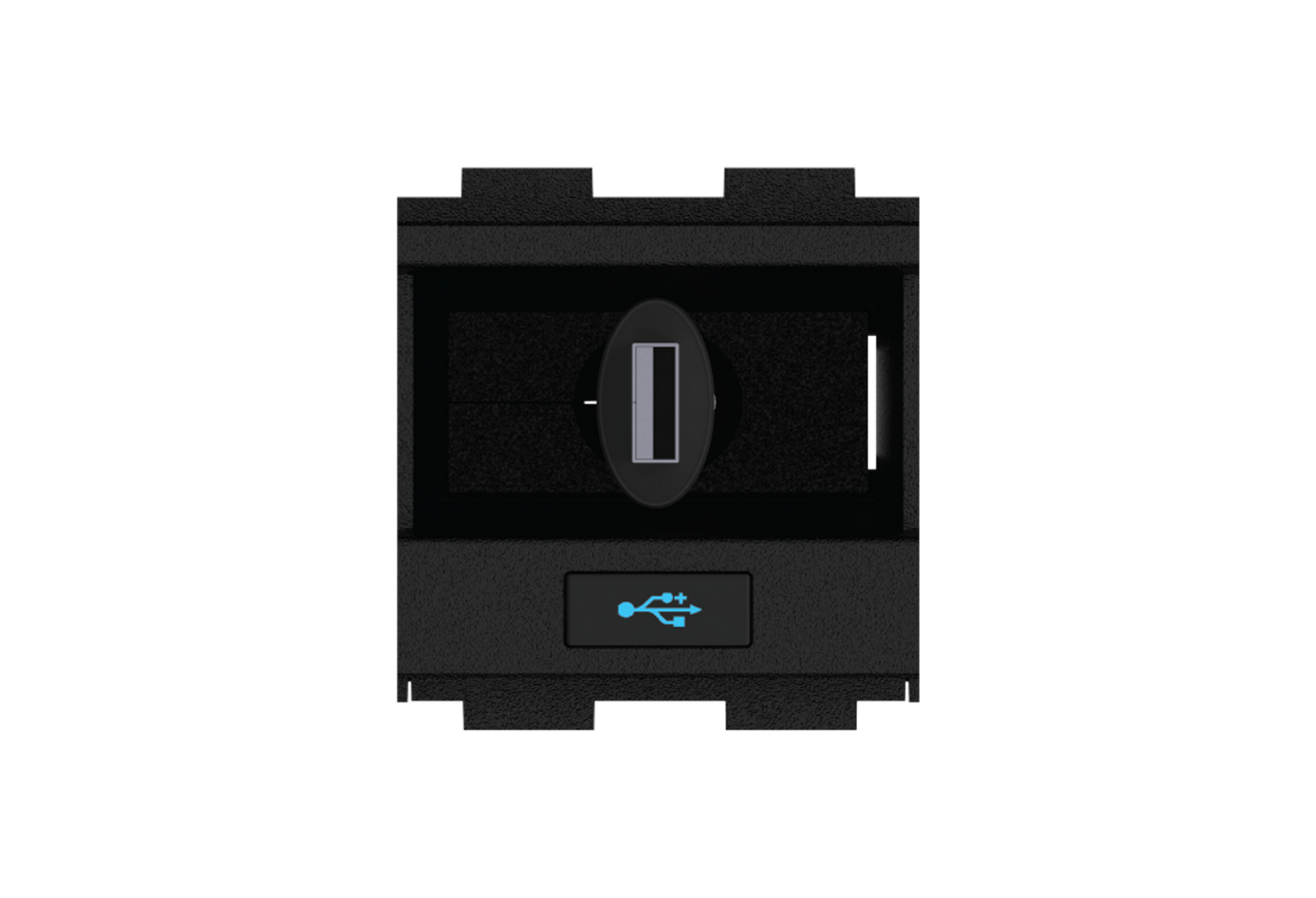

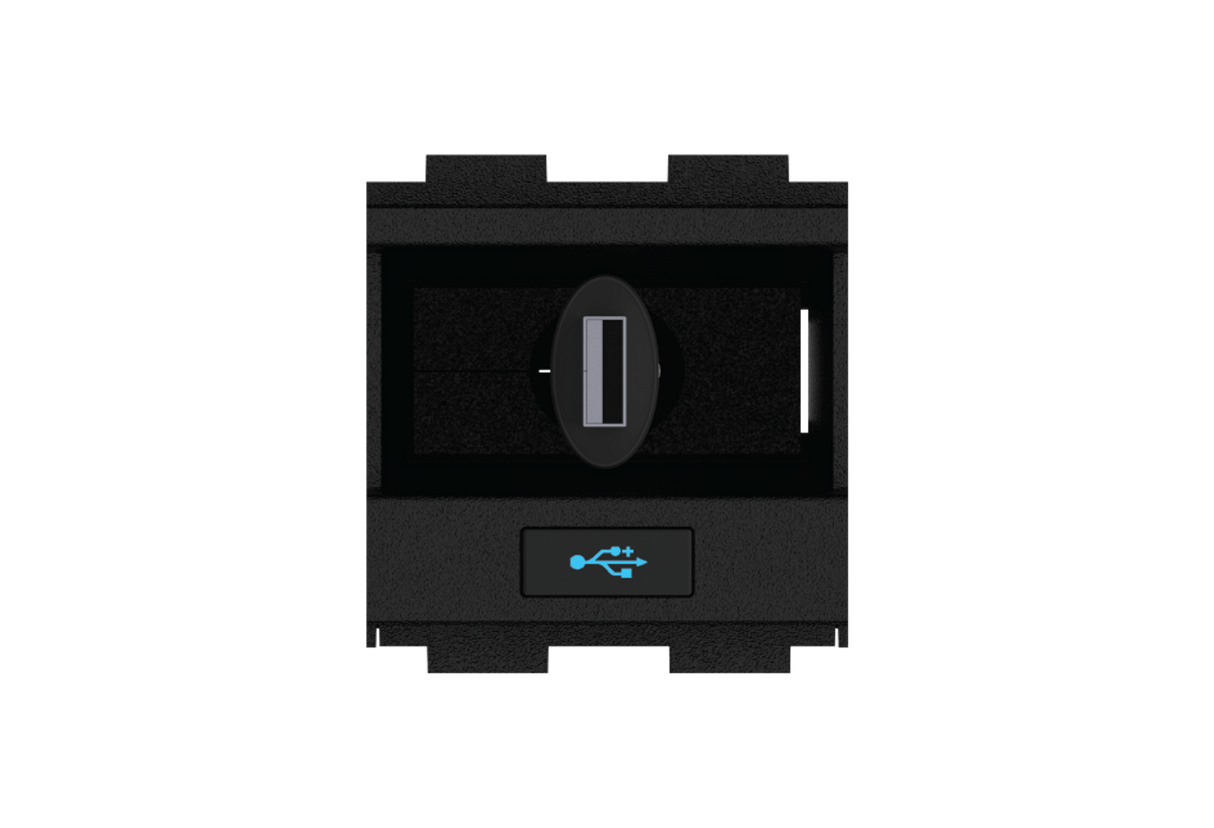

The Crestron FT2A-CBLR-1T-USB is a one-touch retractable cable module that installs into Crestron FT2 ELEC series FlipTop table enclosures. It provides a USB-A to USB-B, USB 2.0 connection at the table surface with a spring-retract mechanism: a single push extends the cable for use; another push retracts it fully into the enclosure. Designed for conference rooms, training rooms, and huddle spaces where a clean table surface is required when connectivity is not in use.

Product Description

The FT2A-CBLR-1T-USB is part of the FT2A modular accessory family for Crestron's second-generation FlipTop table box platform. It slots into the module bay of a compatible FT2 ELEC series enclosure and presents a USB-A to USB-B cable at the table surface when needed. The one-touch mechanism uses a spring-loaded retractor: pulling the cable extends it to approximately one meter, and a single push releases the tension and retracts the cable back into the enclosure. This eliminates cable clutter between meetings and protects the cable from damage when not in active use. USB-A to USB-B is the standard connection type for connecting a computer (USB-A host) to peripherals such as presentation interfaces, audio interfaces, document cameras, or printers (USB-B device). USB 2.0 data rates support all standard USB 2.0 peripheral types at full specification speed.

Key Features

• One-touch spring-retract mechanism — pull to extend, push to retract, no manual winding required
• USB-A to USB-B, USB 2.0 — standard host-to-device cable for peripherals and conferencing equipment
• Installs into FT2 ELEC series FlipTop enclosure module bays
• Approximately 1 meter cable extension length for practical table-surface reach
• Keeps table surface free of cable clutter between meetings
• Compatible with computers, printers, audio interfaces, document cameras, and other USB-B devices
• Part of the modular FT2A accessory ecosystem for mix-and-match table connectivity configurations

Typical Applications

• Conference room tables equipped with FT2 ELEC series enclosures requiring USB peripheral connectivity
• Training and classroom rooms where USB connections to instructor computers are frequently used
• Huddle spaces needing clean, managed USB access at the table surface
• Boardrooms with high aesthetic standards where exposed cables between meetings are not acceptable
• Any FT2 ELEC installation requiring USB 2.0 device connectivity with automatic cable management

Technical Specifications

FAQs

Is the FT2A-CBLR-1T-USB compatible with all FT2 enclosures, including non-ELEC variants?

The FT2A-CBLR-1T-USB is designed for the FT2 ELEC series (electrically powered FlipTop enclosures). Confirm compatibility with the specific FT2 enclosure model before ordering, as non-ELEC variants may have different module bay specifications.

What is the difference between the one-touch (1T) mechanism and a standard cable retractor?

A standard cable retractor requires the user to pull the cable out to the desired length and release it, with the spring tension holding position. The one-touch (1T) mechanism uses a push-push action: pull to extend and lock, push to release and retract. This provides a more controlled and deliberate operation suited to conference table use.

Can this module support USB 3.0 devices?

The FT2A-CBLR-1T-USB is rated for USB 2.0 speeds. It will physically connect USB 3.0 devices but will operate at USB 2.0 data rates. For applications requiring USB 3.0 throughput, a different cable module would be required. See the full FT2A module range at creationnetworks.net.
