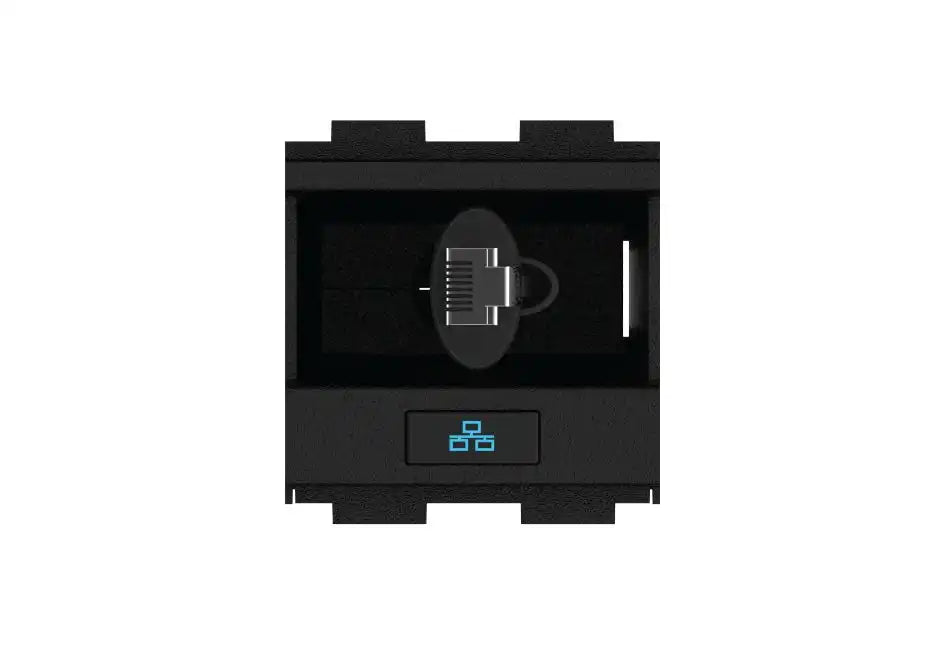

Crestron FT2A-CBLR-1T-CAT6 One-Touch Cable Retractor for FT2 ELEC Series, RJ-45 to RJ-45, CAT6

Product Overview

The Crestron FT2A-CBLR-1T-CAT6 is a one-touch cable retractor for FT2 ELEC Series FlipTop cable management systems, terminated RJ-45 to RJ-45 with CAT6 cable. It uses an electrically clutched, spring-powered mechanism so the cable pulls out smoothly and retracts at the touch of a button. The retractor is ideal for conference tables where space beneath the surface is limited. An LED backlight indicates cable connector status.

Product Description

This one-touch retractor adds a clean, self-storing wired network connection to an FT2 ELEC FlipTop compartment. Users pull the CAT6 cable out up to 5 ft (1.52 m) to reach a laptop or device, and a button press retracts it gently back into the enclosure beneath the table. The RJ-45 to RJ-45 CAT6 cable provides a reliable Gigabit-class wired link for meeting participants who need stable connectivity. The electrically clutched retraction mechanism delivers controlled, repeatable operation suited to high-traffic meeting spaces. The included backlit module identifies the connection type and shows status in low-light rooms. The retractor installs into FT2 ELEC compartments such as the FT2-700-ELEC-PTL series. By combining connectivity and cable storage in one module, it reduces clutter at the table surface. The unit is designed and warranted for professional commercial AV installations.

Key Features

• One-touch retraction — Electrically clutched, spring-powered mechanism retracts the cable at the touch of a button.
• RJ-45 to RJ-45 CAT6 — Provides a wired network connection from a user device to the FT2 connection point.
• 5 ft pull-out — Extends up to 5 ft (1.52 m) to reach a user device.
• Backlit status — LED backlight on the module identifies the connection and shows status.
• Space-saving design — Suited to tables with limited room beneath the surface.
• FT2 ELEC compatible — Installs into FT2 ELEC FlipTop cable management compartments.

Typical Applications

• Conference tables — Provides a retractable wired network connection at the meeting surface.
• Boardrooms — Offers a stable Ethernet link for participants who avoid wireless.
• Training rooms — Keeps network cables stored and tidy between sessions.
• Lecterns — Delivers a clean wired connection that retracts when not in use.

Technical Specifications

Frequently Asked Questions

Which compartments does this retractor fit?
It installs into FT2 ELEC Series FlipTop cable management systems, such as the FT2-700-ELEC-PTL-B.

How far does the cable pull out?
The CAT6 cable extends up to 5 ft (1.52 m), then retracts at the touch of a button.

What is the connection used for?
It provides a wired RJ-45 network link for meeting participants who need stable, hardwired connectivity.

What other retractors are available for FT2 ELEC?
Crestron also offers the FT2A-CBLR-1T-HD for HDMI and the FT2A-CBLR-1T-USBC-PWR for USB-C with power.

What warranty and support apply?
This product carries a Crestron 3-year limited warranty. For module selection help, Contact Creation Networks.
