Crestron FT2A-CBLR-1T-4K-USBC-HD – One-Touch USB-C to HDMI Cable Retractor
Crestron FT2A-CBLR-1T-4K-USBC-HD – One-Touch USB-C to HDMI Cable Retractor is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Crestron FT2A-CBLR-1T-4K-USBC-HD – One-Touch USB-C to HDMI Cable Re...
Product Overview

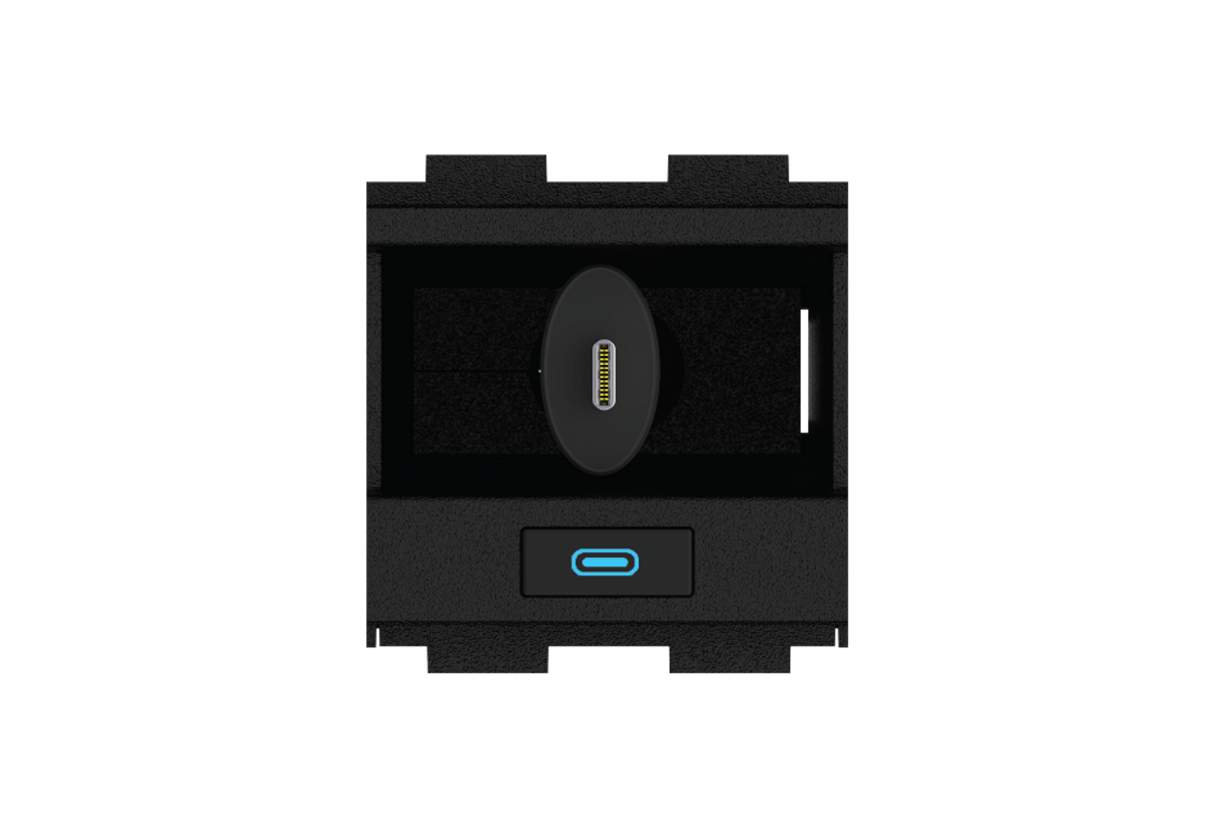

The Crestron FT2A-CBLR-1T-4K-USBC-HD is a one-touch retractable cable module for Crestron FT2 ELEC Series FlipTop systems. It provides a USB-C to HDMI active cable with 18 Gbps bandwidth, supporting 4K60 4:4:4, HDR, and HDCP 2.2, with a spring-powered electrically clutched retraction mechanism. The cable extends up to 5 ft (1.5 m) above the table surface and retracts at the press of a button.
Product Description
Designed exclusively for Crestron FT2 ELEC Series FlipTop cable management systems, this retractor drops into two module slots in the FlipTop chassis and connects to the Cresnet bus for remote retraction control. The USB-C connector at the source end converts to HDMI at the sink end using active circuitry, delivering reliable 4K HDR signal quality over the retractable cable run. A front-panel pushbutton with a blue LED indicator actuates retraction; the LED flashes if the cable cannot retract due to tension or obstruction. The under-table retractor enclosure requires a minimum of 11.6 in. (295 mm) vertical clearance and projects 8.4 in. (213 mm) from the side of the FlipTop chassis. Note: this model has a shorter below-table tail of 2.75 ft (0.8 m) compared to standard FT2A retractor models. Not compatible with FT2 MECH Series FlipTops. For ordering information, visit creationnetworks.net.
Key Features
- USB-C (male) to HDMI Type A (male) active cable with 18 Gbps minimum bandwidth
- Supports 4K60 4:4:4, HDR, and HDCP 2.2 for high-resolution presentation sources
- Spring-powered retraction with electrical clutch; extends up to 5 ft (1.5 m) above table
- One-touch pushbutton retraction with blue LED backlit connector type indicator
- Cresnet connection for remote retraction actuation from a Crestron control system
- Occupies 2 module slots in FT2 ELEC Series FlipTop chassis
- Below-table tail: 2.75 ft (0.8 m) — compact for limited under-table depth installations
- CE certified
Typical Applications
- Conference rooms and boardrooms with FT2 ELEC Series FlipTop systems where USB-C laptops connect to room displays
- Training rooms requiring 4K HDMI presentation from USB-C source devices
- Installations with limited under-table vertical clearance needing the shorter-tail retractor variant
- Any FT2 ELEC Series FlipTop installation requiring USB-C to HDMI connectivity with retractable cable management
Technical Specifications
| Specification | Value |
|---|---|
| Source Connector | USB Type-C male |
| Sink Connector | HDMI Type A male |
| Signal Bandwidth | 18 Gbps (minimum TMDS) |
| Video Support | 4K60 4:4:4, HDR, HDCP 2.2 |
| Cable Extension | Up to 5 ft (1.5 m) above table |
| Below-Table Tail | 2.75 ft (0.8 m) |
| Module Slots Required | 2 |
| Communication | Cresnet (via FlipTop connection) |
| Minimum Under-Table Clearance | 11.6 in. (295 mm) |
| Retractor Enclosure Dimensions (H × W × D) | 8.95 × 10.30 × 2.24 in. (228 × 262 × 57 mm) |
| Operating Temperature | 32° to 113°F (0° to 45°C) |
| Humidity | 10% to 90% RH, non-condensing |
| Certifications | CE |
| Compatibility | FT2 ELEC Series only (not FT2 MECH Series) |
Frequently Asked Questions
- Is the FT2A-CBLR-1T-4K-USBC-HD compatible with FT2 MECH Series FlipTops?
- No. This retractor is compatible only with Crestron FT2 ELEC Series FlipTop systems. FT2 MECH Series FlipTops require different retractor accessories.
- Why is the below-table tail shorter on this model?
- The 2.75 ft (0.8 m) below-table tail is designed for installations with limited under-table routing depth. Standard FT2A retractor models feature a 4.75 ft tail for longer routing runs.
- Does this cable support DisplayPort Alternate Mode?
- This cable uses active USB-C to HDMI conversion circuitry to support DisplayPort Alternate Mode over USB-C to HDMI output, enabling 4K60 HDR video from compatible USB-C source devices.
